Default 92 Miata no Spark - DIYPNP

Car: 92 Turbo Miata 1.6L manual.

Problem: Will not start with DIYPNP MS2. Car starts with stock ECU.

I am getting fuel but no spark when checked with timing light or with in-line spark test bulb.

When I do the Output test for coil in TunerStudio (TS) I hear some tapping sound in sequence but timing light shows nothing.

I do not see RPM move while cranking in TS. The only gauges that work is Fuel Load and AFR because I have AEM Wideband.

Am I suppose to wire the CAS signals to DIYPNP or they are already in the pin-outs in car harness because I seem to find all kind of different info online which is confusing me even more.

I have uploaded my msq file.

I followed installation instructions here:
DIYPNP MegaSquirt installation for the Mazda Miata
Attached Files
File Type: msq CurrentTune.msq (84.8 KB, 79 views)
spec1sef is offline   Reply With Quote
Old 11-11-2012, 09:20 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Was your project in TS setup for microsquirt and not megasquirt?

When I open your MSQ I got errors that suggested your project is not setup properly. If not, TS changes a bunch of Input and Outputs to ones that make sense on a v3.0 Mainboard and not a Microquirt module. This would prevent the unit from working properly.

for example, sparkout was set to D14...which is not a DIYPNP output.

Fix your project properties by hitting cntrl+p, go to settings, and select "micosquirt module" under the megasquirt selection.

Then reload the basemap (NOT your map you uploaded) and try again.
Braineack is offline   Reply With Quote
Old 11-11-2012, 10:28 AM   #3
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default Error loading base map

I started new project and when setting up I clicked on Detect ECU and it came up "MS2Extra Serial324"

Then I selected the Microsquirt Module DIYPNP under Settings tab.

When I try to Open the base map (91 miata 240cc injectors.msq) that is provided at DIYautotune I get the following error:
Signatures do not match!
Tune File signature:MS2Extra Rel 3.0.3s
Configuration signature:MS2Extra Serial324

Do you want to load it anyway?
spec1sef is offline   Reply With Quote
Old 11-11-2012, 10:33 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yes, that's fine.
Braineack is offline   Reply With Quote
Old 11-11-2012, 10:43 AM   #5
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
yes, that's fine.
I clicked Yes load anyway.

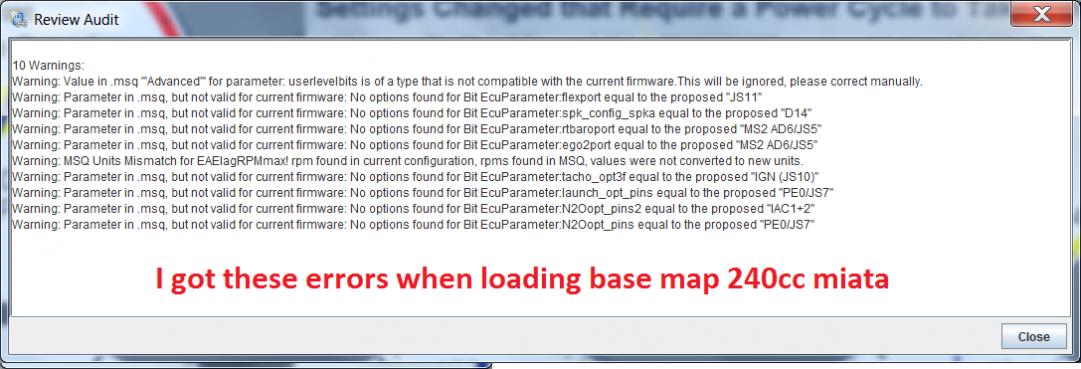

I got the following errors. Check attached picture.

EDIT: FIXED
Attached Thumbnails
92 Miata no Spark - DIYPNP-error_firm_load.jpg
spec1sef is offline   Reply With Quote
Old 11-11-2012, 11:00 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

try the attached.
Attached Files
File Type: msq 91 miata 240cc injectors.msq (79.0 KB, 156 views)
Braineack is offline   Reply With Quote
Old 11-11-2012, 11:02 AM   #7
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default New loaded map and Composite log

Please see the base map reloaded and set the settings. Currently no errors on load.

I also attached the composite logger.
Attached Files
File Type: msq CurrentTune.msq (84.0 KB, 88 views)
File Type: csv Composite_log_2012-11-11_09.59.18.csv (10.7 KB, 74 views)
spec1sef is offline   Reply With Quote
Old 11-11-2012, 11:45 AM   #8
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default No RPM

Quote:
Originally Posted by Braineack View Post
try the attached.
I have no RPM indication either when cranking.
I have no data showing when diagnosing under trigger logger.
spec1sef is offline   Reply With Quote
Old 11-11-2012, 11:55 AM   #9
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
try the attached.

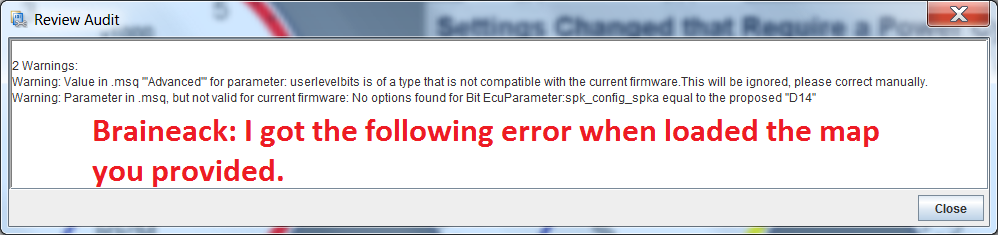

Please see the error I got when I loaded this map.

I disabled the "PM4 Accel LED" under Output port setting.
Attached Thumbnails
92 Miata no Spark - DIYPNP-error_braineack_map.png
spec1sef is offline   Reply With Quote
Old 11-11-2012, 11:57 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

can you take pics of your diypnp wire mods? lets double check you put everything to the right spot
Braineack is offline   Reply With Quote
Old 11-11-2012, 12:41 PM   #11
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default Wiring

Quote:
Originally Posted by Braineack View Post
can you take pics of your diypnp wire mods? lets double check you put everything to the right spot

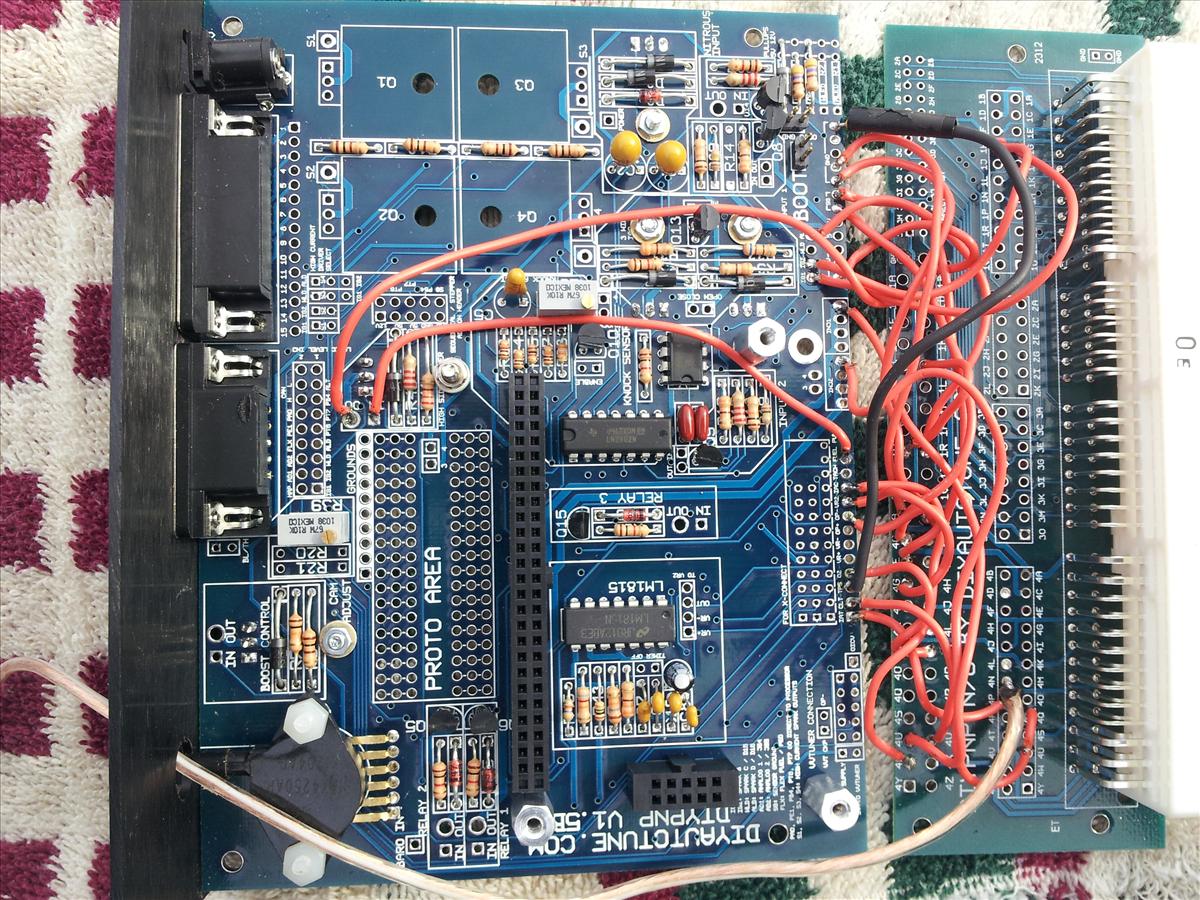

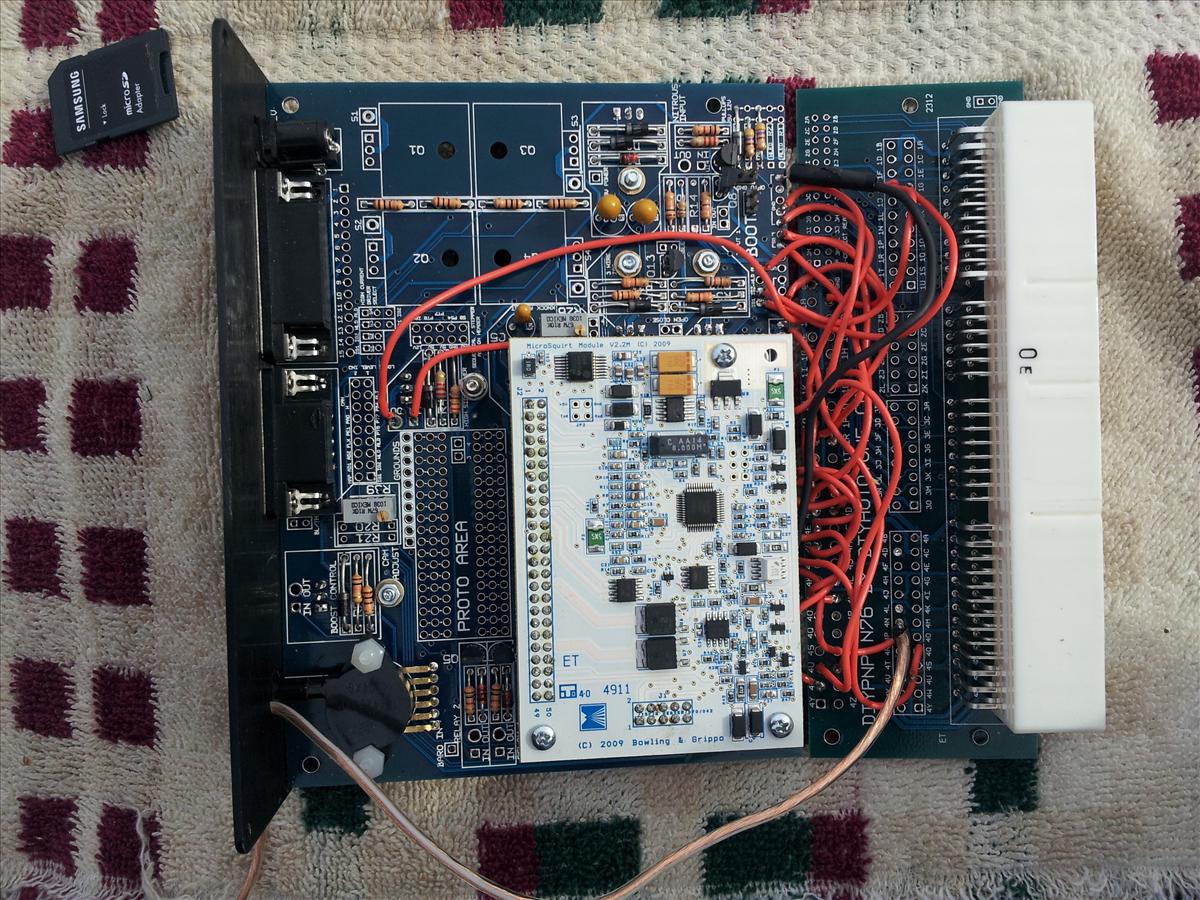

Please see attached pictures. I verified wiring as stated below.

DIYPNP wiring: Starting from left on main board.

Main board ---> Connector Board
IAT --> 4P
CLT --> 4Q
TPS --> GND on main board.
O2 --> 4N
VR+
VR-
OP+
OP- --> 4E
VR2 --> 4G
IAC --> 4W
TACH
FUEL --> IN on High side driver next to proto area.
INJ2 --> 4V
INJ1 --> 4U
12V --> 1B
SG --> 4C
SG --> 4D
GND --> 4B
GND --> 4A
GND --> *TPS with resistor
IG1 --> 1G
IG2 --> 1H
WLD
ALD --> 1R
High Side out --> 1C
AEM Analog signal --> 4N
Attached Thumbnails
92 Miata no Spark - DIYPNP-1200px-20121111_111854.jpg   92 Miata no Spark - DIYPNP-1200px-20121111_111732.jpg   92 Miata no Spark - DIYPNP-1200px-20121111_111716.jpg
spec1sef is offline   Reply With Quote
Old 11-13-2012, 04:59 PM   #12
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

anybody help!
spec1sef is offline   Reply With Quote
Old 11-13-2012, 05:58 PM   #13
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Miata installs SHOULD NOT use R39 on a DIYPNP. You are not getting a cam signal. First try removing R39 and see if that fixes it.
Matt Cramer is offline   Reply With Quote
Old 11-13-2012, 07:26 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

remove r39.
Braineack is offline   Reply With Quote
Old 11-14-2012, 07:32 PM   #15
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Matt Cramer View Post
Miata installs SHOULD NOT use R39 on a DIYPNP. You are not getting a cam signal. First try removing R39 and see if that fixes it.

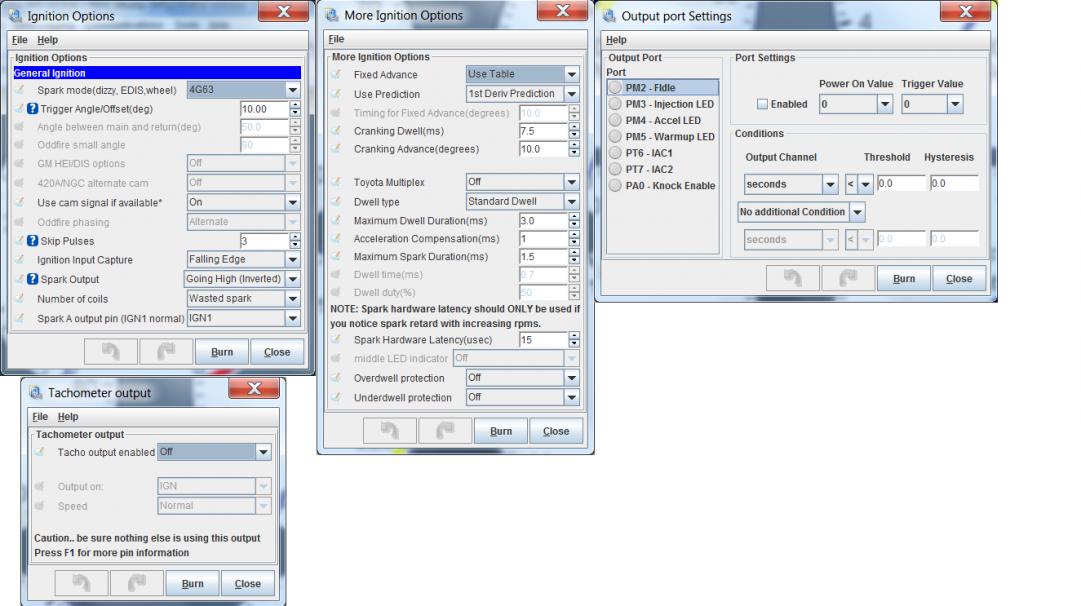

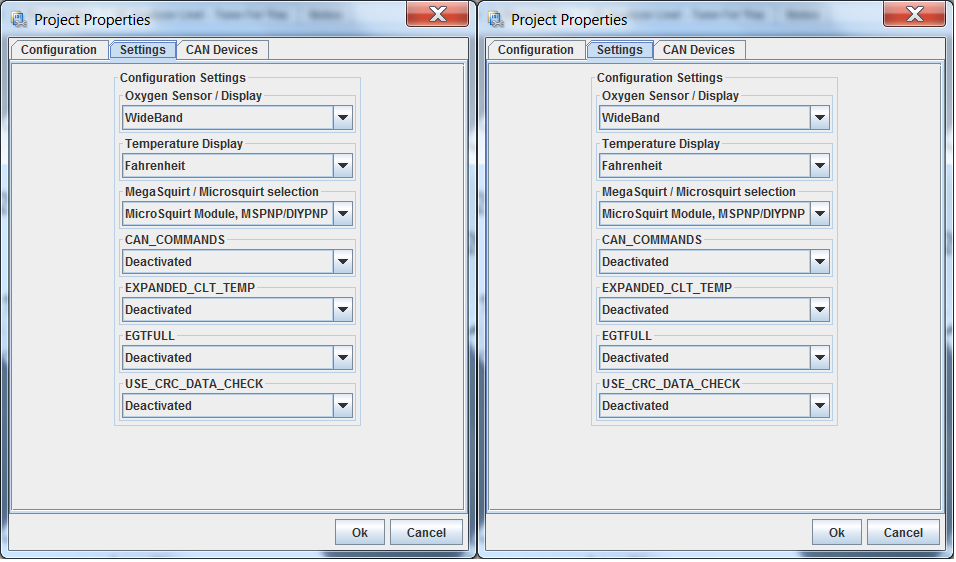

Removed R39. Still no Spark. I am posting my settings from Tuner Studio. Please see attached pictures.
Attached Thumbnails
92 Miata no Spark - DIYPNP-1_project_settings.png   92 Miata no Spark - DIYPNP-2_other_settings.jpg
spec1sef is offline   Reply With Quote
Old 11-14-2012, 07:43 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

composite log screenshot.
Braineack is offline   Reply With Quote
Old 11-15-2012, 06:57 PM   #17
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default Composite log

Quote:
Originally Posted by Braineack View Post
composite log screenshot.

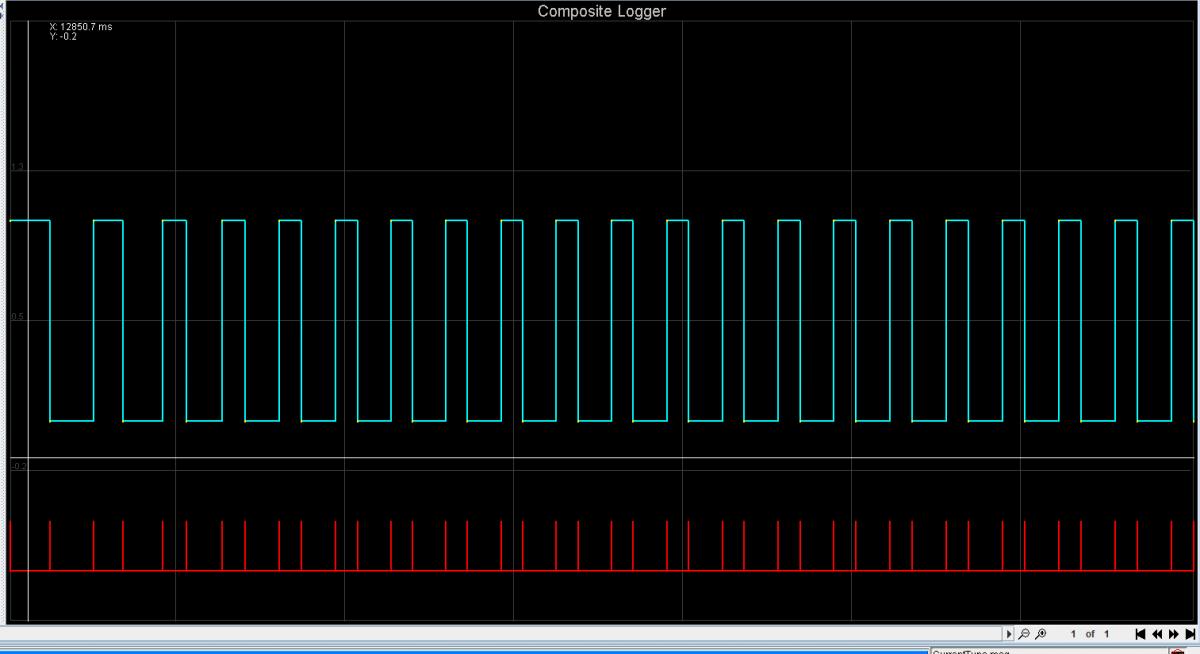

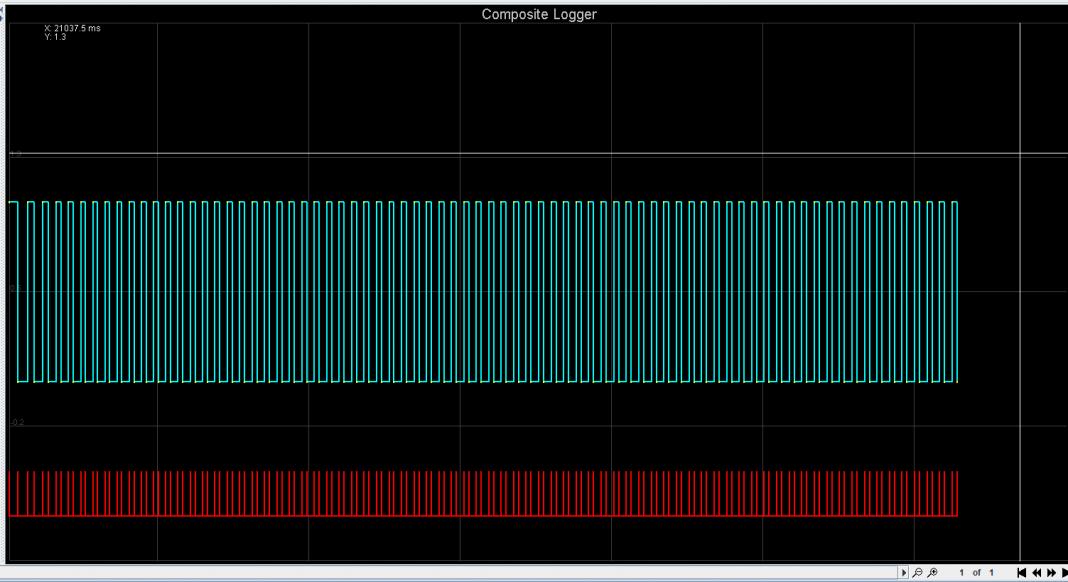

Here is the Composite log. Full view and zoomed in view.
Attached Thumbnails
92 Miata no Spark - DIYPNP-composite_log1.jpg   92 Miata no Spark - DIYPNP-composite_log1zoom.jpg
Attached Files
File Type: csv Composite_log_2012-11-15.csv (10.8 KB, 72 views)
spec1sef is offline   Reply With Quote
Old 11-16-2012, 10:09 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

still no cam input.
Braineack is offline   Reply With Quote
Old 11-16-2012, 10:38 AM   #19
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
still no cam input.
What do I need to check now? I removed the R39. Do I need to run wires from CAS to megasquirt or is it already done in the factory harness?

I have the R14 removed too.

Last edited by spec1sef; 11-16-2012 at 12:39 PM.
spec1sef is offline   Reply With Quote
Old 11-16-2012, 11:12 AM   #20
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
still no cam input.
I don't think I need to jump these for 1992 Miata because I didn't do that on my v1.5 board?

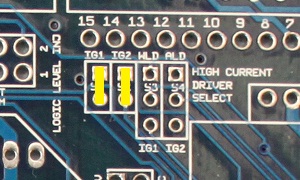

"Using only the first two jumpers as in the above image would control a 4cyl wasted spark configuration, such as controlling either one 4 tower coil pack, or two dual tower packs. This setup would use only outputs S1 and S2."
Attached Thumbnails
92 Miata no Spark - DIYPNP-4_cyl_wasted_spark.jpg
spec1sef is offline   Reply With Quote
