99 with 04 mazdaspeed, cranked but wont run - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 07-25-2012, 11:24 PM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default 99 with 04 mazdaspeed, cranked but wont run

99 mazdaspeed swap using stock 99 harness & ign. Car runs fine with stock ecu until it hit boost bc there no timing control. Installed in parallel, MS2(firmware 3.1.1) with CAS & unplugged stock cam & crank sensor. Reading as much as I can but still a noob, so any help would be great.
Attached Files
File Type: msl 2012-07-25_20.29.30.msl (80.6 KB, 68 views)
speester1 is offline   Reply With Quote
Old 07-26-2012, 12:24 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Why not run the stock sensors?
hustler is offline   Reply With Quote
Old 07-26-2012, 01:50 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

Can I run it with the stock sensors & how would I setup it up in MS? The PO had this setup on 00 turbo NB, so I want it to be simple.
speester1 is offline   Reply With Quote
Old 07-27-2012, 02:28 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

Help, anyone? When I trying to set the timing with CAS, I notice pulses are too slow to see the mark. It can't be the battery bc it's full charged, so Im looking at my wiring harness & unsure about d37 pin 24 white shielded wire for cpk & pin 25 for cmp. What do I do with black & bared wire in shielded wire?

Last edited by speester1; 07-27-2012 at 02:47 PM.
speester1 is offline   Reply With Quote
Old 07-27-2012, 05:13 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by speester1 View Post
Can I run it with the stock sensors & how would I setup it up in MS? The PO had this setup on 00 turbo NB, so I want it to be simple.
After reading & researching in the forum, All I have to do to run stock 99 sensors on ms2 is change the ign setting in tunerstudio to miata 99/00 & retune ms2 for cold start bc PO had upgraded to 650 injector.

So do I need to tap pin 24 & 25 d37 to stock ecu?

Last edited by speester1; 07-27-2012 at 05:31 PM.
speester1 is offline   Reply With Quote
Old 08-05-2012, 01:04 AM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

The more I research the more confused I get. Anyone running 99 ms2extra v3 3.1.1fw in parallel with CAS.

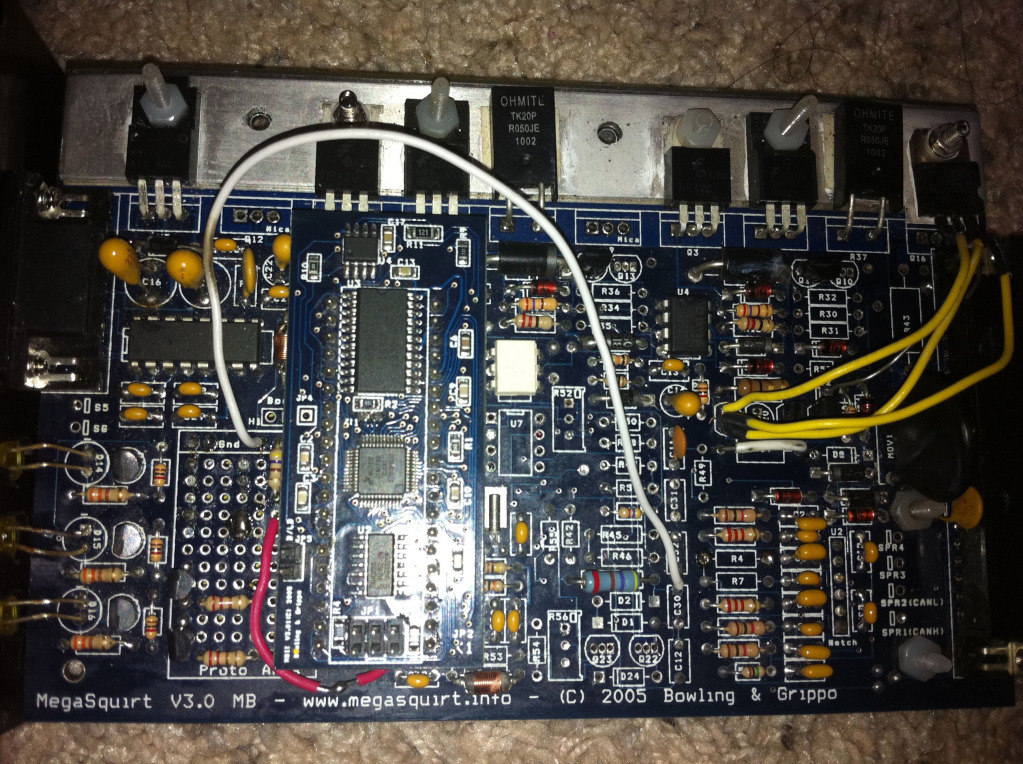

1. 24 cpk & 25 cmp CAS wired directly to MS, getting 5v cpk & 10.9v cmp must be wired wrong on the MS board

2. spark A & B output, 36(3H) & 31(3G) (miataturbo.net) or 36 & 6 (MSextra.com) what happen if 36 & 31 is swapped on harness?





Some site had IGN swap IAC2B
Attached Thumbnails
99 with 04 mazdaspeed, cranked but wont run-img_0749.jpg
speester1 is offline   Reply With Quote
Old 08-16-2012, 07:39 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

Update!

Gave up on the MS2 because this was my DD and I started a new job recently. I bought a timing wheel for $30 and threw the Powercard Pro back on and it still would not rev past 4000rpm as before. Did some researched and found out that 02-05 had VTCS not VICS. So I unplugged the VTCS and Holy sh*t this thing haul ***.

Thanks everyone!
speester1 is offline   Reply With Quote
