Default afr target tables?

just working my tune a little bit tonite and tomorrow after i swap in my 550's, and figured i'd see what everyone else is using for an afr target table in MLV.



thoughts? comments? discussion?
devin mac is offline   Reply With Quote
Old 05-07-2008, 01:24 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I would richen it up more above 5800. Try shooting for 12.5:1 as you approach redline.
cjernigan is offline   Reply With Quote
Old 05-07-2008, 01:30 AM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

hmm... think so, even in vac? in boost i agree, but i think the only time i'm gonna see those high rpm vac cells is if i'm cruising at a lower gear or high speed...
devin mac is offline   Reply With Quote
Old 05-07-2008, 05:03 AM   #4
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

Are you running MS I or II? I thought I read something about 12x12 AFR in msI high res, but I am unable to find anything on it. Just wondering since you have a 12x12 table
91NApeewee is offline   Reply With Quote
Old 05-07-2008, 09:34 AM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

running MSI, but this is the afr target table from megalogviewer. i possibly should have specified that.
devin mac is offline   Reply With Quote
Old 05-07-2008, 09:50 AM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

yo **** is lean at 100kpa, nga. Go 12.5 at 4000rpm+ through there.
hustler is offline   Reply With Quote
Old 05-08-2008, 04:04 AM   #7
Newb

Join Date: Aug 2007
Location: Fort Saskatchewan, Alberta
Posts: 6
Total Cats: 0
Default

Is there any way to edit the Default AFR table in MLV and save it?
It seems like a lot of work to edit the table before every analysis just to get your desired AFRs.
It allows you to export the edited table as a vex but not to import it.

Just new to this stuff.

Thanks
bjsinfield is offline   Reply With Quote
Old 05-08-2008, 09:12 AM   #8
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

hmm, i have started and shut down MLV a boatload of times now, and my afr target table just stays the way i leave it, everytime. did you pay the 20 bucks for the software? maybe if you haven't pair it doesn't remember anything?
devin mac is offline   Reply With Quote
Old 05-08-2008, 09:29 AM   #9
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by bjsinfield View Post
Is there any way to edit the Default AFR table in MLV and save it?
It seems like a lot of work to edit the table before every analysis just to get your desired AFRs.
It allows you to export the edited table as a vex but not to import it.

Just new to this stuff.

Thanks

NO idea what you are talking about here. I have never had an issue with MLV saving my AFR table. As the previous poster said it loads automatically each time I open it. And that was the case before I paid for the software too.

Are you accidently looking at the narrowband AFR table in MLV?
paul is offline   Reply With Quote
Old 05-08-2008, 09:31 AM   #10
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

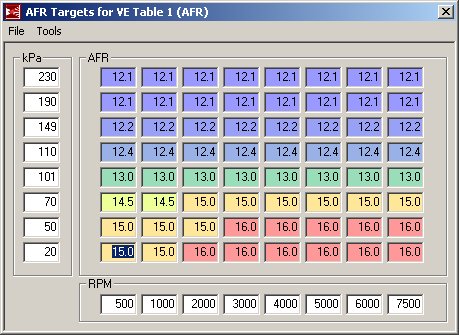

here is the afr table i run
Attached Thumbnails
afr target tables?-afr.jpg
paul is offline   Reply With Quote
Old 05-08-2008, 09:37 AM   #11
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Quote:
Originally Posted by paul View Post
Are you accidently looking at the narrowband AFR table in MLV?

yeah, this is a good point, as well. it took me a few minutes to poke around enough to get the 12x12 afr target table i posted to be the active one. you sure you're looking at the right table when you load it up?
devin mac is offline   Reply With Quote
Old 05-08-2008, 10:10 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

Braineack is offline   Reply With Quote
Old 05-08-2008, 10:12 AM   #13
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

hehe, any idea where i got my starting target table from? ;-)
devin mac is offline   Reply With Quote
Old 05-08-2008, 03:56 PM   #14
Newb

Join Date: Aug 2007
Location: Fort Saskatchewan, Alberta
Posts: 6
Total Cats: 0
Default

DOH!

If you edit the table and exit using the close windoe option rather than the 'EXIT' button it does not save the table.

Thanks, your comments got my brain started.
bjsinfield is offline   Reply With Quote
