Default Air temperature correction with MS3?

I'm having an issue with my MS3. I tuned all my settings during the Spring/Summer months and had a good tune. The car ran great, idled fine, AFR's were where they should be. Now that it's Fall here, the outside temps have dropped quite a bit. My tune is way to rich all over. Is there a setting in tunerstudio or on the MS3 that can correct the AFR's without having to retune now and then switch maps once Spring comes around again?
tuckermon is offline   Reply With Quote
Old 10-30-2013, 04:03 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

what firmware? you need to adjust your MAT correction curve to keep the AFRs where you are used to seeing them.
Braineack is offline   Reply With Quote
Old 10-30-2013, 04:39 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

I'd have to look to see what firmware, but I just updated itaround August to the new firmware. Ok, I'll look into the MAT settings, just trying not to have 2 maps.
tuckermon is offline   Reply With Quote
Old 10-30-2013, 04:51 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

newest has the tab under basic called "air density correction" or something.

mine basically looks like a bow or smiley face: richens up slightly under 60*, stays flat 70-100, then richens up again slightly past that (so the car doesn't pull fuel if it heat soaks)

so far so good, and we have HUGE temp swings here in CA between daytime and nighttime
18psi is offline   Reply With Quote
Old 10-30-2013, 05:26 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

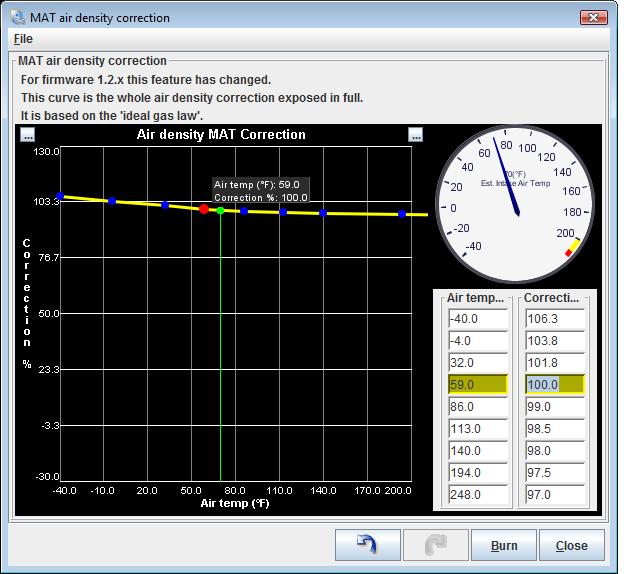

mine looks like this right now:
Attached Thumbnails
Air temperature correction with MS3?-ideal_mat_curve_custom.jpg
Braineack is offline   Reply With Quote
Old 11-01-2013, 05:19 PM   #6
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

I wasn't on the latest firmware. Once I upgraded the unit the settings were there under "Basic Settings" I was able to adjust them to a "better" config.
tuckermon is offline   Reply With Quote
Old 11-17-2013, 07:05 PM   #7
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

What imperfection does this curve adjust for, over a well-calibrated AIT sensor?
DNMakinson is offline   Reply With Quote
Old 11-17-2013, 07:43 PM   #8
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

Quote:
Originally Posted by DNMakinson View Post
What imperfection does this curve adjust for, over a well-calibrated AIT sensor?
Air density. The AIT sensor feeds the table.
Screaming04 is offline   Reply With Quote
Old 11-17-2013, 10:40 PM   #9
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

Quote:
Originally Posted by Screaming04 View Post
Air density. The AIT sensor feeds the table.
As I Understand MS, Air Density is handled, first order, by the AIRDEN variable in the equation for REQ_FUEL. So I was thinking this additional curve might be for correcting for deviation of air from the ideal gas law, but perhaps for some other nuance.

EDIT: But now I see that AIRDEN is a constant, taken at one condition os temp and pressure, so, yeah, it is the correction for absolute temp. However, it is adjustable for some reason.
DNMakinson is offline   Reply With Quote
Old 11-18-2013, 08:30 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

that curve IS the ideal gas law code. It used to be built into the algorithm, but the law on paper didn't really transfer well into real life scenarios on the car. Then you'd basically tune a correction curve to combat the code. So they changed the code. The default curve when loading a fresh map is the ideal gas law; the code I posted altered it significantly.
Braineack is offline   Reply With Quote
Old 11-18-2013, 08:27 PM   #11
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

Quote:
Originally Posted by Braineack View Post
mine looks like this right now:
I put those in today. Amazing how flat this is, demonstrating how little effect air temp actually has on density, or conversely, how much divergence air has from an ideal gas.

Car held AFR's much better as the AIT changed.
DNMakinson is offline   Reply With Quote
Old 11-19-2013, 11:29 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Yeah so just tune it from there. If you get your fueling in-check and start noticing it leaning out or going rich at extreme temp ranges, you can correct with the curve.
