Angry MS PNP 2 Miata backfires but wont start...

Hey guys heres the deal 1992 miata 1.6l.

megasquirt PNP 2
GReddy tdo5h turbo kit
440cc injectors....
stock FPR
Stock TIMING (100% accurate)
STOCK IGNITION
AIT sensor (MAF DELETE)

She starts up and idles on the stock ecu but its obiously bad because the injector size etc.....

We uploaded the new firmware 2x on the new ecu.... We use the settings as per diy auto tune suggests for the 1992 miata.
IT wont start up and run on the MS like it should...

CAN SOMEONE HELP WITH ANY INFORMATION IVE BEEN at this for days and am ready to burn this god damn miata to the ground... THANKS
slammedkouki is offline   Reply With Quote
Old 11-17-2013, 10:04 PM   #2
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,124
Total Cats: 144
Default

Quote:
Originally Posted by slammedkouki View Post
Hey guys heres the deal 1992 miata 1.6l.

megasquirt PNP 2
GReddy tdo5h turbo kit
440cc injectors....
stock FPR
Stock TIMING (100% accurate)
STOCK IGNITION
AIT sensor (MAF DELETE)

She starts up and idles on the stock ecu but its obiously bad because the injector size etc.....

We uploaded the new firmware 2x on the new ecu.... We use the settings as per diy auto tune suggests for the 1992 miata.
IT wont start up and run on the MS like it should...

CAN SOMEONE HELP WITH ANY INFORMATION IVE BEEN at this for days and am ready to burn this god damn miata to the ground... THANKS
So, as you're able to connect to the MS with your laptop how about a cranking log along with the tune? More info about the setup; car = '92. engine = ?, FI (assuming you are otherwise why put 440cc injectors in).

Last edited by bahurd; 11-17-2013 at 10:16 PM.
bahurd is offline   Reply With Quote
Old 11-17-2013, 11:21 PM   #3
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Sorry I'll post a 10 second cranking log tomorrow. I would now but the car back fires so loud after cranking my neighbors thought it was a shotgun....

Engine 1992 1.6 litre
Weisco pistons
Eagle rods
Oem bearings
Oem crank
Arp studs
Felpro hg
Just had the head cleaned, valve job, etc
New timing belt and water pump
Etc....
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 12:19 AM   #4
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

UPDATE** i just found that the previous owner had the AIT air intake temp WIRES to the wrong pins in the maf connector...... SO that may explain some issues...
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 08:20 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

you're injecting too much fuel. Tell the MS to inject the right amount of fuel.

in other words: tune.
Braineack is offline   Reply With Quote
Old 11-18-2013, 09:44 AM   #6
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,124
Total Cats: 144
Default

^^ What he said...

A good starting point, if the injectors really are 440cc would be setting req_fuel around 8.1ms

That should at least get to an idle assuming too much fuel.
bahurd is offline   Reply With Quote
Old 11-18-2013, 01:17 PM   #7
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

When I go I to basic settings and fuel calculator I enter 1600cc in engine displacement. The go down to injector flow and enter 440 then click cc/min and burn it and it comes up with a calculated fuel number on its own? Is this wrong
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 01:20 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

no it's not.
Braineack is offline   Reply With Quote
Old 11-18-2013, 01:26 PM   #9
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Braineak I'm going to do a 10 second cranking log real quick. Then I'll upload it stand by
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 01:40 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

you certain the MAP sensor is plugged it? what basemap? what other tuning for fueling/cranking have you done?
Braineack is offline   Reply With Quote
Old 11-18-2013, 01:43 PM   #11
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default heres the datalog....

Keep in mind guys after this cranking session.... along with every other one.. SHE BACKFIRES SO LOUD AND IM TALKING IT SOUNDS LIKE A BOMB..... MY 400whp 240sx has antilag and these backfires are louder...
Attached Files
File Type: msl why wont you start.msl (98.4 KB, 88 views)
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 01:53 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

that means it's dumping in a crap ton of fuel and then igniting all at once.

so that happened in about 4 seconds of cranking? are you sure they are good 440cc injectors? could they be bad or flowing much more than 440cc? the PW at cranking isn't THAT high.

why not try to lower the req_fuel more and more until it starts. that will give you an idea if it;s the fueling or if something else is at play.


this is a mspnp2? do you have a vTPS? do they make any notes about not using the factory TPS?
Braineack is offline   Reply With Quote
Old 11-18-2013, 01:57 PM   #13
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you certain the MAP sensor is plugged it? what basemap? what other tuning for fueling/cranking have you done?
I think the basemap we are using is the 240cc one from diy auto tune..... heres the link...

DIYPNP MegaSquirt installation for the Mazda Miata
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 01:58 PM   #14
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Post msq (tune file).
We'll instantly see what's messed up. I'm saying Req_fuel may be right but after start, warm up, and VE table haven't been changed.
Impuls is offline   Reply With Quote
Old 11-18-2013, 02:04 PM   #15
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

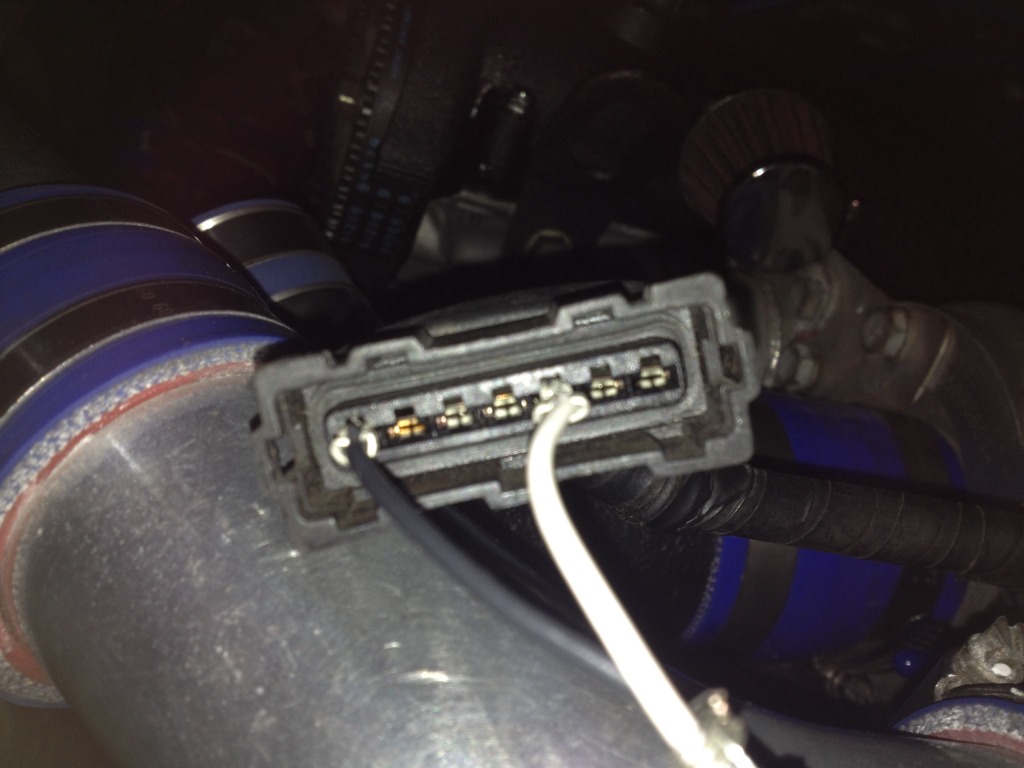

I actually just went out and took a look at my MAF CONNECTOR.... There is 7 pins on it.... DIY's SITE SHOWS ONE WITH 5??? and the wire colors dont match per diy auto tunes website..... so i unplugged the sensor at the intercooler until i can figure out what the hell this wiring is now....

mine...

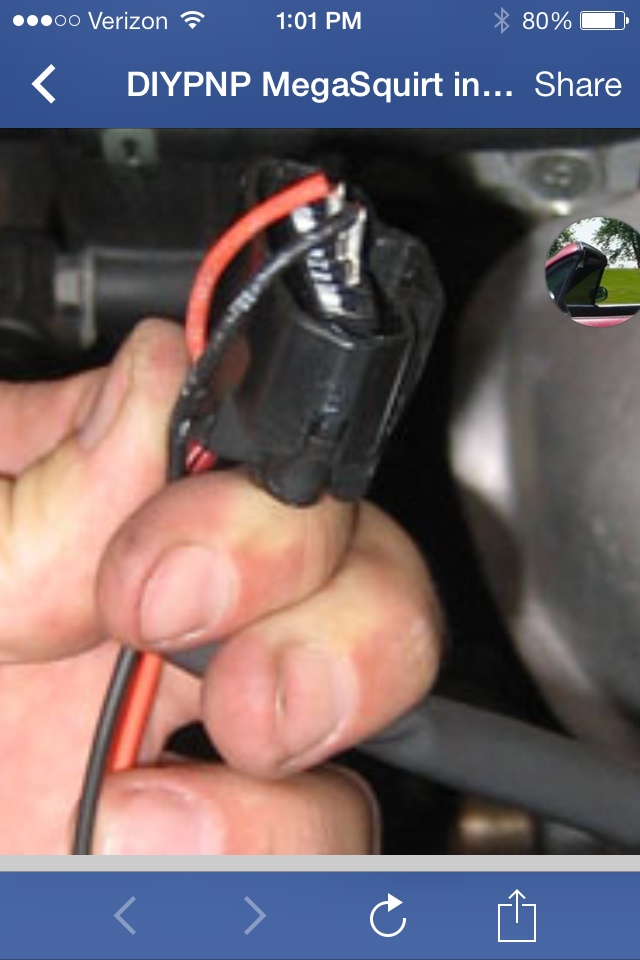

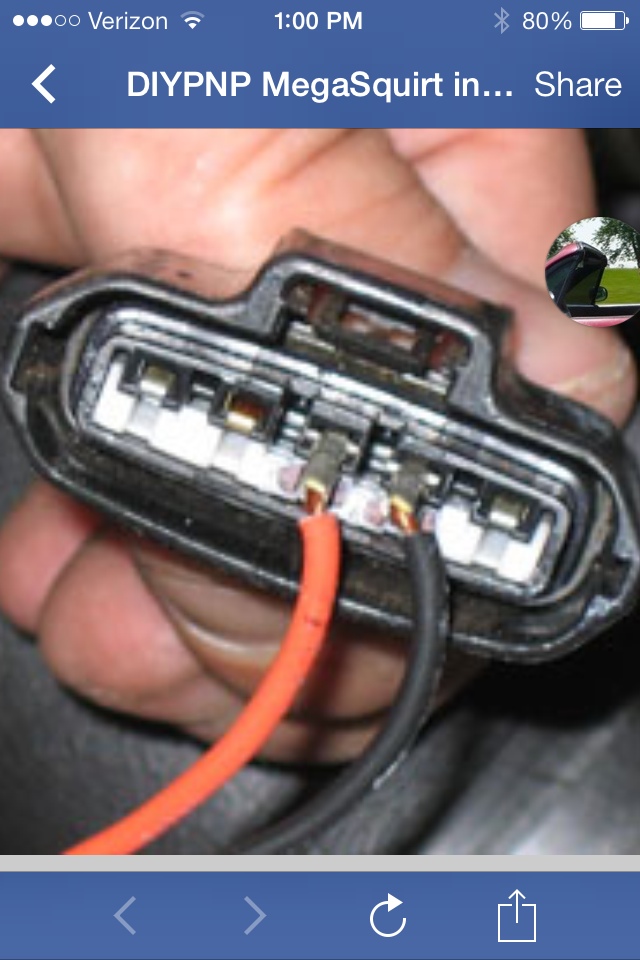

THERES....


Attached Thumbnails
MS PNP 2 Miata backfires but wont start...-730029bf-8729-4812-8541-2b760110bffa-3344-0000033b1613b63e_zpse342e0d3.jpg   MS PNP 2 Miata backfires but wont start...-09dbde01-7102-4d9e-baaa-311481efc8c9-3344-0000033b886992c8_zps1d9fe6c1.jpg   MS PNP 2 Miata backfires but wont start...-4d2066d3-7d6a-4eb6-ac5f-259adf5858a9-3344-0000033b8e29b2ba_zpsa2620f34.jpg
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 02:11 PM   #16
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default current tune.....

here it is.....
Attached Files
File Type: msq CurrentTune.msq (84.0 KB, 75 views)
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 02:14 PM   #17
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
that means it's dumping in a crap ton of fuel and then igniting all at once.

so that happened in about 4 seconds of cranking? are you sure they are good 440cc injectors? could they be bad or flowing much more than 440cc? the PW at cranking isn't THAT high.

why not try to lower the req_fuel more and more until it starts. that will give you an idea if it;s the fueling or if something else is at play.


this is a mspnp2? do you have a vTPS? do they make any notes about not using the factory TPS?
THIS IS A DIY PNP 2 AND IT HAS E30 VTPS......
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 02:16 PM   #18
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

also the injectors being bad really isnt a option keep in mind guys that this car runs and idles fine on the stock ecu.... just doesnt have a maf and struggles a bit because the 440cc on stock ecu with no maf lol
slammedkouki is offline   Reply With Quote
Old 11-18-2013, 02:33 PM   #19
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,124
Total Cats: 144
Default

Quote:
Originally Posted by slammedkouki View Post
When I go I to basic settings and fuel calculator I enter 1600cc in engine displacement. The go down to injector flow and enter 440 then click cc/min and burn it and it comes up with a calculated fuel number on its own? Is this wrong
Sorry, forgot it's a 1.6.....
bahurd is offline   Reply With Quote
Old 11-18-2013, 03:09 PM   #20
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

So I messed with a few more things.... I just can't get it to start on this megasquirt, I can like get it to fire for a second and it dies out..... So something in my tune is wayyyyyy off. I someone could look at that and let me know that would be awesome.... Also my injector should be unlimited fire? Or semi sequential?
