Old 06-13-2007, 09:41 PM   #21
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

I guess i'll just tap the intake manifold, i kinda need it by this weekend and it would take too long to get it shipped here and stuff.. oh well, how thick is the wall on the intake manifold? who all has done it? how do you clean out all the shavings it makes
greenday3437 is offline   Reply With Quote
Old 06-13-2007, 10:21 PM   #22
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

mcmaster holmes!!! they're not 9 bucks I dont think. it's 3/8npt
y8s is offline   Reply With Quote
Old 06-13-2007, 10:50 PM   #23
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

get an Al bung and TIG it on to your IC pipe.

I wouldn't tap the intake mani, if the mani is on the motor. And it's a lot of work to remove it from the motor. Easiest thing is to pull the charge pipe at the t-body, drill, weld, and go...
Ben is offline   Reply With Quote
Old 06-13-2007, 11:03 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

.99$ bung from ACE Hardware....get a 1/2" Compression fitting sleeve.

the threading is 3/8" and the hole for the "line" is the perfect size for the sensors element to fit through.

Braineack is offline   Reply With Quote
Old 06-13-2007, 11:50 PM   #25
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Ok ill do that thanks

Quote:
Originally Posted by Braineack View Post
.99$ bung from ACE Hardware....get a 1/2" Compression fitting sleeve.

the threading is 3/8" and the hole for the "line" is the perfect size for the sensors element to fit through.

greenday3437 is offline   Reply With Quote
Old 06-14-2007, 12:07 AM   #26
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Ok i have a question.. I'm trying to order some taps online because earlier i went to lowes and other stores and they didnt have any that i need..

Whats the difference between a NPT tap and a NC tap.. the reason i ask is i found a 3/8" NC tap at lowes but it was tiny compared to the 9/16" drill bit im supposed to use, so i'm guessing they use a different way to measure it?
greenday3437 is offline   Reply With Quote
Old 06-14-2007, 12:14 AM   #27
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Autoparts stores carry NPT taps individually pretty commonly.
The NC tap is not close to a NPT tap. The NPT taps are larger than what you sould assume they are and they are tapered for a compression fit when tightening.
cjernigan is offline   Reply With Quote
Old 06-14-2007, 12:16 AM   #28
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Harbor Freight had a tap kit on clearance in their last ad. Go there, if there's one close.
Ben is offline   Reply With Quote
Old 06-14-2007, 12:17 AM   #29
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

ok thanks a lot
greenday3437 is offline   Reply With Quote
Old 06-14-2007, 12:26 AM   #30
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

This is still annoying.. i cant tell what tap set is NPT and what is other kinds.. I found a 3 peice with 2 of the 3 sizes i need.. I guess ill try auto parts store or something
greenday3437 is offline   Reply With Quote
Old 06-14-2007, 12:27 AM   #31
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

nc = national coarse thread
npt = national pipe thread

pipe thread is based on pipe size which doesn't really correspond to the outside diameter of the pipe...

and it's tapered.
y8s is offline   Reply With Quote
Old 06-14-2007, 10:06 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by greenday3437 View Post
Whats the difference between a NPT tap and a NC tap.. the reason i ask is i found a 3/8" NC tap at lowes but it was tiny compared to the 9/16" drill bit im supposed to use, so i'm guessing they use a different way to measure it?
when you find the right one, it will most likely just say 3/8" or 3/8-16 or something, NC is not NPT.
Braineack is offline   Reply With Quote
Old 06-14-2007, 11:43 AM   #33
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Uhh dude you do know that there is no way to weld aluminum to steel, that i know off.
magnamx-5 is offline   Reply With Quote
Old 06-14-2007, 11:56 AM   #34
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

intake pipe... you could braize it.
y8s is offline   Reply With Quote
Old 06-14-2007, 11:34 PM   #35
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
when you find the right one, it will most likely just say 3/8" or 3/8-16 or something, NC is not NPT.
ok thanks
greenday3437 is offline   Reply With Quote
Old 06-18-2007, 06:04 PM   #36
Newb

Join Date: Jun 2007
Posts: 26
Total Cats: 0
Default

I would do the intake pipe due to known heat soak issues with intake manifolds.
Chamuko is offline   Reply With Quote
Old 06-18-2007, 06:19 PM   #37
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

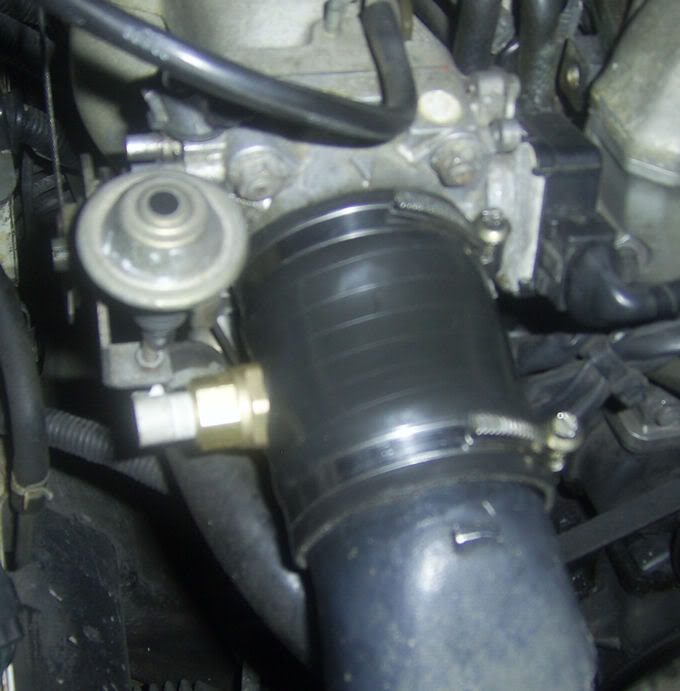

Here's how and where I've fitted mine
Name:  IACFitted.jpg
Views: 4
Size:  56.4 KB
richard_ha is offline   Reply With Quote
Old 06-18-2007, 10:22 PM   #38
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Quote:
Originally Posted by richard_ha View Post
Here's how and where I've fitted mine
That's the perfect position... just before the throttle body...
FoundSoul is offline   Reply With Quote
Old 06-19-2007, 03:40 AM   #39
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by FoundSoul View Post
That's the perfect position... just before the throttle body...
Umm assuming you not supercharged surely Jerry
richyvrlimited is offline   Reply With Quote
Old 06-19-2007, 04:04 AM   #40
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

For my intallation with a picture in page 1 of this thread, I removed the manifold and would not consider doing it any other way. For me it was pretty much an easy task, but it takes some time ... maybe a few hours. I painted it black at the same time.
akaryrye is offline   Reply With Quote
