Default

Quote:
Originally Posted by y8s View Post
Oh hai.

So I have run into what may be an issue with the alternator control circuit: SERIOUS BELT SQUEAL.

At startup.

I suspect the circuit is saying "Scotty, Gimme that power!" since voltage drops and the circuit engages the alternator thus increasing the load seen by the belt/engine during cranking.

So I want to add a transitor inside the megasquirt to address this.

will switching the ground of the circuit through a TIP120 cause problems? Would I be better off switching out the output wire or something else?

I have a TIP120 already wired in the megasquirt that switches to ground and I was just going to use that.

Thanks nerdy bros.
That is not your problem, look elsewhere.
Reverant is offline   Reply With Quote
Old 07-14-2011, 04:47 PM   #102
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I am convinced enough to try the fix--it shouldn't harm anything.

I suspect this problem because of the way the car starts up. It struggles against something while the squeal continues and then once it stops, the engine revs freely as if it were released from the shackles of oppression.

Also voltage remains a couple volts lower during the squeal.

When the squealing stops, voltage ramps up to 14.4 and RPM surges upward a few hundred RPM briefly. Load also sits about 6-8 kPa higher than no-squeal idle.

my morning datalogs show the same recurring symptoms frequently.
y8s is offline   Reply With Quote
Old 07-14-2011, 04:55 PM   #103
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Loose belt.
JasonC SBB is offline   Reply With Quote
Old 07-14-2011, 05:39 PM   #104
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

does the stock ECU engage the alternator at startup?
y8s is offline   Reply With Quote
Old 07-15-2011, 05:01 AM   #105
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I can tell you that my own circuit ignores RPM but I don't have that symptom.
Reverant is offline   Reply With Quote
Old 07-15-2011, 05:20 AM   #106
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by JasonC SBB View Post
Loose belt.
This.

My car had the exact same symptoms and a new tight belt sorted it. But IDK, I'm comparing apples with oranges I suspect.

Still without wanting to sound like I'm teaching you to suck eggs, have you checked the belt tension/quality.
richyvrlimited is offline   Reply With Quote
Old 07-15-2011, 10:52 AM   #107
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I put a new belt on a few years ago when I had the Hydra or Adaptronic or something and a similar or the same circuit. It is TIGHT like your daughter.

It started squealing about a month later.
y8s is offline   Reply With Quote
Old 07-15-2011, 11:45 AM   #108
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by y8s View Post
I put a new belt on a few years ago when I had the Hydra or Adaptronic or something and a similar or the same circuit. It is TIGHT like your daughter.

It started squealing about a month later.
don't have kids :P

But wait, if it didn't do it initially why does that make it the controllers fault?

Maybe the belt is all shiny'ed up?
richyvrlimited is offline   Reply With Quote
Old 07-21-2011, 02:16 PM   #109
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Matt,
I really like the idea of being able to turn it on and off....

But I agree, it's not really your problem. I've been running a circuit (which admittedly, doesn't ask for as much out of the alternator - but I DO have a 1200W stereo on there, which I guess isn't powered at start up) that ignores RPM for.... like 5 years?

I've had a couple bouts with belt squeal, yes generally on start up, and.... I've never resorted to electronics to clean it up. Tightening the belt helps.

Then again, you'll probably get crank pulley wobble with all that tension. :-P
AbeFM is offline   Reply With Quote
Old 07-21-2011, 02:53 PM   #110
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by y8s View Post
I put a new belt on a few years ago when I had the Hydra or Adaptronic or something and a similar or the same circuit. It is TIGHT like your daughter.

It started squealing about a month later.
Is it tight NOW after the squealing or was it tight just after you put it on?
JasonC SBB is offline   Reply With Quote
Old 07-21-2011, 03:06 PM   #111
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

beats me, I would rather build circuits.

incidentally, aside from an automotive style relay that switches out the alternator control wire, what's the proper NPN/PNP transistor circuit to use for something like this?

obviously I can't put a transistor on the 12V or gnd line to the control circuit because it will jack up the battery voltage reading so it has to go on the output.

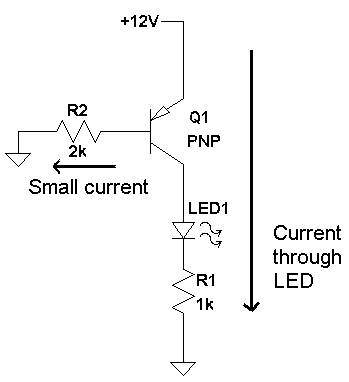

like this only not +12, but the alternator circuit output and remove the LED and just run a new output wire off that location?

the grounding output of the MS CPU would go to the base.

Attached Thumbnails
Alternator Control box for standalone MS install for NB-transistor5.gif
y8s is offline   Reply With Quote
Old 07-21-2011, 03:10 PM   #112
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What problem are you trying to solve?
JasonC SBB is offline   Reply With Quote
Old 07-21-2011, 04:15 PM   #113
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

just want to disable the alternator control at will via a megasquirt output.
y8s is offline   Reply With Quote
Old 08-05-2012, 06:11 PM   #114
Newb

Join Date: Jan 2011
Posts: 25
Total Cats: 0
Default

So to resurrect this thread one more time, I've got a 99 NB, MicroSquirt, no factory ECU and have a Mopar voltage regulator. I have the blue wire hooked to 12V+ switched and green wire to the 1O grey/red and it does not charge. The case of the VR is grounded so the questions are"
1: should the green VR wire go to 1T instead (grey)?
2: does the wire not hooked to the green VR wire (either 1T or 1O) get 12V+ switched?
3: Penelope Cruz or Selma Hayek?
Wayne Presley is offline   Reply With Quote
