Old 03-30-2013, 12:44 PM   #1
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default Any ideas on what is making this car go lean?

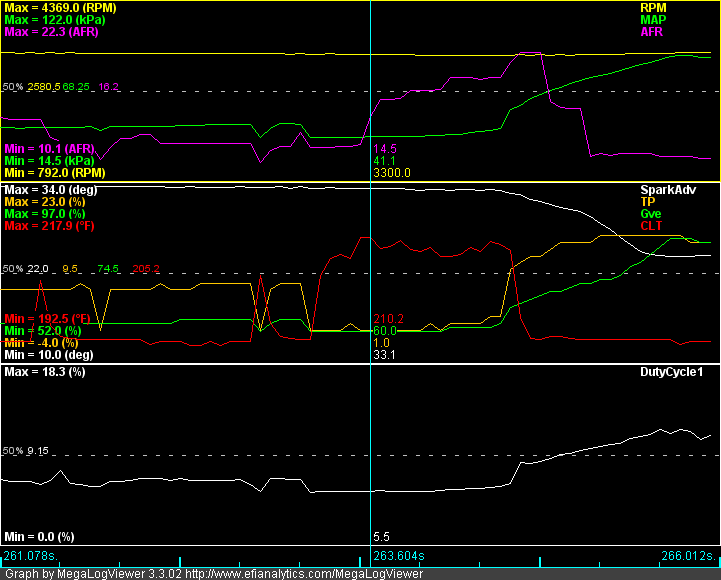

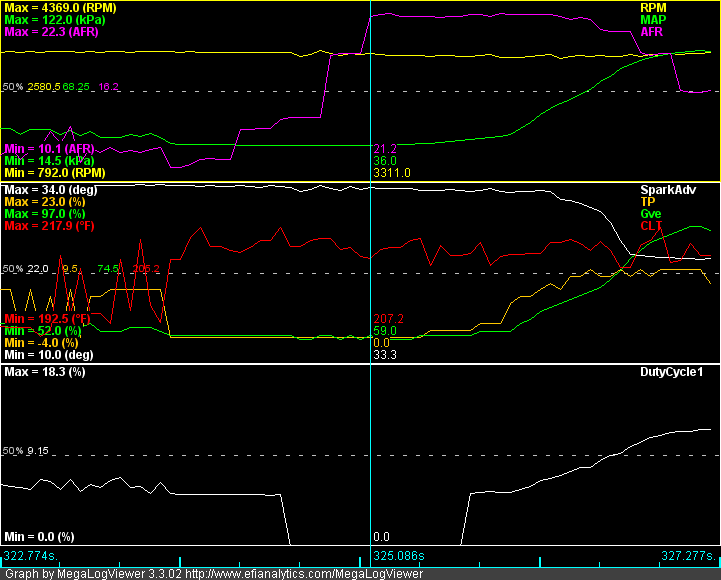

I tuned this car and I'm getting some strange behavior. You'll notice in both images that there are 10-15* sweeps in CLT temp (195-208*), TP is static, RPM is static, but AFR is going lean. Any thoughts on what to adjust?

Attached Thumbnails
Any ideas on what is making this car go lean?-swwhatisgoingon.png   Any ideas on what is making this car go lean?-swwhatisgoingon2.png
Attached Files
File Type: msq HelpMe.msq (103.8 KB, 73 views)
File Type: msl 2013-03-30_09.35.31.msl (1.84 MB, 243 views)
hustler is offline   Reply With Quote
Old 03-30-2013, 12:51 PM   #2
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,575
Total Cats: 154
Default

vacuum leak?
Ryan_G is offline   Reply With Quote
Old 03-30-2013, 12:52 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ryan_G View Post
vacuum leak?
Highly unlikely.
hustler is offline   Reply With Quote
Old 03-30-2013, 12:58 PM   #4
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,575
Total Cats: 154
Default

The only variables that do not stay constant during the lean spike are the AFR's and coolant temp. So either excess air is getting in (vacuum leak, even a very minor one can cause this....ask me how I know) or fuel that should be going in is either leaking or blocked but I have no idea how that would happen randomly.
Ryan_G is offline   Reply With Quote
Old 03-30-2013, 01:29 PM   #5
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

When these sensors have a short, they typically give crazy readings like 500*, right? Ever see a bad sensor act like this? I haven't but I'm running out of ideas and I want this guy to be able to track his car sow I can show him the error in his supercharger ways. lol

Actually he missed the MSR-C track weekend because of the funky EFI behavior like this and he deserves better.
hustler is offline   Reply With Quote
Old 03-30-2013, 02:23 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

VVT angle?
Reverant is offline   Reply With Quote
Old 03-30-2013, 02:31 PM   #7
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
VVT angle?
1999 head. The car also has an MP62.
hustler is offline   Reply With Quote
Old 03-30-2013, 02:33 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by hustler View Post
TP is static
I must be going blind, but TP looks like it is varying and the other parameters seem to match as expected. TP is the yellow line in the second block of each group, right??
hornetball is online now   Reply With Quote
Old 03-30-2013, 02:37 PM   #9
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by hornetball View Post
I must be going blind, but TP looks like it is varying and the other parameters seem to match as expected. TP is the yellow line in the second block of each group, right??
Most of that is static but filtered. That slight amount of TP, even if not filtered, should not create a 1ms PW adjustment. If you look throughout the log you'll find that small amount of TPaccel does not cause AFR to go lean.
hustler is offline   Reply With Quote
Old 03-30-2013, 02:56 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Send me a log through email.
Reverant is offline   Reply With Quote
Old 03-30-2013, 04:44 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Is overrun cutoff turned on? You're looking at 1% and 0% TP respectively at the center points.
hornetball is online now   Reply With Quote
Old 03-30-2013, 04:47 PM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Lack of fuel.

/thread
triple88a is offline   Reply With Quote
Old 04-11-2013, 01:34 PM   #13
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Can I please get some thoughts on this log regarding CLT, MAT, and BattV behavior on this supercharged car? I'm not sure if I'm chasing bad sensors, bad wiring, or something else. Please also review TP vs. TP dot and it's peculiar behavior. TPSdot threshold is set to 220%/s so I'm not sure why it's triggerting from 894-902s in the log.

Thanks.
Attached Files
File Type: msl 2013-01-06_2ND LOG.msl (728.2 KB, 40 views)
hustler is offline   Reply With Quote
Old 04-11-2013, 01:45 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

why did the CLT temp raise up like that, that seems to have some effect on it...
Braineack is online now   Reply With Quote
Old 04-11-2013, 01:50 PM   #15
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
why did the CLT temp raise up like that, that seems to have some effect on it...
I'm bothered by the gradual increase, rather than a sudden spike which would tell me there is a short or something. I can't figure out what's triggering the CLT fluctuation like that...I'm not really sure what the MAT should look like on a supercharged car.

I really want to help this guy out, he's been struggling for a while. Time to start replacing sensors or what?
hustler is offline   Reply With Quote
Old 04-11-2013, 07:01 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Can the coolant sensor heat soak?
curly is offline   Reply With Quote
Old 04-11-2013, 07:32 PM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

When the clt sensor dies it almost always reads-34*F. Did you try zeroing out all the correction tables? In MS is it possible to display the base fuel and the corrections live. IE base is x and the total correction factor is x in a log?
Leafy is offline   Reply With Quote
Old 04-11-2013, 08:41 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

10-15* is a pretty big swing everything else being constant.

either bad sensor or something tripping the sensor out

kinda sorta looks like its a hardware (or basically non tune related) issue
18psi is offline   Reply With Quote
Old 04-11-2013, 08:43 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by 18psi View Post
10-15* is a pretty big swing everything else being constant.

either bad sensor or something tripping the sensor out

kinda sorta looks like its a hardware (or basically non tune related) issue
Also, how quickly its changing. These are closed brass element temp sensors, they have a thermal damping built in because of their thermal mass. IE the sensor has to heat sink before it reads properly.
Leafy is offline   Reply With Quote
Old 04-11-2013, 08:44 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

air bubble in the cooling system? bad sensor?

something
18psi is offline   Reply With Quote
