Anybody installed MS-II with EDIS?? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 03-21-2006, 01:07 AM   #1
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default Anybody installed MS-II with EDIS??

Wondering if any of you have installed MS-II with EDIS ignition. Would like to see install pics of the wheel and trigger....
RdSnake is offline   Reply With Quote
Old 03-21-2006, 01:52 AM   #2
Junior Member

Join Date: Jan 2005
Location: San Jose, CA
Posts: 248
Total Cats: 0
Default

I think most guys are running MSI's with V3 boards and using the stock CAS to run fuel+spark. Why not run that and enjoy the extra benefits of the extra firmware?
medisyn is offline   Reply With Quote
Old 03-21-2006, 10:50 AM   #3
Junior Member

Join Date: Dec 2004
Location: Austin, Texas
Posts: 130
Total Cats: 0
Default

You could blaze the trail there... options are always nice... Good luck and keep us posted.

Chris
kags1969 is offline   Reply With Quote
Old 03-21-2006, 11:12 AM   #4
Junior Member

Join Date: Nov 2005
Location: Quebec, Canada
Posts: 47
Total Cats: 0
Default

Anyone have ever use the OBDII miata stock crank sensor?

I have seen that there is one in the car wiring diagram. But I didn't look on my car to try to find it actually.
MiataMath is offline   Reply With Quote
Old 03-22-2006, 01:58 PM   #5
Newb

Join Date: Mar 2006
Location: Portland, OR
Posts: 1
Total Cats: 0
Default

Why are people not using megasquirt II for the miata? I would think that its added features and potential for later upgrades/features would be very desireable. Is it due to the current state of its firmware? I know very little about writting code and don't see myself being a pioneer in this area. However, I've always been a sucker for the "latest and greatest" especially when it concerns electronic gadgets.

I plan on converting a 95 to megasquirt this next fall and then adding boost. Just trying to learn as much as I can in the mean time. When I first started reading about megasquirt it seemed way over my head. However, the more I read the more feasible it seems. I'm currently working on converting an 85 vanagon to suby power. In the process. Wiring harnesses have be "demystified." Circuit boards are another story all together. I was thinking about ordering a kit for the stimulator to learn how to solder and test circuits.

Pete
speeddemon is offline   Reply With Quote
Old 03-22-2006, 02:48 PM   #6
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

the problem with MS-II is it is not compatible with the CAS. MS-II Is compatible with a ditributor or with Ford's EDIS ignition system. In order to run MS-II, you would need to convert to EDIS.
RdSnake is offline   Reply With Quote
Old 03-22-2006, 03:16 PM   #7
Junior Member

Join Date: Dec 2004
Location: Austin, Texas
Posts: 130
Total Cats: 0
Default

Quote:
Originally Posted by speeddemon
Why are people not using megasquirt II for the miata? I would think that its added features and potential for later upgrades/features would be very desireable. Is it due to the current state of its firmware? I know very little about writting code and don't see myself being a pioneer in this area. However, I've always been a sucker for the "latest and greatest" especially when it concerns electronic gadgets.

I plan on converting a 95 to megasquirt this next fall and then adding boost. Just trying to learn as much as I can in the mean time. When I first started reading about megasquirt it seemed way over my head. However, the more I read the more feasible it seems. I'm currently working on converting an 85 vanagon to suby power. In the process. Wiring harnesses have be "demystified." Circuit boards are another story all together. I was thinking about ordering a kit for the stimulator to learn how to solder and test circuits.

Pete
The firmware for the MSI is mature and has code written for it as well as more support. The MSI ecu is strong enough to do what 95% of people need it to do. The MSII will eventually overtake it, but someone will need to write code and make it work before you see people flocking to it. We are just now getting a Miata contingent using MSI...

Chris
kags1969 is offline   Reply With Quote
Old 03-23-2006, 02:08 PM   #8
Junior Member
Thread Starter

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by MiataMath
Anyone have ever use the OBDII miata stock crank sensor?
.
Could somebody provide more info on this? Is it a 36-1 design? What years did it come in?? 96-??
RdSnake is offline   Reply With Quote
Old 03-25-2006, 04:09 PM   #9
Junior Member

Join Date: Nov 2005
Location: Quebec, Canada
Posts: 47
Total Cats: 0
Default

Quote:
Originally Posted by RdSnake
Could somebody provide more info on this? Is it a 36-1 design? What years did it come in?? 96-??

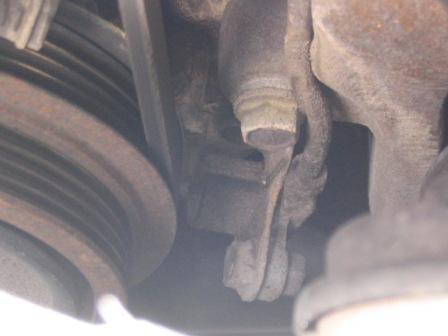

It seems to be a 4 teeth design.

here is a quick pic I took today
Attached Thumbnails
Anybody installed MS-II with EDIS??-crank-sensor-obdii.jpg
MiataMath is offline   Reply With Quote
Old 04-05-2006, 10:40 PM   #10
Junior Member

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

99-00 cars work the same as the pre 99 cars. 4 - 1. just diffrent sensors.
kingofl337 is offline   Reply With Quote
