correct; at least that's my understanding.
Braineack is offline   Reply With Quote
Old 08-23-2013, 02:29 PM   #22
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

According to Megasquirt MS3 Loading Firmware:

Quote:
1.2.x firmware

Boost Control : a few critical settings have changed
To make things more intuitive we have now changed the firmware so that
- "Normal" is the most typical output polarity setting
- larger boost duty% numbers mean more boost.
If you are a new user starting out from scratch using 1.2, then nothing needs to be changed, just use the default settings.
If you are upgrading from a previous firmware version, then the Boost Output polarity setting will be the opposite. For most users it will now be "Normal". This is true whether using open- or closed-loop boost control.
If you're using closed-loop, nothing else should need to change. Open loop boost users most likely need to set their table so that:
new_cell_value = 100 - old_cell_value
Remembering that more duty = more boost.
So it appears that the change was made before the current version I am using. It appears I should stick with normal.
Chiburbian is offline   Reply With Quote
Old 08-23-2013, 03:08 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

I'm on 1.2.1 and mines still inverted IIRC and it works. maybe i changed it? I dunno.
Braineack is offline   Reply With Quote
Old 08-24-2013, 04:19 AM   #24
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

I used 3rd gear to tune the p term initial overshoot, and repeated pulls to the redline in 2nd, 3rd, and 4th gears to tune integral and differential gains. Good luck, cl boost takes patience to tune well.
southernmx5 is offline   Reply With Quote
Old 08-24-2013, 08:15 AM   #25
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

By initial overshoot what rpm are you referring to? In order to get any overshoot I had to lower my P to something like 7, and then it was at about 4,200rpm.

To be honest, I am a bit lazy about it right now. I am at something near my original numbers at 20:22:100 right now and it feels a lot better than it has been while trying to find P, and frankly I have been just messing with it while driving to see what seems to be better by watching boost gauge on dash. Looking at a quick log, I am back to a situation where I am not hitting/overshooting target until higher RPMs and then in an oscillating fashion. But it feels good and seems safe so I am not too concerned at the moment.

Sunday I am off of work and I will start doing some tuning while watching my logs and we will see how it progresses.

EDIT TO ADD:

Reading some more it looks like some of what I was doing was wrong, some of the time. I thought for some reason that tuning P had to be done in a low gear rom 2,000rpm up. That doesn't really result in a super rapid increase in pressure compared to say, starting at 4,000 rpm in second. I THINK I will end up about where I am at with a starting P of 7, but I will re-test a bit tonight and tomorrow.

Last edited by Chiburbian; 08-24-2013 at 05:08 PM.
Chiburbian is offline   Reply With Quote
Old 08-26-2013, 07:38 AM   #26
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Here is where I am at as of about 5am today.

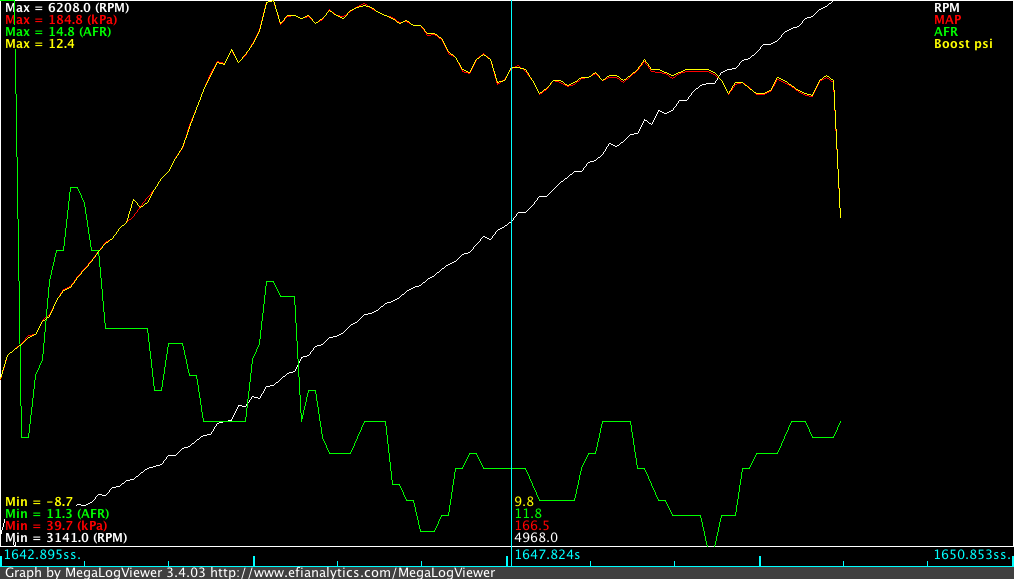

I overshoot almost to 185kpa and then settle near target. I am thinking that means I should up D some?

Overall, pretty good.

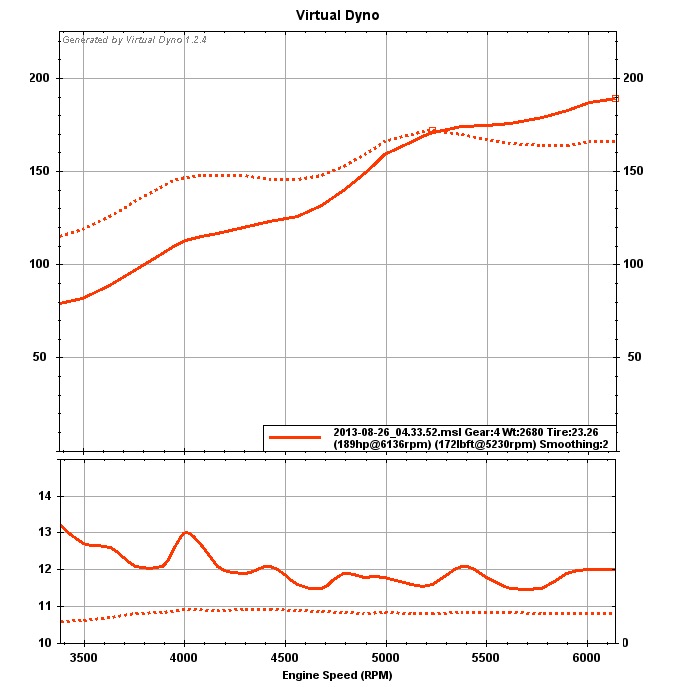

Virtual Dyno tells me it is about 189hp and climbing. I didn't even go to redline.



Still some tuning to do obviously but pretty happy with it at this moment.

EDIT:
Superimposing my old pull on this one tells me that I am actually making LESS power. Mind you that was a 5th gear pull and this was a 4th gear pull but still. Surprised. Either way it feels pretty good.
Attached Thumbnails
Boost PID=200,0,0 - still hits boost limit-graph_pull_8_26.png   Boost PID=200,0,0 - still hits boost limit-screen-shot-2013-08-26-5.35.05-am.jpg

Last edited by Chiburbian; 08-26-2013 at 07:52 AM.
Chiburbian is offline   Reply With Quote
Old 08-26-2013, 10:54 AM   #27
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

What PIDs on this last one? Looks like to little P - add P of 1 or 2 and try again...

Also - I would set the Boost lower limit delta more to something like 40 or 50 because that keeps the valve shut for a
longer time - so boost can rise faster...
Zaphod is offline   Reply With Quote
Old 08-30-2013, 03:32 AM   #28
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Quote:
Originally Posted by richyvrlimited View Post
The manual reflects release firmwares, it's only the Alpha's/Beta's currently which have the boost control flipped (to the correct way IMO).

The latest Alpha/Beta firmwares also have tooltips within TunerStudio so you shouldn't need to use the manual anyway.
This is true for ms2, but the ms3 tuning procedure does not reflect the changes since in ms3 release 1.2.x

Reading the end of this page: Megasquirt MS3 Loading Firmware clears up some confusion over the correct output polarity for the OP's valve compared to the correct output polarity with ms2 release or older ms3 1.1.x codes.
southernmx5 is offline   Reply With Quote
Old 09-06-2013, 12:08 PM   #29
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Here is where I am at today. I started over and ended up pretty much where I was before.

Back on 8/26 I was at 8:5:60

Today I am at 10:5:0 (not tuning D until I get a few things worked out). Target is 172kpa.

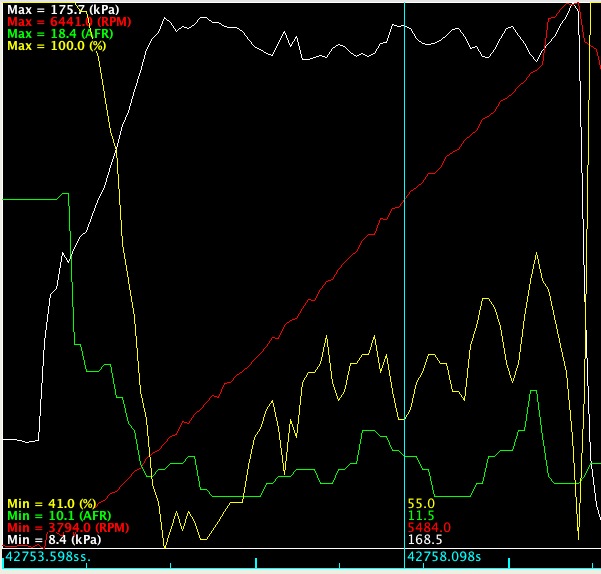

I am not terribly upset with how I am holding boost to redline as you will see in the following graphs, but it does seem that I am getting some oscillation as I go up in RPMs. Also, in lower gear pulls I barely ever touch my targets. Heavy oscillation. I don't have any logs of that though.

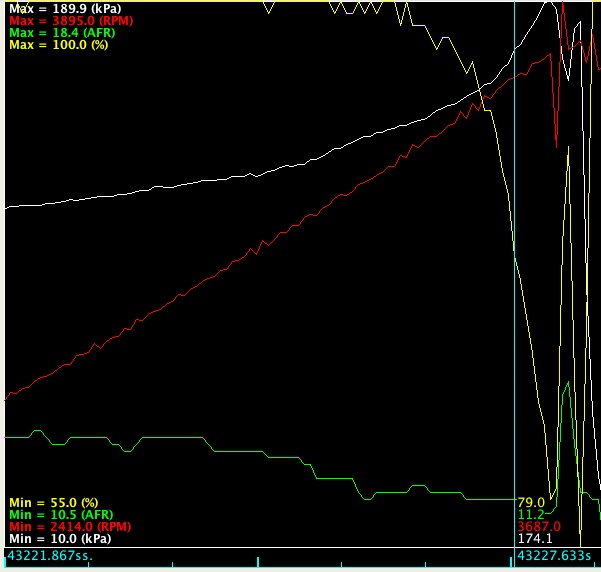

What I AM seeing however is heavy overboost when I do a full throttle pull in higher gears. For example, the log/graph below is a pull in 6th gear.



What should be my next step? What should I try?
Attached Thumbnails
Boost PID=200,0,0 - still hits boost limit-screen-shot-2013-09-06-9.54.21-am.jpg   Boost PID=200,0,0 - still hits boost limit-screen-shot-2013-09-06-9.53.03-am.jpg
Attached Files
File Type: msl 2013-09-06_08.51.36.msl (65.8 KB, 60 views)
File Type: msl 2013-09-06_08.59.33.msl (72.2 KB, 61 views)
File Type: msq 2013-09-06_09.56.13.msq (172.8 KB, 141 views)
