Default Boost Solenoid Output Pin? - Reverant Enhanced MS2

I just hooked up a DIY autotune boost solenoid but I can't seem to get it to do anything (tried open loop at 100 and 0 duty, and closed loop). I have the ground hooked up to the green wire (pin 20) on the Reverant enhanced ms2 and the other wire to +12v. I suspect that the MS is using the wrong pin to control the solenoid which is currently outputting on PA0. Is this the right pin to output on? Any other ideas?
jamesr242 is offline   Reply With Quote
Old 03-25-2014, 01:42 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

That's the correct pin, wire color and port (PA0).

What's the symptom? No/low boost?
Reverant is offline   Reply With Quote
Old 03-25-2014, 02:57 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 61
Total Cats: 0
Default

I'm just getting wastegate pressure only, ie the valve isn't closing at all. I tried 100 and 0 duty across the map in open loop and it didn't activate. I'll take a snapshot of my boost settings and take some pics of the hookup when I get home.
jamesr242 is offline   Reply With Quote
Old 03-25-2014, 07:34 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 61
Total Cats: 0
Default





These are the settings I'm using
Attached Thumbnails

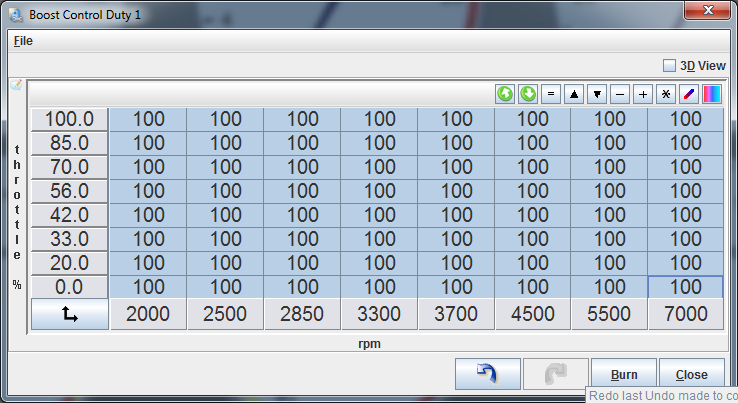

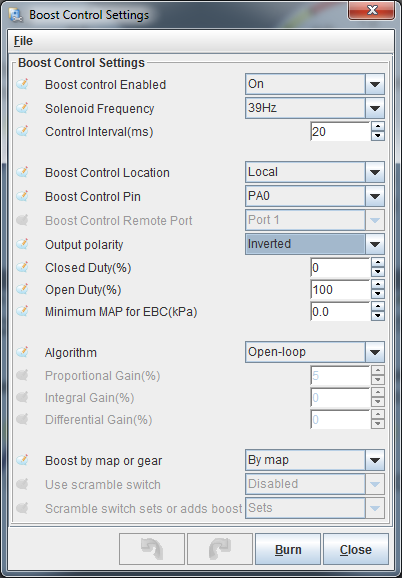

Boost Solenoid Output Pin? - Reverant Enhanced MS2-screenshot2014-03-25183108.png   Boost Solenoid Output Pin? - Reverant Enhanced MS2-screenshot2014-03-25183304.png
jamesr242 is offline   Reply With Quote
Old 03-31-2014, 09:25 PM   #5
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 61
Total Cats: 0
Default

Well, I am retarded, the fuse blew somehow in the 20 minutes after I installed it. I did some tuning today and am doing okay with the closed loop control. I'm targeting 10 psi but still have a bit of oscillation (probably need more D).

What I don't like is how the solenoid isn't closed until I mash the gas. It's resulting in some shitty spool times and I don't hit 10psi until 4000 RPM. I'd like the solenoid to stay completely closed until I hit my target. Is that possible with closed loop?

BTW I have the flying miata kit with full 3" exhaust and 2560 turbo. On wastegate it hits 8psi and creeps to 10 by redline (probably because of the exhaust)
Attached Thumbnails

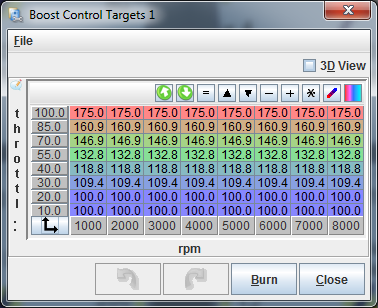

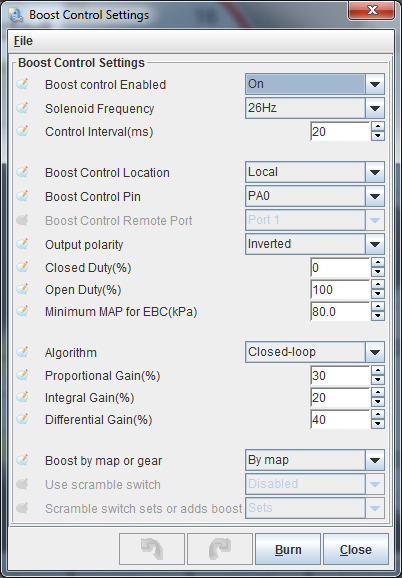

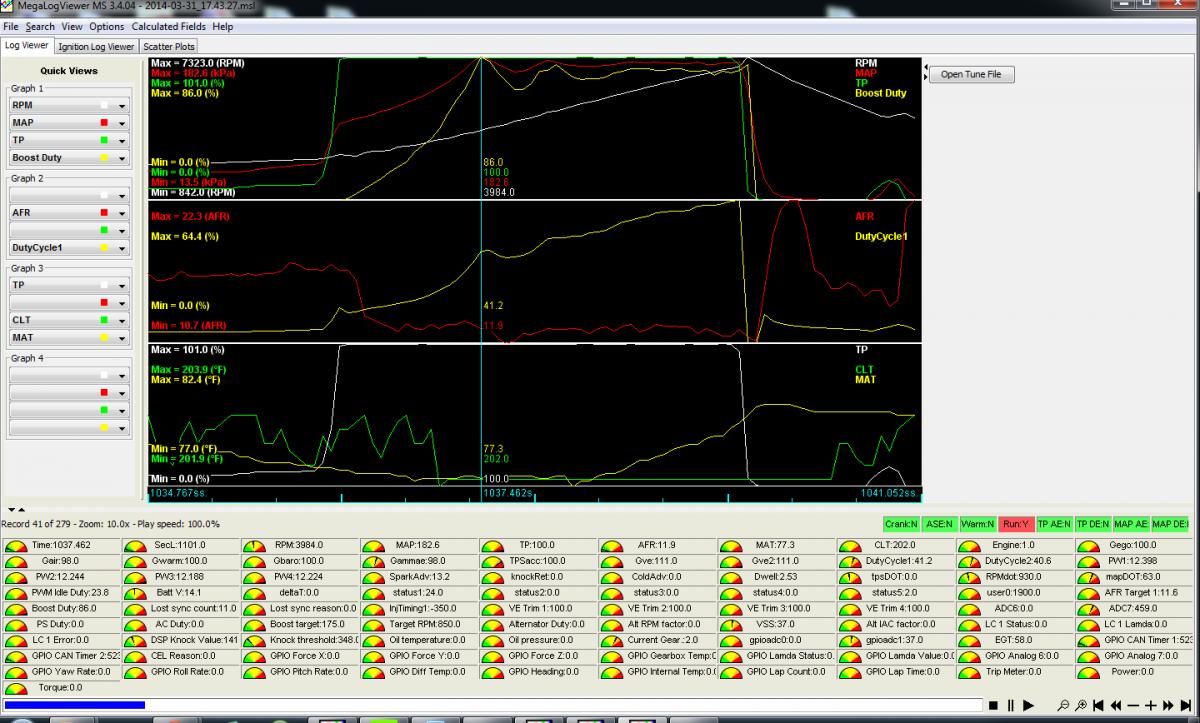

Boost Solenoid Output Pin? - Reverant Enhanced MS2-screenshot-2014-03-31-20.14.42.jpg   Boost Solenoid Output Pin? - Reverant Enhanced MS2-screenshot-2014-03-31-20.23.25.png   Boost Solenoid Output Pin? - Reverant Enhanced MS2-screenshot-2014-03-31-20.22.54.png
Attached Files
File Type: msl 2014-03-31_18.31.52.msl (379.1 KB, 53 views)
jamesr242 is offline   Reply With Quote
Old 03-31-2014, 09:59 PM   #6
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by jamesr242 View Post
BTW I have the flying miata kit with full 3" exhaust and 2560 turbo. On wastegate it hits 8psi and creeps to 10 by redline (probably because of the exhaust)
Yeah, probably because of the exhaust. Look up exhaust housing porting here on the forum, lots of guys running these same parts with the same issue. Either DIY port the hell out of it or send it off to BEGI and pay them to do it

Quote:
Originally Posted by jamesr242 View Post
(probably need more D)
You should know better than to say things like that on this forum
EO2K is offline   Reply With Quote
Old 03-31-2014, 10:13 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 61
Total Cats: 0
Default

Well we do drive miatas, don't we all want the D? Anyway, I couldn't care less about the creep because that's no problem for my 650cc injectors from FIC. In fact I'm targeting about 11psi (175kpa).

I'm not entirely sure how to keep the solenoid closed until I hit my target. I'm thinking I should figure out what RPM I hit my target at with the solenoid manually closed in open loop and then make all the values below that RPM 175kpa in my boost target table
jamesr242 is offline   Reply With Quote
Old 04-01-2014, 04:13 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by jamesr242 View Post
Well, I am retarded, the fuse blew somehow in the 20 minutes after I installed it.
Which fuse?
Reverant is offline   Reply With Quote
Old 04-01-2014, 09:28 AM   #9
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 61
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
Which fuse?
It was the 5A fuse I installed on the +12V wire of the solenoid. I'm pretty sure it blew because I left it in the fuse holder while I was soldering the wire on the other end
