Default Borg Warner EFR boost control (EBC) settings

Ari asked me for my boost control settings for EFR. Figured I'd post them here. These work well for me on high-boost wastegate. With other wastegates and boost targets you may need to tweak them.



spool difference:
soviet is offline   Reply With Quote
Old 06-25-2013, 02:28 AM   #2
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

In for sub. I'll probably copy for my setup.

Question: Is it hard to route the wires for the EFR EBC? I was worried if it'd get to hot for the wires.
Impuls is offline   Reply With Quote
Old 06-25-2013, 02:33 AM   #3
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

I route my wires in front of the engine behind the timing belt, along with crank sensor. It's not a problem. and I can easily unhook the EBC connector.

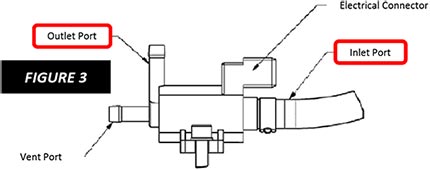

Make sure you connect the solenoid correctly


The electrical connector is a Bosch EV1 pigtail
Fuel Injector Pigtails - Bosch EV1 DIYAutoTune.com

Red wire +12V, black wire wired to BOOST on MS3X or whatever boost control pin you use.
Attached Thumbnails
Borg Warner EFR boost control (EBC) settings-figure-3.jpg
soviet is offline   Reply With Quote
Old 06-25-2013, 02:40 AM   #4
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 262
Default

Thanks Leonid! Props!

In for glory!

Last edited by Braineack; 06-25-2013 at 09:29 AM.
99mx5 is offline   Reply With Quote
Old 06-25-2013, 05:42 AM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The above pinout is custom for your ECU only, since you have a DIYPNP-based MS2.

IT DOES NOT APPLY TO ANY OTHER MS LABS ECU!
Reverant is offline   Reply With Quote
Old 06-25-2013, 09:30 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

On that note: Don't load random MS2 msqs for no apparent reason on your ms3x.
Braineack is offline   Reply With Quote
Old 06-25-2013, 03:18 PM   #7
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 262
Default

Oops! I thought the pinout was standard on the 2nd generation E-DIYPNP ECUs. I'm glad that was clarified Rev. Thanks for the edit Brain.
99mx5 is offline   Reply With Quote
Old 09-16-2015, 01:38 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Very helpful thread, thanks guys.
18psi is offline   Reply With Quote
Old 09-16-2015, 02:06 PM   #9
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by 18psi View Post
Very helpful thread, thanks guys.
You running EFR now? On non-miata
bcrx7 is offline   Reply With Quote
Old 09-16-2015, 02:07 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Nah, I'm tuning EO2K's EFR miata
18psi is offline   Reply With Quote
