Default Buying a palm;please answer my questions

Will an m100 work for logging?
What cables are required?
What kind of storage do these ***** use, and can I use a huge sd card?
Do you love me?
hustler is offline   Reply With Quote
Old 10-16-2009, 06:52 PM   #2
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

1. Yes
2. Palm to serial (usually comes with it)
3. M100 -> you cant upgrade the memory
4. I feel like I might. Call me.
Jeff_Ciesielski is offline   Reply With Quote
Old 10-16-2009, 07:25 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Pawn shop fail.
hustler is offline   Reply With Quote
Old 10-16-2009, 07:44 PM   #4
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i've never been in a pawn shop, am i missing out? however, what ever happened to the little sd card slot thingy someone was talking about for logging, i want one.
Mach929 is offline   Reply With Quote
Old 10-17-2009, 01:41 AM   #5
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

The m100 will work but it will be subpar for logging on track IMO because it only has 2MB memory. A 25 minute track session logged with Palmlog in burst mode results in a ~3.5MB file. If you get a 2MB model you're confining yourself to logging in "normal" mode (6-ish Hz) which will cut your file sizes down by 70% but results in rpm and MAP traces that look more like staircases than smooth curves/lines. If that doesn't bother you then a 2MB model is fine, but these things are so dirt cheap that there's no reason to not step up to one of the 8MB models.

The Palms that had SD/MMC slots were the m500 series but those require some mods on your part to get them to communicate with MS. Check the Palm compatibility thread at MSefi.com.

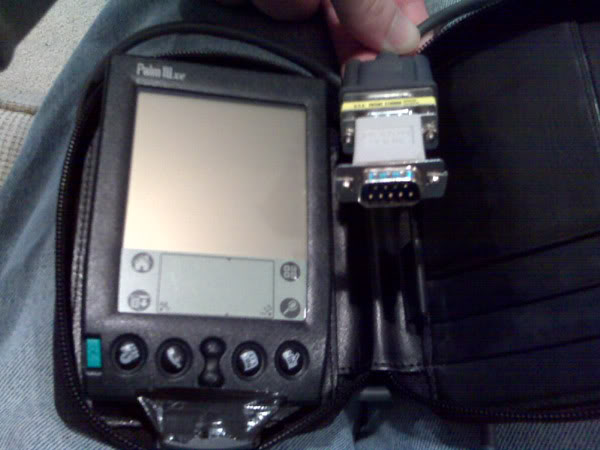

As far as cables, for logging I use the standard Palm serial cable plus a gender changer and a null modem adapter (rat shack didn't have a one-piece gender changing NMA when I was in there). You plug this contraption (see pic) to the serial cable from your MS and you're in business. You can start the log while you're sitting in grid.
Name:  palmlogcable.jpg
Views: 1
Size:  37.7 KB

To transfer the logged data to your laptop you remove the gender changer & NMA and plug the Palm serial cable straight into the USB-serial adapter that you're already using to connect MS to your laptop. Then fire up Megatune and go to File -> Datalogging -> Burst Mode (regardless of whether you used "normal" or "burst" logging in Palmlog) name your file and start the upload from Palmlog.

Quote:
Originally Posted by Mach929 View Post
i've never been in a pawn shop, am i missing out? however, what ever happened to the little sd card slot thingy someone was talking about for logging, i want one.
I seem to remember the SD logger thingy being $100+. My IIIxe setup was $15 shipped on egay for the Palm and <$10 for overpriced rat shack adapters.

If you enjoy shopping for power tools that have been beaten to ****, then stolen and sold for meth money, and are still priced at 75% of new MSRP, you owe it to yourself to check out some pawn shops. I'm not saying bargains are nonexistent but my experience is that they are few and far between. The pawn brokers all know how to use ebay to look up what something is worth so it's going to be difficult to really fleece them, but if haggling is a hobby of yours then go for it.
ScottFW is offline   Reply With Quote
Old 10-21-2009, 10:24 PM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

So. Where is this thread on the sd logger.
hustler is offline   Reply With Quote
Old 10-21-2009, 10:36 PM   #7
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

There are too many iPhones/iPod Touch's out there for it not to be a supported platform.

C
chriscar is offline   Reply With Quote
Old 10-21-2009, 10:42 PM   #8
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Or Blackberries. I have an old Palm somewhere, it was great for playing Space Trader (or whatever that game was called) in class.
mgeoffriau is offline   Reply With Quote
Old 10-22-2009, 12:22 AM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i had some issues with palm on hi res. i think i jus ttyped in the settings wrong, but it actually ended up corruptinig my firmware and leaving me on the side of the road.

Like i said.. i think i simply typed in the wrong character or something. I never had a problem before that.

If you want my palm that looks just like the one pictured above pretty much brand new PM me.. i never use it. Make yourself a homemade nul modem and you are good to go. I even have the cord so you dont have to have it in the cradle
240_to_miata is offline   Reply With Quote
Old 10-22-2009, 04:06 PM   #10
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Quote:
Originally Posted by hustler View Post
So. Where is this thread on the sd logger.
+1K.

I need this. I am going to use a windows mobile unit for maxqdata, and do not want to drag my laptop around to the track and autocross, don't want to deal with bootup, saving log files, starting and stopping log files, etc. I found megalogger, discontinued and $800!!! All the smart ******* on here, must be able to build something us idiots can buy for a reasonable price and just plug in to the serial port and hit a switch to stop/start the datalog.

I understand MS3 is going to have support for SD datalogging. I just don't want to change to MS3, as my **** is working perfectly as is. Unless Brain wants to make some schekel on doing an upgrade....
webby459 is offline   Reply With Quote
