Default CLT & TPS noise

So I have been experiencing some of the random RPM spike issues that have been seen by others. I have been researching and getting ready to do the Abe NB mod. Due to this thread:
https://www.miataturbo.net/megasquirt-18/misfiring-while-cruising-seems-get-worse-when-hot-46772/

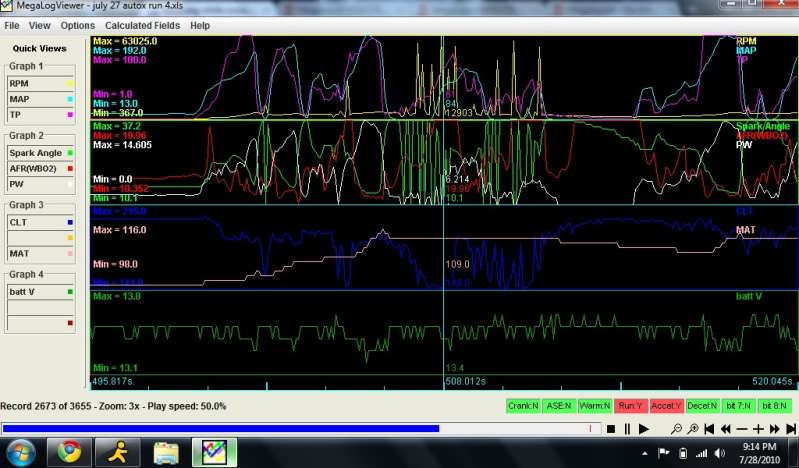

I looked back at my log and found A LOT of noise in my CLT and TPS. I believe this is related. What is causing this noise and how can I fix it?

Name:  ms_issue.jpg
Views: 5
Size:  82.3 KB
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 01:51 AM   #2
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Try the cap on the boot jumper on the mail board mod. I helped me a lot.

-Raj
redrider706 is offline   Reply With Quote
Old 07-29-2010, 07:11 AM   #3
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Yeah I would like specifics on that mod. I have MS1 and looking thru the info it seems like this is a MS2 fix. Does it install on the daughter board?
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 08:19 AM   #4
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

You know I was thinking thismorning. ... All 3 of t he signals I have noise on are the ones i am sharing with the stock ecu
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 09:23 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

...which all share the same ground.
Braineack is online now   Reply With Quote
Old 07-29-2010, 09:26 AM   #6
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Bingo! My iat has no noise but it is grounded locally I think

Solutions????
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 07:43 PM   #7
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

The cap is supposed to go across the boot jumper on the main board. I don't know if it will work for MS1.
redrider706 is offline   Reply With Quote
Old 07-29-2010, 07:49 PM   #8
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

What size?
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 07:52 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

try a .1uF, .22uF or .33uF
Braineack is online now   Reply With Quote
Old 07-29-2010, 07:55 PM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I'll give it a shot. How does putting a cap across the boot jumper help clean the signal? Won't that essentially short it out?
240_to_miata is offline   Reply With Quote
Old 07-29-2010, 07:58 PM   #11
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I put a .22uF. I also have a .22uF and a 3300uF across the 12V coming in.
redrider706 is offline   Reply With Quote
Old 07-29-2010, 09:30 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by 240_to_miata View Post
I'll give it a shot. How does putting a cap across the boot jumper help clean the signal? Won't that essentially short it out?

electronics run on magic.
Braineack is online now   Reply With Quote
Old 07-29-2010, 09:38 PM   #13
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Good enough answer for me lol
240_to_miata is offline   Reply With Quote
Old 07-30-2010, 12:46 AM   #14
Newb

Join Date: Nov 2008
Location: Auckland,NZ
Posts: 43
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
electronics run on magic.
I'm pretty sure they run on smoke.

Every time I let the smoke out of electronics they stop working.
Greenie is offline   Reply With Quote
Old 07-30-2010, 10:28 AM   #15
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Try grounding the sensors to the MS instead of the stock ECU; what's the stock ECU need an accurate reading for?
Matt Cramer is offline   Reply With Quote
Old 07-30-2010, 10:32 AM   #16
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Haha. The grounds are currently all tied together in the harness. How should I separate them?
240_to_miata is offline   Reply With Quote
Old 08-01-2010, 06:00 PM   #17
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

AN UPDATE:

-I tried installing Abes NB input mod...it didnt work. I looked over my circuit and it looks fine. I went back to my original circuit and the car started right up.

- Separated stock and MS grounds. Made a better connection... ms has 6awg wire all the way back to the battery ground.

- Installed .22uf cap across boot jumper

I am bumed out the nb circuit didnt work. IDK why. It wouldn't crank, oem tach didn't work, ms tach showed about half of the actual value.

The CAP seemed to work... sorda. I took it for a 5 minute drive getting on boost and bringing it into high rpm. It didnt break up or anything, but the log shows there was still SOME noise. Should I try a different size cap?
-
240_to_miata is offline   Reply With Quote
Old 08-01-2010, 06:17 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

a larger 3300uF cap fro.m 12v to gnd might help too
Braineack is online now   Reply With Quote
Old 08-01-2010, 06:24 PM   #19
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Pics please? I'm intrigued by this but I'm a visual learner.
turotufas is offline   Reply With Quote
Old 08-01-2010, 06:26 PM   #20
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I'll post screen shots and pics later
