Old 09-02-2007, 12:24 PM   #41
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Yah, having 0 time to work on stuff is not fun. I wanna drive my darn car
Splitime is offline   Reply With Quote
Old 09-02-2007, 02:41 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I lost my tach due to reflashing my firmware without pulling the ignitors like a dumbass, so my work on my COP setup is starting this week.
Braineack is offline   Reply With Quote
Old 09-02-2007, 04:03 PM   #43
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Splitime View Post
I still haven't had a chance to get to this.
To shove a 1k resistor on 2 wires? I know...it takes hours. Do you have a wife or something? :gay:
lazzer408 is offline   Reply With Quote
Old 09-02-2007, 04:08 PM   #44
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

sometimes it's hard to even get to the little jobs

Except for backing it into the driveway so I could sweep up the garage, I haven't looked at mine in about 2 weeks. And even then I put down the brake and rolled it out, then rolled it back in.
Ben is offline   Reply With Quote
Old 09-02-2007, 04:40 PM   #45
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
I lost my tach due to reflashing my firmware without pulling the ignitors like a dumbass, so my work on my COP setup is starting this week.
Lol, i did the same thing to completely kill mine.... i lost tach due to bad setting on my MS maps/wrong config on board... and then completely to firmware updates.

Having no garage and no time is what gets me.... but we just started paperwork for an offer on a house... so I might have a home with a garage by the end of the month....
Splitime is offline   Reply With Quote
Old 09-02-2007, 04:50 PM   #46
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Splitime View Post
so I might have a home with a garage by the end of the month....


Hope that works out for you.
lazzer408 is offline   Reply With Quote
Old 09-03-2007, 12:18 PM   #47
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

SO..... should I try running a 1k resistor from the single tach wire... to the BLU (which is run from ignition power, should be 12v)
Splitime is offline   Reply With Quote
Old 09-03-2007, 06:24 PM   #48
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Ran a 1k resistor between Blu (12v ignition power to ignitor) and the Tach wire (4, yel/blu). I now have a working tach, not driven around or abused it... but it works to rev and idle.

For MS, you do not need to combine the Yel/Blu (4) and Blk/Wht (5). Blk/Wht is there for the OEM Ecu to provide a 1v feed into the ignitor, which explains why the OEM Ecu can get Tach working with the COPs and the 4/5 merged.
Splitime is offline   Reply With Quote
Old 09-03-2007, 06:28 PM   #49
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Awesome. Now someone needs to combine this info so we have a general clue what the hell is going on.
cjernigan is offline   Reply With Quote
Old 09-03-2007, 06:29 PM   #50
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

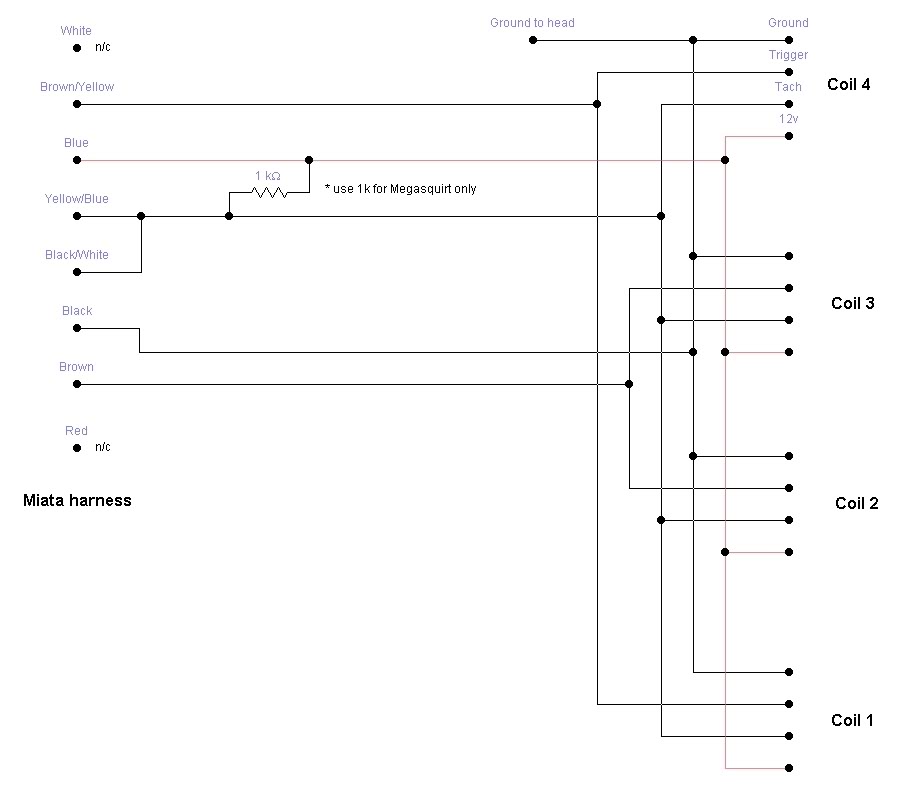

Name:  1.6L_COP_Schematic.jpg
Views: 4
Size:  37.0 KB
lazzer408 is offline   Reply With Quote
Old 09-03-2007, 07:40 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

yay, glad to hear.
Braineack is offline   Reply With Quote
Old 09-03-2007, 07:40 PM   #52
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

so i am a little unsure of the advantage of this mod?
akaryrye is offline   Reply With Quote
Old 09-03-2007, 07:47 PM   #53
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by akaryrye View Post
so i am a little unsure of the advantage of this mod?
Increased MPG, smoother idle, better starting, elimination of plug wires, less electrical interference, fires a bigger gap.
lazzer408 is offline   Reply With Quote
Old 09-03-2007, 07:56 PM   #54
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

In short it means more power potential+ a hotter spark
magnamx-5 is offline   Reply With Quote
Old 09-04-2007, 03:33 AM   #55
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

great that sounds good to me, I may be putting this on my list of things to do ... i need to read up more on ignition system first though.
akaryrye is offline   Reply With Quote
Old 09-04-2007, 05:33 AM   #56
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by akaryrye View Post
great that sounds good to me, I may be putting this on my list of things to do ... i need to read up more on ignition system first though.
Ignition in general or the Miata specifically? There's alot of info in this thread like dwell times and whatnot for the Miata. I wish I had time to sort it out and seperate the 'write-up' from the bs.
lazzer408 is offline   Reply With Quote
Old 09-04-2007, 12:02 PM   #57
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

i guess a little bit of both although i guess if youre just running a wasted spark system then its pretty much the same, just the coil is closer to the plug (rather on it). Ill let others be the guinea pig for this.
akaryrye is offline   Reply With Quote
Old 09-04-2007, 04:49 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

the black/white is a 1v output from the ECU to the ignitor, for the tach signal....do I assume that since I'm piggybacked, I just need to join the blk/wht and tach out and nothing else? whereas split has a standalone and no 1v signal, so he needs the resistor for the tach output???
Braineack is offline   Reply With Quote
Old 09-04-2007, 05:00 PM   #59
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

whoa, tach only needs 1V?! Probably need a 317 to regulate voltage instead of just a resistor then.
Ben is offline   Reply With Quote
Old 09-04-2007, 05:16 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

that's what I'm understanding for this thread.

the only thing the oem ecu sends to the ignitor is a 1v source. from 2I, blk/wht.

since Splittime doesnt have a stock ecu anymore I suspect the problem is getting the 1v source....this is assumption.

when he took the 12v source and hit it with a resistor to the tach out signal line, he got his signal back.

and likewise, others with the stock ecu simply connect the 1v input to the tach signal output.

with this assumption, peoples like me, with a piggybacked MS, would simple just install it like the rest of you guys with a stock ecu only.
Braineack is offline   Reply With Quote
