Quote:
Originally Posted by Ben View Post
whoa, tach only needs 1V?! Probably need a 317 to regulate voltage instead of just a resistor then.
Its not so much that the Tach only needs 1v. It has power/gnd going to it from the in cabin harness.

Its that the tach outputs from the COPs need that 1v signal that would normally come from the ECU.

So as talked about,
Standalone MS = 1k from 12v to tach wires (which as Lazzer mentioned, can be done at the ecu plugs easily... so you can still merge the 2 wires together for possibly other configurations)
MS with OEM Ecu = just jumper the 2 wires together.
OEM Ecu = just jumper the 2 wires together.
Splitime is online now   Reply With Quote
Old 09-04-2007, 06:31 PM   #62
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

aiight, thanks for clearing that up.

i figured as much, i started wiring mine and didnt want to have to go back in later.
Braineack is offline   Reply With Quote
Old 09-04-2007, 07:03 PM   #63
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Dave I get it, my objection was with the high voltage feed instead of 1V.
Ben is offline   Reply With Quote
Old 09-05-2007, 02:16 AM   #64
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
Dave I get it, my objection was with the high voltage feed instead of 1V.

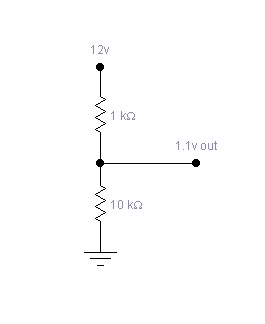

"High voltage" being 12v thru the resistor instead of a regulated 1v? I don't think the voltage really needs to be regulated. It's just something the tach needs to compair a 0v tach pulse against. I'm suprised Mazda didn't do all this in the tach itself. It seems overly complicated just for a tach signal. 1k limits the current at 12ma (.012a). Not enough to fry anything. If you -really- want to lower it use a resistor divider (series network) of 1k to v+ and 10k to ground. The center will give you 1.1v.

Name:  1.1v_out.jpg
Views: 2
Size:  3.9 KB
lazzer408 is offline   Reply With Quote
Old 09-05-2007, 02:27 AM   #65
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

thats funny, I was telling split to do a voltage divider a couple days ago when this was first mentioned.
neogenesis2004 is offline   Reply With Quote
Old 09-05-2007, 08:36 AM   #66
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Yeah "high" meaning 12 instead of 1.
I'm not convinced it needs a regulator either, but it's just as simple to do.
Ben is offline   Reply With Quote
