To get the sync loss resolved, could you get a composite log of an attempted start, and attach the whole file to a post?
I was not able to do this properly. I checked the box 'Capture to Log File' computer names a file along with the couple old .csv logs from 9/1, click start, and nothing.

I changed from Rising to Falling Edge. Same result with 31 and 32 errors.



Did I throw off the timing completely turning the engine over by hand when I removed this pulley (piece of my old supercharger)????

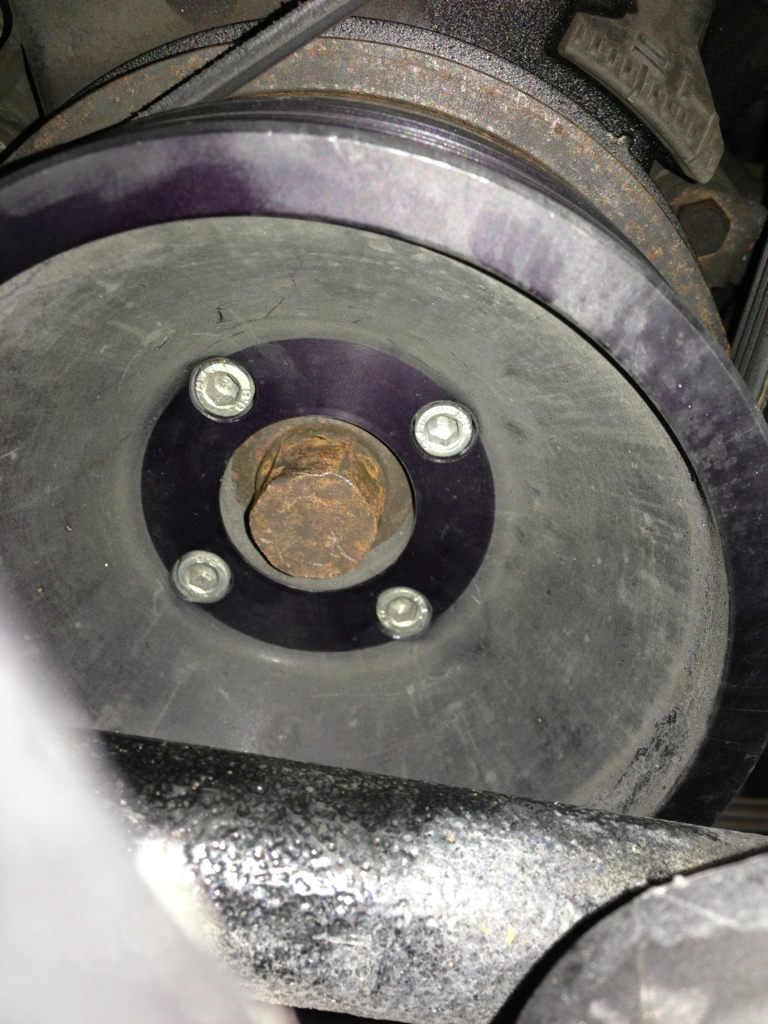

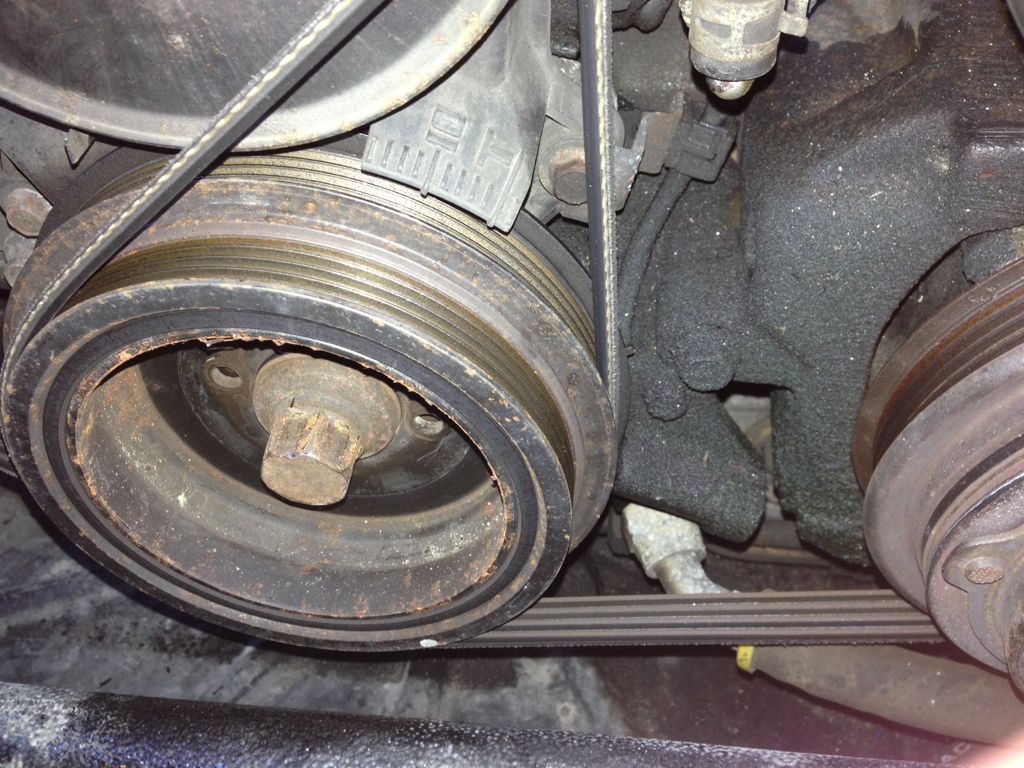

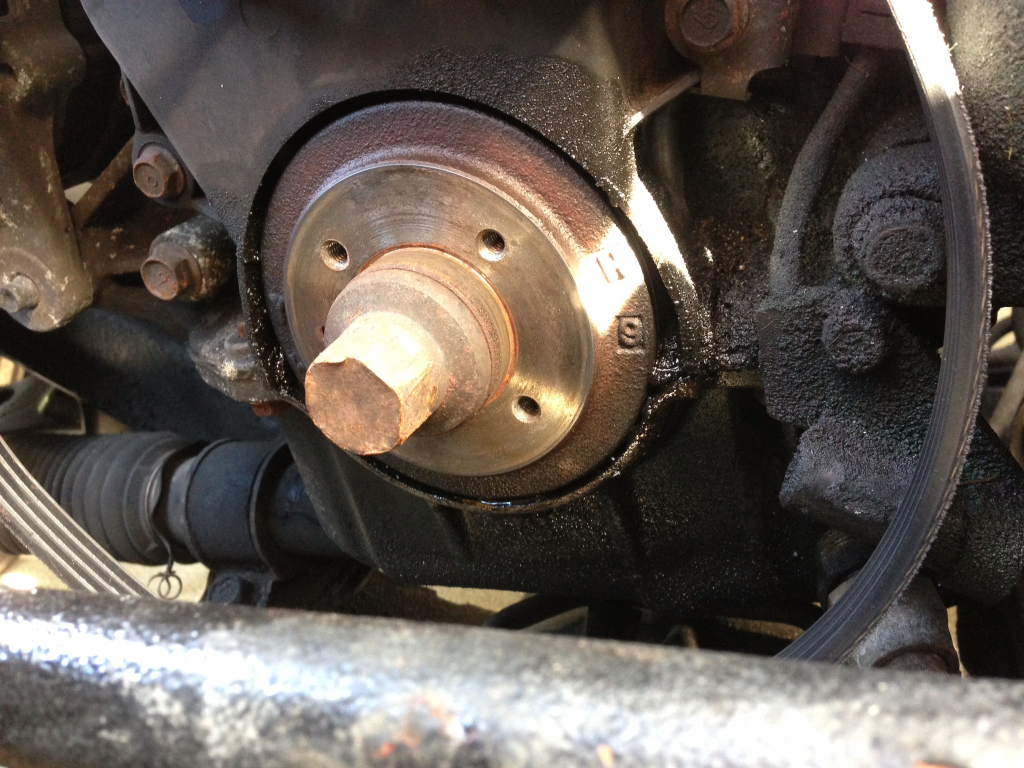

after removal
Attached Thumbnails
Cranking and ASE tuning-1124b5ee-f694-48c0-a043-cbe1cbb3dc50-1976-00000182da928ca7.jpg   Cranking and ASE tuning-68238c16-e022-4ac6-86af-e5c26b588f96-1976-00000182e8c3589a.jpg
94mx5red is offline   Reply With Quote
Old 11-11-2012, 10:43 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

once you click start, you need to crank for about 15-20seconds.
Braineack is offline   Reply With Quote
Old 11-11-2012, 01:22 PM   #23
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

I'll be able to try again tomorrow.


I'm being overly paranoid about rotating the engine by hand to reach the Hex bolts, right?
94mx5red is offline   Reply With Quote
Old 11-11-2012, 01:36 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

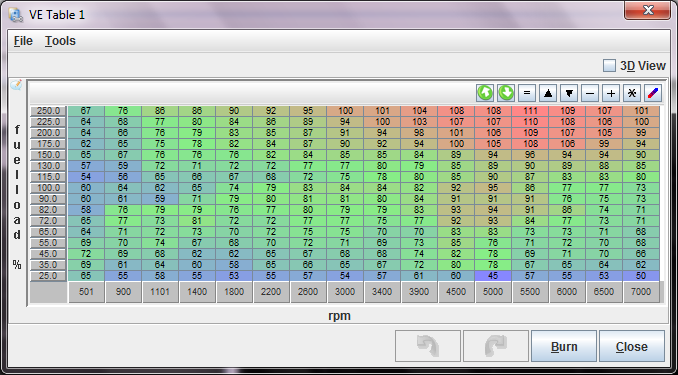

Nice VE table, lolol:
hustler is offline   Reply With Quote
Old 11-11-2012, 04:00 PM   #25
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Focus on my other inadequacies
94mx5red is offline   Reply With Quote
Old 11-11-2012, 05:01 PM   #26
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

Are you running without bolts on the crank pulley?
3rdCarMX5 is offline   Reply With Quote
Old 11-11-2012, 05:27 PM   #27
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Quote:
Originally Posted by 3rdCarMX5 View Post
Are you running without bolts on the crank pulley?

Uhhhhhhhh..... yes.......


Oh boy. Seriously?
94mx5red is offline   Reply With Quote
Old 11-11-2012, 05:50 PM   #28
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default



Is it likely I damaged anything?
94mx5red is offline   Reply With Quote
Old 11-11-2012, 09:02 PM   #29
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Are these something I can grab at hardware store?
94mx5red is offline   Reply With Quote
Old 11-11-2012, 09:54 PM   #30
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

You need high grade bolts of a specific length. You sheared the pin, but shouldn't be any permanent damage.

You will need to make sure you re-align the pin with the hole to line up the crank trigger wheel.
3rdCarMX5 is offline   Reply With Quote
Old 11-12-2012, 02:16 AM   #31
Newb
iTrader: (1)

Join Date: Jun 2010
Posts: 38
Total Cats: 1
Default

buy arp bolts for the crank pulley from flyin miata if you need new ones.
Boosted Escort is offline   Reply With Quote
Old 11-12-2012, 08:35 AM   #32
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

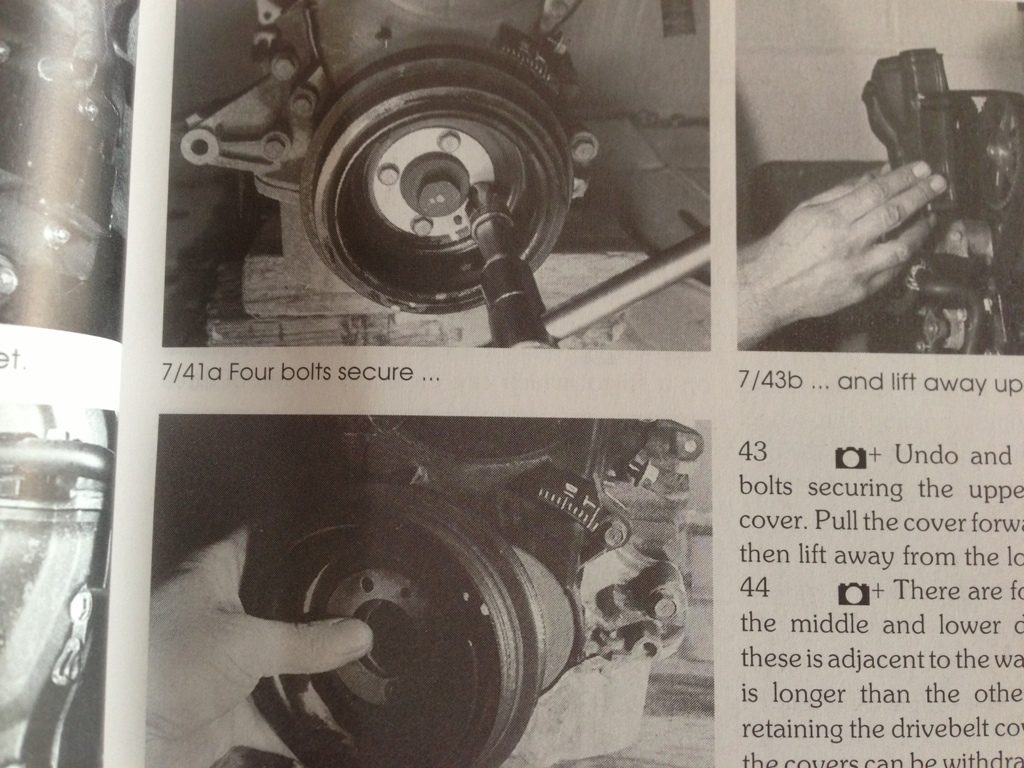

It is making sense now. The pin is there as a guide to make sure the timing marks are in the right spot.

This should be relatively easy: take off the accessory belts, line up the pulley and bolt down.

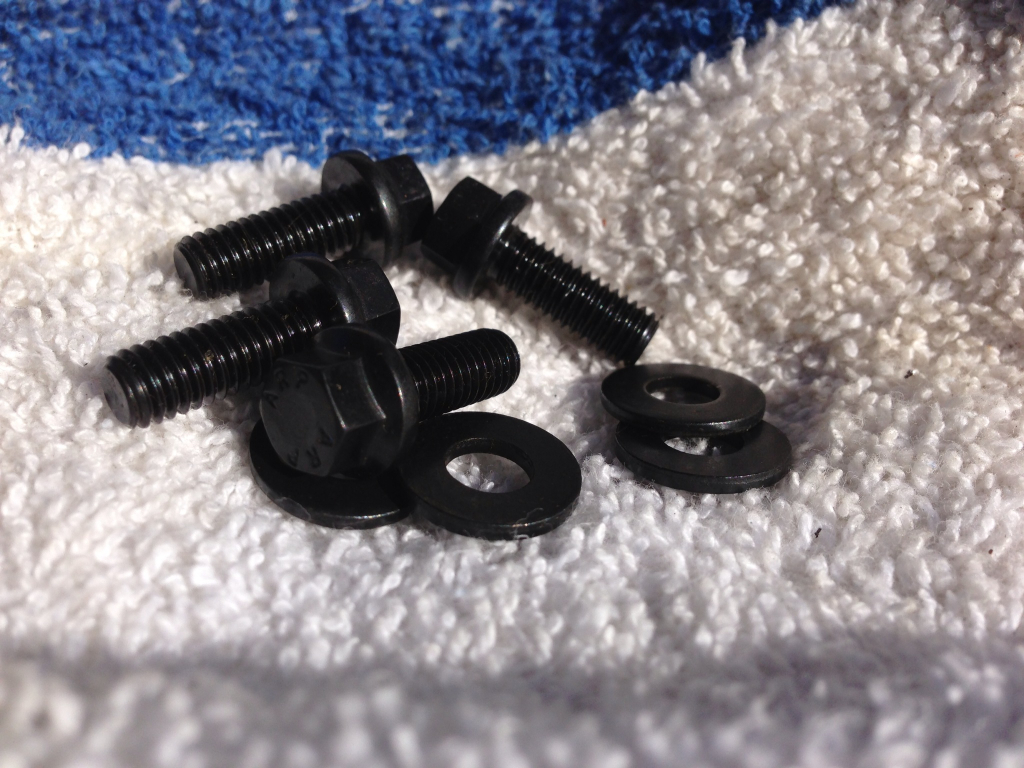

The arp bolts are $20 from FM. Ordering this morning.




Attached Thumbnails

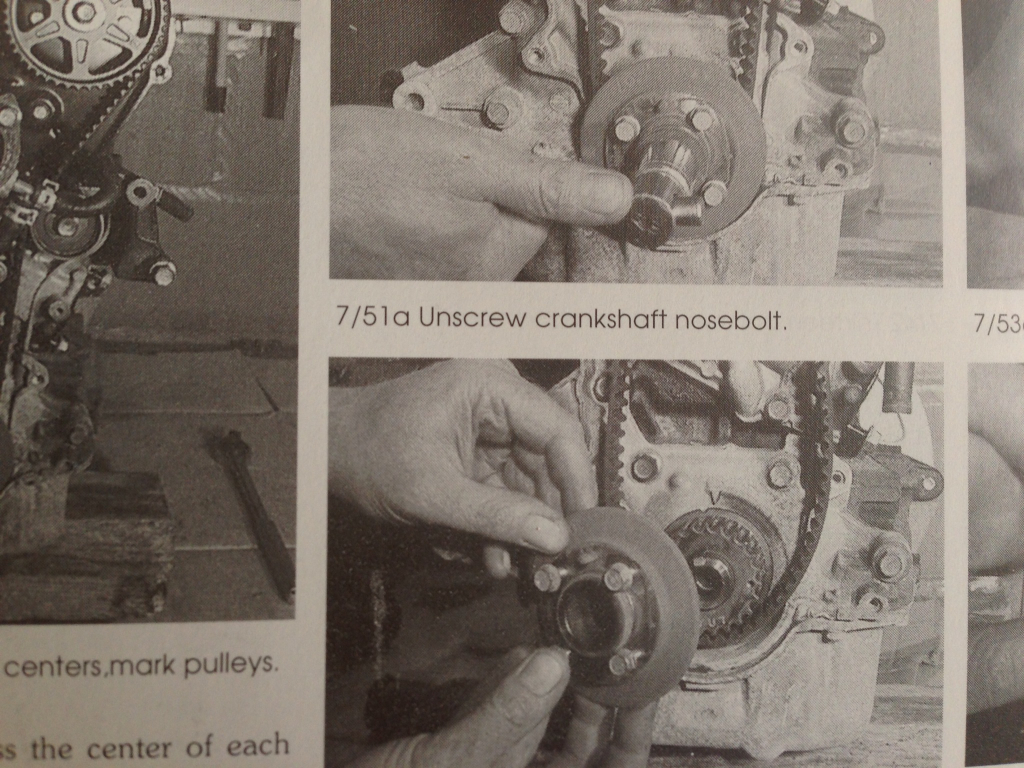

Cranking and ASE tuning-169c53ac-2b76-4973-8e89-6a0b82fbcb8f-2125-0000017faadde161.jpg   Cranking and ASE tuning-cb7ee479ea736873337fa4f9c91c67db.jpg   Cranking and ASE tuning-b6130b2e6802f030feb32f4daa45e3c4.jpg
94mx5red is offline   Reply With Quote
Old 11-18-2012, 09:15 AM   #33
Junior Member

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

Be very careful installing those. They don't get much torque. I found TWO of mine broke when I did the timing belt and was able to extract one of the broken bits. So far it's holding on three and the pin.

Mike
Mikelly is offline   Reply With Quote
Old 12-01-2012, 06:03 PM   #34
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

No start...

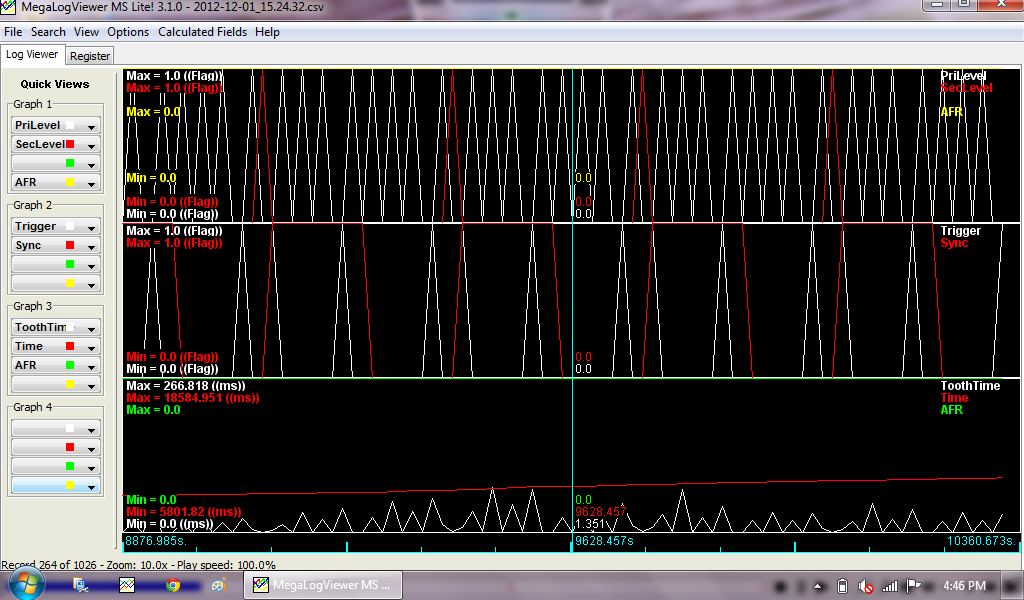

Name:  Untitled-39.png
Views: 13
Size:  126.2 KB
Attached Files
File Type: csv 2012-12-01_15.21.13.csv (78.1 KB, 35 views)
File Type: msl 2012-12-01_15.20.59.msl (756.4 KB, 78 views)
94mx5red is offline   Reply With Quote
Old 12-01-2012, 06:06 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

this is with rising edge or falling? i see that it's seeing your signals in a good pattern...
Braineack is offline   Reply With Quote
Old 12-01-2012, 07:55 PM   #36
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

This is falling. We originally had it rising.
94mx5red is offline   Reply With Quote
Old 12-02-2012, 02:01 PM   #37
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Today it started, but ran poor. Seemed down on cylinders or timing way off.

It was goofy: went back to rising, logged a rough non start, flipped to falling and it showed encouragement and started with a cracked throttle.

I'll post up some more details in a few minutes.
94mx5red is offline   Reply With Quote
Old 12-02-2012, 03:16 PM   #38
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

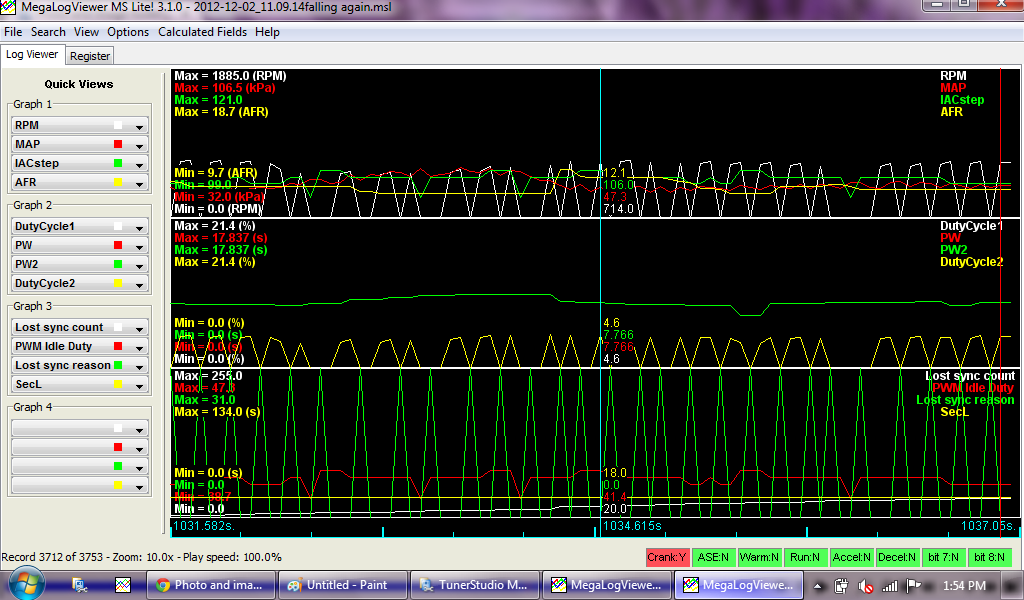

This is the log of it 'running.' Falling edge.

I do notice sync 32 is gone, and secL resets and at times holds constant. I don't recall the significance of the secL, read something about it a few weeks ago.

Guess I did not line up things correctly? Pictures to follow.

Name:  Untitled-40.png
Views: 13
Size:  131.9 KB
Attached Files
File Type: msl 2012-12-02_11.09.14falling again.msl (978.0 KB, 40 views)
File Type: csv 2012-12-02_11.09.35.csv (444.4 KB, 34 views)
94mx5red is offline   Reply With Quote
Old 12-02-2012, 04:18 PM   #39
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

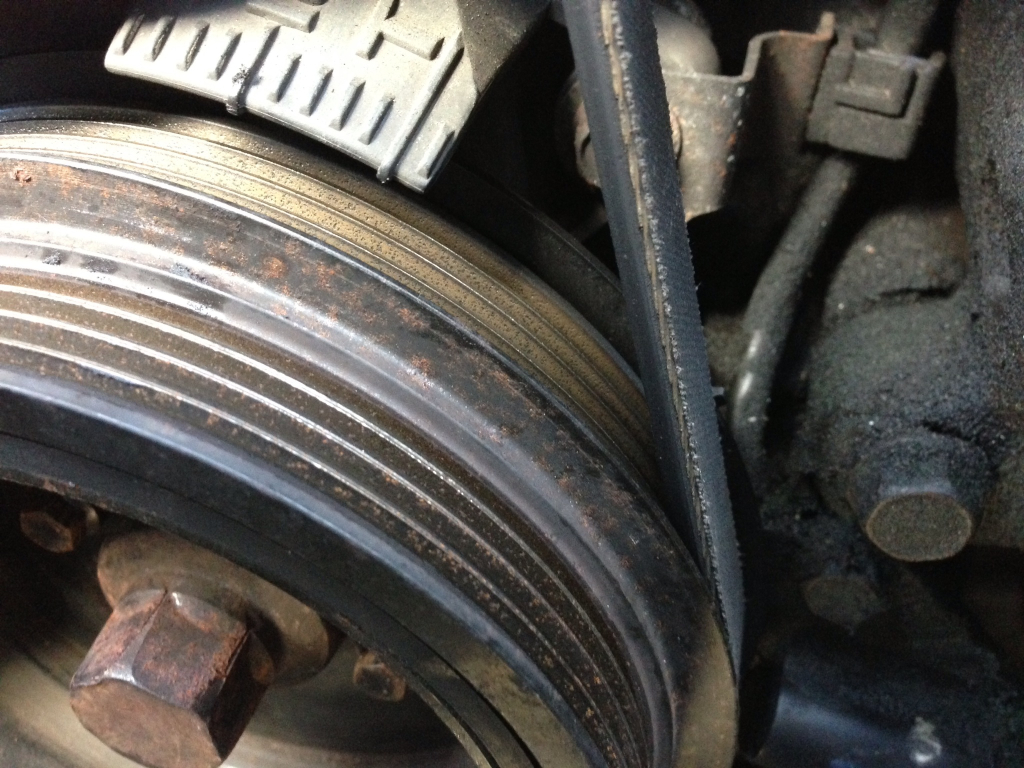

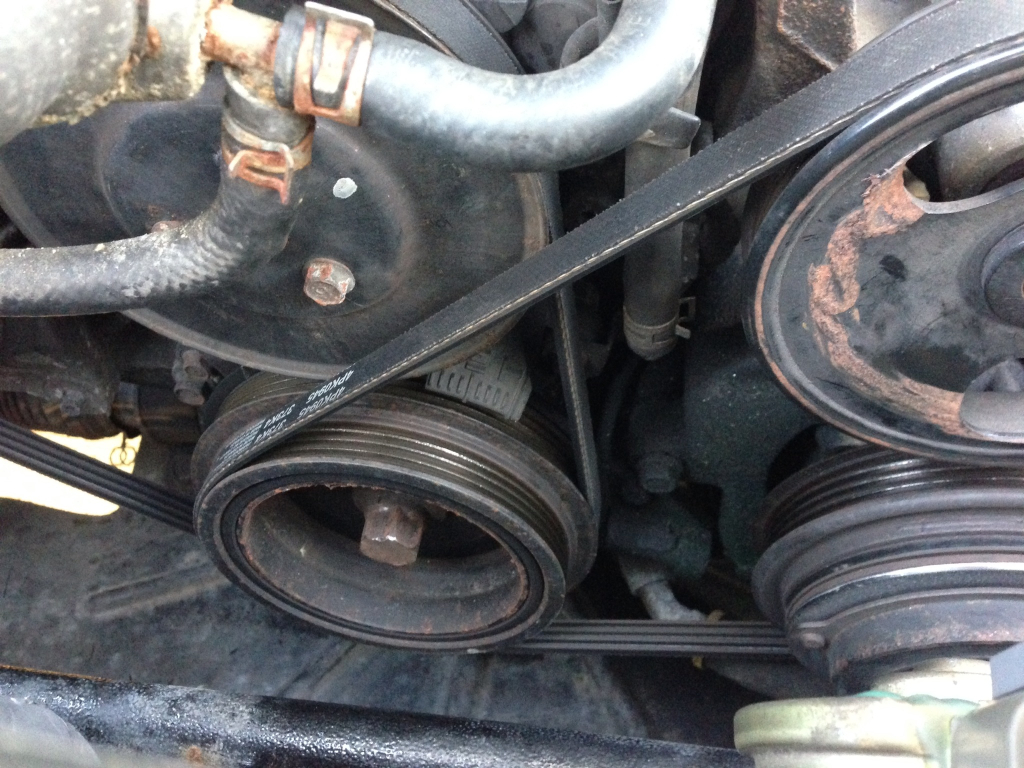

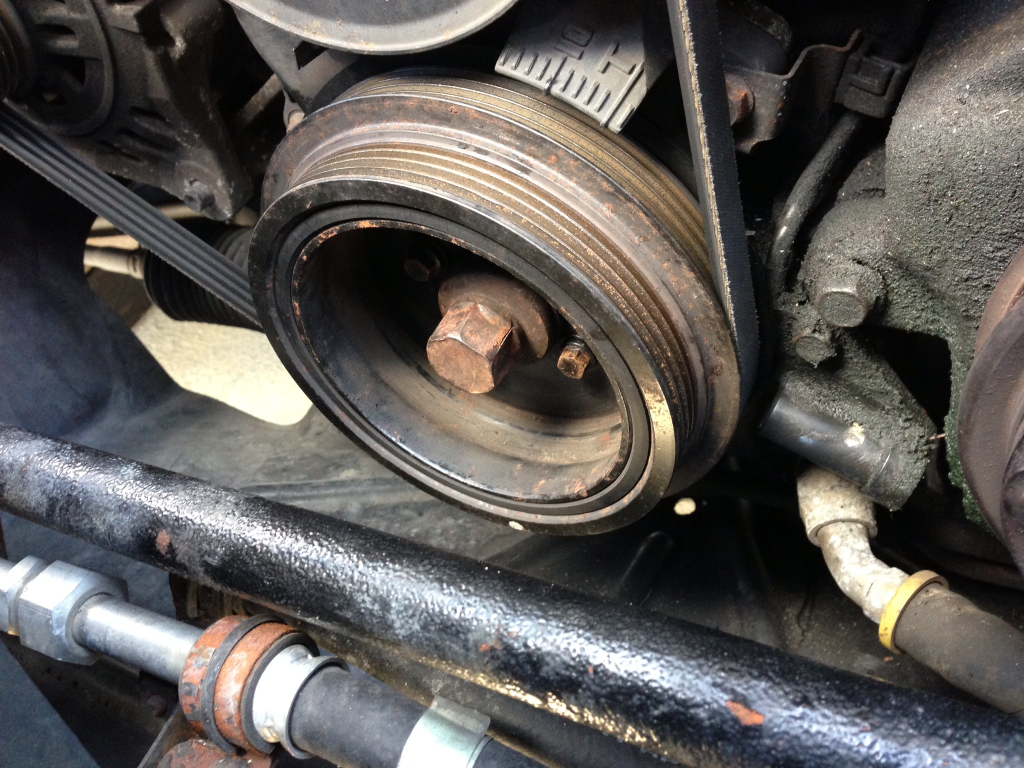

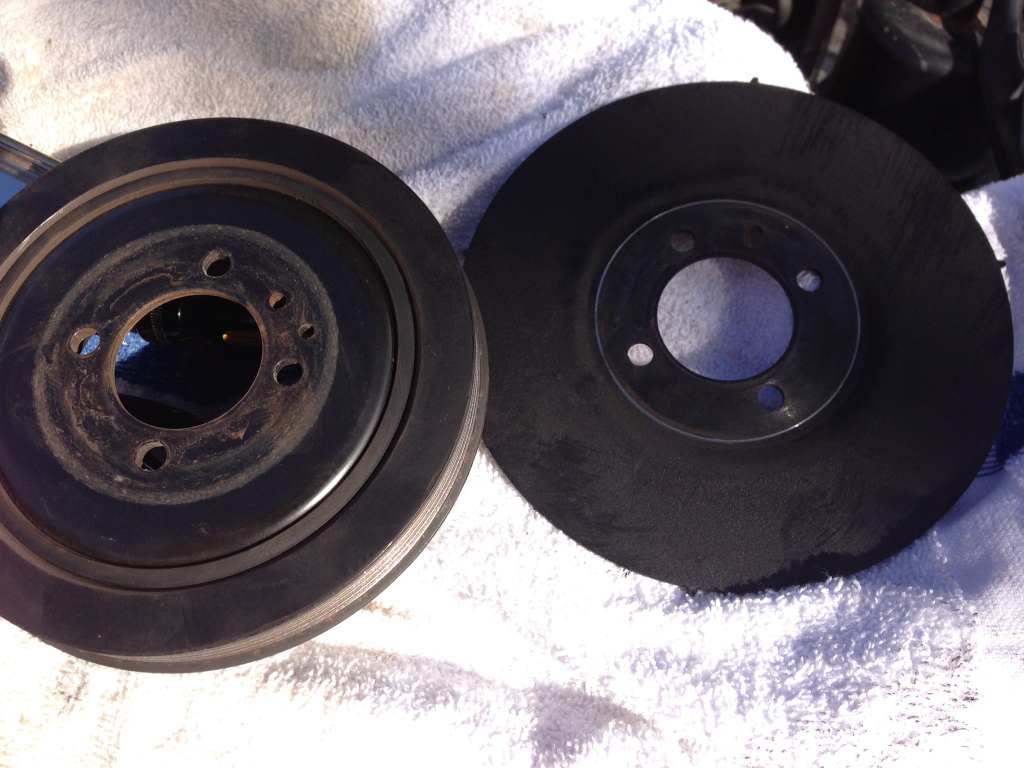

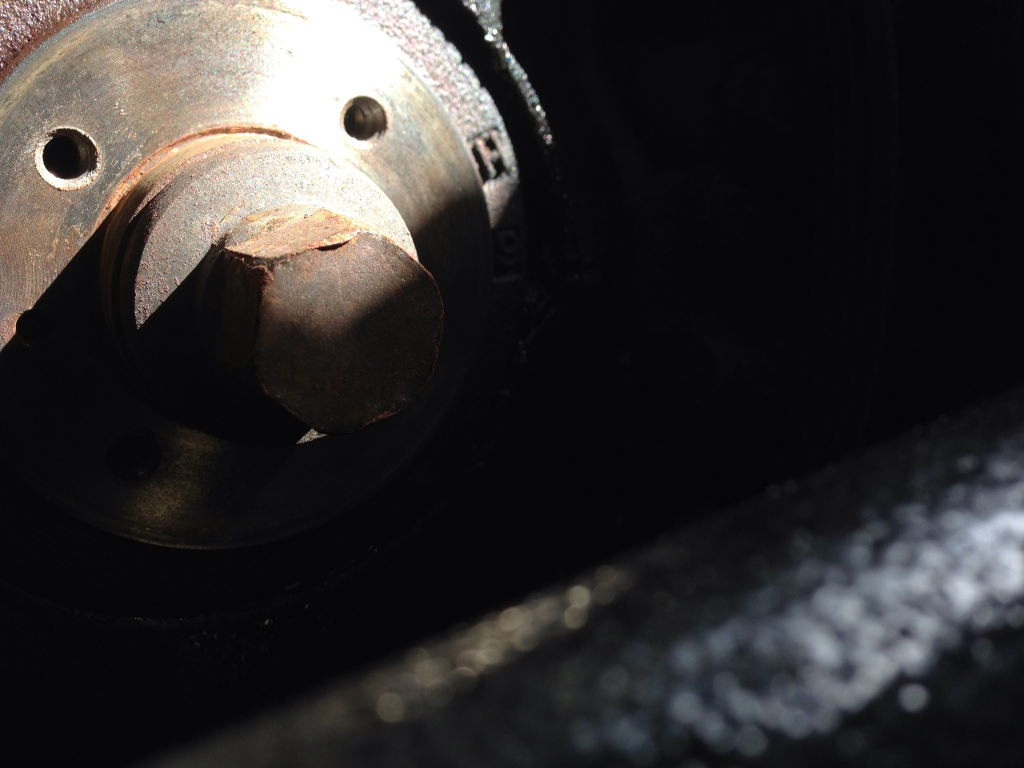

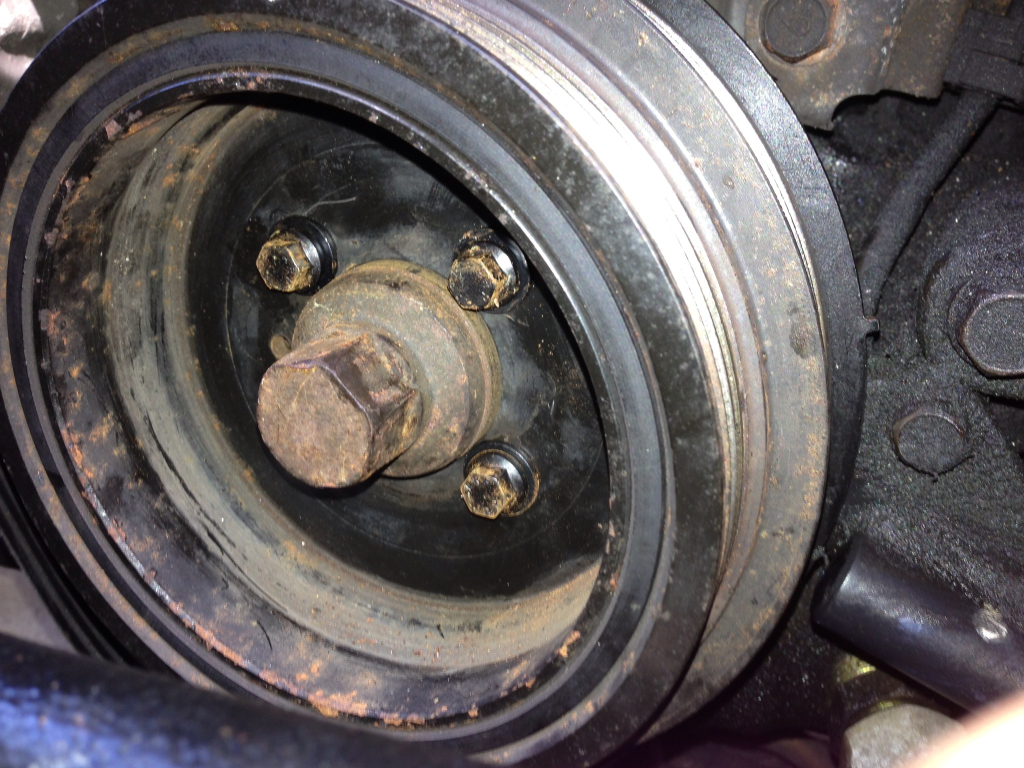

The trigger wheel and the pulley seemed to only line up a single way. Please check me here.

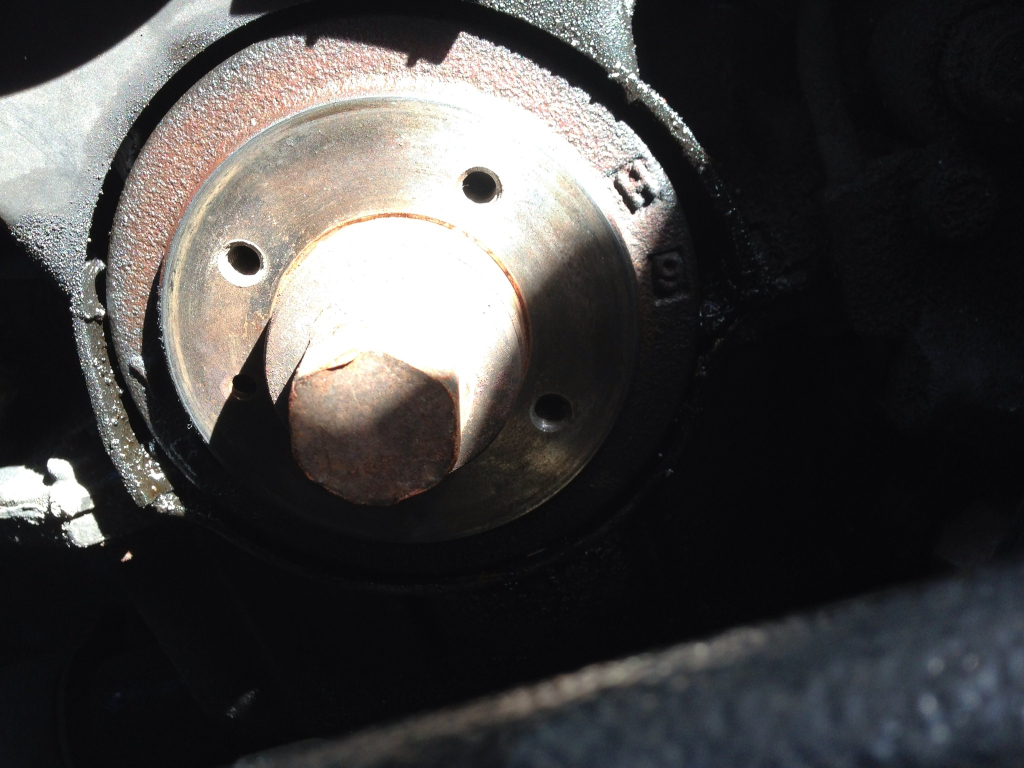

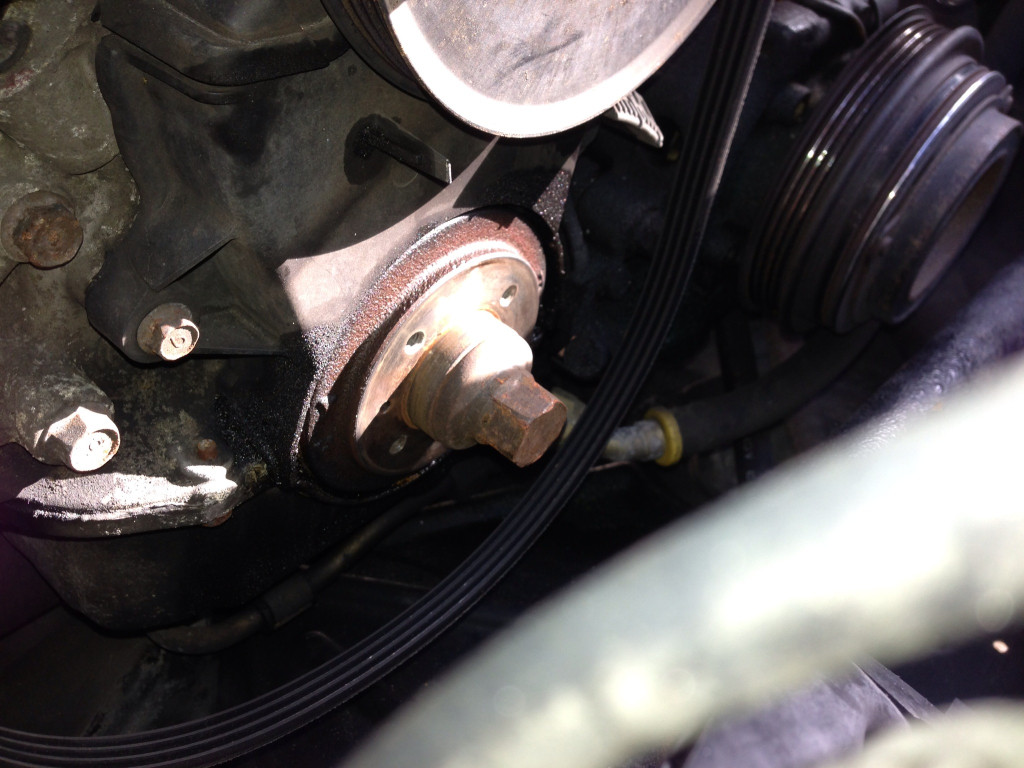

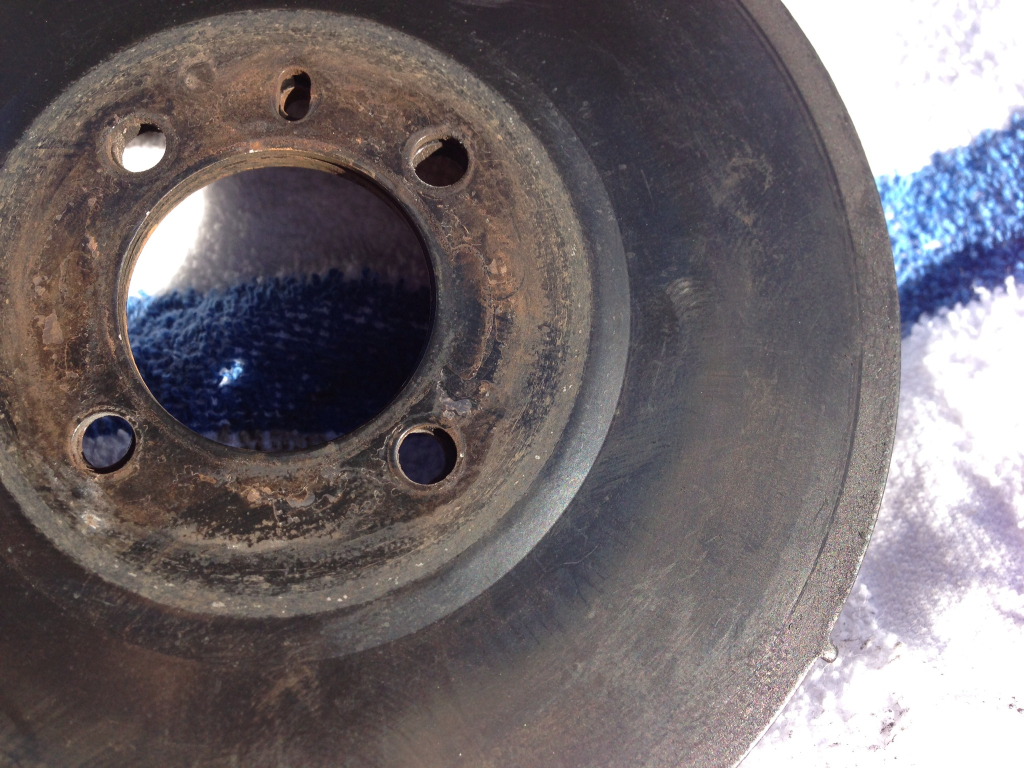

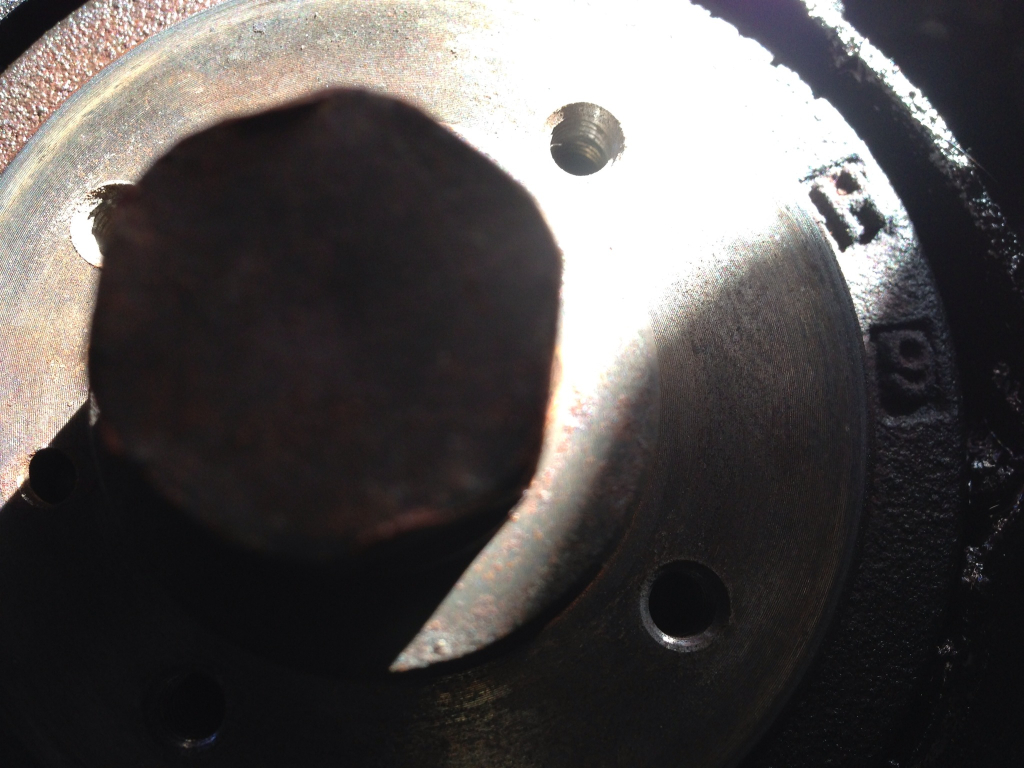

The hole, where I assume the pin used to be, is difficult to see in the pictures. It is on the left in the 270degree position. I lined up the holes.

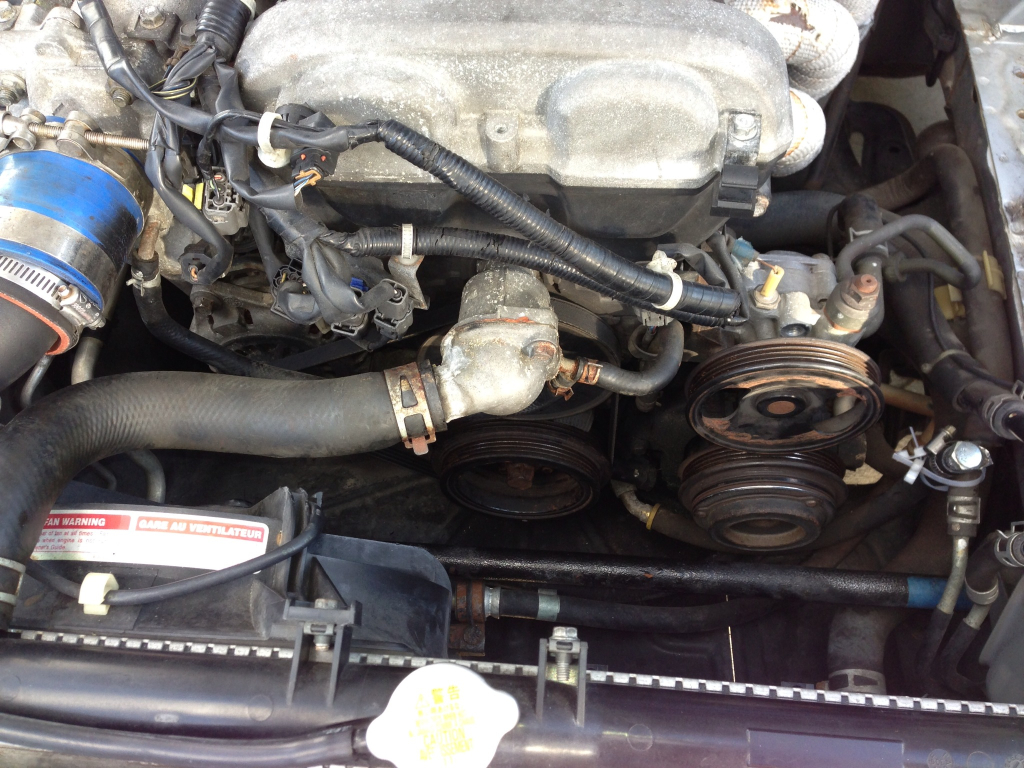

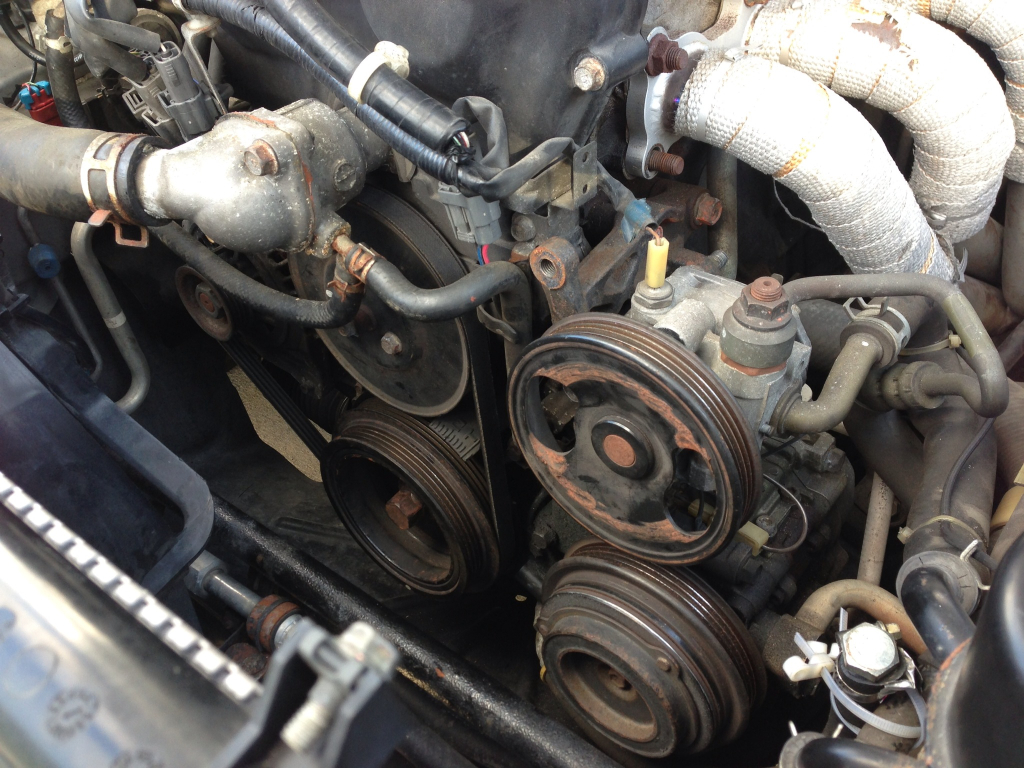

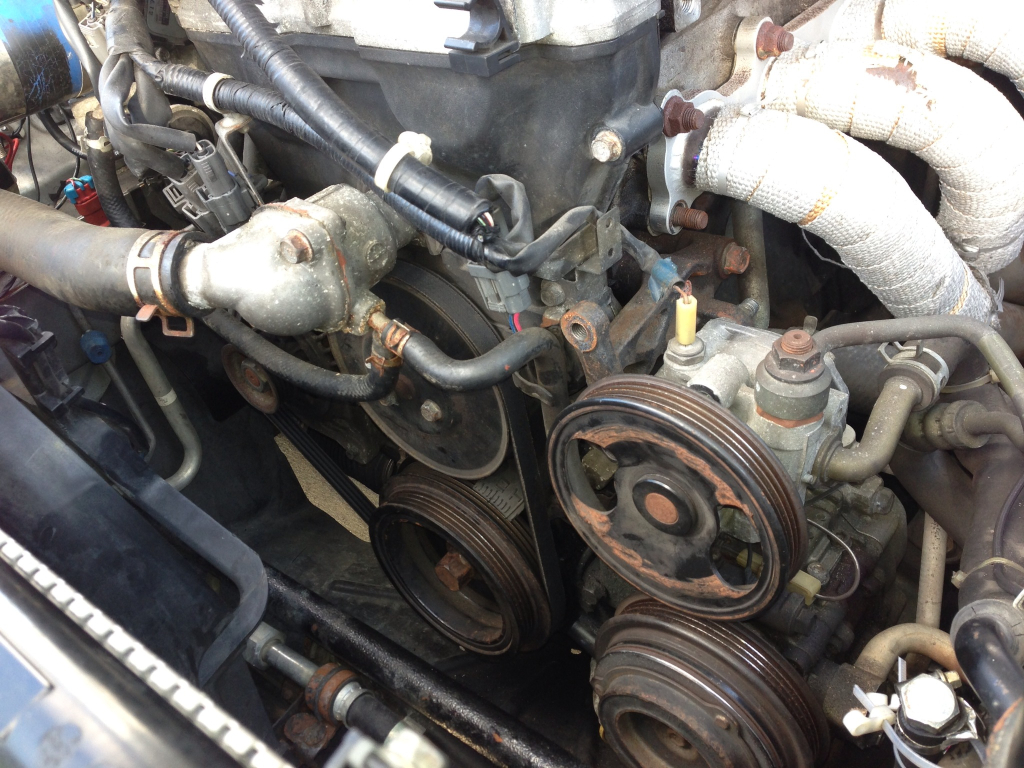

I did not run the belt to the power steering or the AC as I realized I am missing the tensioner. It must have been taken off when the supercharger was installed.

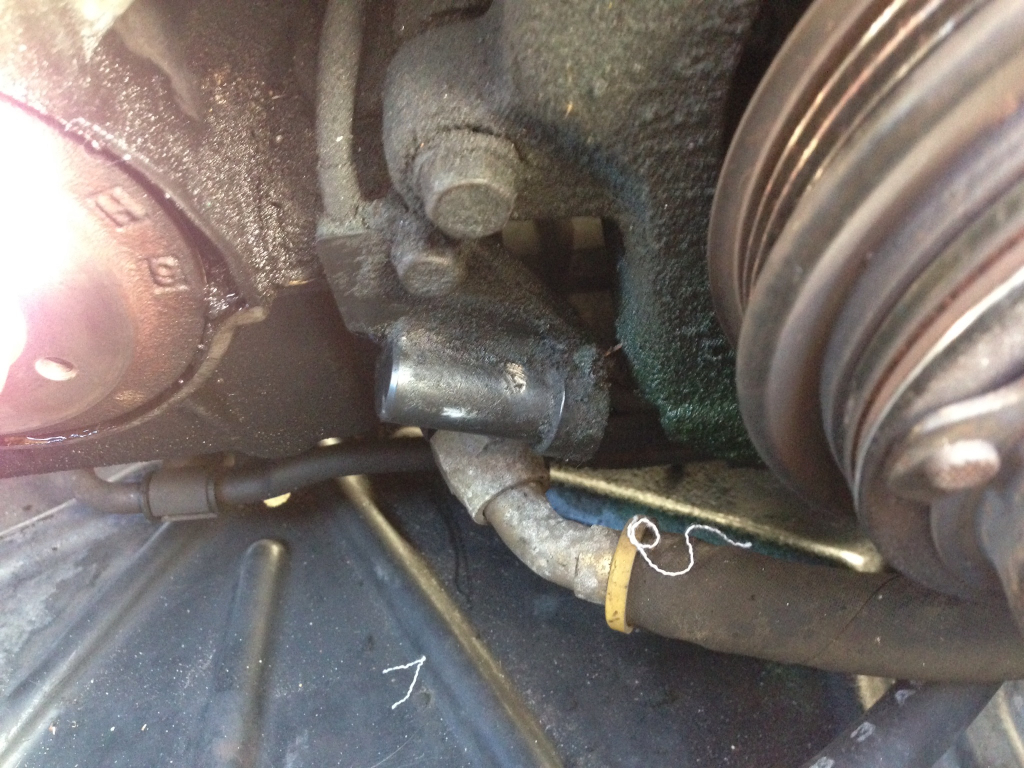

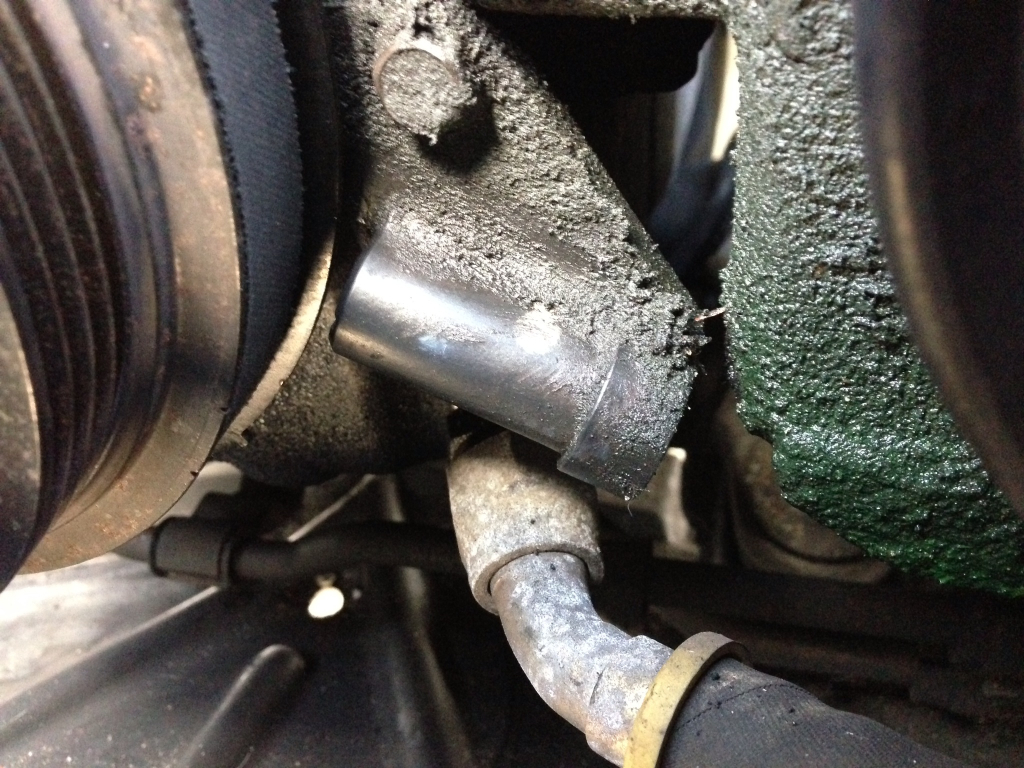

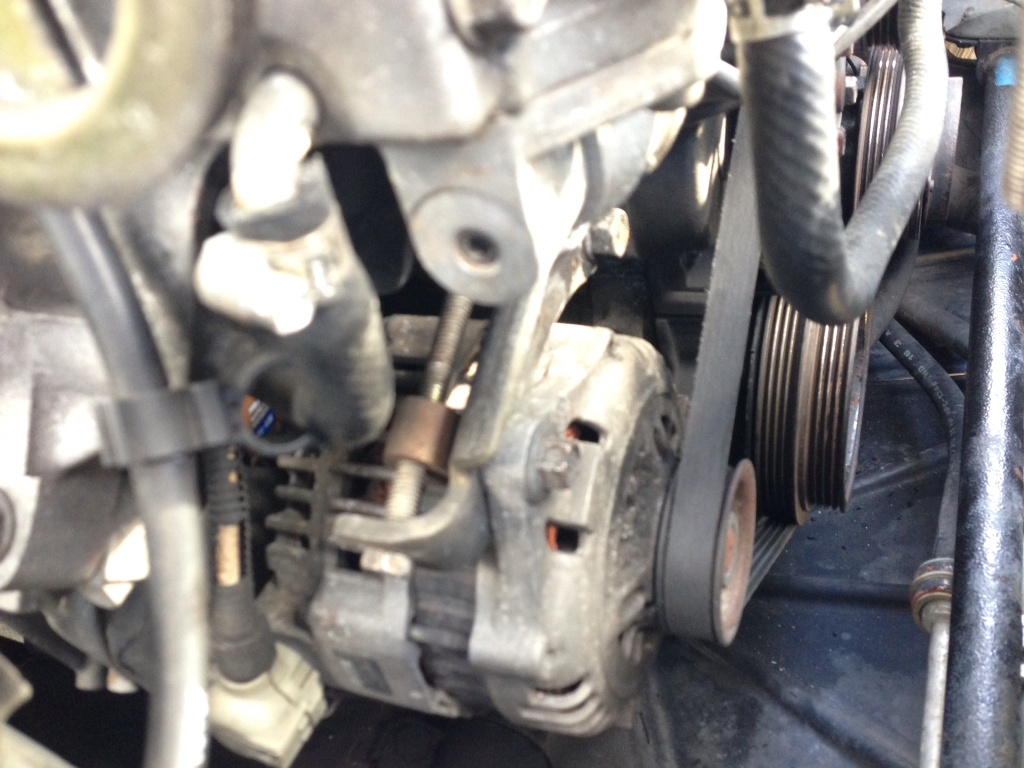

Is this the sensor for the trigger wheel? It was covered in sludge from the AC leaking.




Attached Thumbnails
Cranking and ASE tuning-1e6e646408e58726cc685d884bc3b25c.jpg   Cranking and ASE tuning-fd1bbbc0749d7f69a5e51eab369b5b05.jpg   Cranking and ASE tuning-e2f0ef1b859bf12ff861e302a6993f3e.jpg   Cranking and ASE tuning-85d4cf85f10b685f87e57e40c5ae4a60.jpg   Cranking and ASE tuning-cadf197c41193a68eccc2c21e0affc81.jpg

Cranking and ASE tuning-18b3416d5203ca532b122b78a4b747ac.jpg   Cranking and ASE tuning-f7a762cadb4fbfc90aa1a666e82d0260.jpg   Cranking and ASE tuning-7619c21011fd72aa12d26ae15d116e5f.jpg   Cranking and ASE tuning-6e89e244fee6469e0ca110c8ed21252e.jpg   Cranking and ASE tuning-d5a207230a862bfe4d86a6fcdd7400b3.jpg

Cranking and ASE tuning-544f1abbd0c35ab60fcc604363a1b845.jpg   Cranking and ASE tuning-3d9ba4ad1351e063d6acb3f9696a59d5.jpg   Cranking and ASE tuning-eaf636c17d119b7bb2dd1a6e9bb8cbd1.jpg   Cranking and ASE tuning-24c00dae79aa5b7049fe1b83299babac.jpg   Cranking and ASE tuning-9fc256cfa390b9d3fc2d65fde408507f.jpg

Cranking and ASE tuning-1a83e95cab3eee1979688f86b0d0e1e7.jpg   Cranking and ASE tuning-de77c9263b8d76542163f38fc0bc3dbc.jpg
94mx5red is offline   Reply With Quote
Old 12-03-2012, 02:40 AM   #40
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

The crank trigger wheel can go on two ways, you need to make sure the wheel is on right or you will be a large degree out of sync. If it has been the same way the whole time it is probably right.

The dirty thing is the sensor and the proximity matters.
3rdCarMX5 is offline   Reply With Quote
