Old 12-03-2012, 08:13 AM   #41
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

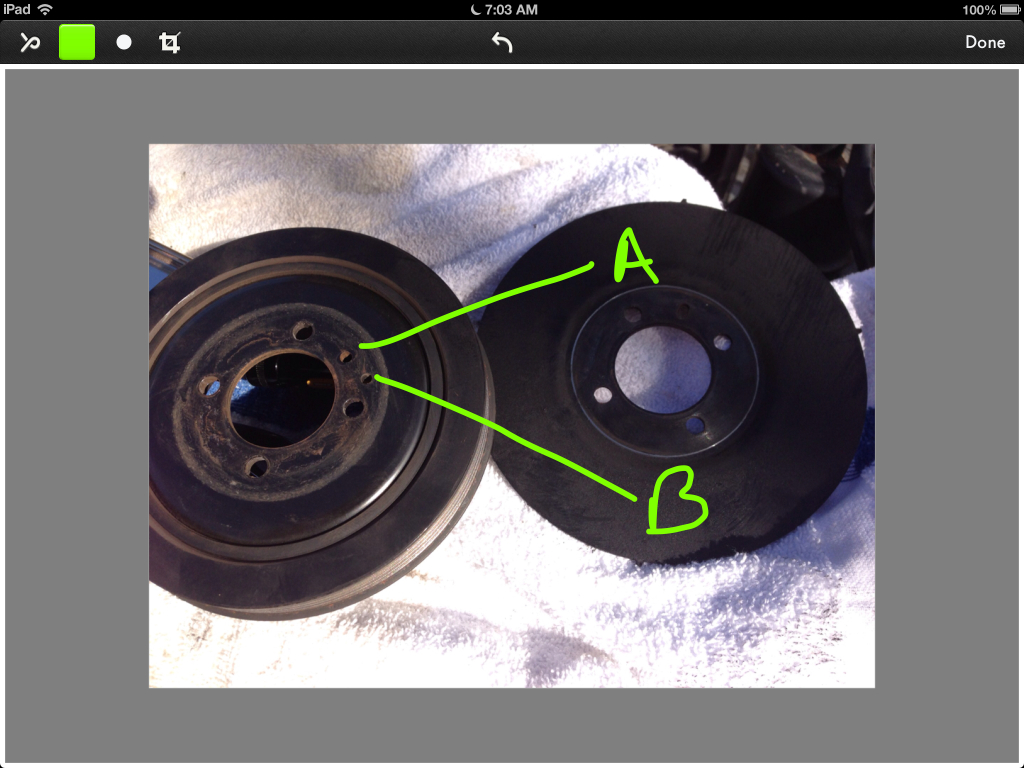

By two ways, do you mean flipping it? Nothing really seemed to line up with hole 'B.'


It appears I did put it in upside down: the rusty side of the wheel should be facing the rusty side of the pulley. Shiny ring side of the pulley should face the crank. I might have even made that shiny ring while cranking with these pieces loose..




Quote:
Originally Posted by 94mx5red View Post

Attached Thumbnails
Cranking and ASE tuning-fa2dead7c0e3f8fd2064b568294419fe.jpg
94mx5red is offline   Reply With Quote
Old 12-03-2012, 02:10 PM   #42
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

Yes, I meant flipping it over. The teeth do not line up symmetrically with the pin.
3rdCarMX5 is offline   Reply With Quote
Old 12-08-2012, 03:02 PM   #43
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Holy ****, it runs!
94mx5red is offline   Reply With Quote
Old 12-08-2012, 03:46 PM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

thank god! so the issue was the timing wheel?
Braineack is offline   Reply With Quote
Old 12-08-2012, 06:23 PM   #45
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Yeah dude. Self imposed bullshit.

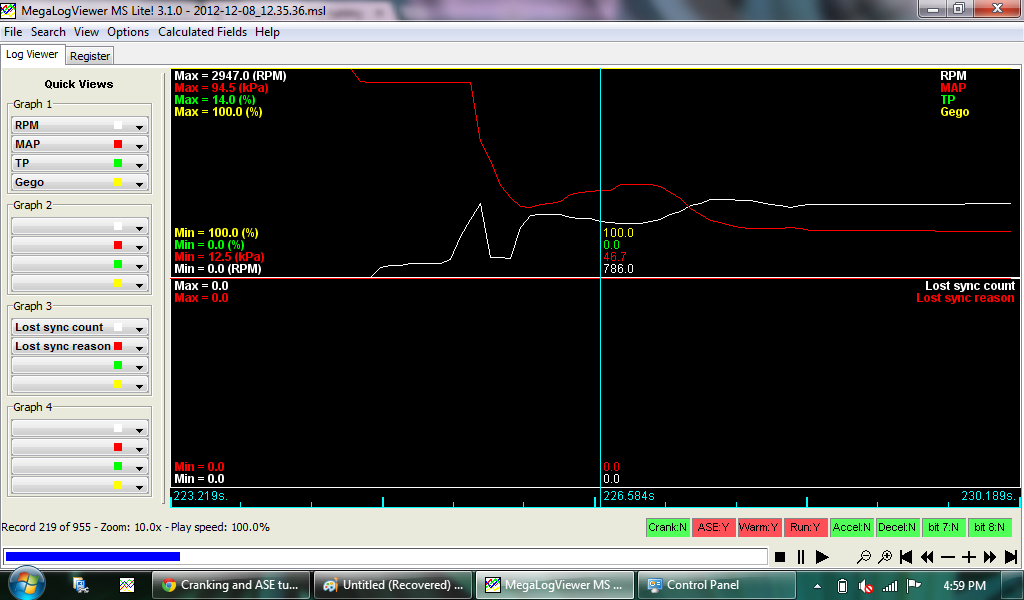

So anyways, happy ending! See the best part?


Name:  Untitled-41.png
Views: 12
Size:  126.6 KB
94mx5red is offline   Reply With Quote
Old 12-08-2012, 06:43 PM   #46
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Per flyinmiata the factory torque spec is 109 - 152 inch/lb on the pulley bolts.

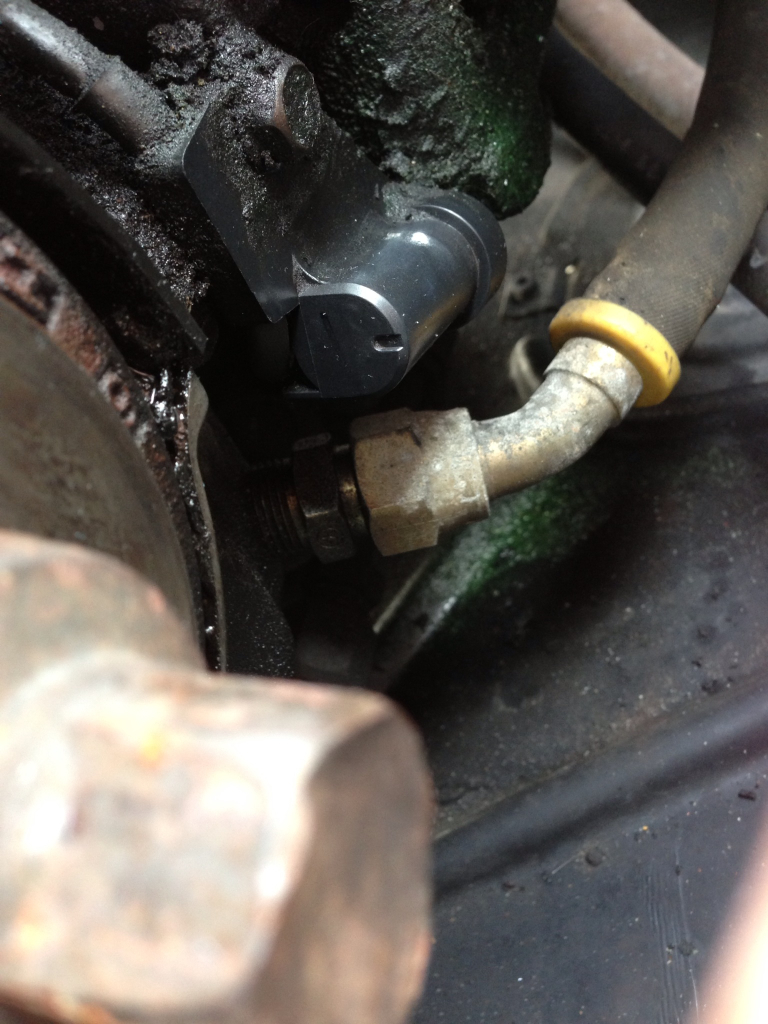

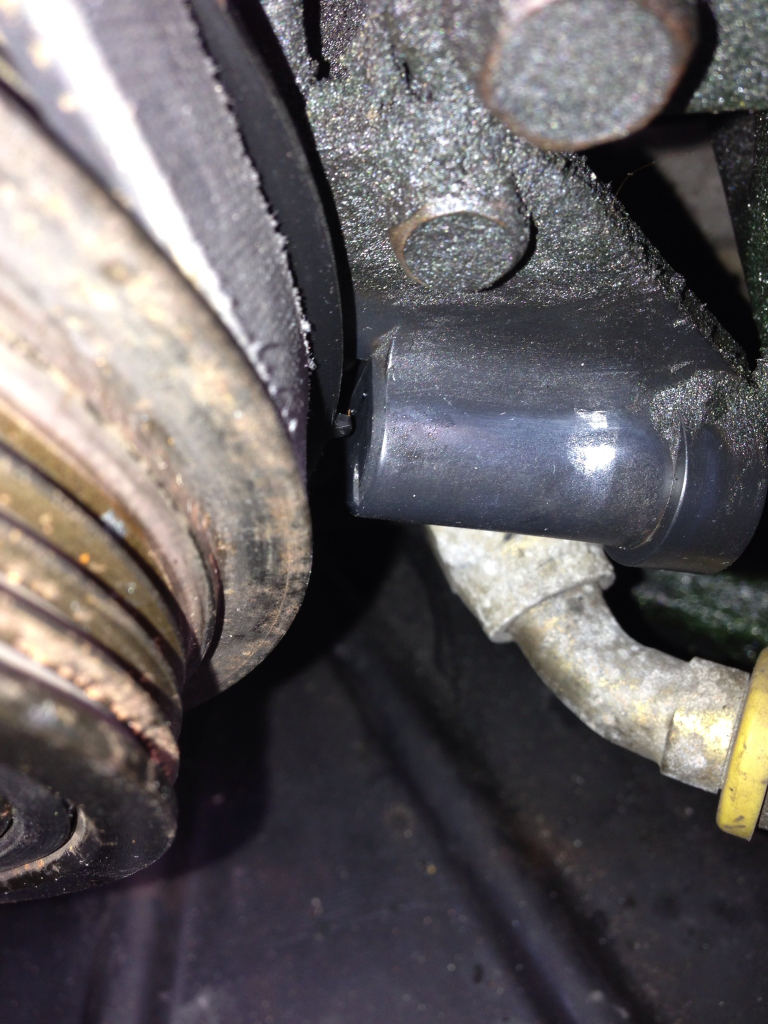

Does the sensor use a magnet or something?


Attached Thumbnails
Cranking and ASE tuning-acf6b31dbaa8dbabb17e9e0ae7a96bd8.jpg   Cranking and ASE tuning-f9246c1a8f7012d2301e60e660ec7a91.jpg
94mx5red is offline   Reply With Quote
