Default Cranking/Prime table

So now that I got my fuel table pretty much situated I need to get a better understanding of the Cranking settings. I know its diferent for everyone depending on where you live but if you could post up your settings it will help me out.

Here are my settings. In the morning when My IAT reads mid 70's it takes about 3-5 seconds for the car to start.

Thanks
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 10-07-2009 at 04:07 PM.
levnubhin is offline   Reply With Quote
Old 07-15-2008, 07:49 PM   #2
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

I saw a good thread when searching for ASE and accel enrichments, but it would be great if this stuff was centralized. Obviously, that's going to take a lot of time and work.
johndoe is offline   Reply With Quote
Old 07-15-2008, 07:56 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

what size injectors? very important.
Braineack is offline   Reply With Quote
Old 07-15-2008, 07:57 PM   #4
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 07-15-2008, 08:08 PM   #5
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

I don't have 550's, but I do have RX7 460's. You will need to take away a little more PW so you dont flood, but this is a good Cranking/ Prime table for me. I can't do a screen shot since the software is on the laptop. Since I live in FL I really didnt mess with the 0 and below. The 20 will be a rare occassion for us. Hope this helps a little.

20-6.2
40-5.5
60F-4.9
80F-4.1
100F-3.2
130F-2.5
160F-2.2
96rdstr is offline   Reply With Quote
Old 07-15-2008, 08:54 PM   #6
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I heard someone say

Quote:
Originally Posted by compy View Post
Tuning pulsewidths is not something super hard, and not being able to do it yourself is nothing but embarassing.
I do not agree. Try these
Attached Thumbnails

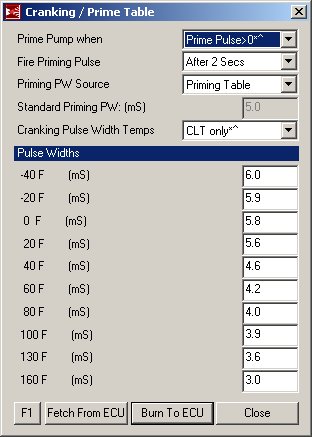

Cranking/Prime table-cranking_pw.jpg
paul is offline   Reply With Quote
Old 07-15-2008, 09:49 PM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

PW tables arent that simple. You gotta start low and slow if doing from scratch. To high a PW the spark plugs get drenched and your fucked. You will continue increasing thinking your not their yet while your still drowning the plugs.
Saml01 is offline   Reply With Quote
Old 07-15-2008, 09:59 PM   #8
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sweet, Thanks for the info fellas.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
