Default Critique my Spark Advance Map

MSM stock turbo
2.5" exhaust,
FMIC
FM Intake and TB
MS3
RX8 420cc
93 Octane

Running 14 PSI

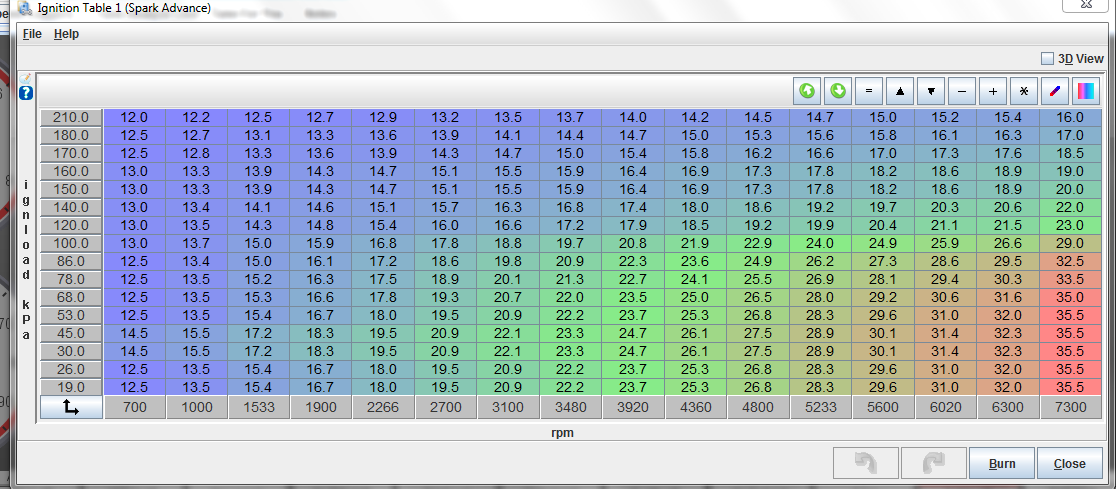

Attached Thumbnails
Critique my Spark Advance Map-ignition-table.png
ihiryu is offline   Reply With Quote
Old 07-17-2015, 01:56 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

should be at limit or close to it
of the rods and turbo
18psi is offline   Reply With Quote
Old 07-17-2015, 02:43 AM   #3
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

So det cans are the next step then.

Would it possible to see your timing map on E85? I would just like to compare the two.
ihiryu is offline   Reply With Quote
Old 07-17-2015, 09:56 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

in boost it's similar to yours, maybe 1 degree less in midrange. I also only ran 10.5-11psi because I'm conservative and that turbo won't last long at 14
18psi is offline   Reply With Quote
Old 07-17-2015, 12:24 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Whoa, even though you're running e85? That makes me want to dial my timing back now.
ihiryu is offline   Reply With Quote
Old 07-17-2015, 12:29 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Well my map is very conservative for e85, I bet I can bump the whole top half by 5* and not see knock. But knock was not my concern with e85.
The reason I didn't run more is again because of the rods. IIRC I was running 13.5* midrange tapering to 16-18 up top, and put down 209wtq on a low reading mustang dyno at 11psi

Greddygallant ran same boost as you and even less timing and his rods were bent when they took that engine apart. Also his turbo died a while ago.
18psi is offline   Reply With Quote
Old 07-17-2015, 01:55 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

So pull out another degree of timing in the middle, so your recommendation is pulling out another degree from 4-6000 RPM's, above the 100 KPa mark?
ihiryu is offline   Reply With Quote
Old 07-17-2015, 07:44 PM   #8
Junior Member

Join Date: May 2015
Posts: 86
Total Cats: 10
Default Critique my Spark Advance Map

The more timing you run, the higher your cylinder pressure, even if it's not knocking. That's just how combustion works. So whatever is the weak point will break.
arghx7 is offline   Reply With Quote
Old 07-17-2015, 09:48 PM   #9
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

<p>I'm going to throw this out there. My motor has all the symptoms of bent rods, and I will be confirming/disproving that this weekend. But, here is my spark map. I was holding 12psi, spiking to 14/15 on spool.</p><p>EDIT: T25</p><p>EDITEDIT: 93 Octane</p><p><img src="http://cimg3.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1043x733/80-ssznzg3_b0f04f307fc56d8f9fc8eca052a5cfe4a2a19862.p ng" title="" /><br /><br />&nbsp;</p>
Schuyler is offline   Reply With Quote
Old 07-18-2015, 02:28 AM   #10
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Lol and what are these symptoms
ihiryu is offline   Reply With Quote
Old 07-18-2015, 02:14 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

i ran more than that for years
Braineack is offline   Reply With Quote
Old 07-18-2015, 03:03 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by Braineack View Post
i ran more than that for years
and a local buddy made 350whp on stock block for a while too.
exception, not rule
18psi is offline   Reply With Quote
Old 07-18-2015, 03:05 PM   #13
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

<p>
Quote:
Originally Posted by ihiryu View Post
Lol and what are these symptoms
</p><p>Lower compression (by 30-40psi) on three cylinders than 2 days prior, and no compression on 1.</p>
Schuyler is offline   Reply With Quote
Old 07-18-2015, 03:58 PM   #14
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

I dialed it back some, wait to get on the dyno and really check for detonation. I made some detcans, but for some reason I don't trust it. I'll probably use my detcans and what they have there on the dyno to just see if they both sound the same.
ihiryu is offline   Reply With Quote
Old 07-18-2015, 05:56 PM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

<p>
Quote:
Originally Posted by ihiryu View Post
I dialed it back some, wait to get on the dyno and really check for detonation. I made some detcans, but for some reason I don't trust it. I'll probably use my detcans and what they have there on the dyno to just see if they both sound the same.
</p><p>You'll bend rods without det.</p>
Schuyler is offline   Reply With Quote
Old 07-18-2015, 06:21 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by 18psi View Post
and a local buddy made 350whp on stock block for a while too.
exception, not rule
he's retarded it 10 over stock just as he enters boost.

my setup was never the exception--mine was as plain-jane and repeatable as it comes. Also, every MS I've built (hundreds) pretty much runs my spark map as sent.
Braineack is offline   Reply With Quote
Old 07-18-2015, 06:45 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

ok
this looks normal then

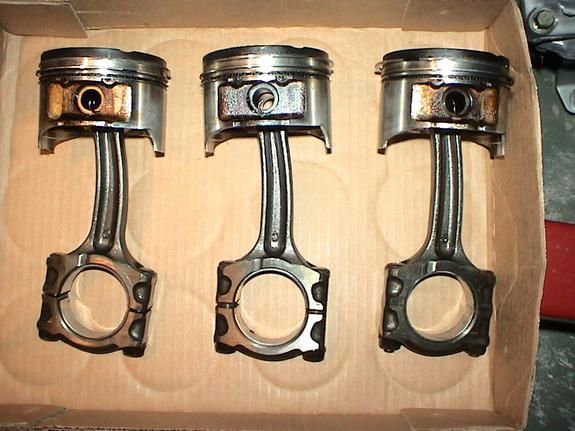

Attached Thumbnails
Critique my Spark Advance Map-80-1380170034_large_d9ec196a0f38aa20d66e06ce03712dd8b30201d0.jpg
18psi is offline   Reply With Quote
Old 07-19-2015, 10:09 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Dude are you really going to go down this path with me?

let's just say that 16 at 15psi is a good safe limit (which I think it is). You think that retarding so heavily the minute you start getting into positive pressure is something ideal? there's no reason to retard you spark that much at 90 unless the goal is reducing torque and hindering performance--especially given how slow the MSM turbo spools.

Even the MSM basemap for the MSPNP-Pro is much more advanced than that... and I'm pretty sure the last thing DIY wants is a customerbase like FFS with blown motors (plus they do testing on their in-house dyno). you think I want to deal with that either?

Plus if you're at the limit to bending rods based on a spark table alone, I'd urge you to reduce the boost not just a few degrees of spark.


open a spool log in MLV. Open your MSQ in the tuning panel. watch the plot as your travel through the spark map. that map is heavily retarded as the turbo is trying to spool, and then fairly retarded through the entire time in boost.

even outside of boost, look how retarded it is even at 4K and cruise...WAY less oem. I would cruise at a timing mark where his highest value that he'll never ever hit is set.

Last edited by Braineack; 07-19-2015 at 11:16 AM.
Braineack is offline   Reply With Quote
Old 07-19-2015, 01:02 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

I didn't even look at the rest of this spark map, I was just commenting on the high load area. 14psi and 14-15* will bend rods, even on the baby hairdrier of the msm. I only say that because I've seen it, both here and on M-S.

PS: both DIY's and your basemaps ping on CA 91oct. past 12psi too. I think I even have logs of this, it was so evident I actually heard it inside the car.
18psi is offline   Reply With Quote
Old 07-19-2015, 01:07 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default Critique my Spark Advance Map
