Angry DIYPNP 1994 No spark, No RPM signal.

Hey guys,

I recently built a diypnp v1.5b for my miata, with the intention of boosting it. The car is currently NA, and I'm trying to get it running on megasquirt before I turbo it.

I built the board with the offical DIYPNP guide, and then performed every cross connection, pull up, and configuration from this writeup:
DIYPNP MegaSquirt installation for the Mazda Miata
Everything works on tunerstudio, I have intake temp, coolant temp, and fuel, but the ignition circuit appears to be entirely absent. I have checked every connection having to do with the rpm and ignition signals, including testing from the microsquirt pins to the output pins of the converter board itself, and everything checks out perfectly. However, there is no rpm displayed while cranking, except for it changes to 1rpm from 0rpm when I begin cranking. I'm really pulling my hair out on this one, I've tried every single thing suggested in every forum post related to this issue, with no change whatsoever. Any help with this would be appreciated.
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 06:32 PM   #2
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

I should add that the car still runs perfectly using the stock ECU.
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 06:50 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

what didnt you do correctly?
Braineack is offline   Reply With Quote
Old 07-31-2015, 06:56 PM   #4
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

If I knew that I wouldn't be posting
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 07:06 PM   #5
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You had to have built it wrong, or you've been bit by the "loading a 3.3+ MS3 firmware on a 3.2 MS2 basemap" glitch that may not exist that I don't care enough to try and replicate.

DIYautotune's website has nice pictures showing what the board looks like populated, I suggest you compare side by side like those old newspaper "spot the difference" games...
deezums is offline   Reply With Quote
Old 07-31-2015, 07:06 PM   #6
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

Is there a way to manually test the cam angle sensor circuit? I feel like my problem lies somewhere in there.
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 07:08 PM   #7
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I literally just told you, visually compare it. If you don't get a rpm signal cranking, it's ******* toast in settings or hardware.
deezums is offline   Reply With Quote
Old 07-31-2015, 07:11 PM   #8
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

No need to get feisty- I posted that reply before yours showed up.

I'm doing a visual inspection ASAP
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 07:20 PM   #9
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

Checked the board, nothing looks wrong. I feel like it's a software thing.
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 07:26 PM   #10
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

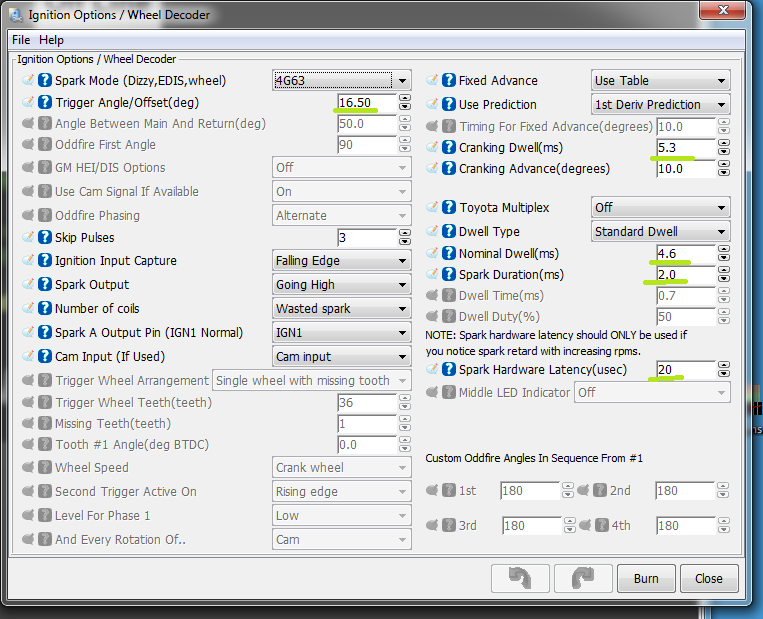

Which firmware did you load?

Compare these settings to yours, they may be in different places if you loaded a MS3-esque firmware.



Stuff I underlined may be different. Don't use those numbers.
Attached Thumbnails
DIYPNP 1994 No spark, No RPM signal.-d7uukxj.png
deezums is offline   Reply With Quote
Old 07-31-2015, 07:38 PM   #11
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

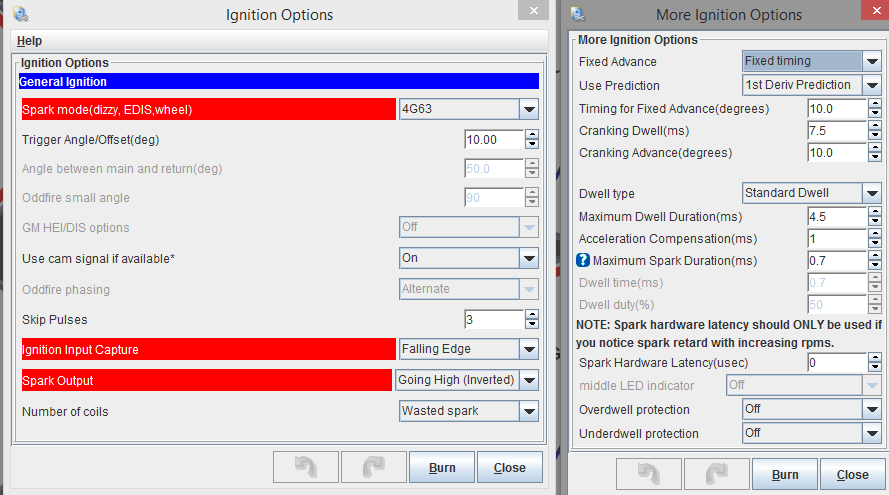

I am using the ms2/extra 2.10. It's old, I used it because it was the firmware quoted in the crossover guide that I used.

My ignition settings window looks different than yours, and I'm not sure what the red highlighting means, but everything else looks alright.

would you recommend I use a later firmware?

Attached Thumbnails
DIYPNP 1994 No spark, No RPM signal.-80-bjkilfyuil_fbedad693e782b80fbfb3607679344cd16e3ad72.png
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 08:48 PM   #12
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

If you don't see any indication of crank or cam signals from the composite logger then you built the DIYPNP wrong in some way or another. I don't see loading a newer firmware helping. Jumper configuration does not change via firmware, but I have a hunch loading old tunes on new firmware has the potential to scramble some renamed settings.

Tunerstudio layouts change by firmware, I don't know what the red bars mean but I bet it's because those are pretty critical settings, not error checking or anything like that.
deezums is offline   Reply With Quote
Old 07-31-2015, 08:56 PM   #13
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

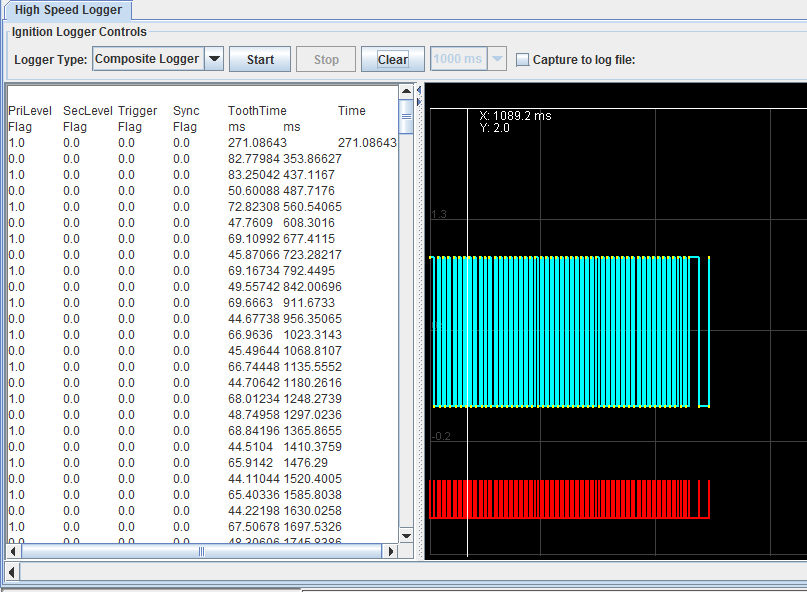

Flashed a new firmware and took a log of cranking, not sure exactly what I am looking at but it looks like I have input from the CAS.
Attached Thumbnails
DIYPNP 1994 No spark, No RPM signal.-80-erg_6fc9d6d83865f3af6691a173f5857c290357eff5.png
SerGundorf is offline   Reply With Quote
Old 07-31-2015, 10:45 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

you're not getting a cam signal.

why did you load such an old *** firmware?

use 3.4.0.



you either did the jumper wrong or forgot the pullup.


pics of assembly.
Braineack is offline   Reply With Quote
Old 08-01-2015, 02:04 PM   #15
Newb
Thread Starter

Join Date: Jul 2015
Posts: 11
Total Cats: 0
Default

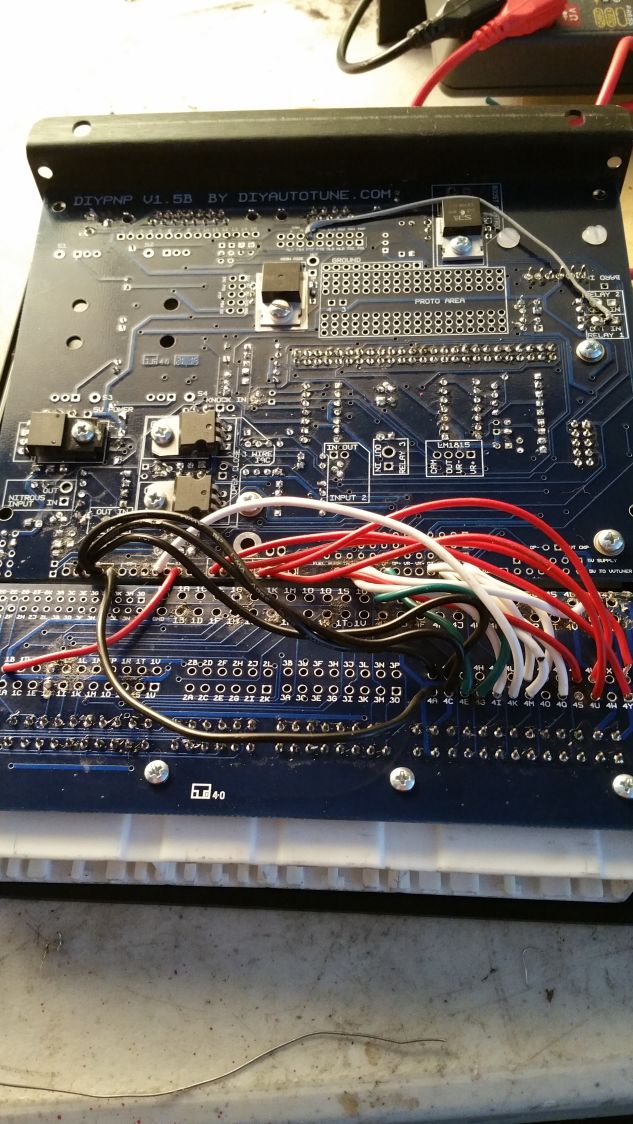

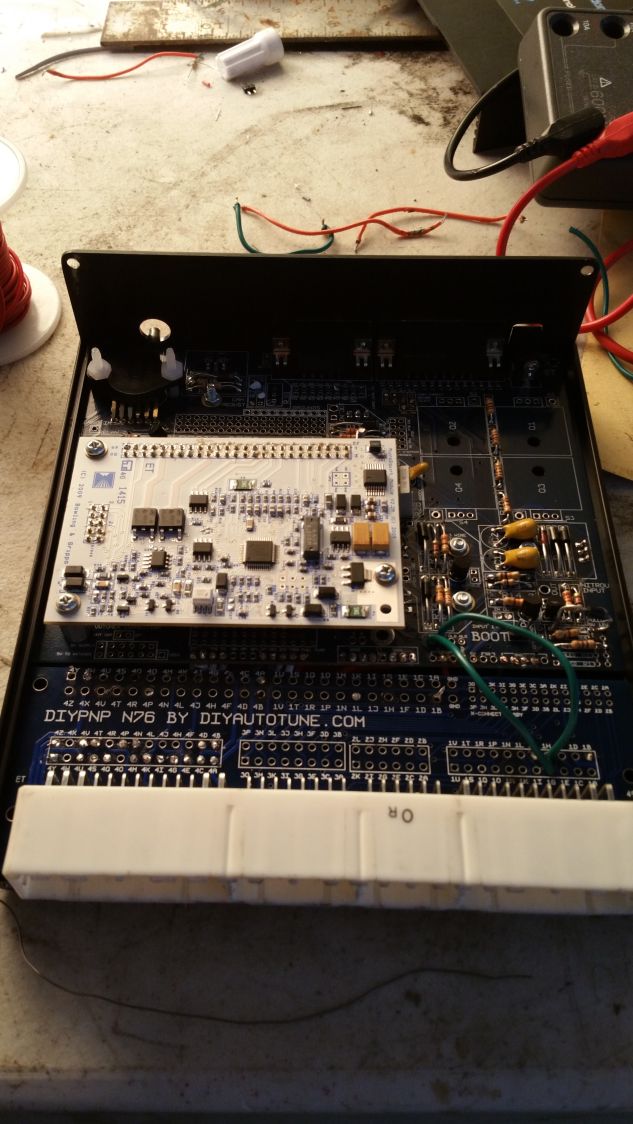

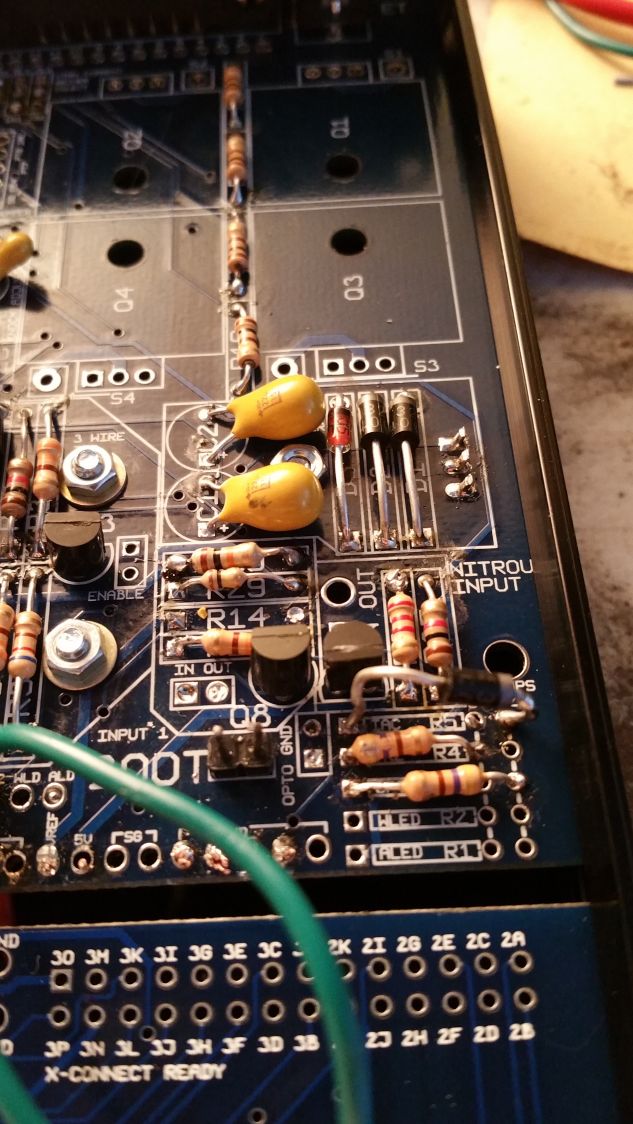

Here's some pics of my assembly. I left out the radiator fan and A/C pullups, but those should not be crucial to getting a spark. I've also got mixed information on weather or not I have to jump the ignition pins near the top of the board.






Attached Thumbnails
DIYPNP 1994 No spark, No RPM signal.-80-board1_180ab04e6016b56fcfe2838e8d327bfa83b527c1.jpg   DIYPNP 1994 No spark, No RPM signal.-80-board2_d768a78cd1b1bc985bfb3e579bfa4da1e66f5d97.jpg   DIYPNP 1994 No spark, No RPM signal.-80-board3_fc4184c8f2a6390c0634ab493abda91954d10d4f.jpg
