Default DIYPNP crank and cam sensor 99/00

The instructions on the DIY site don't say which two connections are the crank and the cam sensor.

http://www.diyautotune.com/diypnp/ap...0-18bp-mt.html

Any idea where the cam and crank are hooked up to the DIYPNP?
engled is offline   Reply With Quote
Old 09-26-2010, 12:34 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Opto in - 3j
vr2 in + 3h
Reverant is offline   Reply With Quote
Old 09-26-2010, 01:49 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

Thanks, I finally backed in to it. Will have VVT control soon!!!
engled is offline   Reply With Quote
Old 09-26-2010, 06:15 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

What should the out put of the crank sensor look like in comparison to the cam sensor? (on a scope)
engled is offline   Reply With Quote
Old 09-26-2010, 06:30 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

Joe Perez is offline   Reply With Quote
Old 09-26-2010, 08:17 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Mine looks like neither. 2005 engine in a 99/00.

engled is offline   Reply With Quote
Old 09-26-2010, 08:22 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

You asked what they look like on a scope, not what they look like in TunerStudio's composite logger. When viewed on a scope, the cam and crank sensors of any 1999 through 2005 Miata look like the upper pair of traces in the image I posted.

I've never actually used TS's tooth logger, so I'm afraid I can't tell you how to interpret it.
Joe Perez is offline   Reply With Quote
Old 09-26-2010, 08:29 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

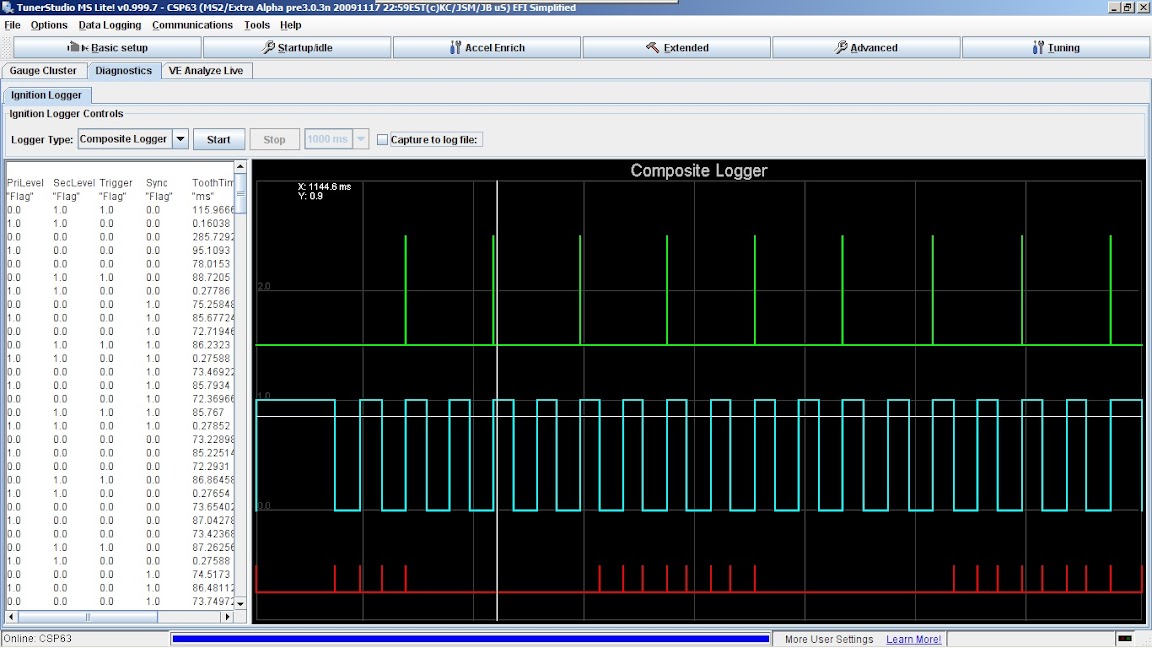

Sorry, we have been doing both and I didn't have a way to post the traces from a Textronix 466 scope. Does the image I posted look correct for a composite log? Thanks for your help.
engled is offline   Reply With Quote
Old 09-27-2010, 12:59 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

Quote:
Originally Posted by engled View Post
Does the image I posted look correct for a composite log?
Since nobody else has chimed in yet, all I can say is "I don't know."

I tried using the tooth logger once, back when I was having a misfire that I suspected (and later proved, by elimination) was caused by dropouts in my crank sensor reading. But since I have an MS1, the tooth logger proved to be pretty much useless in troubleshooting that problem owing to the MS1's inability hold more than 93 samples at a time.

So it's all Greek to me.
Joe Perez is offline   Reply With Quote
Old 09-27-2010, 01:02 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

those red lines shows it's reading signals it wasn't expecting...
Braineack is offline   Reply With Quote
Old 09-27-2010, 01:29 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

I'm not sure what any of the lines mean. Neither the green line nor the blue line actually depict the raw crank sensor- they're both showing evenly-spaced events, whereas neither crank nor the cam sensor are evenly spaced. The four crank teeth are arranged in two groups such that the gaps are roughly 70 - 110 - 70 - 110.

Since he's looking at the "composite logger" rather than the "tooth logger", I simply haven't a clue what's actually being shown. It bears no relation to an NB crank or cam signal that I can see.
Joe Perez is offline   Reply With Quote
Old 09-27-2010, 01:30 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

green is cam, blue is crank, red is error. you dont want red lines
Braineack is offline   Reply With Quote
Old 09-27-2010, 01:33 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

Quote:
Originally Posted by Braineack View Post
green is cam, blue is crank
Then something is very, very wrong.
Joe Perez is offline   Reply With Quote
Old 09-27-2010, 01:36 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

One other thing:
Quote:
Originally Posted by engled View Post
I didn't have a way to post the traces from a Textronix 466 scope.
It's actually quite easy. Point a digital camera at the screen and take a picture. Depending on your scope's persistence, sweep time and beam intensity, you may need to play with the camera's shutter speed to get a clean shot. Back in ye olde' times, there were special fixtures for doing precisely this with Polaroid cameras.
Joe Perez is offline   Reply With Quote
Old 09-27-2010, 01:36 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

yeah, the red is showing that it logged an event it wasn't expecting.
Braineack is offline   Reply With Quote
Old 09-27-2010, 01:37 PM   #16
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,331
Total Cats: 1,928
Default

I don't even mean the red. You could take that trace away and the green & blue traces would still look absolutely nothing at all like an NB's crank and cam sensor signals.

Again, I'm making assumptions here, as I don't have any first-hand knowledge of how the composite logger works, but it's certainly not display anything that, to my eyes, looks like a Miata crank/cam signal.
Joe Perez is offline   Reply With Quote
Old 09-27-2010, 02:22 PM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Something is wrong. This what NB triggers look like on a composite log:
(note the similarity to Joe's scope capture)

Ben is offline   Reply With Quote
Old 09-27-2010, 02:23 PM   #18
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

Thanks Ben, that is what I needed to see. Thanks to everyone else that offered advise as well.
engled is offline   Reply With Quote
Old 09-27-2010, 02:33 PM   #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

How are you generating the log that you posted? It's what I would expect from a B6T 4/1 CAS. Looks nothing like a Miata wave form.
Ben is offline   Reply With Quote
Old 09-27-2010, 03:06 PM   #20
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 940
Total Cats: 59
Default

that's weird Ben, my '00 looks like this.
Notice my cam signal is upside down. Also each time there's a cam trigger, I get that same trigger on the crank signal. Those are not there in your traces it seems. Could you zoom in a bit further on your signal?
According to Joe's capture they shouldn't be there. The car runs fine although it does take a long time to sync (5-6 full cycles).
Any ideas what could be causing this? I'm using Joe's input circuits on a V3 board.


Last edited by WestfieldMX5; 09-27-2010 at 03:17 PM.
