Old 03-14-2011, 10:05 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I can when I'm home later tonight.
Braineack is offline   Reply With Quote
Old 03-14-2011, 06:18 PM   #22
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Ok thanks! Will wait for that! Come home soon honey

I hope that fixes the issue! I wonder what happened?
Greg G is offline   Reply With Quote
Old 03-15-2011, 05:01 AM   #23
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Dinner's cold! You're sleeping on the couch tonight mister!
Greg G is offline   Reply With Quote
Old 03-15-2011, 05:35 AM   #24
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Is your DIYPNP built for sequential injection?

Edit: I just saw the seq module in the photo so it is.
Reverant is offline   Reply With Quote
Old 03-15-2011, 05:50 AM   #25
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Yes it is wired for sequential! Apparently something is wrong with the map. Perhaps I screwed it up when I first connected it to the laptop? Won't TS pull the map off the ECU, not vise versa? Anyway, just waiting for a new map.
Greg G is offline   Reply With Quote
Old 03-15-2011, 12:56 PM   #26
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Could you post a copy of your current MSQ? Looks like something's trying to use PT6 or PT7, but it is not one of the regular spare outputs.
Matt Cramer is offline   Reply With Quote
Old 03-15-2011, 01:07 PM   #27
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

The problematic one is the one I posted. Waiting for Brain to send me a new one. I did request for control of the AC fan relay, which was implemented through the ALED output.

Could it be possible that I inadvertenly uploaded the practice project i created to check out the features of TS when I first connected the laptop, erasing brain's preloaded map? Meaning I caused all this myself?
Greg G is offline   Reply With Quote
Old 03-16-2011, 11:33 AM   #28
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Interesting, I don't see anything else using PT7 and PT6, but it could be a firmware corruption problem. Or you could have loaded it with regular MS2 code instead of Microsquirt code.
Matt Cramer is offline   Reply With Quote
Old 03-16-2011, 11:32 PM   #29
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default It lives! Kinda...

Uploaded the attached msq from Braineack, and it cleared the config error! Started the car, and it runs! A bit like crap for now.

When I switched to fixed timing, it died on me. Wouldn't start for a while until I turned the idle screw a bit to give it more air.

But when it's nice and hot, it won't start. It cranks, but won't catch on.

Could anyone assist? I attached 3 datalogs. 1st cold, 2nd stable, third hot cranking.

Checked the plugs, they were kinda sooty.

Just a liiiitlle moooore....

EDIT: After cleaning the plugs, the car started up easily, idles smoother. And of course, now my timing light is acting up! AAAARRRGGG. Gotta borrow another one...

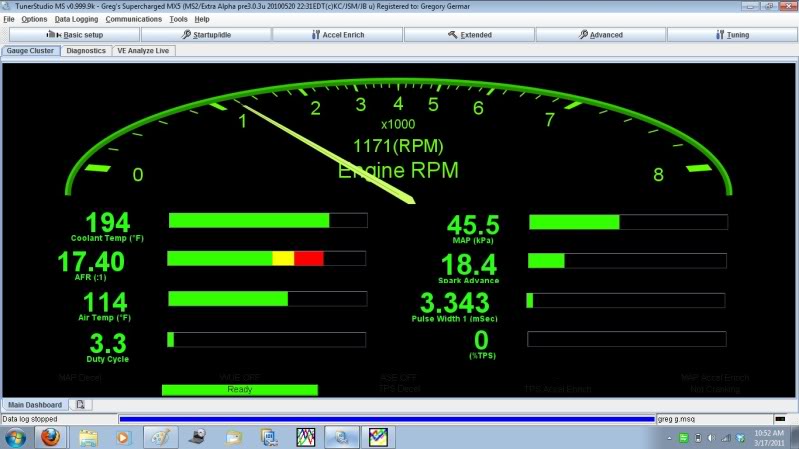

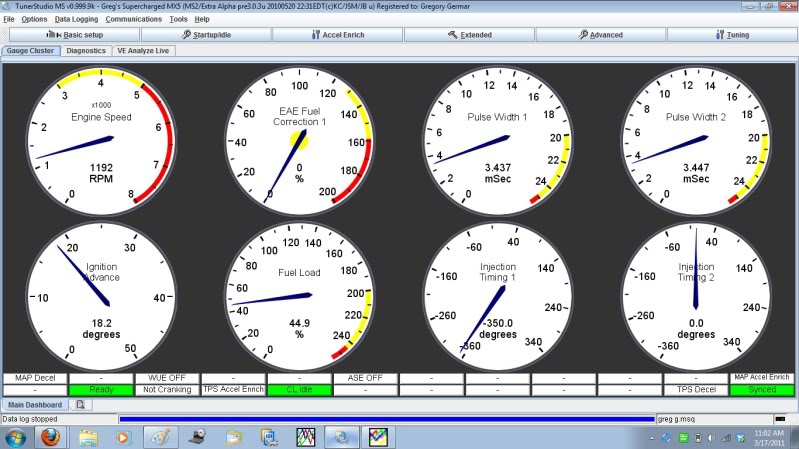

Dash screenies. Everything looking OK?
Name:  dash3.jpg
Views: 37
Size:  54.7 KB
Name:  dash4.jpg
Views: 37
Size:  79.6 KB
Attached Files
File Type: msl 2011-03-17_09.29.17.msl (86.9 KB, 82 views)
File Type: msl 2011-03-17_10.20.46.msl (123.3 KB, 87 views)

Last edited by Greg G; 03-17-2011 at 11:45 PM.
Greg G is offline   Reply With Quote
Old 03-17-2011, 03:57 AM   #30
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Enrich at idle.
Reverant is offline   Reply With Quote
Old 03-17-2011, 05:28 AM   #31
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

OK back at the shop. Car isn't starting again! Plugs dirty again.

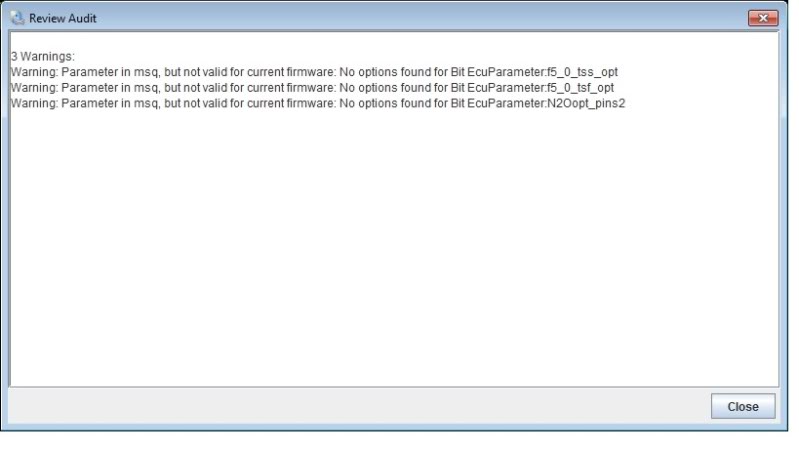

Tried to reload the msq, got this:
Name:  error2.jpg
Views: 37
Size:  30.1 KB

What's going on here? So frustrating...

Last edited by Greg G; 03-17-2011 at 07:12 AM.
Greg G is offline   Reply With Quote
Old 03-17-2011, 05:37 AM   #32
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Have you calibrated the TPS? Try starting it with the throttle fully pressed down to go in flood clear mode. Then reduce the ranking pulsewidth.
Reverant is offline   Reply With Quote
Old 03-17-2011, 05:52 AM   #33
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

No tps, set to 254/255

Tried disconnecting the vacuum line to the box, map still reads 100! Strong fuel smell, plugs are wet and sooty again.

Shop's closing. Dammit.

Wait- aren't my map readings way off? What should I be seeing at idle?

EDIT: Sorry, at this point, I lost my mind. Quite clearly. LOL

Last edited by Greg G; 03-17-2011 at 06:57 AM.
Greg G is offline   Reply With Quote
Old 03-17-2011, 06:04 AM   #34
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Map reading should be slightly lower than 100 during cranking - 90 to 95 is the norm. 100 is normal with the vacuum line off.
Reverant is offline   Reply With Quote
Old 03-17-2011, 06:09 AM   #35
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Try this map, but clean your plugs first.
Attached Files
File Type: msq 2011-03-17_11.07.52.msq (76.6 KB, 139 views)
Reverant is offline   Reply With Quote
Old 03-17-2011, 06:11 AM   #36
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Idling, you should be between 27 and 35. Since you were idling really lean, the engine wasn't running well, hence the decreased vacuum reading.
Reverant is offline   Reply With Quote
Old 03-17-2011, 06:29 AM   #37
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

This is quickly getting over my head.

Why did I suddenly get an error code when I loaded the msq from Braineack, which loaded perfectly this morning? Car was idling fine, see above data logs...

Attaching log of the last cranking attempt.



Will change to new plugs tomorrow. And pray for a better day.
Attached Files
File Type: msl 2011-03-17_16.52.35.msl (60.9 KB, 68 views)
Greg G is offline   Reply With Quote
Old 03-17-2011, 06:46 AM   #38
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Reading reading reading. Ooooh 100kpa is atmo

OK I think I'm losing my objectivity here, and panicking. Losing brain function! I was thinking "why the hell is it reading boost when I'm not in boost"? So the map sensor is correct...
Greg G is offline   Reply With Quote
Old 03-17-2011, 07:03 AM   #39
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Is your TPS disconnected? Physically unplugged?
curly is offline   Reply With Quote
Old 03-17-2011, 07:06 AM   #40
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Yup! If only it were that simple a solution... :(

Some questions
1. Am I correct in saying that I'm cranking rich, but iding lean?
2. I haven't synced the timing yet, could that be a factor? I'd sync the timing, but I can't start it yet!

Last edited by Greg G; 03-17-2011 at 07:23 AM.
