Default DIYPNP/MTX-L Signal voltage

I know this subject has been beat to death, but I'm coming up with a voltage difference between my MTX-L output and where it meets the Db15 connector. From the MTX-L it measures a steady .5 VDC Lower than where it meets the MS. So where is the extra voltage coming from? I'v tried about a million different ground locations, so I have ruled that out. Is there some reason the MS would be sending voltage to the connection?

This thing is driving me batshit crazy.
dieselmiata is offline   Reply With Quote
Old 08-26-2011, 06:32 PM   #2
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

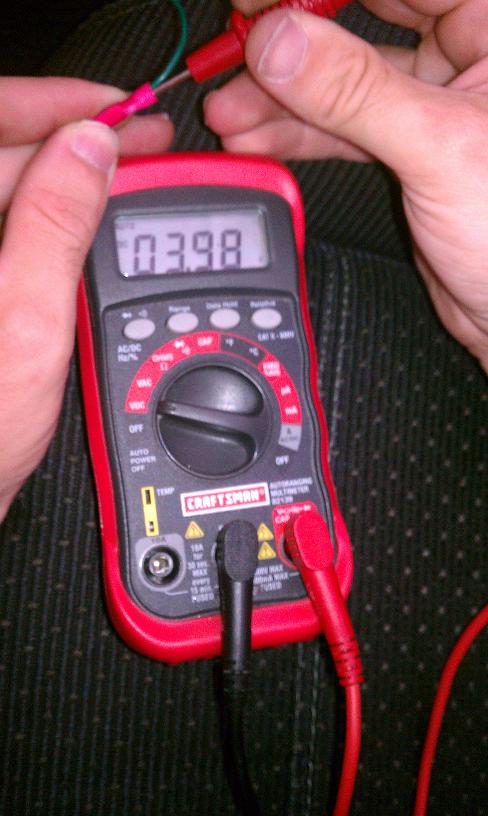

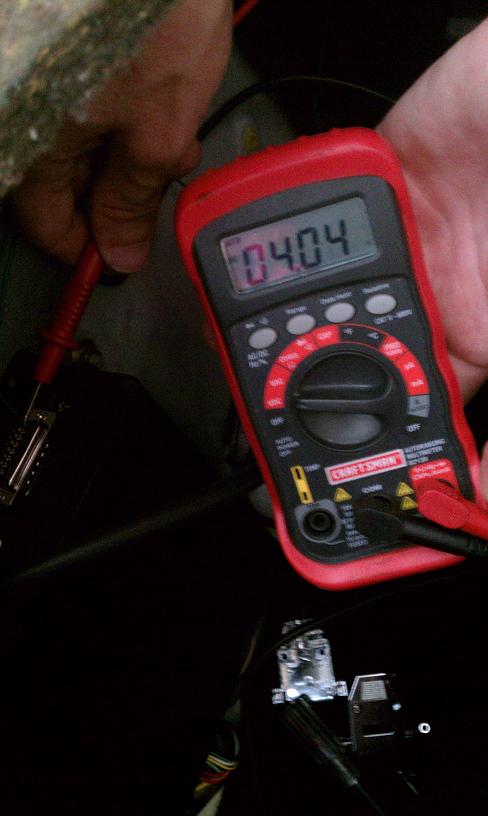

Pics always help. I do realize that soldering is the proper way, and all other connections are soldered. This one is using a butt connector because I don't want to solder/heatshrink the connection until I'm sure I won't have to take it apart again.
Attached Thumbnails
DIYPNP/MTX-L Signal voltage-imag0155.jpg   DIYPNP/MTX-L Signal voltage-imag0158.jpg
dieselmiata is offline   Reply With Quote
Old 08-26-2011, 06:50 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

use the custom calibration for the AFR input, make it match and win.

I have to use .22v for my 7.35:1 value.



your DMM shows a .06v difference.
Braineack is offline   Reply With Quote
Old 08-26-2011, 07:25 PM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Yeah, it was bouncing back and forth between .5 and .6 difference when I took the picture. Ok, I'm trying the custom linear wideband setting, and it seems to be working. Getting the voltage at 22.3 is easy, how do I calculate the what voltage should be at 7.35?
dieselmiata is offline   Reply With Quote
Old 08-26-2011, 07:34 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

thats just what i changed to get my two gauges to match.
Braineack is offline   Reply With Quote
Old 08-26-2011, 08:01 PM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Cool. I'll set the point at 22.3 and play around with the 7.35 to match. Really appreciate the help.
