Unhappy diypnp PLEASE HELP 1991 1.6

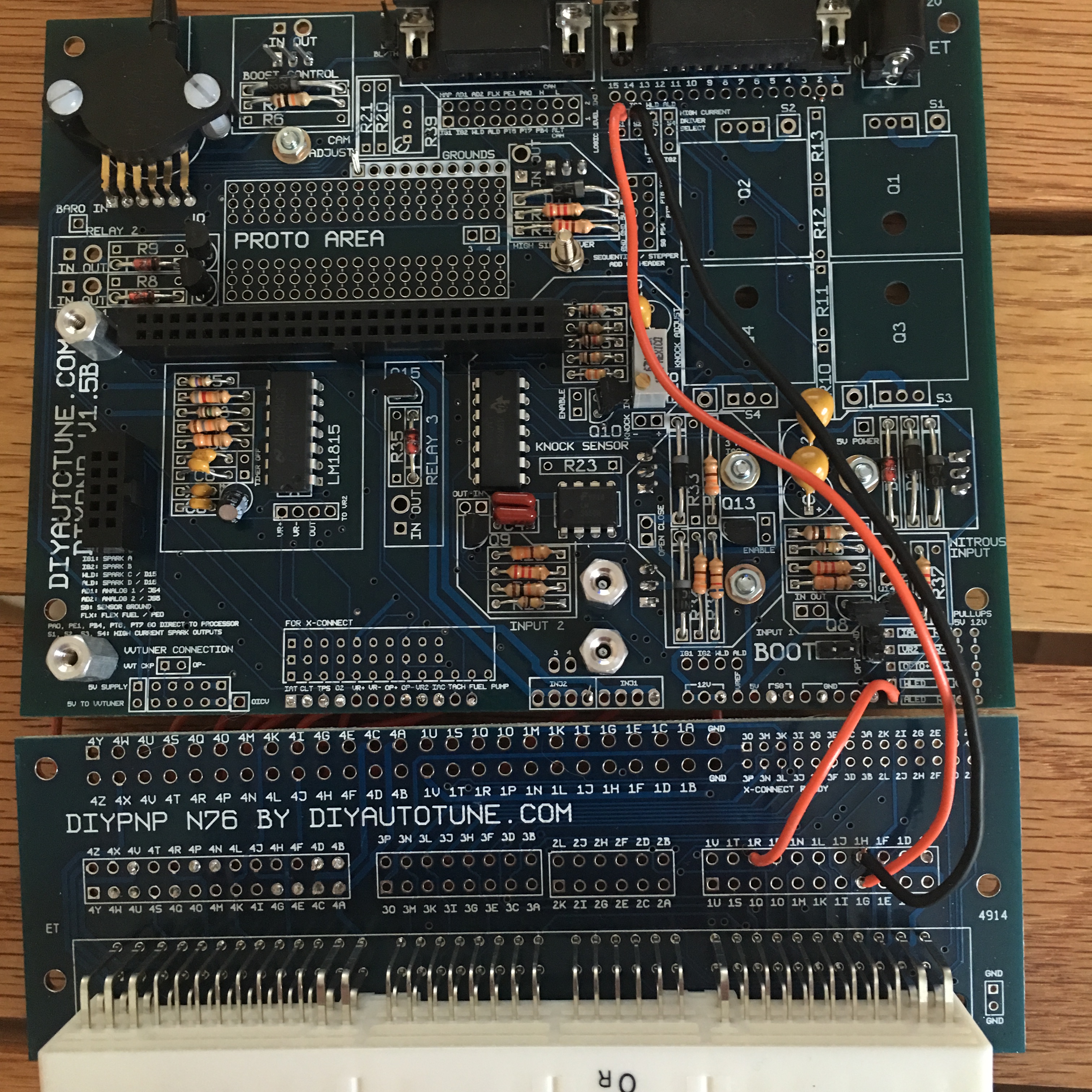

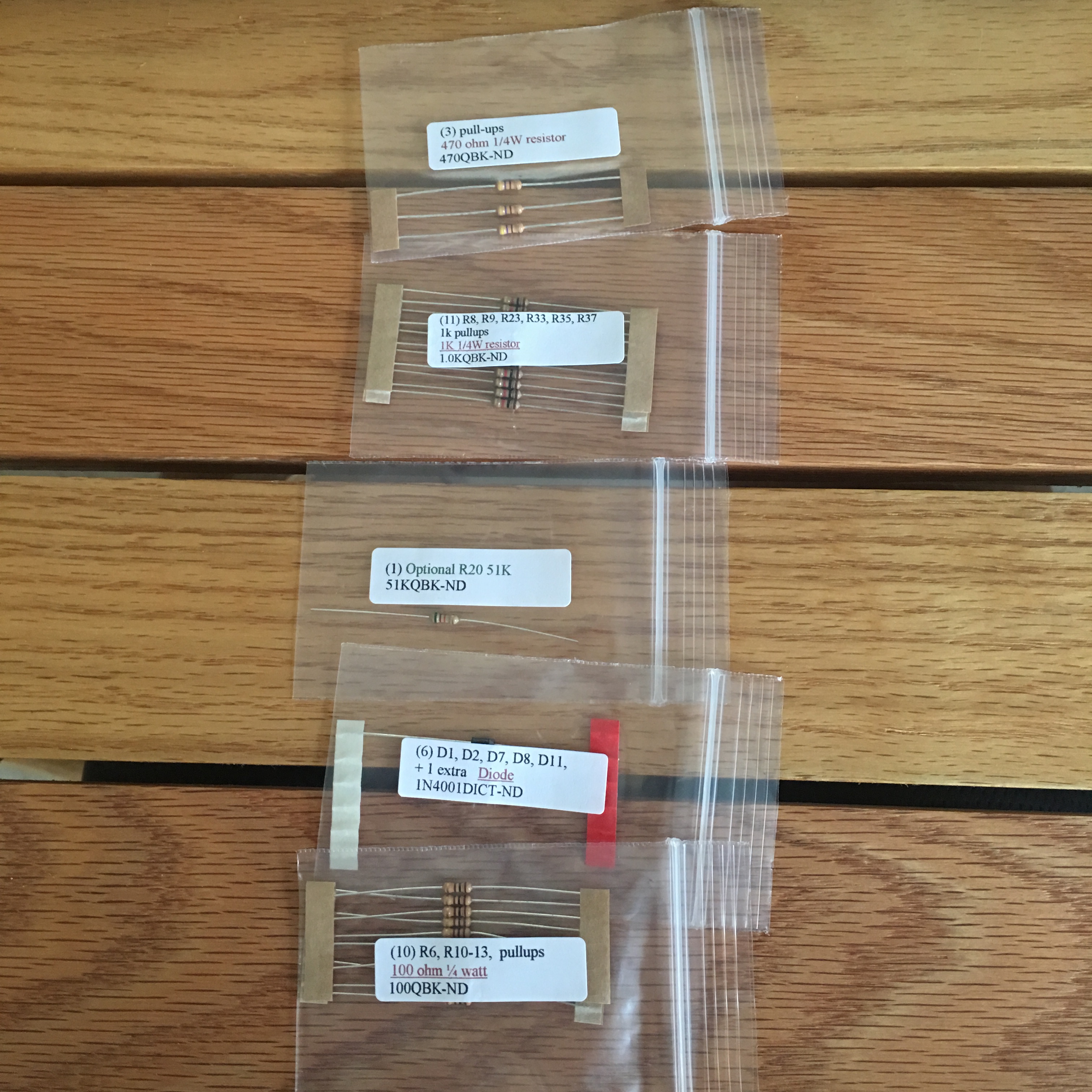

I've searched all over and I am at a brick wall. I'm sure this is posted somewhere, but I am having an awful time trying to figure out what jumpers, wires that I need to run and WTH pull-ups are (and if i need them). I Have these resistors leftover that I haven't soldered in.
Im running an IAT and MAP.

I just have no idea what to do next... some guidance would me excellent and much appreciated.

Please take a look...
Attached Thumbnails
diypnp   PLEASE  HELP 1991 1.6-ms-diypnp1.jpg   diypnp   PLEASE  HELP 1991 1.6-ms-diypnp2.jpg   diypnp   PLEASE  HELP 1991 1.6-ms-diypnp3.jpg
nickafuller is offline   Reply With Quote
Old 05-20-2016, 06:30 PM   #2
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Not sure you're supposed to tap into wled or aled that way, look above the 12V connection, to the left of the big "boot"

You are supposed to install a diode and two resistors across the pullups in the lower right corner, the diyautotune page tells you what and where.

Opto+ gets 470 ohms across to 12V, VR2 470 ohms to 5V, and IAC gets a diode with the banded end across to 12v



See, in the corner?
deezums is offline   Reply With Quote
Old 05-20-2016, 08:21 PM   #3
Newb
Thread Starter

Join Date: Feb 2016
Posts: 16
Total Cats: -7
Default

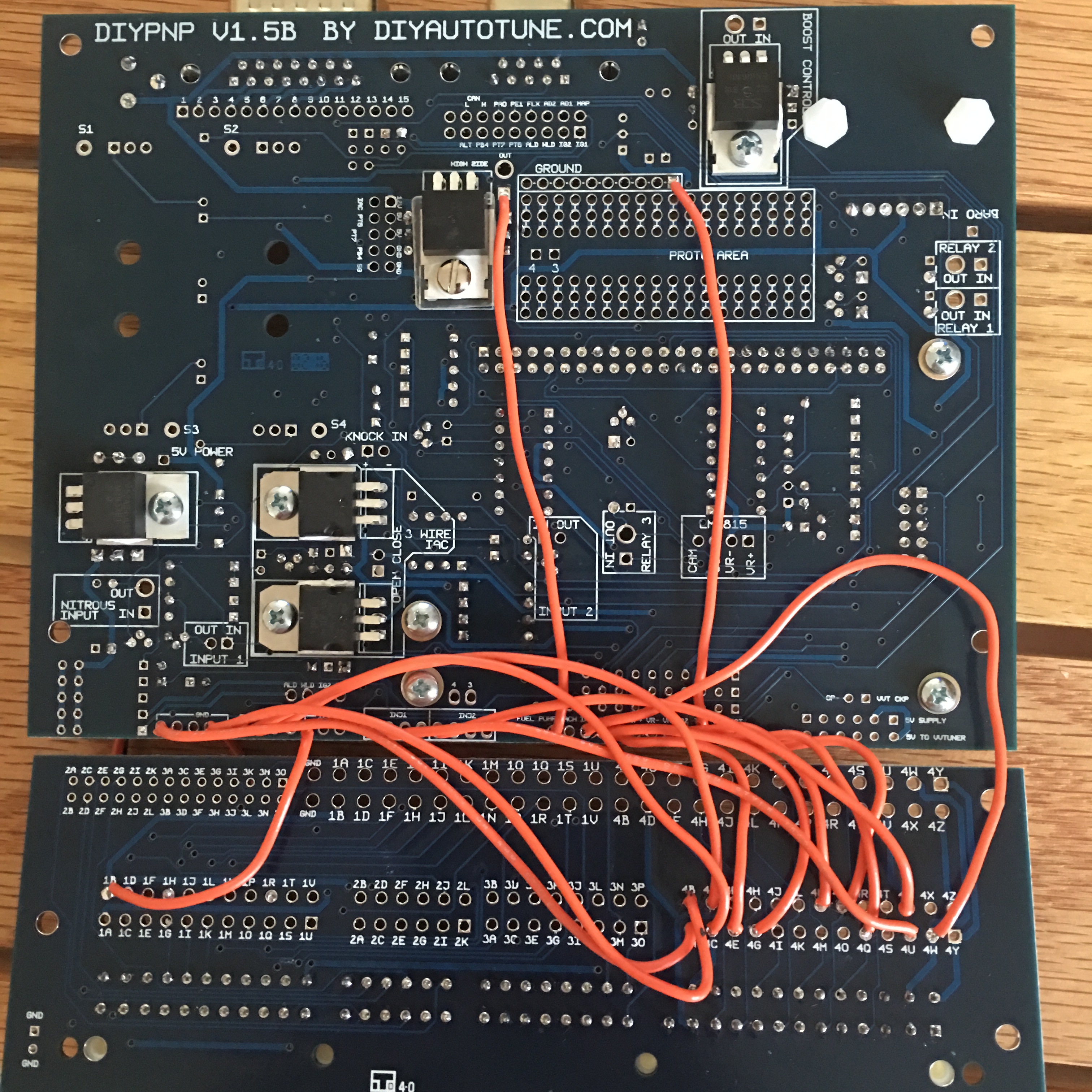

Ohhhhhh I understand the jumpers now, but what about the wires I have run?
nickafuller is offline   Reply With Quote
Old 05-20-2016, 08:24 PM   #4
Newb
Thread Starter

Join Date: Feb 2016
Posts: 16
Total Cats: -7
Default

Am I suppose to solder those R resistors that I haven't used yet? There was some confusion about it.. Is your setup a 9093? If you can post a clearer picture I'd love to mimic it!
nickafuller is offline   Reply With Quote
Old 05-20-2016, 09:38 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

are you using the build guide on diyautotune.com?
Braineack is offline   Reply With Quote
Old 05-21-2016, 01:07 AM   #6
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Quote:
Originally Posted by nickafuller View Post
Am I suppose to solder those R resistors that I haven't used yet? There was some confusion about it.. Is your setup a 9093? If you can post a clearer picture I'd love to mimic it!
My ECU is under carpet and the floor plate and a bunch of bolts. Sorry, but I'm not gonna take it out to get pictures.

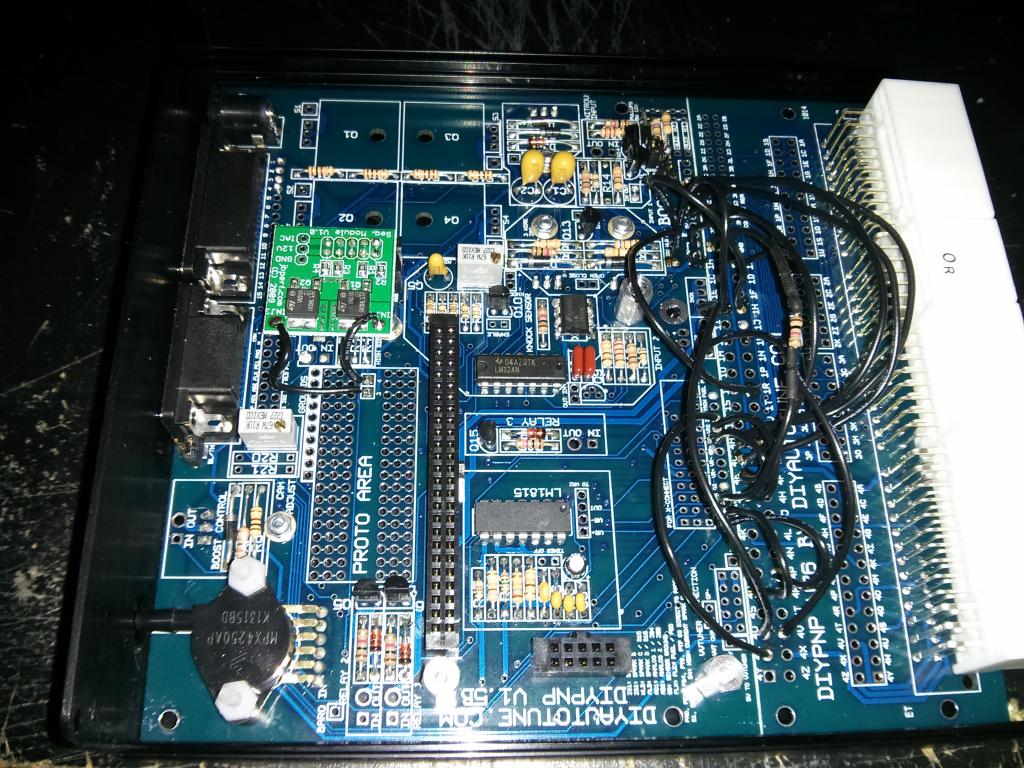

Use this guide and the diyautotune page I provided earlier as a reference as to what goes where. It's more than enough to put it together properly.
deezums is offline   Reply With Quote
