Default Does not Sync on MS2

my turbo system is hooked up w/ my 99 MS2 enhanced in my car.

the MS was running with the car while stock.

coming to start it up it does not want to start.

the MS crank, ready, and sync are flickering while cranking the motor to try to start.

it seems as though the timing is out of sync and it backfires

I plugged in the stock computer for a sec and it starts.

MS is now configured for my larger injectors.

timing was checked with 3 people and is perfect. I also changed the cam and crank sensors.

im using the same map that i used while it was running stock.

any ideas?

Ill try and see if i can get a video.
Madvillain is offline   Reply With Quote
Old 03-26-2011, 02:23 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Composite log please.
Reverant is online now   Reply With Quote
Old 03-26-2011, 02:35 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

here it is
Attached Files
File Type: csv composite log.csv (10.8 KB, 61 views)
Madvillain is offline   Reply With Quote
Old 03-26-2011, 02:49 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Its not showing anything, can you take a screenshot of it while you have it loaded?
Reverant is online now   Reply With Quote
Old 03-26-2011, 04:55 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

here it is
Attached Images

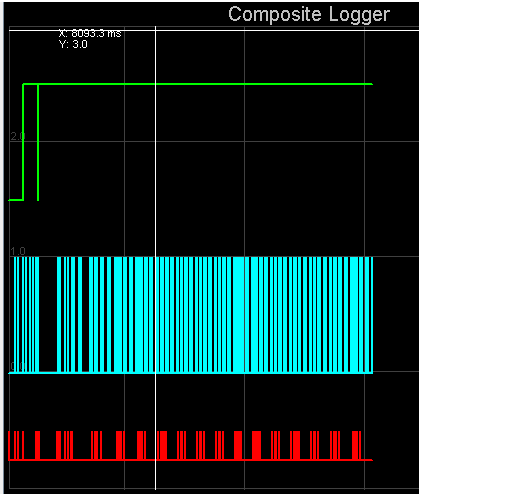

File Type: bmp untitled2.bmp (745.6 KB, 59 views)

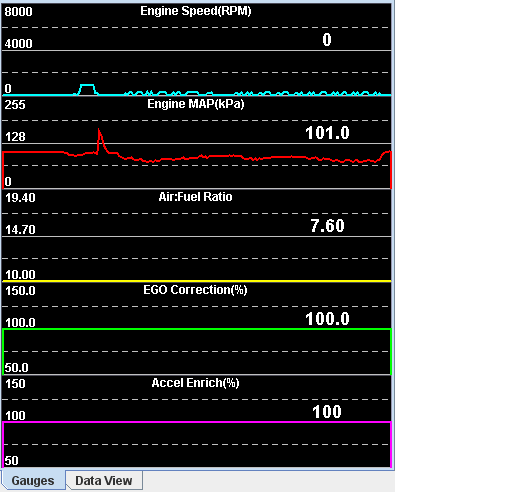

File Type: bmp untitled3.bmp (744.1 KB, 67 views)
Madvillain is offline   Reply With Quote
Old 03-26-2011, 05:17 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

You have no CKP (cam position) signal.
Ben is offline   Reply With Quote
Old 03-26-2011, 06:08 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

evilvillain,

poop the cover of the ECU and tell where where the wires from OP- and VR+ go. should be in a row right under the white board.
Braineack is offline   Reply With Quote
Old 03-26-2011, 06:27 PM   #8
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

My car was doing that when my crank wheel was on backwards... I figured I'd throw it out there, just incase. That crap took me like 2 months to figure out.
pdexta is offline   Reply With Quote
Old 03-26-2011, 06:59 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

evilvillain,

poop the cover of the ECU and tell where where the wires from OP- and VR+ go. should be in a row right under the white board.

Brain, OP- is connected to 3J
VR+ is open, no wires connected
Madvillain is offline   Reply With Quote
Old 03-26-2011, 07:05 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
evilvillain,

poop the cover of the ECU and tell where where the wires from OP- and VR+ go. should be in a row right under the white board.
Brain, OP- is connected to 3J
VR+ is open, no wires connected
Madvillain is offline   Reply With Quote
Old 03-26-2011, 07:08 PM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

He meant VR2.
Reverant is online now   Reply With Quote
Old 03-26-2011, 07:17 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

VR2 to 3H
Madvillain is offline   Reply With Quote
Old 03-26-2011, 07:29 PM   #13
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Well if it was running fine before you swapped the bottom end, then something went wrong with that process. Is the cam sensor plugged in, is the timing belt on properly, etc?
Reverant is online now   Reply With Quote
Old 03-27-2011, 12:17 AM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

Quote:
Originally Posted by pdexta View Post
My car was doing that when my crank wheel was on backwards... I figured I'd throw it out there, just incase. That crap took me like 2 months to figure out.
right on the money.

thanks everybody.

once i switched it, started right up like a champ!


thanks again everyone for the tech help!
