Old 10-20-2006, 06:42 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2005
Location: Sweden
Posts: 48
Total Cats: 0
Default Download msns-extra firmware

OK here is a embarrassing question. I have been away from my MS-projekt for a month or so and now I canīt remember where I was supose to put in a jumper( boot jumper) before downloading msns-extra firmware. I have forgotten what the boot jumper is. Please help...

/Fredrik
bfd_henriksson is offline   Reply With Quote
Old 10-20-2006, 07:35 PM   #2
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

its two little holes on the board that say 'boot' next to them. above the prototype area. just put a folded staple in the holes.
Al Hounos is offline   Reply With Quote
Old 10-20-2006, 07:45 PM   #3
Junior Member

Join Date: Nov 2005
Location: Down Under
Posts: 252
Total Cats: 0
Default

I use EasyTherm to download the software to the MS and that doesn't require the boot jumper to be used.
Aussie Driver is offline   Reply With Quote
Old 10-20-2006, 08:06 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

If you already have the msnse firmware in your MS and you are just upgrading to a newer version, then you don't need to cap the boot jumper at all. Msnse does this internally for you!
Reverant is offline   Reply With Quote
Old 10-20-2006, 08:11 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2005
Location: Sweden
Posts: 48
Total Cats: 0
Default

Thanks guys! I managed to miss those holes...
Hmm Might as well download and use Easytherm though Iīm gonna need it anyway to get the right values for my stock CLT.
Again, thanks!
/Fredrik
bfd_henriksson is offline   Reply With Quote
Old 10-21-2006, 09:52 AM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by bfd_henriksson View Post
Thanks guys! I managed to miss those holes...
Hmm Might as well download and use Easytherm though Iīm gonna need it anyway to get the right values for my stock CLT.
Again, thanks!
/Fredrik
remember not to have ignition hooked up when your burning the firmware, It can fry your coils apparently!
richyvrlimited is offline   Reply With Quote
Old 10-21-2006, 10:39 AM   #7
Junior Member
Thread Starter

Join Date: Oct 2005
Location: Sweden
Posts: 48
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
remember not to have ignition hooked up when your burning the firmware, It can fry your coils apparently!

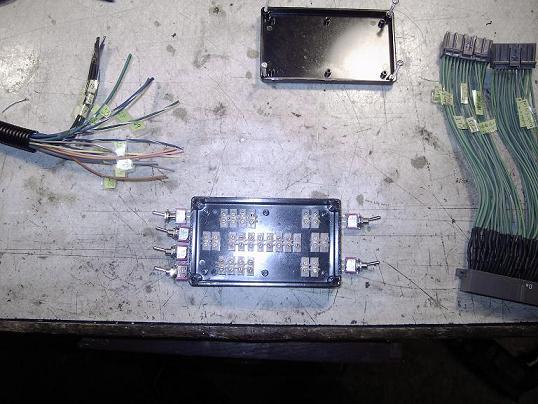

Thanks! Lucky for me that I have done a PnP-box with switches for coils and injectors.
Attached Thumbnails
Download msns-extra firmware-imag0452.jpg
bfd_henriksson is offline   Reply With Quote
Old 10-21-2006, 04:18 PM   #8
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

THAT is a fantastic idea... I'll likely do the same, added convenience AND security.
Arkmage is offline   Reply With Quote
Old 10-21-2006, 06:13 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2005
Location: Sweden
Posts: 48
Total Cats: 0
Default

like to take the cred for it but I stole the idea from "Reverant". My box is a semi-solution compare to his, but itīs nice to be able to go stock if something goes wrong.
bfd_henriksson is offline   Reply With Quote
Old 10-22-2006, 07:10 AM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I for one, thank myself all the time for building the pnp box. I would do it time and time again if need be.

Jim
Reverant is offline   Reply With Quote
Old 10-22-2006, 09:29 AM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Reverant View Post
I for one, thank myself all the time for building the pnp box. I would do it time and time again if need be.

Jim
I wished I had the patience to do a PnP box before I fitted it!!
richyvrlimited is offline   Reply With Quote
Old 10-22-2006, 06:15 PM   #12
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I don't have a garage or some other form of parking space at which I can do stuff on the car, much less solder or crimp in a tight confined place. There grew the need for a pnp box: Solder and arrange in the comfort of my workbench @home, open car door, install box, turn key, tune.
Reverant is offline   Reply With Quote
Old 10-22-2006, 07:42 PM   #13
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
I don't have a garage or some other form of parking space at which I can do stuff on the car, much less solder or crimp in a tight confined place. There grew the need for a pnp box: Solder and arrange in the comfort of my workbench @home, open car door, install box, turn key, tune.
I am doing something similar, I just made a pass-through harness for the 97 so that I can cut without hacking up the stock wiring harness. I'm using insulated bullet connectors to make it all PnP.
iWeasel410 is offline   Reply With Quote
