Default EBC Configuration Error

I am trying to set up ready to go from MBC to EBC however I am getting a Config error when I turn on Boost Control Settings.

ECU - DIYPNP

ECU Wiring:
PA0 (behind db9) to IN on boost circuit
OUT on boost circuit to pin on db15
set boost control pin in TS to PA0

No matter what I do in the settings I keep getting a config error like this:



Do I have the output port setting wrong or is it something else I have done? If I turn the boost control setting to off the config error problem goes away.....
Barry
Attached Thumbnails

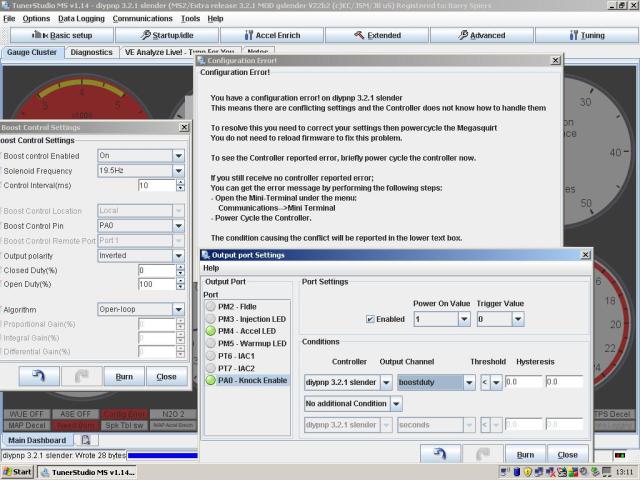

EBC Configuration Error-boostsettings.jpg
Baz is offline   Reply With Quote
Old 01-21-2012, 10:00 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The PA0 port in the output port settings needs to be disabled.
Reverant is offline   Reply With Quote
Old 01-21-2012, 10:29 AM   #3
Baz
Junior Member
Thread Starter

Join Date: Jun 2009
Posts: 126
Total Cats: 4
Default

Thanks Dimitris, that has cured the config problem, but I am not confident that MS is controling the boost solenoid (brought from diyautotune), with everything turned on (open loop, control duty table set to '30' throughout the table to test), if I disconnect the solenoid from the 12v supply and reconnect it should I hear the solenoid kick in? There is no noise whatsoever, is there a way of testing that MS is controling the solenoid?
Cheers
Barry
Baz is offline   Reply With Quote
Old 01-21-2012, 10:42 AM   #4
Baz
Junior Member
Thread Starter

Join Date: Jun 2009
Posts: 126
Total Cats: 4
Default

Cancel that, its working. For some reason, the solenoid doesent operrate with just the ignition on (12v supply from small blue connector by diagnostics box) but if I start the car it clicks in.

Measured the voltage at the 12v supply with ignition on and its only reading 11.1v so I assume I have a battery problem and the solenoid only works with 12v?
Barry
Baz is offline   Reply With Quote
Old 01-21-2012, 10:56 AM   #5
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

its 12v on each side with a soke to gnd on the ecu side.
Just throw 100 in all target cells and see if you get more boost then usually, if it works the turbo will spin alot quicker, if it doesn't you will see wastegate, if it doesn't swipe all cells and put 0 in them.
Careful now make sure you have an overboost cut active.

The blue connector works fine for 12v. I use it with my solenoid and EBC circuit
Techsalvager is offline   Reply With Quote
Old 01-21-2012, 11:48 AM   #6
Baz
Junior Member
Thread Starter

Join Date: Jun 2009
Posts: 126
Total Cats: 4
Default

Quote:
Originally Posted by Techsalvager View Post
its 12v on each side with a soke to gnd on the ecu side.
Just throw 100 in all target cells and see if you get more boost then usually, if it works the turbo will spin alot quicker, if it doesn't you will see wastegate, if it doesn't swipe all cells and put 0 in them.
Careful now make sure you have an overboost cut active.

The blue connector works fine for 12v. I use it with my solenoid and EBC circuit
Cheers Bud, its all working now but I have a 12v problem, I have a parasitic battery drain, narrowed it down to the BTN fuse, just checking whats connected to that.....
Barry
Baz is offline   Reply With Quote
Old 01-23-2012, 02:39 PM   #7
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Where do you find this in TS
"The PA0 port in the output port settings needs to be disabled"
Is it a TS setting the only thing I can find is boot control location i can make that pa0?
90 Turbo is offline   Reply With Quote
Old 01-23-2012, 02:40 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Extended -> Output port settings
Reverant is offline   Reply With Quote
Old 01-23-2012, 02:40 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,786
Default

see BAZ's screenshot.
Braineack is online now   Reply With Quote
Old 01-24-2012, 06:14 PM   #10
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

K. So then I have not idea why I was getting an error. if you have ebc turned on and no ebc hooked up does that normaly mean no spark cause thats what happened to me or it was the cas which i changed same time as I changed the ebc to no. by the way I never indicated it was yes that was the base tune as I loaded it from diyauto
90 Turbo is offline   Reply With Quote
Old 01-24-2012, 06:14 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,786
Default

because DIYs basemap has that error on it.
Braineack is online now   Reply With Quote
Old 01-24-2012, 07:38 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
because DIYs basemap has that error on it.
Which model has the error on it?
Ben is offline   Reply With Quote
Old 01-24-2012, 07:46 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,786
Default

9093 iirc
Braineack is online now   Reply With Quote
Old 01-25-2012, 01:52 AM   #14
Baz
Junior Member
Thread Starter

Join Date: Jun 2009
Posts: 126
Total Cats: 4
Default

Some info on what error is on the 9093 base map would be good....
Baz is offline   Reply With Quote
Old 01-25-2012, 12:35 PM   #15
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

So is the error that ebc is turned on or that if it is that there is conf error or does ebc not work at all.
How do i fix this. I have ebc sol in car just have not run the hose or connected a 12 keyed source. Will soon thou what can I expect will it work?
90 Turbo is offline   Reply With Quote
Old 01-25-2012, 12:41 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,786
Default

the error is that on the basemap the boost control is deafulted on and it happens to be selected to a output that's already in operation.

Simply turn boost control function to OFF, or select the proper output that corresponds to what you acutally put it on.

The conflict is that two things are using one output.
Braineack is online now   Reply With Quote
