Default Fan always on but Warmup LED switches on and off

For some reason my fan is constantly running. The fan is connected to the warmup LED which seems to work fine via Tunerstudio, I am able to change the settings and the LED is turning on and off. I didn't build the Megasquirt so I presume there is something wrong with the fan circuit.

The car is a 1.8 MK1. Any help would be gratefully received.





Tim
Attached Thumbnails

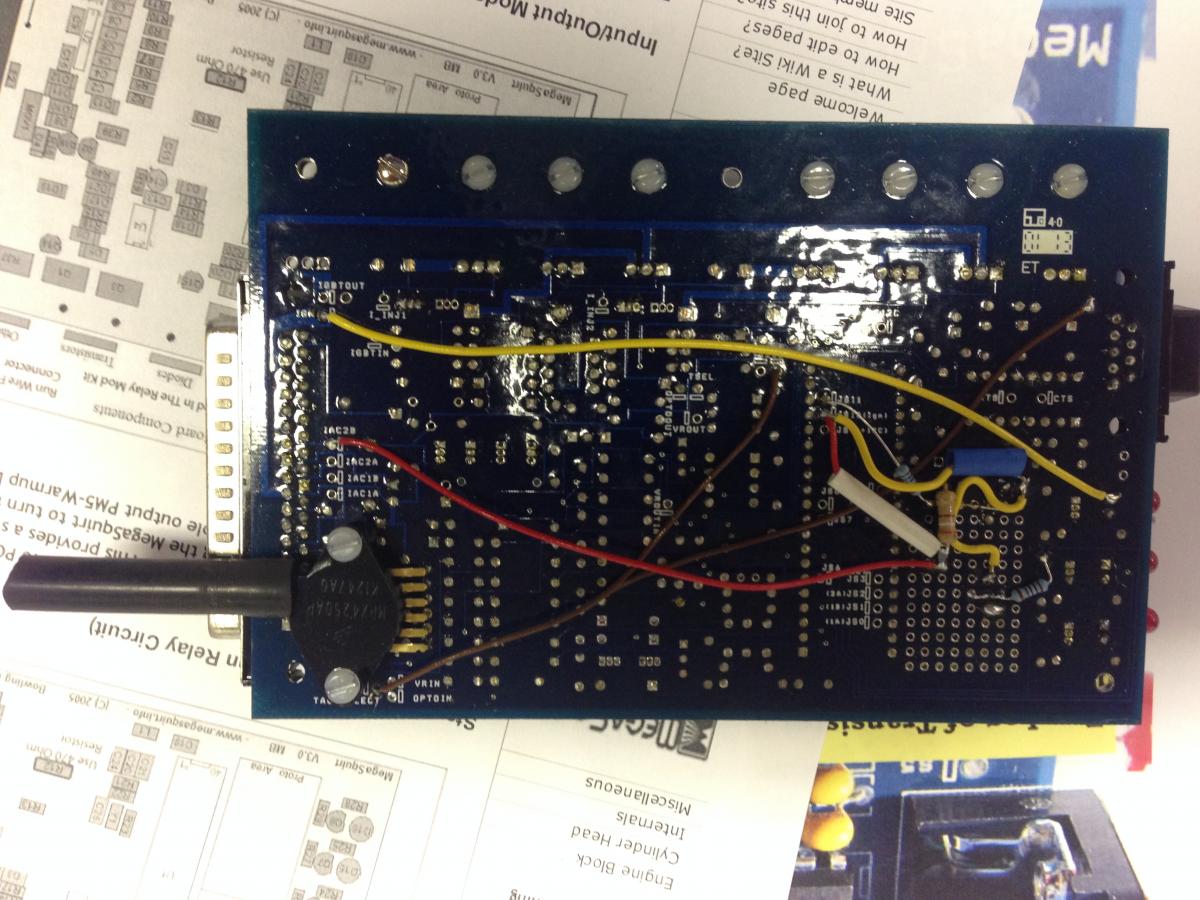

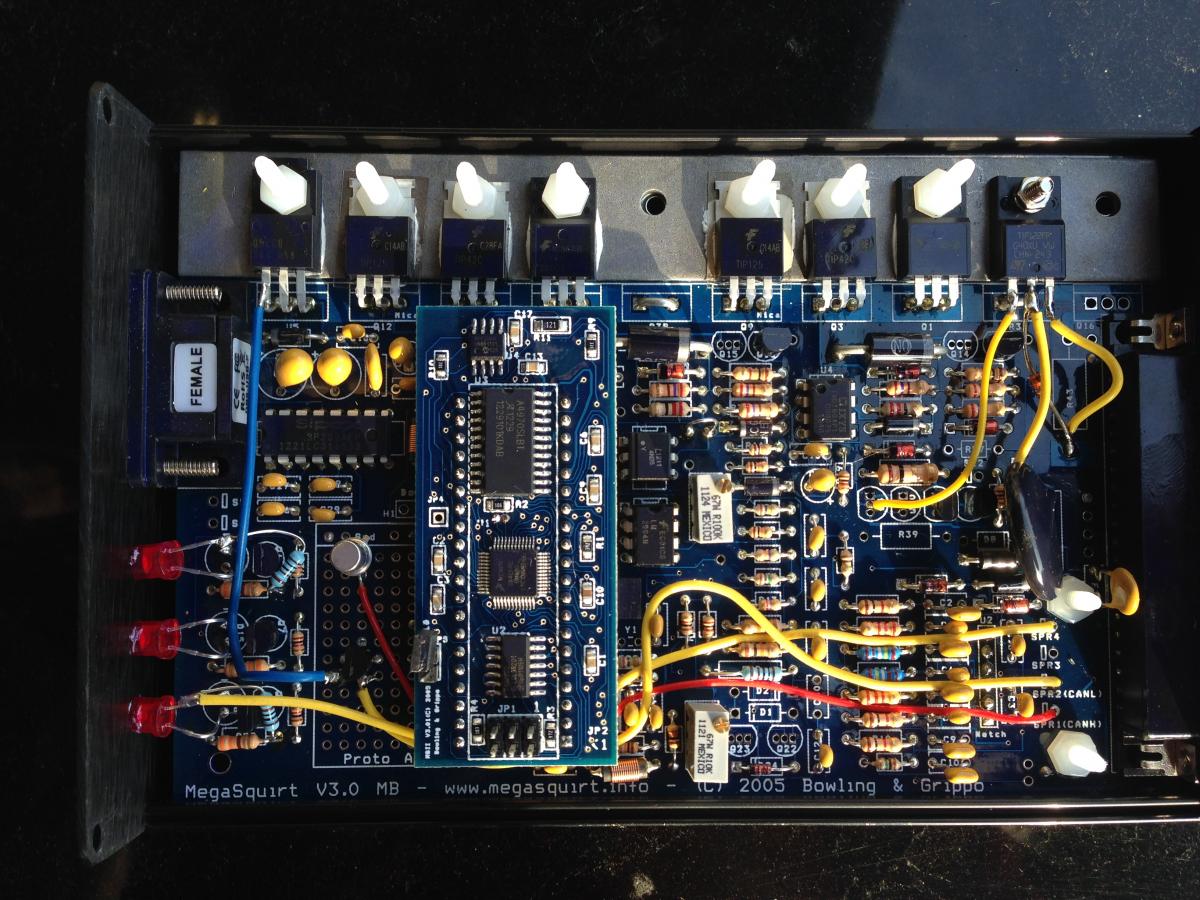

Fan always on but Warmup LED switches on and off-top.jpg   Fan always on but Warmup LED switches on and off-bottom.jpg
tbutcher is offline   Reply With Quote
Old 03-17-2014, 06:40 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Why did you build a second circuit on middle led? That redundant transistor is the problem
Braineack is offline   Reply With Quote
Old 03-17-2014, 06:43 PM   #3
Newb
Thread Starter

Join Date: Mar 2014
Posts: 3
Total Cats: 0
Default

Sorry bit of of a newbie, so I should just wire SPR2 to the middle led?

Last edited by tbutcher; 03-17-2014 at 06:54 PM. Reason: Misread previous answer.
tbutcher is offline   Reply With Quote
Old 03-17-2014, 08:59 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Yes.
