Default Feedback desired!

Hey all. 1994 Miata, stock other than ghetto intake with AIT to eliminate MAF.

Brain built MS3, I have done a bit to VE Analyze. The car is not a daily driver, just a fun car.

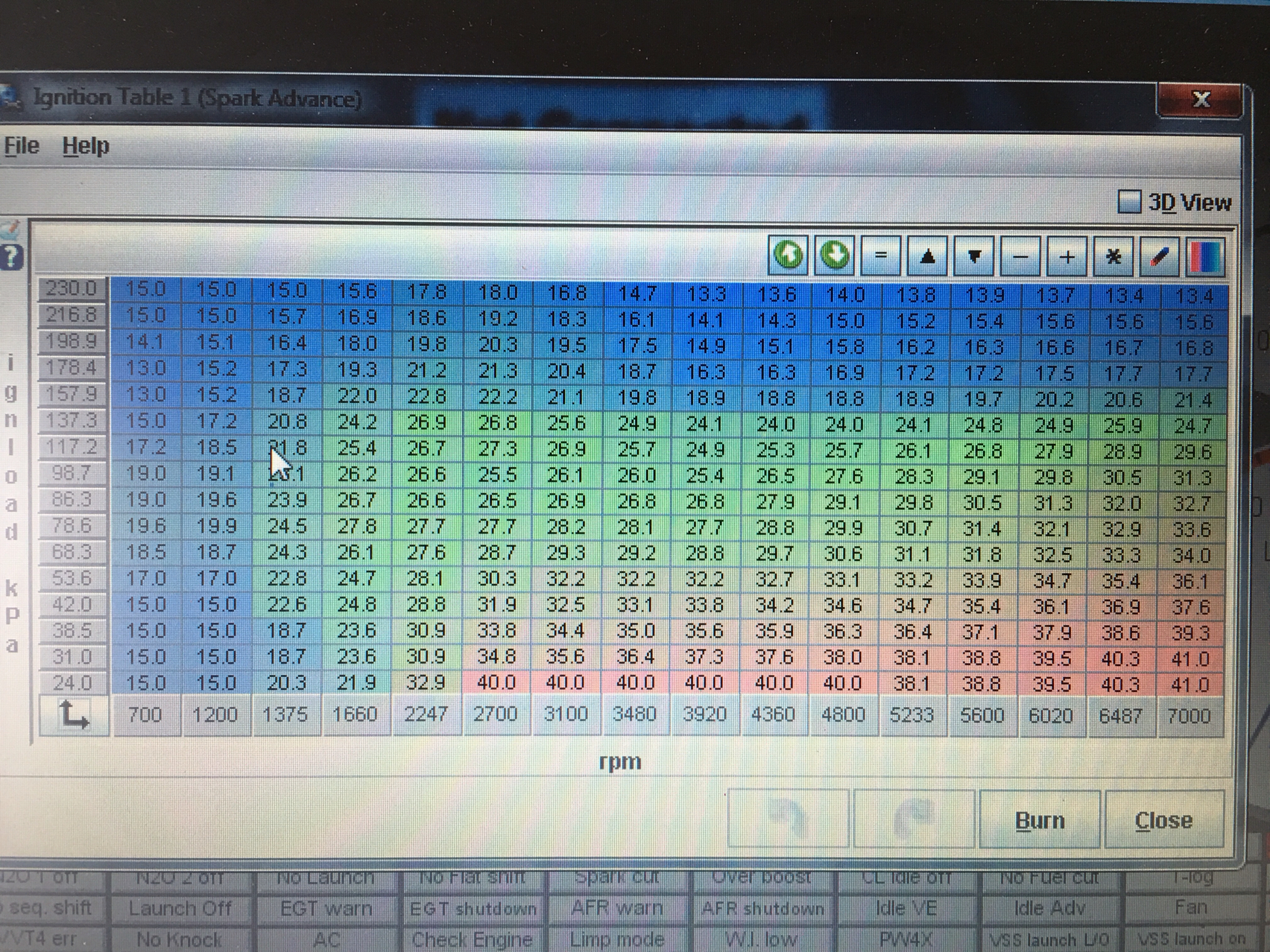

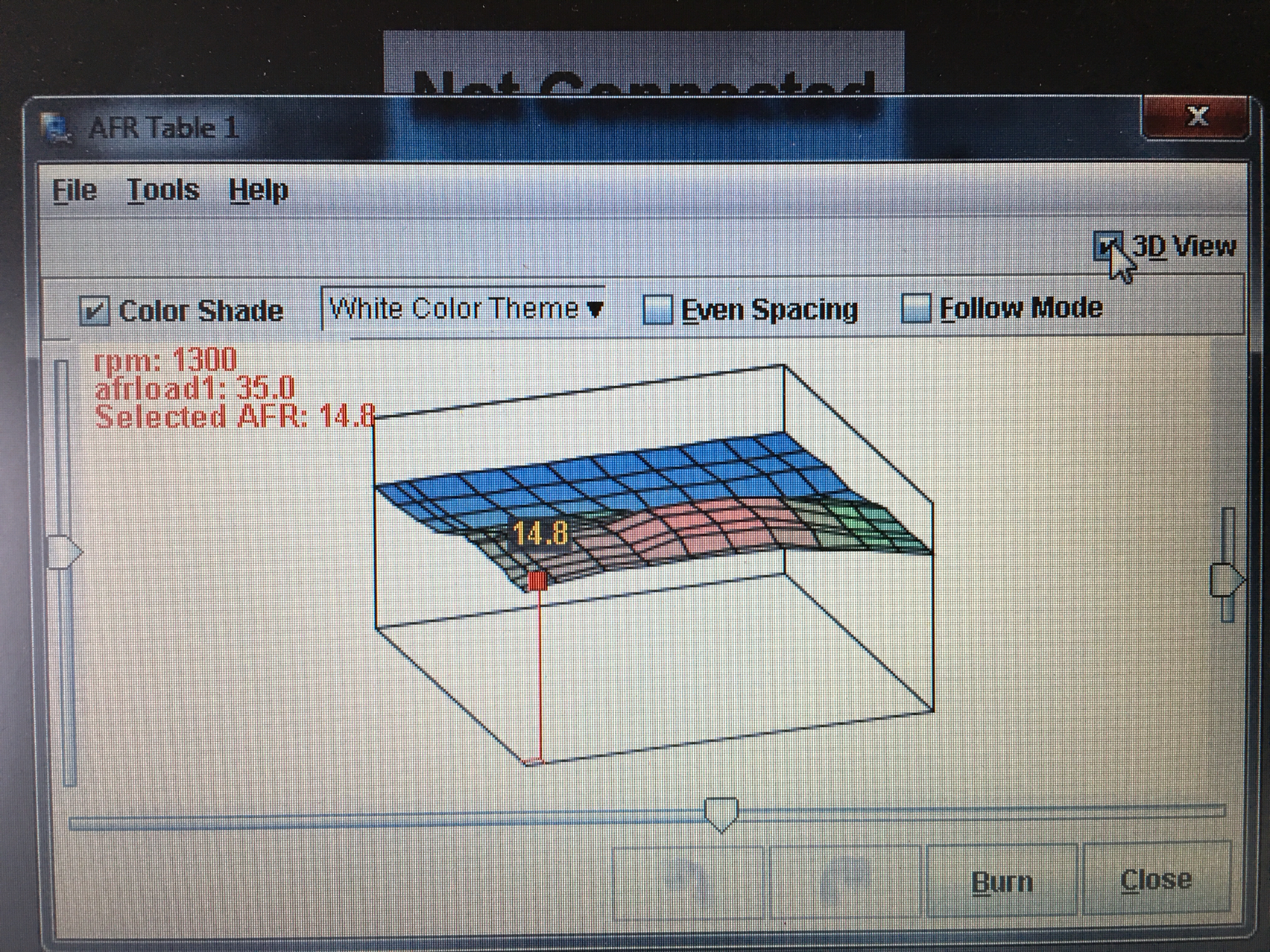

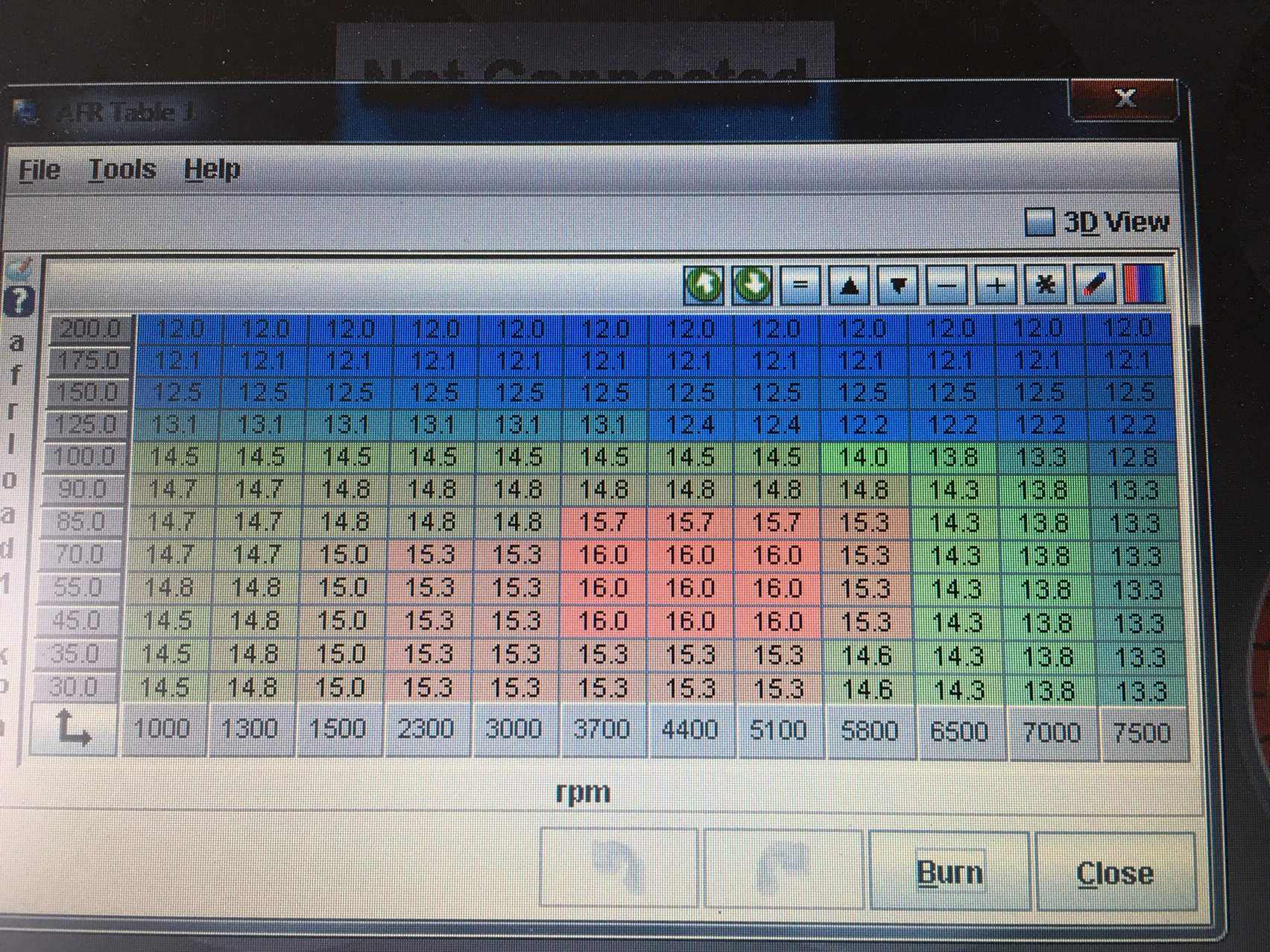

Wondering if I can get some opinions on my AFR and spark tables. I feel like it is a bit lean at points.
Attached Thumbnails
Feedback desired!-photo93.jpg   Feedback desired!-photo7.jpg   Feedback desired!-photo537.jpg
dwink is offline   Reply With Quote
Old 12-19-2015, 01:58 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Post a datalog, then we can tell you if it's lean or not.
thirdgen is offline   Reply With Quote
Old 12-19-2015, 03:50 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Will do! Just want to make sure I am thinking about this correctly though. The auto tune will try to get to whatever I set for a value, right? 16 in the cruise range seems a bit high to me.
dwink is offline   Reply With Quote
Old 12-19-2015, 04:58 PM   #4
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 871
Total Cats: 93
Default

16 is fine for cruising. Your 100 kpa is too lean though, that should be more in the 13.5ish range.
acedeuce802 is offline   Reply With Quote
Old 12-19-2015, 05:59 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Thanks! I can't get to 100 KPA because of my altitude, but it should be tuned anyway!
dwink is offline   Reply With Quote
Old 12-20-2015, 04:13 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Here are a couple of logs if anyone wants to have a look. The first one is a lunatic WOT uphill run, 1st through 4th gear. Second is a normal run around the neighborhood.

Also, and sorry to be a n00b on this, but I don't believe I have a good way to review the logs - what do you all prefer for a view in the viewer? I just feel like total data overload...
Attached Files
File Type: msl 2015-12-20_11.55.24.msl (1.10 MB, 49 views)
File Type: msl 2015-12-20_11.57.41.msl (896.4 KB, 53 views)
dwink is offline   Reply With Quote
Old 12-20-2015, 08:02 PM   #7
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Not too terrible, but a few questions:
- If you want to make more power, run richer AFRs at full MAP (seems to be around 85-ish in your case). 13 to 13.5 would probably be a good start.
- Your MAP seems pretty erratic. Where do you have the sensor attached?
- You have EGO enabled under full throttle. That's pretty unusual. Any particular reason?
stefanst is offline   Reply With Quote
Old 12-20-2015, 08:12 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

- thanks on the AFR- I am at 5200 feet (but that will vary from sea level to 9000 feet).
- probably it is not in an ideal spot. Currently on the front of the IM (there was an unused port). I seem to remember reading the rear of the manifold was a better spot.
- honestly- I already began googling EGO. I left it setup as it came with Brain's baseman. I don't know enough to know (yet!).


Thanks for the help. I am discussing Sav's used BEGI 2554 setup, so I need to get dialed in before adding boost!
dwink is offline   Reply With Quote
Old 12-20-2015, 08:48 PM   #9
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

13.5 @ 100kpa? I didn't even look at this dudes table and I think that's a little bit on the lean side. Let me finish these couple of beers that are sitting in front of me and I will get back to you.
thirdgen is offline   Reply With Quote
