Default Running lean AFTER throttle blip

Hi All,

An old problem of mine is now haunting me in the winter months. I've checked around the forums but it looks like people are having problem with going lean when they blip their throttle.

My problem at the moment is opposite that. When I blip my throttle, I get fuel, but then right after, for a split second, the fuel cuts off completely- AFR= 18.

This problem is only really noticeable when the car isn't fully warmed up. So when the car is at operating temperature, it runs like stock. However, if its 1 degree below operating temperature, this problem occurs.

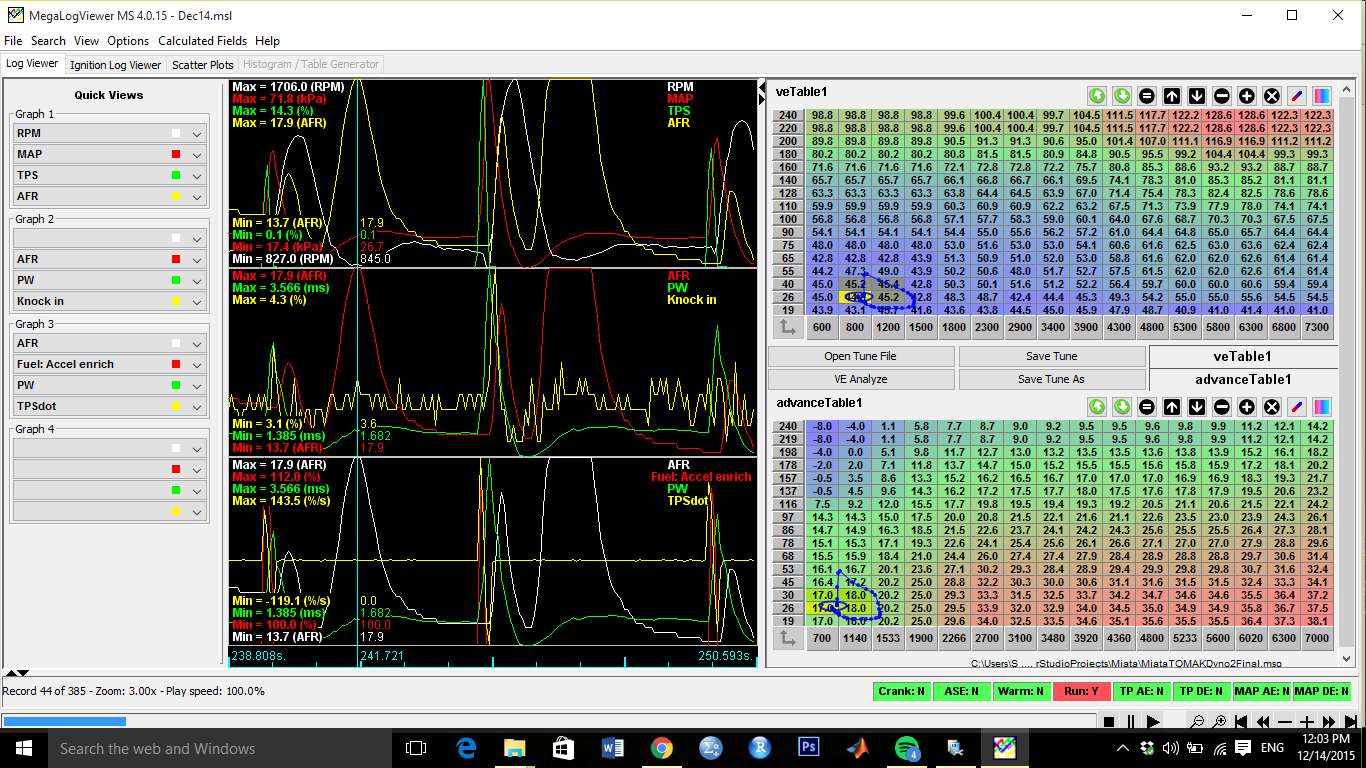

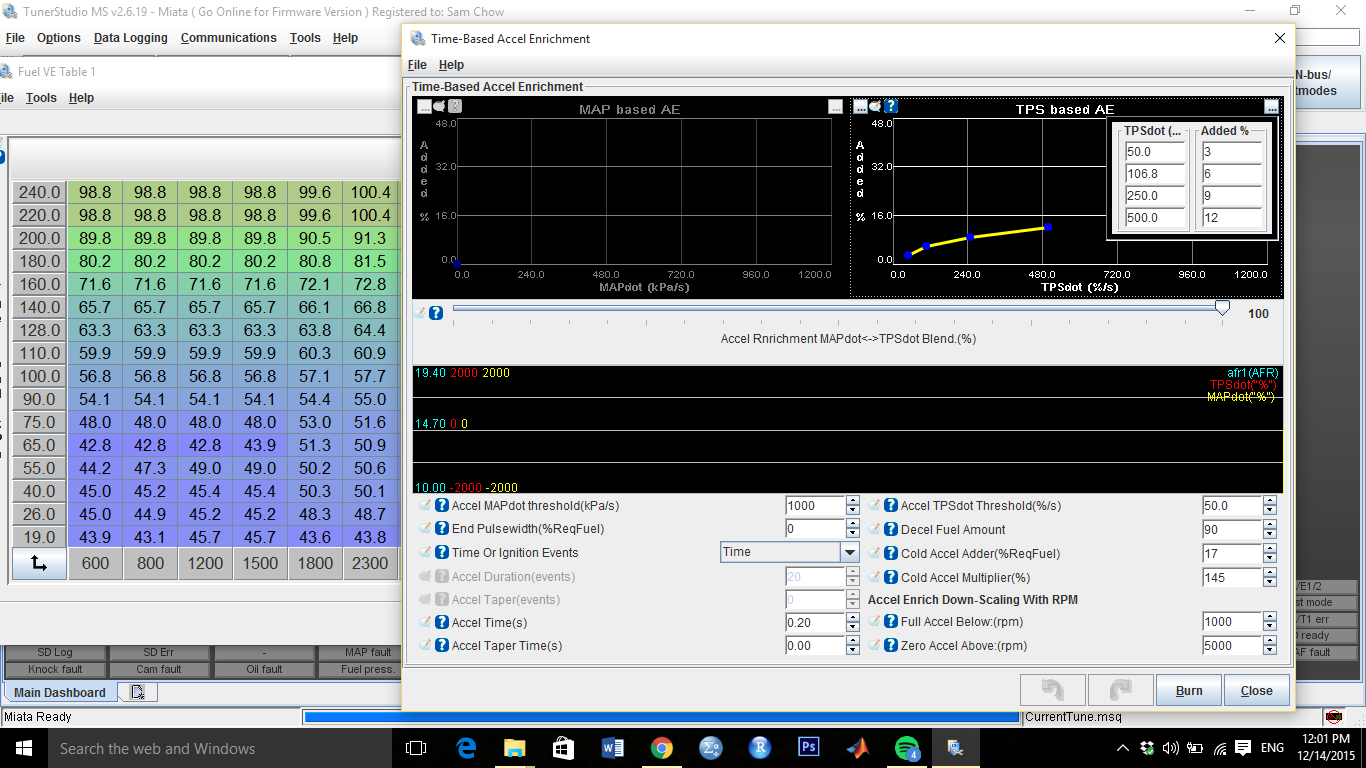

I've posted my logs for your viewing pleasure.



Attached Thumbnails
Running lean AFTER throttle blip-tg1qbab.png   Running lean AFTER throttle blip-ls40wjn.png
Attached Files
File Type: msl Dec14.msl (206.8 KB, 49 views)
Chowcow is offline   Reply With Quote
Old 12-14-2015, 05:27 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,012
Total Cats: 584
Default

Overrun fuel cut settings?
hornetball is online now   Reply With Quote
Old 12-14-2015, 05:44 PM   #3
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,696
Total Cats: 1,563
Default

Don't blip your throttle.
sixshooter is online now   Reply With Quote
Old 12-14-2015, 05:54 PM   #4
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

41.6 cell at 1500 should be equal or greater than low map idle cells, at least in my experience.

Formula is easy (reqfuel)*(ve value/100)*(kpa value/100)+(deadtime)=pw, gair is irrelevant for now. If the number is anywhere near your injector's minimum cycle time (double deadtime, IMO) then you have problems.

More deadtime will make it richer everywhere. If you are banging against minimum injector cycle time at very low map, this will fix that. Have to retune the whole map, linear scaling doesn't work with deadtime adjustments.
deezums is offline   Reply With Quote
Old 12-15-2015, 11:23 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Calgary, AB
Posts: 151
Total Cats: -11
Default

Quote:
Originally Posted by deezums View Post
41.6 cell at 1500 should be equal or greater than low map idle cells, at least in my experience.

Formula is easy (reqfuel)*(ve value/100)*(kpa value/100)+(deadtime)=pw, gair is irrelevant for now. If the number is anywhere near your injector's minimum cycle time (double deadtime, IMO) then you have problems.

More deadtime will make it richer everywhere. If you are banging against minimum injector cycle time at very low map, this will fix that. Have to retune the whole map, linear scaling doesn't work with deadtime adjustments.
Where do I make those changes? You don't think it has to do with the accel enrichment tune?
Chowcow is offline   Reply With Quote
Old 12-15-2015, 01:20 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

look at your pulsewidth, 1.3ms is basically shut off.

tune your fuel map -- you need way more fuel in the area outside idle. 70% load and 1500RPM is basically same fueling as idle on your map.
Braineack is online now   Reply With Quote
