Default Few more questions now that my car is running on MS

Ok so I finally got my ms3x mostly figured out. I am still having a bit of a problem with full throttle above 4000 rpm. Its like the car just falls on its face if I go full throttle anywhere above 4K rpm's. Any ideas? Log/ current tune attached
Attached Files
File Type: msq BTMiata.msq (177.5 KB, 50 views)
BTMiata is offline   Reply With Quote
Old 04-14-2014, 09:35 AM   #2
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Log upload keeps failing ... Maybe it's too big?

Edit* - I will take a few short logs of the problem happening on lunch time today and post when I have them. I also just tried adding a little fuel to the entire VE and I will try to run veal and see if that changes anything... Can't drive it yet though because im the only one in the office right now and can't leave yet lol

Last edited by BTMiata; 04-14-2014 at 10:26 AM.
BTMiata is offline   Reply With Quote
Old 04-14-2014, 12:49 PM   #3
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok think I got it all now.

It seems like its almost a rev limiter... It only happens at 100% throttle, at/ over 4000 RPM's

95% throttle acts completely normal. I dont even think the extra 5% throttle even matters for the way the car runs... but I still don't want it to happen.
Attached Files
File Type: msl 2014-04-14_11.27.51.msl (1.02 MB, 30 views)
File Type: msl 2014-04-14_11.31.39.msl (1.33 MB, 31 views)
File Type: msq BTMiata3.msq (177.5 KB, 24 views)
BTMiata is offline   Reply With Quote
Old 04-14-2014, 12:51 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Are you boosted yet? Can't tell if you are from your sig.

Check your overboost protection, sounds like you're hitting it.
curly is offline   Reply With Quote
Old 04-14-2014, 01:02 PM   #5
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by curly View Post
Are you boosted yet? Can't tell if you are from your sig.

Check your overboost protection, sounds like you're hitting it.
No boost yet... I stole the tune to use as a base from somewhere on the forum Lol... I will check that and see if it has that turned on
BTMiata is offline   Reply With Quote
Old 04-14-2014, 01:11 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I don't think there's an on/off for it, just whether or not it's set too low. I doubt it's your problem, but I would at least make sure it's set to a few psi/over 100kPa.
curly is offline   Reply With Quote
Old 04-14-2014, 01:18 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,883
Total Cats: 1,790
Default

log the event and the event only.

go recreate it. then press space bar after it happens. that will pinpoint when it happens, then we can look at the logs and see if the MS is actually doing something to cause the issue.


once thing i do notice is how lean you're getting at 100% wot and how your AFR table seems to be setup to lean it out...since EGO is dropping to 94% (effectively reducing your fuel output by 6%).

otherwise, the condition you mention: 100% tps and 4K is no showing up on your logs. it looks like youre lifting around 3700RPM.
Braineack is online now   Reply With Quote
Old 04-14-2014, 01:26 PM   #8
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
log the event and the event only.

go recreate it. then press space bar after it happens. that will pinpoint when it happens, then we can look at the logs and see if the MS is actually doing something to cause the issue.


once thing i do notice is how lean you're getting at 100% wot and how your AFR table seems to be setup to lean it out...since EGO is dropping to 94% (effectively reducing your fuel output by 6%).

otherwise, the condition you mention: 100% tps and 4K is no showing up on your logs. it looks like youre lifting around 3700RPM.
Ok I will try again on my way home from work.. Does hitting space bar start the log? I had no idea I could do it that way lol
BTMiata is offline   Reply With Quote
Old 04-14-2014, 01:34 PM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

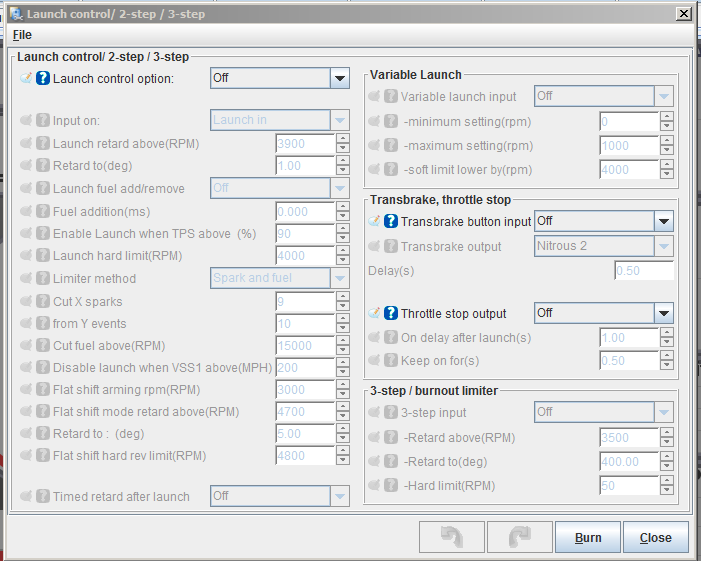

Make sure your launch control is off..
Attached Thumbnails
Few more questions now that my car is running on MS-capture.png
furrycurry33 is offline   Reply With Quote
Old 04-14-2014, 01:44 PM   #10
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by furrycurry33 View Post
Make sure your launch control is off..
That took care of it!! Thanks!

I am still going to take some logs to check on what Brain said about being lean. Maybe I need to throw some more fuel at my VE table?
BTMiata is offline   Reply With Quote
Old 04-14-2014, 01:47 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,883
Total Cats: 1,790
Default

you dont think 15.0:1 at 99kPa at 4000RPM is lean?
Braineack is online now   Reply With Quote
Old 04-14-2014, 01:59 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
you dont think 15.0:1 at 99kPa at 4000RPM is lean?
I'm not saying that... But what would I do to correct it? change my target afr's? add more fuel to ve and let veal correct it? I'm still trying to figure out how this all works, bear with me
BTMiata is offline   Reply With Quote
Old 04-14-2014, 02:05 PM   #13
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

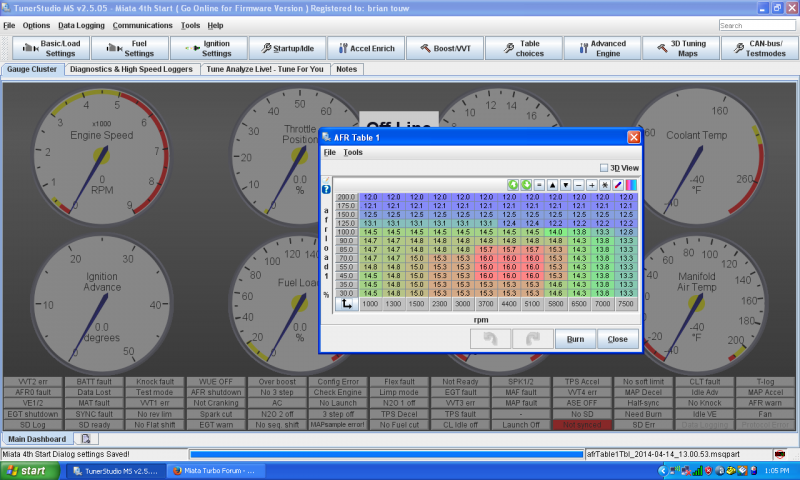

ARR Table



So how much should I lower everything... Should I drop the whole table by a few #'s?
Attached Thumbnails
Few more questions now that my car is running on MS-afrtable_zps1ab349ab.png
BTMiata is offline   Reply With Quote
Old 04-14-2014, 02:55 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

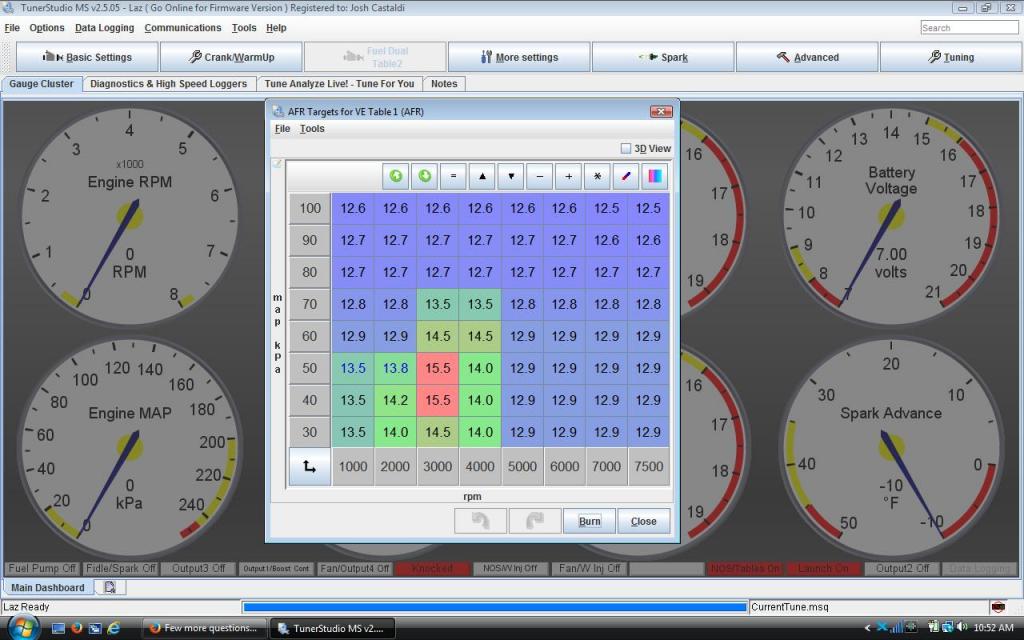

1.6 dyno'd at 125hp:



Look at the 100 row. When you go WOT from low rpm, you're going to shoot up to the 100kPa row, and then just sit there until you let off. So currently you're going to sit at 14.5afr until 5800rpm. I'd suggest trying 13.0 across the entire 100kPa row and auto tune for that. Set autotune to "easy" so it really dumps in enough fuel for a few pulls.
Attached Thumbnails
Few more questions now that my car is running on MS-lazsafrtargettable_zps9eeb1656.jpg
curly is offline   Reply With Quote
Old 04-14-2014, 03:23 PM   #15
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by curly View Post
1.6 dyno'd at 125hp:



Look at the 100 row. When you go WOT from low rpm, you're going to shoot up to the 100kPa row, and then just sit there until you let off. So currently you're going to sit at 14.5afr until 5800rpm. I'd suggest trying 13.0 across the entire 100kPa row and auto tune for that. Set autotune to "easy" so it really dumps in enough fuel for a few pulls.
Wait is that a different chart than what I have? Mine looks way bigger?
BTMiata is offline   Reply With Quote
Old 04-14-2014, 03:27 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

It doesn't matter really.... should be simple to look at the two charts, fill in the blanks.
concealer404 is offline   Reply With Quote
Old 04-14-2014, 03:31 PM   #17
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by concealer404 View Post
It doesn't matter really.... should be simple to look at the two charts, fill in the blanks.
Ok I just changed the top from 12 to 13 for now and set autotune to easy... I'll see how it does on the way home tonight and make a log once I'm 1/2 way home.

Thanks for all the help guys!
BTMiata is offline   Reply With Quote
Old 04-14-2014, 03:35 PM   #18
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Not the top, you don't use the top since you're NA. Take everything from 80-100 and subtract 1.5.
thenuge26 is offline   Reply With Quote
Old 04-14-2014, 03:41 PM   #19
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thenuge26 View Post
Not the top, you don't use the top since you're NA. Take everything from 80-100 and subtract 1.5.
Ok thanks!
BTMiata is offline   Reply With Quote
Old 04-14-2014, 03:55 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,883
Total Cats: 1,790
Default

in the least, just copy the 125 kPa row and put it on the 100 Kpa row.
Braineack is online now   Reply With Quote
