First Winter with 550's cranking - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 10-28-2008, 09:00 PM   #21
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Okay, loaded my latest msq into megatune. How do I find out what timing map I run?
evank is offline   Reply With Quote
Old 10-28-2008, 09:05 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Odds are you're running the same map Paul is running, so it should be fine. But, I'll try this anyways. (I'm MS2E so my megatune is wayyyy different, so bear with me).

Go to the top and their are columns. Probably the second from the left, pick it, and look and see if you see "ignition table 1" or anything like that. Once you find it take a screen shot and post it up.
patsmx5 is offline   Reply With Quote
Old 10-28-2008, 09:39 PM   #23
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

evank is offline   Reply With Quote
Old 10-28-2008, 09:42 PM   #24
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

No way would I load my timing map on Evan's MSM with his smaller turbo and smaller intercooler resulting in much higher IATs.

FWIW, isn't the timing map ignored during cranking? I mean not even ignored, the engine doesn't even spin at that minimum of 500rpms. Maybe the cranking advance angle is what would be the cause. On Evan's car it's set to 12.
paul is offline   Reply With Quote
Old 10-28-2008, 09:45 PM   #25
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Hiya, P. .... so when we install the bigger IC, do we have to change a bunch of settings?
evank is offline   Reply With Quote
Old 10-28-2008, 09:49 PM   #26
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by Saml01 View Post
According to the weather record they did here.

i found a low of 9 F in NYC which is pretty close. I bet you probably didn't start your 23k mile 97 that day.
paul is offline   Reply With Quote
Old 10-28-2008, 09:50 PM   #27
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by paul View Post
No way would I load my timing map on Evan's MSM with his smaller turbo and smaller intercooler resulting in much higher IATs.

FWIW, isn't the timing map ignored during cranking? I mean not even ignored, the engine doesn't even spin at that minimum of 500rpms. Maybe the cranking advance angle is what would be the cause. On Evan's car it's set to 12.
Yeap, you're right. Pretty sure anyways. I run MS2E w/ EDIS4 so mine it cranks at 10* BTDC whether I like it or not, and after 300 it goes to whatever MS says. I'd imagine on MS it does something similar.

Damn that map looks more retarded than Haverty. Anyways, it's not your problem. And yeah if you have high IAT's then that's the safe way to go.
patsmx5 is offline   Reply With Quote
Old 10-28-2008, 10:08 PM   #28
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I believe that's actually the DIYAutotune base map for 94/95. I know it's said to be conservative and that was the reason for running it, especially on an msm motor which has slightly higher compression than the 94/95. I don't mind getting aggressive on my motor or another motor I can afford to replace(bryan's, artie's, jes's All 90-97) but I don't need that headache.
paul is offline   Reply With Quote
Old 10-28-2008, 10:15 PM   #29
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
I don't mind getting aggressive on my motor or another motor I can afford to replace(bryan's, artie's, jes's All 90-97) but I don't need that headache.
+1. When I first decided to 'squirt, I told Paul that my goal was good power and maximum reliability/safety. I'd rather give up a few HP and not risk blowing up stuff.
evank is offline   Reply With Quote
Old 10-28-2008, 11:15 PM   #30
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

here's the map i ran all summer
Attached Files
File Type: msq whole summer 2008 map.msq (35.2 KB, 55 views)
Mach929 is offline   Reply With Quote
Old 11-01-2008, 09:10 PM   #31
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

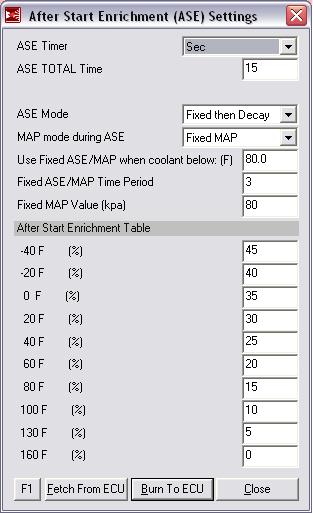

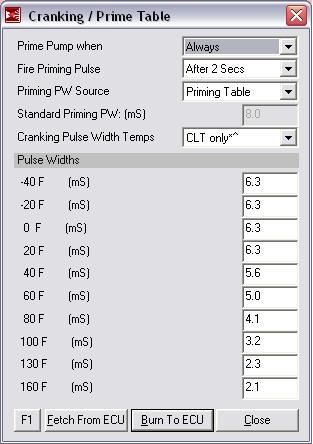

Here ya go everyone.


Gets me started down to 10F reliably on the first try.
Attached Thumbnails
First Winter with 550's cranking-crankingsaml01.jpg   First Winter with 550's cranking-afterstartsaml01.jpg
Saml01 is offline   Reply With Quote
Old 11-06-2008, 11:38 AM   #32
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Saml01 View Post
Here ya go everyone.


Gets me started down to 10F reliably on the first try.
Those are for 460's, right?
Laur3ns is offline   Reply With Quote
Old 11-06-2008, 04:02 PM   #33
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

I tried Sam's numbers and, sure enough, my car started much better in the cold weather last week. But this week, it wouldn't start in the warm weather. Paul suggested that (duh to me) I use a hybrid of Sam's settings for 40 and below and my old settings for 60 and above. So I made that change. But it hasn't been cold enough since then to test it.
evank is offline   Reply With Quote
Old 11-07-2008, 10:50 AM   #34
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Spookyfish View Post
Those are for 460's, right?
Yessir.
Saml01 is offline   Reply With Quote
Old 11-11-2008, 01:26 PM   #35
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I don't have mine solved yet. Warm and hot start is excelent. Cold start almost always required a 2nd attempt, as shown here:


You can hear me starting the car, then it catches and dies (runs around 500rpm). If I don't kill it, it will sputter a little more around 500rpm. The second try catches and runs fine. I've played around with my PWs, but it does not really seem to do alot.

Am I lean or cold or is it my ASE or WE?
Laur3ns is offline   Reply With Quote
Old 11-11-2008, 01:45 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

your cranking settings are fine, tune your cold start ****.
Braineack is online now   Reply With Quote
Old 11-11-2008, 02:24 PM   #37
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
...cold start ****
ASE richer? Going to test some stuff now...
Laur3ns is offline   Reply With Quote
Old 11-11-2008, 03:46 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Spookyfish View Post
ASE richer? Going to test some stuff now...

something like that, the car is cranking and starting, but dying during ASE.

Try a different MAP value before decay. I have to use 50kPa over the default 80kPa the PNP map uses, else my car runs like **** after starting; hot or cold.
Braineack is online now   Reply With Quote
Old 11-13-2008, 05:16 PM   #39
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Richened my ASE's and I've been starting fine now in cold weather. Will keep fine tuning, but it now runs on first try.
Laur3ns is offline   Reply With Quote
Old 12-07-2008, 08:49 PM   #40
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Anybody else what to post up what they are running for cranking/afterstart?
miatamania is offline   Reply With Quote
