Old 12-08-2008, 06:38 AM   #41
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Thumbs up

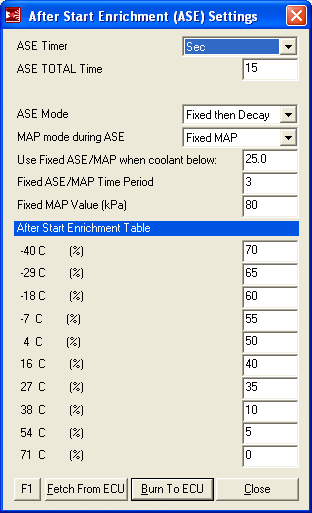

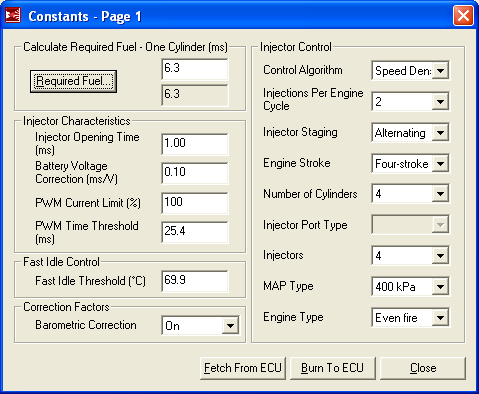

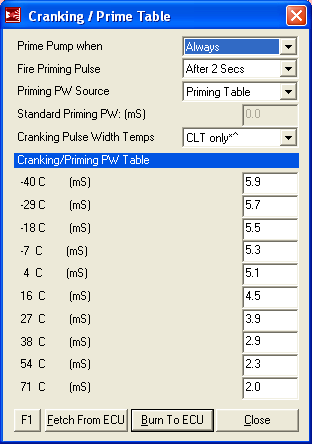

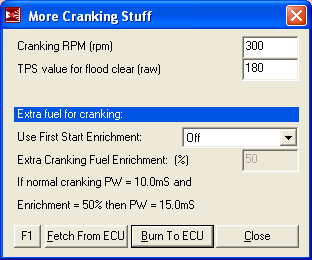

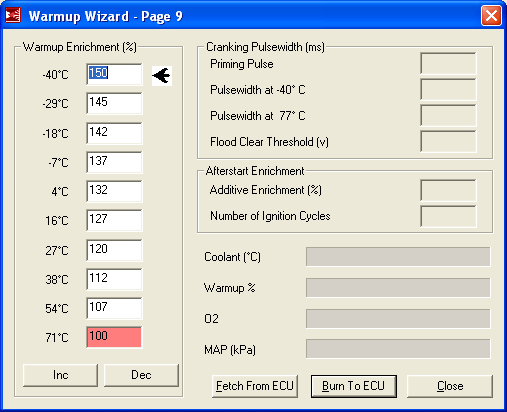

This is what I've got now after several tries. I upped my cranking PWs and my ASE. Warmup is unaffected. I really needed to up them ALOT in the colder temperatures. At around 0 C it is not brilliant yet, but I will get there.
Attached Thumbnails
First Winter with 550's cranking-0_constants.png   First Winter with 550's cranking-1_cranking_prime.png   First Winter with 550's cranking-2_more_cranking.png   First Winter with 550's cranking-3_ase.png   First Winter with 550's cranking-4_warmup.png

Laur3ns is offline   Reply With Quote
Old 12-08-2008, 01:33 PM   #42
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Thanks, that gives me a great place to start.

I can't get the car to start below 40 degrees with stock injectors period without start fluid. After it starts and coolant temps get above 45-50, it'll have issues, but still crank. after 60, starts right up. Not sure why. I've tried a **** ton of different values in cranking settings.

I'm swapping in the 550s while the car is down for a turbo rebuild and hopefully it will be enough fuel. I'm just wondering if the stock injectors are fucked, I had a bit of a rough idle on stock ECU...new plugs/wires, stuff like that.
miatamania is offline   Reply With Quote
Old 12-08-2008, 01:37 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by miatamania View Post
TI can't get the car to start below 40 degrees with stock injectors period without start fluid. After it starts and coolant temps get above 45-50, it'll have issues, but still crank. after 60, starts right up. Not sure why. I've tried a **** ton of different values in cranking settings.

sounds like not enough fuel during cranking still.
Braineack is offline   Reply With Quote
Old 12-08-2008, 01:48 PM   #44
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
sounds like not enough fuel during cranking still.
Def. I haven't been able to pull the msq off the laptop, but the PW on the stock injectors are well above like...12 pw/s. and only sometimes will it sputter and act like its trying to start. Above that it wont do anything, below it wont either.
miatamania is offline   Reply With Quote
Old 12-08-2008, 01:53 PM   #45
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

With the settings I posted I haven't missed a start yet including this morning when it was 16F. Took a little longer to catch today, guess I could add fuel but better to get that oil flowing right? Once it catches it purs like a kitten too. Been lucky I guess. I just stole Paul's numbers and haven't had any issues.
johndoe is offline   Reply With Quote
Old 12-08-2008, 02:15 PM   #46
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Been tinkering with my car's cold start-up settings too.

Cold-temp CPWs weren't high enough, ASE was too lean, warmup wizard settings were too rich. More tweaking is needed but now I'm in the ballpark. Also the coolant temp readout in Megatune is too low -- last night it said 11 when the outside temp didn't dip below the low 20s all day.

Paul says this is because of a mis-setting in EasyTherm. I don't know anything about that.
evank is offline   Reply With Quote
Old 12-08-2008, 02:55 PM   #47
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by johndoe View Post
With the settings I posted I haven't missed a start yet including this morning when it was 16F. Took a little longer to catch today, guess I could add fuel but better to get that oil flowing right? Once it catches it purs like a kitten too. Been lucky I guess. I just stole Paul's numbers and haven't had any issues.
You posted your cranking PWs in this thead. Could you post your ASE and WarmUp too please?
Laur3ns is offline   Reply With Quote
Old 01-18-2009, 10:24 PM   #48
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Does anybody have any settings for 550cc BELOW 35 degrees....I've been trying a lot of stuff...it'll sputter once, but NEVER start.
miatamania is offline   Reply With Quote
Old 01-18-2009, 10:41 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

only gone as low as 30*F, no issues with 460s.
Braineack is offline   Reply With Quote
Old 01-20-2009, 03:30 PM   #50
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

To about freezing they do OK, anything at or below, I can't get **** to start, I can't seem to get much difference. Sometimes I get a sputter when I first turn the key, but that is it. I have to wait 30 seconds to a minute to try again, and I get the same sputter.


When it cranks like it should, it takes one turn of the key, the first fire up is perfect, idles rough for less than a second and finds the idle and is great.
miatamania is offline   Reply With Quote
Old 01-21-2009, 03:20 PM   #51
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

did some changes today on cold cranking. at -5C I have about 40% enrichment. I think that's a hair too much, but it starts eventually. Next time I will try 35%. I'm trying to get the cranking AFR to be around 10:1 or 10.5:1. right now it pegs the WB at 9.8 so I don't know what it REALLY is.
y8s is offline   Reply With Quote
Old 01-21-2009, 03:47 PM   #52
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

It was 40* this morning and it took me a little over an hour to get my car. My car hasn't seen these temps with MS so my setings were way off. By the time I got it started I had to have my other car running with jumper cables connected to my battery and I had to pull my plugs once to dry out the cylinders. I got it though. What do you goys with 550's in 40* weather have your crank settings at?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-21-2009, 04:21 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you need less fuelz.


these should get you running at those temps:

5.9
5.4
5.3
4.9
4.4
3.8
3.3
2.7
2.2
2.1



i shaved 20% off my 460cc map.
Braineack is offline   Reply With Quote
Old 01-21-2009, 04:35 PM   #54
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you need less fuelz.


these should get you running at those temps:

5.9
5.4
5.3
4.9
4.4
3.8
3.3
2.7
2.2
2.1



i shaved 20% off my 460cc map.

I'll give them a try. What would you suggest for warm up?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-21-2009, 05:12 PM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

once it catches, its in the hands of ASE, that slowly decays out to warmup enrichments. i believe i still have the PNP defaults for those, i might have added a touch a fuel, shooting for a 12.5:1 warmup.
Braineack is offline   Reply With Quote
