Default Gutting an ignitor and upgrading to BIP373

Has anyone does this yet? A friend's igniter died and we are looking to getting it back on track within the weekend, rather than finding a used igniter from a junkyard. No, he doesn't want to upgrade to COPS, and even if he did, we want to have the car ready before Monday (daily driver).
Reverant is offline   Reply With Quote
Old 12-18-2010, 11:14 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Can't imagine why it wouldn't work. It's 5v triggered active-high, and has more than enough current capacity.

You'd need to jimmy something up if you wanted to keep the tachometer working in the instrument cluster, but that's about the only issue I see.
Joe Perez is offline   Reply With Quote
Old 12-18-2010, 11:38 AM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

A couple of diodes will solve the tacho problem, I was just looking for a quick solution to save my weekend Vs figuring it out from scratch (and the wife hating me for yet another project).
Reverant is offline   Reply With Quote
Old 12-18-2010, 11:46 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

It should work fine. It's probably even an upgrade from the 1.6 ignitor.
I sometimes ground the BIPs through a spare pin directly to the motor instead of through the ground plane inside the board. It makes me feel good, but it's not really necessary.
Ben is offline   Reply With Quote
Old 12-18-2010, 12:00 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

I used two in a build once that utilized neon coils without ignitors...
Braineack is offline   Reply With Quote
Old 12-18-2010, 01:44 PM   #6
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Any instructions?
Reverant is offline   Reply With Quote
Old 12-18-2010, 01:52 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Reverant View Post
Any instructions?
1: Connect ignition trigger wires to BIP inputs.
2: Connect coil - wires to BIP load pins.
3: Connect BIP ground pins to ground.
4: ???
5: Profit.
Joe Perez is offline   Reply With Quote
Old 12-18-2010, 01:56 PM   #8
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Nah that's too easy, it can't be for real.
Reverant is offline   Reply With Quote
Old 12-19-2010, 07:33 AM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

How'd you get on Reverant?

And do you have a circuit diagram for the tacho?
richyvrlimited is offline   Reply With Quote
Old 12-19-2010, 07:40 AM   #10
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I still haven't done it, as soon as I do and it's a success I'll let you know.
Reverant is offline   Reply With Quote
Old 12-22-2010, 12:40 PM   #11
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

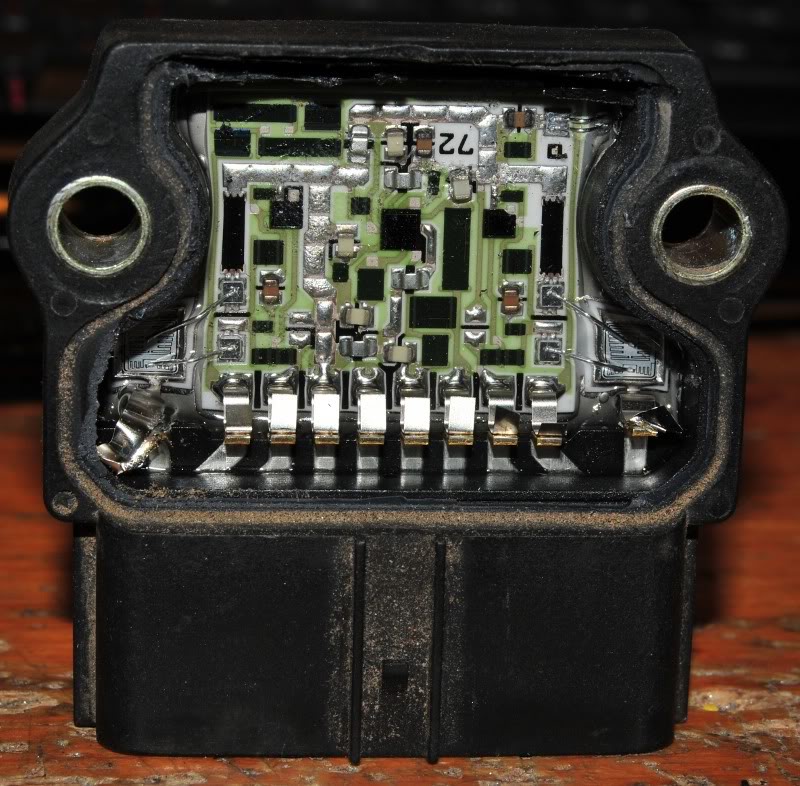

What the igniter looks like inside. By the looks of it, I think it holds a grudge against me for using an HF-quality dremmel tool.


Name:  dsc_4742_1.jpg
Views: 46
Size:  141.4 KB

Proceeding to gut it.
Reverant is offline   Reply With Quote
Old 12-22-2010, 01:03 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by Reverant View Post
Nah that's too easy, it can't be for real.
Remove R57. Jump R43.

Use a 270-330ohm resistor from the CPU (Squirt-1 or Accel-1) to IgbtIN.

Now just duplicate that BIP circuit for the second pair.
Braineack is offline   Reply With Quote
Old 12-22-2010, 05:38 PM   #13
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

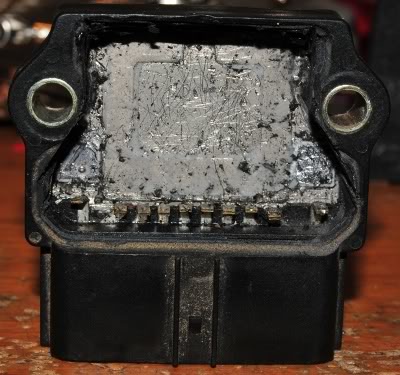

Igniter gutted.

Name:  dsc_4749_1.jpg
Views: 41
Size:  40.3 KB
Reverant is offline   Reply With Quote
Old 12-22-2010, 05:41 PM   #14
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

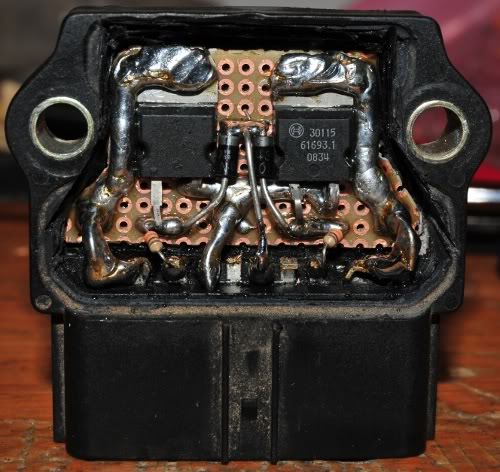

And upgraded!

Name:  dsc_4751_1.jpg
Views: 52
Size:  61.0 KB
Reverant is offline   Reply With Quote
Old 12-22-2010, 05:42 PM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

that's some pretty lead heatsinking.
y8s is offline   Reply With Quote
Old 12-22-2010, 05:45 PM   #16
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yup. The tab is also acting as the collector, so I chopped of the middle leg and that got me there faster and neater.
Reverant is offline   Reply With Quote
Old 12-22-2010, 08:27 PM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Very clever.
Are the 2 diodes for tach pulse?
Ben is offline   Reply With Quote
Old 12-23-2010, 02:45 AM   #18
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yes, here's to hoping that it will work.
Reverant is offline   Reply With Quote
Old 12-23-2010, 05:23 AM   #19
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Awesome work Reverant, stealth upgrades!
richyvrlimited is offline   Reply With Quote
Old 12-23-2010, 07:13 AM   #20
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Partial success, it runs for a minute at first and then dies. The igniter gets hot, which suggests that the thermal protection kicks in. I'm using "Going low" for the spark output, this is an MSPNP9093 upgraded to MS-II. When using Going high (inverted), it doesn't want to run at all, I keep cranking for 4-5 seconds, it almosts catches for half a second, and then goes back to plain cranking.
