Old 07-01-2013, 12:42 AM   #41
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by mx594m View Post
I read, learning off you, have nothing to offer
Thanks! I'm slowly learning some.
Mazduh is offline   Reply With Quote
Old 07-01-2013, 02:38 AM   #42
Junior Member
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

your priming pulse width looks odd, but then I dont have a turbo. It start ridiculously high, but that might be a error on my side.
silvermazda is offline   Reply With Quote
Old 07-01-2013, 02:39 AM   #43
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

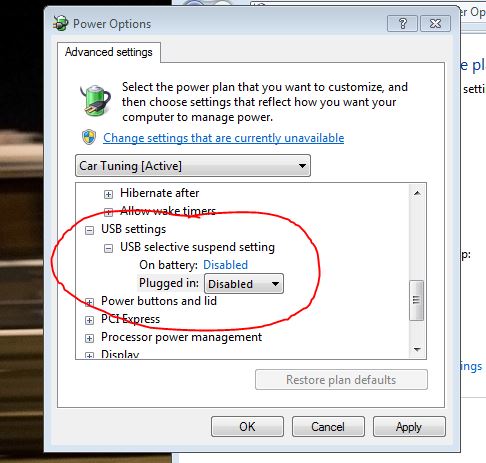

Aha! I think I figured out why my laptop was randomly disconnecting from my ecu after some time!

Here's the culprit:
Attached Thumbnails
HALP! Tuning newb.-dz8hcow.jpg
Mazduh is offline   Reply With Quote
Old 07-01-2013, 02:56 AM   #44
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by silvermazda View Post
your priming pulse width looks odd, but then I dont have a turbo. It start ridiculously high, but that might be a error on my side.
The fuel pump does prime for what seems like a longish time. But the car fires up right away for the most part.
Mazduh is offline   Reply With Quote
Old 07-01-2013, 09:24 AM   #45
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,578
Total Cats: 155
Default

I know it seems like you are talking to yourself but you seem to be doing a great job of learning on your own. I would suggest that you hand tune the top of your table to make it richer before you go out and use VEAL. You don't want it to run too lean while you are in boost until VEAL corrects it. It would be better to be a little rich and let VEAL lean it out.
Ryan_G is offline   Reply With Quote
Old 07-03-2013, 01:18 AM   #46
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by Ryan_G View Post
I know it seems like you are talking to yourself but you seem to be doing a great job of learning on your own. I would suggest that you hand tune the top of your table to make it richer before you go out and use VEAL. You don't want it to run too lean while you are in boost until VEAL corrects it. It would be better to be a little rich and let VEAL lean it out.
I did this today and OMG the car feels greatish for now. Basically went out in the cornfields of IL and just sat at certain rpms and let VEAL do work on the high end.

I got lucky and my tuner is actually coming to visit me tomorrow so hopefully he'll be able to tap out even more awesomeness.

I kinda feel like my fuel table looks like dick-all but at least the car stays perfect around 11.5 afrs in every gear right up too 6500rpm. I'm running wastegate pressure so around 8psi. I creep a little bit after 5000rpms in 5th and 6th but my afrs still stay around 12.

It's so nice though! I feel like I have a new car! So much more drivable.

If anyone is interested in my progress, here's my latest msq. I'll see if I can get a new datalog up tomorrow.
Attached Files
File Type: msq 2013-07-02_23.17.20.msq (103.9 KB, 53 views)
Mazduh is offline   Reply With Quote
Old 07-03-2013, 09:08 AM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Yeah this is always a good idea. If your fuel map is in the 90%s up top and VEAL is bringing you up to say 130%, go ahead and make everything up top 130% and tune from there. Better to be pig rich and have VEAL pull some fuel than the other way around. Then you can work on smoothing out the transitions.
Braineack is online now   Reply With Quote
Old 07-03-2013, 04:03 PM   #48
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Ok here's what my tuner and I were able to come up with today. Had a odd issue with my boost controller so we just tuned for 8psi.
Attached Files
File Type: msq Kriebs1.msq (104.2 KB, 63 views)
Mazduh is offline   Reply With Quote
Old 07-03-2013, 04:30 PM   #49
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Mazduh View Post
Feel like I'm just talking to myself here... LOL
Read below to learn why you didn't receive any more responses.
Quote:
Originally Posted by Mazduh View Post

I took everything back apart again to discover injectors 1-2 weren't seated properly which was causing my high idle. Car starts great now after fixing that and changing that ignition table.
Quote:
Originally Posted by Mazduh View Post
Ok I've been learning stuffs and adjusting some things.

EDIT: Ok I adjusted things again now I'm idling perfect at 14.7. I also drove the car around town a bit not really going more then 4000rpm. Seems to be riding ok. I let VEAL do some tuning and things seem to be getting better.
Quote:
Originally Posted by Mazduh View Post
Ok I figured out how to actually data log properly.. lol durrr... Didn't realize if you hit settings>start logging you could actually save the log as a .msl file and not just the .csv.


Tomorrow I'm going to try and get out on the highway and let VEAL do some work in the higher rpms. Though I still need to figure out why my laptop randomly keep disconnecting from my ecu after 10 minutes. I'm figuring it's something to do with the laptop and it's power settings.
Quote:
Originally Posted by Mazduh View Post
Thanks! I'm slowly learning some.
Quote:
Originally Posted by Mazduh View Post
Aha! I think I figured out why my laptop was randomly disconnecting from my ecu after some time!

Here's the culprit:
Good job figuring things out. If someone had held your hand you wouldn't have learned and retained as much knowledge. People helped where you needed it and things that could have hurt your car like letting it lean when tuning instead or enrichen while VEAL turning were pointed out.
Stein is offline   Reply With Quote
Old 07-03-2013, 09:08 PM   #50
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

what size injectors are you using?
any mod to the fuel pressure?
the 4.7 fuel required setting seems very low
have you adjusted for electronic latency?
mx594m is offline   Reply With Quote
Old 07-03-2013, 10:35 PM   #51
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by mx594m View Post
what size injectors are you using?
any mod to the fuel pressure?
the 4.7 fuel required setting seems very low
have you adjusted for electronic latency?
FIC 650cc

That's how it came from Reverent. Haven't touched it.

Nope.
Mazduh is offline   Reply With Quote
Old 07-03-2013, 11:29 PM   #52
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

just ran the calc for fuel required, and 4.7 about right for 1840cc/650cc/14.7afr
I am running 1890cc/525cc/14.0 and getting 6.3

latency, the delay in the system from the coil event to the actual spark is very car specific and is something that Dimitris cannot measure

measure/adjust using a timing light
1. check timing at idle, adjust to align crankshaft-pointer marks
2. have assistant rev engine to 4000 rpm, observe whether crankshaft-pointer marks are still aligned, adjust latency setting to align
mx594m is offline   Reply With Quote
Old 07-04-2013, 03:45 AM   #53
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by mx594m View Post
just ran the calc for fuel required, and 4.7 about right for 1840cc/650cc/14.7afr
I am running 1890cc/525cc/14.0 and getting 6.3

latency, the delay in the system from the coil event to the actual spark is very car specific and is something that Dimitris cannot measure

measure/adjust using a timing light
1. check timing at idle, adjust to align crankshaft-pointer marks
2. have assistant rev engine to 4000 rpm, observe whether crankshaft-pointer marks are still aligned, adjust latency setting to align
I'm not sure what your getting at? your setup is obviously going to be different from mine. You said yourself 4.7 is right for my injector size and 1839cc.
Mazduh is offline   Reply With Quote
Old 07-04-2013, 08:25 AM   #54
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

oophs, coils don't initiate the spark event, the CAS and/or cam/crank sensors initiate the spark event; but addressing latency is still relevant

at idle, any delay [and there will be delay] from the SENSOR event and the spark event will have little impact on power; different story at higher revs, delay [latency] means the spark event actually occurs after the optimal spark time with a corresponding adverse impact on engine performance

the megasquirt latency adjustment just adjusts timing for the delay

not saying you will add 20-hp, but you may add 1 more angel [on the head of the pin]
mx594m is offline   Reply With Quote
Old 07-05-2013, 02:01 PM   #55
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by mx594m View Post
oophs, coils don't initiate the spark event, the CAS and/or cam/crank sensors initiate the spark event; but addressing latency is still relevant

at idle, any delay [and there will be delay] from the SENSOR event and the spark event will have little impact on power; different story at higher revs, delay [latency] means the spark event actually occurs after the optimal spark time with a corresponding adverse impact on engine performance

the megasquirt latency adjustment just adjusts timing for the delay

not saying you will add 20-hp, but you may add 1 more angel [on the head of the pin]
Ohh ok. Cool thanks for the input! I'll talk to my tuner about doing that.
Mazduh is offline   Reply With Quote
Old 07-07-2013, 08:37 PM   #56
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Hey guys,

So I wired in the ebc I picked up from DIYAutotune and I'm wondering what parameters I need to set in TS to get it communicating with the ebc.

I did some searching and a lot of what i found concerning the ebc I think is outdated or another ms firmware.

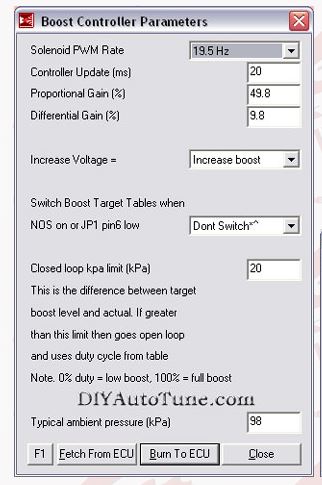

Looks like this:

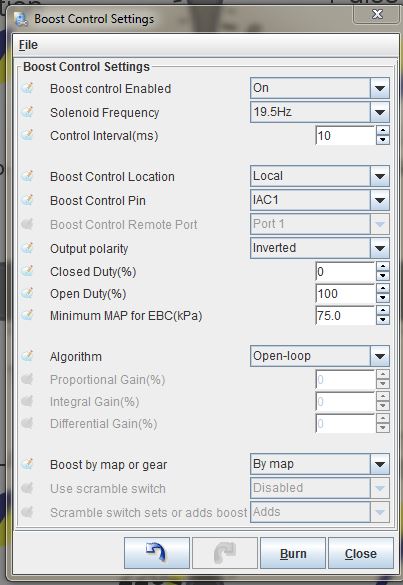

Mine looks like this:




Can anyone point me in the right direction so I can figure it out? I'm just not sure what I need to set for boost control location and pin etc...

Thanks
Attached Thumbnails
HALP! Tuning newb.-auytqpw.jpg   HALP! Tuning newb.-xvoiwea.jpg
Mazduh is offline   Reply With Quote
Old 07-08-2013, 03:56 AM   #57
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Everything is already setup for you - you don't have to change anything. Just start playing with the boost map.
Reverant is offline   Reply With Quote
Old 07-08-2013, 06:48 PM   #58
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by Reverant View Post
Everything is already setup for you - you don't have to change anything. Just start playing with the boost map.
Oh... ok then! lol
Mazduh is offline   Reply With Quote
Old 07-13-2013, 04:03 PM   #59
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Update:

I've got the ebc up and running thanks to rev pointing out a great 12v power source from the red/white wire in the MAF connector.

Playing around with the car at 10psi. Hopefully in the next few weeks I'll be able to make it over to my tuner's place so he ca dial in things for 12psi. I've got a few mechanical things I need to fix first and replace.
Mazduh is offline   Reply With Quote
Old 07-18-2013, 03:40 PM   #60
Newb

Join Date: Jan 2011
Posts: 11
Total Cats: 0
Default gj

great work man, im about to begin my journey in tuning the ms, fingers crossed ive got a na6 turbo.
peterwho is offline   Reply With Quote
