Default Harness Assembly Clarification / Standalone Conversion Troublshooting

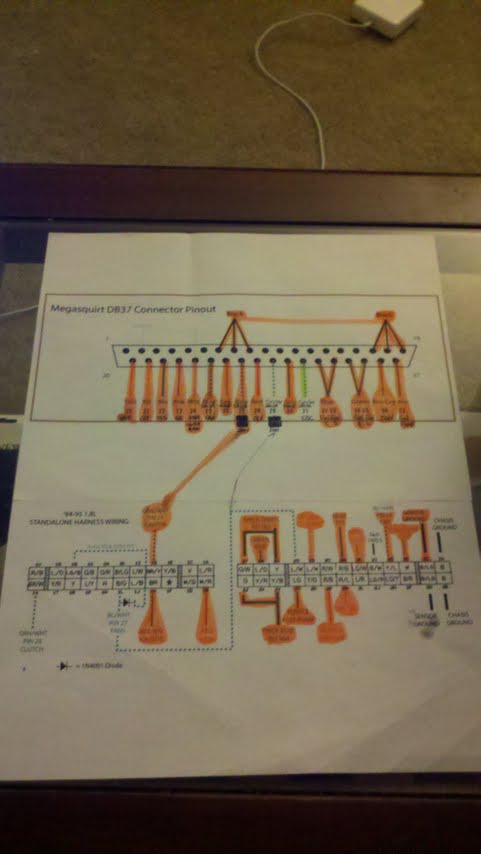

Here's a snapshot of what I've done to my harness so far (highlighted in orange). My question is on this "GRN/WHT PIN 29 CLUTCH" comment on the bottom left. My understanding is that this would be used in the case launch control, etc. was being used. In my case, my PIN 29 is my FAN CONTROL, and launch control,etc. is not being used, therefore 1V in the bottom left corner will remain empty.

Please confirm.

94-95 Standalone
Attached Thumbnails
Harness Assembly Clarification / Standalone Conversion Troublshooting-mail.jpeg

Last edited by Enginerd; 09-11-2010 at 06:29 PM.
Enginerd is offline   Reply With Quote
Old 09-11-2010, 01:22 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

if you're not going to use it, dont worry about it.
Braineack is offline   Reply With Quote
Old 09-11-2010, 04:56 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

K perfect. I'm done with the MS and the harness now. So I've got Fan Control, EBC (not used since I've got the supercharger), and the A/C jumpers per Joe P's thread.

Another quick one before I get into the car: from the mt.wiki I find this reference quoted below:

http://miataturbo.wikidot.com/harness-assembly
"On 90-95 installs, a 1K 1/4 watt resistor should be installed in the diaganostics box across B+ and IG- Without this resistor the dash tach will not be functional because the stock ECU provides this pull-up; since we remove the stock ECU, we must replace the pull-up."

Now, I do not see this referenced in the Build Your Own Megasquirt thread here:
https://www.miataturbo.net/useful-saved-posts-8/how-make-install-your-own-diy-megasquirt-13676/

Is this applicable or not?
Enginerd is offline   Reply With Quote
Old 09-11-2010, 05:16 PM   #4
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Once you turn your car on the first time you'll find out
falcon is offline   Reply With Quote
Old 09-11-2010, 05:24 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

Good point I'm heading out side once I get my shoes on haha. We'll see what happens!
Enginerd is offline   Reply With Quote
Old 09-11-2010, 05:50 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

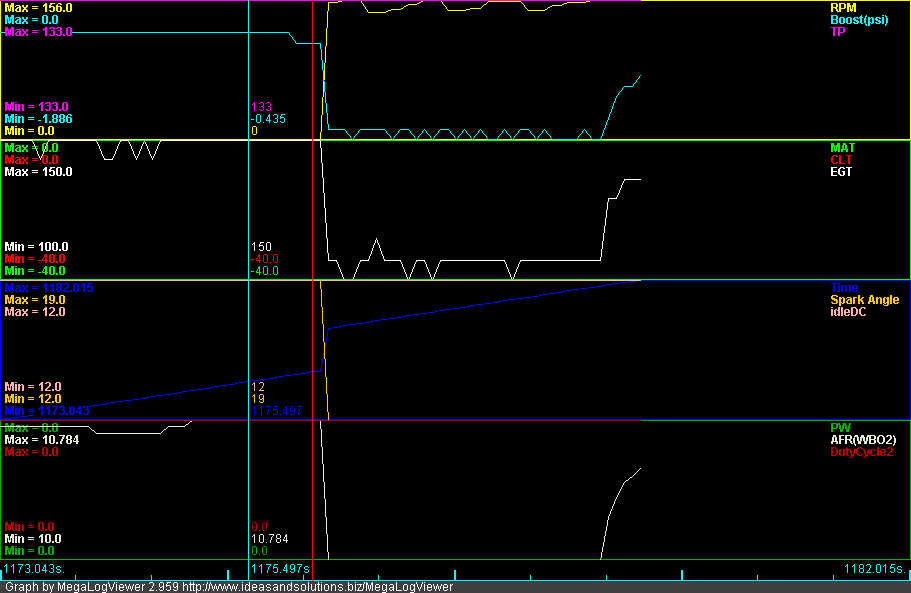

Well, that was pretty unsuccessful. Lots of zeros on the screen.

The fans keep coming on the moment I turn the key...not sure why this is the case. Injectors aren't firing and I didn't even touch those in the conversion...
Attached Thumbnails
Harness Assembly Clarification / Standalone Conversion Troublshooting-graph.png

Last edited by Enginerd; 09-11-2010 at 06:18 PM.
Enginerd is offline   Reply With Quote
Old 09-11-2010, 06:18 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Did you install the firmware properly?
falcon is offline   Reply With Quote
Old 09-11-2010, 06:22 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

I didn't touch the firmware yet. The car had been running perfectly in parallel prior to this. I'm converting to standalone.

In parallel, the MS was hardwired to the factory ECU for CLT, TPS, O2, CAS, and was tapped for switches to the IGN and Fuel. The AIT signal was the only thing that bypassed the factory ECU and was hardwired into the MS.

The main changes I made were: added PWM idle control per megamanual; added fan control, a/c control, and built the harness per https://www.miataturbo.net/showthread.php?t=13676 .

Here's the msq. that I've used for the parallel operation, along with pictures of the changes I've made for the conversion.




Attached Files
File Type: msq CurrentTune.msq (36.7 KB, 63 views)

Last edited by Enginerd; 09-11-2010 at 07:14 PM. Reason: added pictures of MS
Enginerd is offline   Reply With Quote
