Default Help adding oil temp,Oil Press sensor/gauge On rev Built MS3 basic

Recently got shadows dash working and I want to add Oil temp and oil Press gauge.setup:turbo bp4w rev build ms3 basic whit patch harness.

sensor i will use:
GM Closed Element CLT / IAT Sensor with Connector DIYAutoTune.com
Pressure Transducer or Sender 100 PSI Stainless Steel for Oil Fuel Air Water | eBay

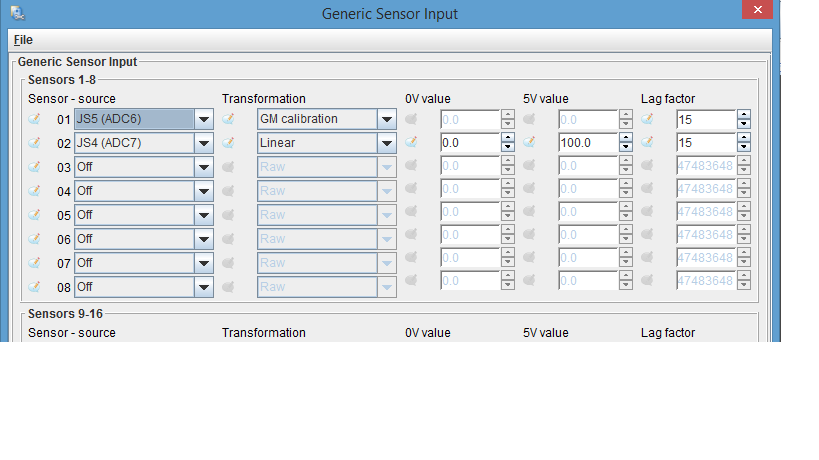

Change i made in TunerStudio


Change i made in the .ini file
gaugeCategory = "Generic sensor inputs"

OilpGauge = OilPress, "Oil Pressure", "PSI", 0, 75, 0, 0, 60, 70, 0, 0

OiltGauge = OilTemp, "OIL Temp.", "°F", -40, 300, -100, -100, 200, 220, 0, 0

The result


Question:
1-Which is js4/js5?:from revenant install instruction:• Pink and White (twisted together) – Oil pressure input (white; resistive), oil

temperature (pink; resistive). Connect to sensor. The other end of the sensor
2-how to set the variable and adc count for the sensor?( MS2-Extra Quick Guide to Tuning / TunerStudio)
3-Does the circuit decrib in the link is already build by revenant?
4-Am i missing something?

Thanks for reading me,Sorry for my bad english not my main languege
Attached Thumbnails
Help adding oil temp,Oil Press sensor/gauge On rev Built MS3 basic-sensorinputs.png   Help adding oil temp,Oil Press sensor/gauge On rev Built MS3 basic-errormessage.png
simongabriel is offline   Reply With Quote
Old 01-20-2015, 01:23 PM   #2
Newb
Thread Starter
iTrader: (3)

Join Date: May 2012
Posts: 31
Total Cats: -7
Default

made this change to the .ini file get rid of the error

OilpGauge = sensor01, "Oil Pressure", "PSI", 0, 75, 0, 0, 60, 70, 0, 0

OiltGauge = sensor02, "OIL Temp.", "°F", -40, 300, -100, -100, 200, 220, 0, 0
simongabriel is offline   Reply With Quote
Old 11-24-2015, 08:07 AM   #3
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 36
Total Cats: 1
Default

Sorry for bumping this thread up, but i havê the exact same sensors and I can't make them work.

They are both installed on the oil cooler sandwich plate. I've connected a linear pressure sensor and a GM temp sensor both mass to ecu analog sensor mass and the other end to pink and white as per reverent instructions manual. I realized Pink and white were not soldered to the DB37 so i used pin 11 and 12. On TunerStudio, on the generic sensor tab I’ve configured imputs ports 11 and 12 as per linear and GM calibration. Although pressure sensor seems to work, i can't make the oil temperature to work, it just baunces values.


Am I missing something, should I change for spare ADC6 and ADC7 (pins 31 and 25)?
kamel6k is offline   Reply With Quote
Old 11-25-2015, 11:34 AM   #4
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 36
Total Cats: 1
Default

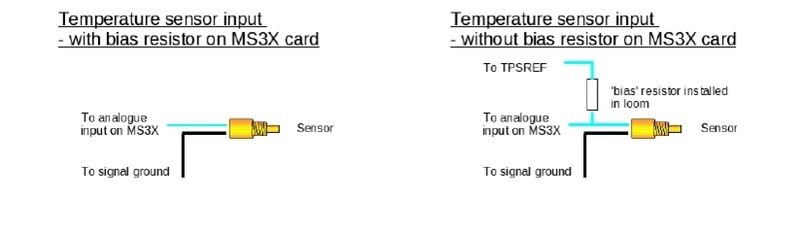

Found this on MS3 manual:




Problem is i don't know if the imput port's i'm using have the bias resistor since i'm not beeing able to get an answer from Reverant, does anyone know if they have it? And if i need to have the 5v source + resistor, where can i get the 5v from?
Attached Thumbnails
Help adding oil temp,Oil Press sensor/gauge On rev Built MS3 basic-80-temp_20sensor_zps3lslxown_dba8e836655d82262c094f03000e0f8239aff604.jpg
kamel6k is offline   Reply With Quote
Old 11-29-2015, 08:48 PM   #5
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 36
Total Cats: 1
Default

Just reporting back that i solved the "problem" with Reverant help. He email'd me back ad told me there are jumper's inside the ECU for every analog imput. You just have to use that jumper for the correct pullup.
kamel6k is offline   Reply With Quote
Old 05-25-2016, 09:23 PM   #6
Newb

Join Date: Jan 2015
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by kamel6k View Post
Just reporting back that i solved the "problem" with Reverant help. He email'd me back ad told me there are jumper's inside the ECU for every analog imput. You just have to use that jumper for the correct pullup.
Back from the dead... Can you share where those jumpers are and which ones do what??

Thanks,
-Matt
Spoolin6er is offline   Reply With Quote
Old 01-11-2017, 10:43 AM   #7
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Bump for answers. I wish Rev would spend 10 more minutes to document his hardware since his email responsiveness is very hit or miss these days.
freedomgli is offline   Reply With Quote
Old 01-11-2017, 11:00 AM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

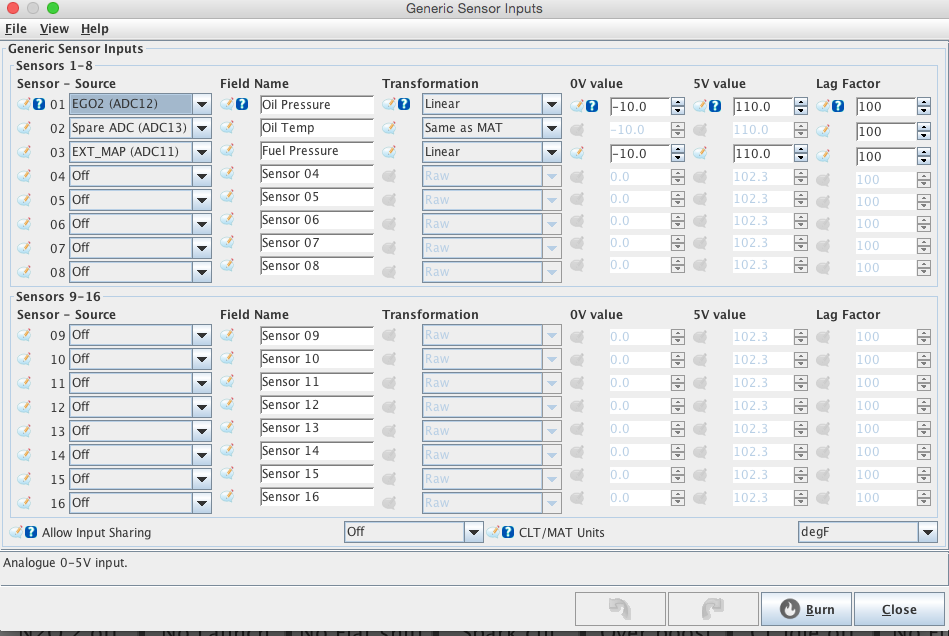

I used one of the temp sensors from DIYAutotune for my oil temp. This is the pressure sensor I use for oil pressure and fuel pressure. Below is a screen shot of my settings for the 3 sensors. Not sure how different Reverant's MS are from a standard one. So you might need to change around inputs and such.

shuiend is offline   Reply With Quote
Old 01-11-2017, 04:06 PM   #9
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 36
Total Cats: 1
Default

Quote:
Originally Posted by Spoolin6er View Post
Back from the dead... Can you share where those jumpers are and which ones do what??

Thanks,
-Matt

Depending on your MS Basic version. First batch (big ones) never could found the 5v source and never got feedback from Dimitri.

The smaller MS3 Basic, just open it and it will be very clear to you. Just behind the connector, you'll have all the jumpers with the port number/name written on the board.
kamel6k is offline   Reply With Quote
