Default Help with Braineack built MS3 - fuel pump circuit

I'm working on a MSM with no fuel pump. I've tested the FP relay, and it's functional with continuity to the ECU plug. When grounded there, the relay is working and the fuel pump is turning on.

Continuity is also good on the MS harness from the ECU plug through the DB37 plug.

What should I be looking for on the MS3 board itself? I've also tested that pin and it is not grounding when tested in test mode. It appears to go to D4? Does this fry like the older MS1/2s? Is there a fuse that needs to be removed? Sorry for lack of knowledge on this project, no documentation was given to me after the owner gave up trying to get it running.
curly is offline   Reply With Quote
Old 05-12-2016, 02:54 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

who's MS is this?

I ask about who's unit it is, because if it was built for a regular NB2 and not MSM specifically, then the FP won't run (along with other things). But it sounds like it's getting 12v...

Can you confirm what pin the purple fuel pump relay wire is populated on the ECU connector? First thing "mechanical" I'd want to double check. It should be at 2M between 12v and Injector C.

Last edited by Braineack; 05-12-2016 at 03:06 PM.
Braineack is online now   Reply With Quote
Old 05-12-2016, 03:00 PM   #3
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Craig J., GTred on the forum. I don't know if he bought it new from you though.
curly is offline   Reply With Quote
Old 05-12-2016, 03:08 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

no, he didn't from someone else here in the FS section IIRC.
Braineack is online now   Reply With Quote
Old 05-12-2016, 03:16 PM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Ok, do you have any documentation for it, or have any idea which one this is?
curly is offline   Reply With Quote
Old 05-12-2016, 03:26 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

I THINK it was this one: Redirecting

I remember GTred asking me for info getting setup a while back, but havent heard from him in months.


harness should be built to this:


Braineack is online now   Reply With Quote
Old 05-12-2016, 09:26 PM   #7
Junior Member
iTrader: (1)

Join Date: Mar 2013
Location: Traverse City, Michigan
Posts: 138
Total Cats: 4
Default

by any chance did you check the priming pulse settings? i had no fuel pump issue found out my ms2+ reverted some of its settings to all 0's
ReallyRottenTurbo is offline   Reply With Quote
Old 05-12-2016, 09:29 PM   #8
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

He tested it with test mode. So that wouldn't be the problem. I may end up taking it apart to test some of the components.
aidandj is offline   Reply With Quote
Old 05-12-2016, 10:26 PM   #9
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Yeah I appreciate the willingness the lend a hand Aidan. Once the circuit was tested all the way to the DB37 cable, it's outside of my knowledge base. Test mode did indeed provide neither fuel pump operation and/or continuity to ground.
curly is offline   Reply With Quote
Old 05-13-2016, 06:49 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

I'd say just send the unit back to me and I'll figure it out and get it back, but I leave for a two-week vacation on the 21st--unsure if we can make that happen in time.

Confirm I didn't put the fuel pump output wire on the wrong ecu connector pin, then we can open the case and see if maybe there's something obvious on the circuit itself, like bridge leads on the Q2 and Q24, or D4 backwards, or R16/R40 missing, or something.


There's a very subtle difference between how a normal 01-05 gets power and how an MSM does as well, so we should also confirm this unit/harness was built for an MSM.

In the meantime if you really just wanted to get it up and running, you can still jump f/p in the diagnostics box.
Braineack is online now   Reply With Quote
Old 05-13-2016, 10:40 AM   #11
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

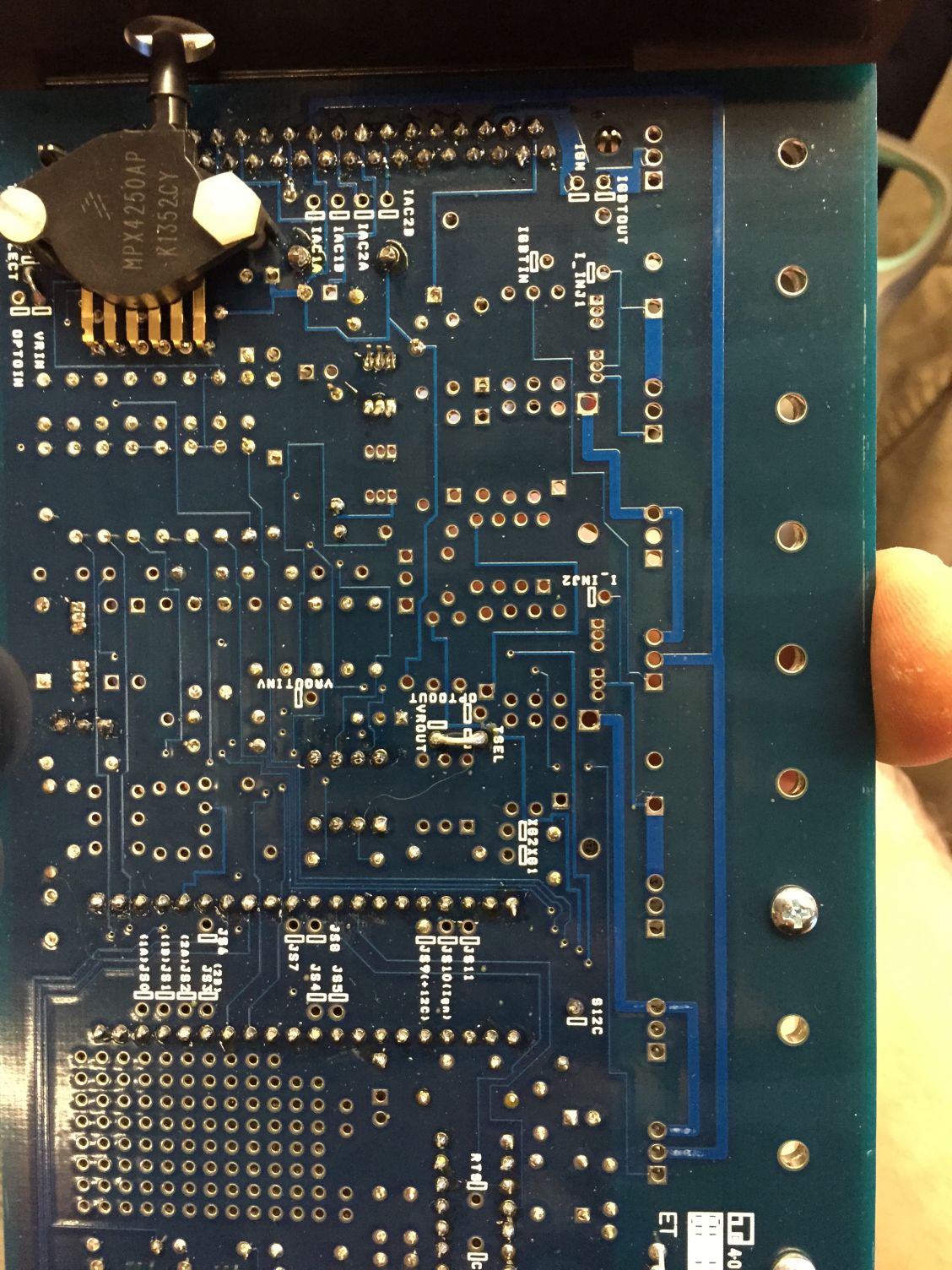

Fuel pump is wired to pin 37 of the lower (main board) connector. It's the single track on the top right of the pins shown on the bottom of the board below. It then jumps over the track directly to the left, and it's other pin is right below where it says "IAC2A". That pin has continuity to the black (ground) wire in the same DB37 cable.

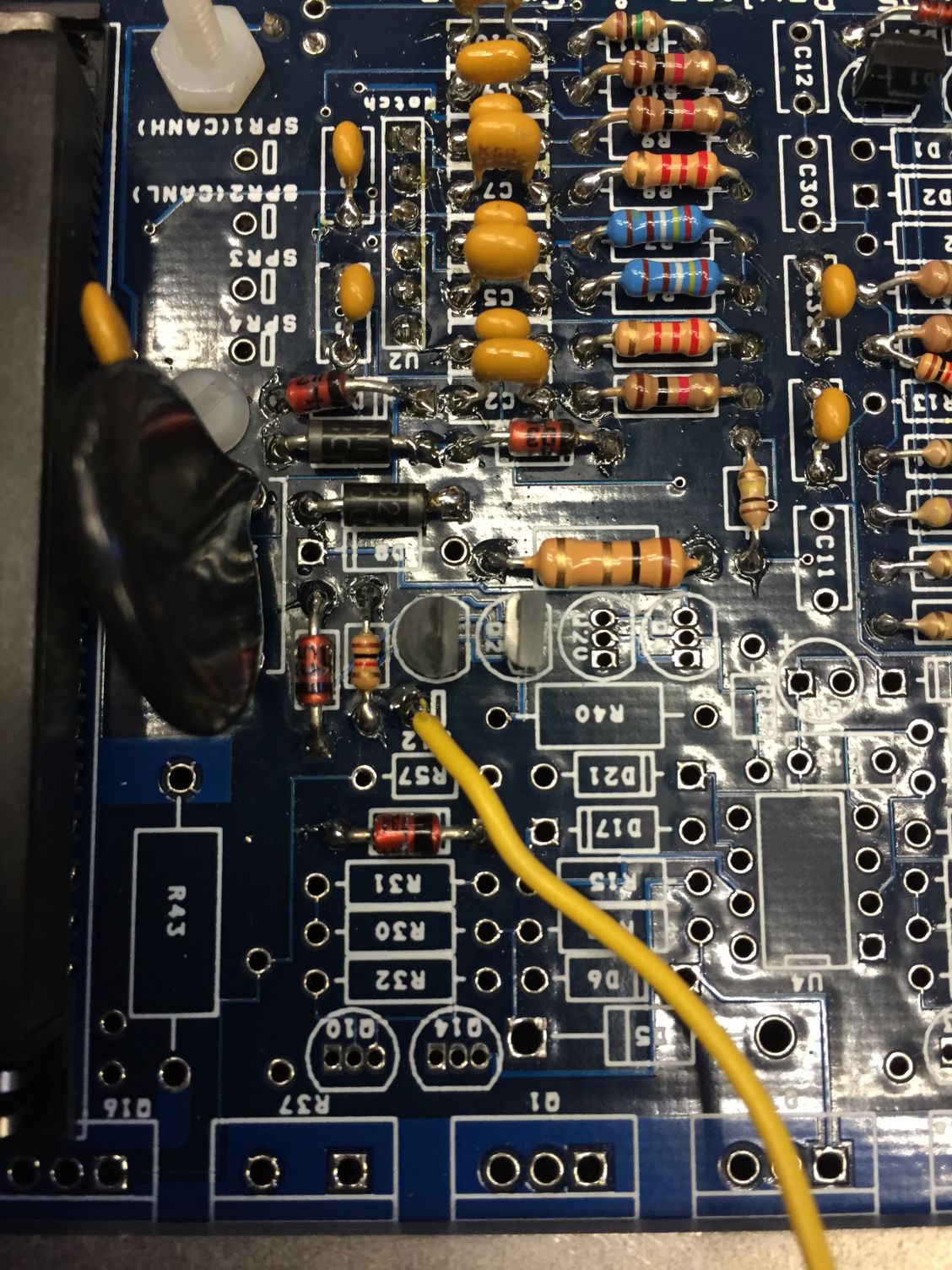

And the top of the board for reference:



I know that injF (G?) is on at -100 coolant temp, I think that's the "subtle difference" you're referring to.
Attached Thumbnails
Help with Braineack built MS3 - fuel pump circuit-80-board_bottom_bede01bab6ce1834def1d126647579a4f94a1e10.jpg   Help with Braineack built MS3 - fuel pump circuit-80-board_top_9a47244eabf3a5442a7bf109c104b7b9ed4a748a.jpg
curly is offline   Reply With Quote
Old 05-13-2016, 03:56 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

omg.

I put the large resistor on R39, not R40.
Braineack is online now   Reply With Quote
Old 05-14-2016, 12:17 PM   #13
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

The fatty right above r40, is that r39? Fuel pump related? Just move it?
curly is offline   Reply With Quote
Old 05-14-2016, 12:19 PM   #14
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Yes. R40 is needed for the fuel pump. R39 is usually not populated. Just move it to r40
aidandj is offline   Reply With Quote
Old 05-14-2016, 12:34 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,498
Total Cats: 1,707
Default

Quote:
Originally Posted by curly View Post
The fatty right above r40, is that r39? Fuel pump related? Just move it?
correct. the big fat 1ohm resistor needs to move from R39 to R40.

R39 is the unused idle mainboard controller circuit.

without R40 connecting to ground, the transistors on the fuel pump circuit have nothing to send to the relay. :(


feel free to:
Braineack is online now   Reply With Quote
Old 05-14-2016, 12:35 PM   #16
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

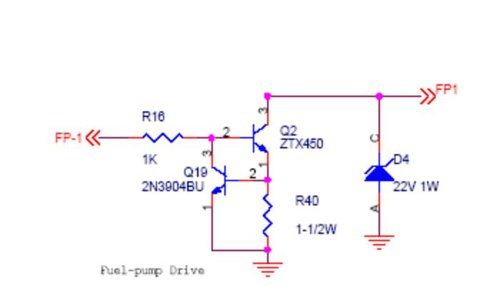

For reference here is the fuel pump circuit.



Without r40 the entire circuit is useless.
Attached Thumbnails
Help with Braineack built MS3 - fuel pump circuit-80-fuelpumpdriver_zps2bd30b3e_ac2a9cf2d28d5366e3f2b2c4e1eb04d431f2e127.jpg
aidandj is offline   Reply With Quote
Old 05-14-2016, 12:36 PM   #17
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

That's easy enough, thanks!
curly is offline   Reply With Quote
Old 05-18-2016, 12:54 PM   #18
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 268
Total Cats: 7
Default

It sounds like you have already got this figured out, but here is a link to the classified ad that I purchased this thru: https://www.miataturbo.net/miata-par...s3x-msm-85646/

Thank you all for the assistance.
gtred is offline   Reply With Quote
Old 05-18-2016, 06:13 PM   #19
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Anybody have the msm specific ait resistances?
curly is offline   Reply With Quote
Old 05-18-2016, 06:17 PM   #20
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Quote:
Originally Posted by 18psi View Post
Ben,
what is the bias resistor value?

*EDIT: Called DIY and spoke w/ Matt, who pointed me to megasquirtpnp.com, I had no idea about that page.

On it I found the values, and after using the "GM" drop down which gives you a bias resistor value of 249something (I forget the specific number) populated the values in, seems to be working now

In case anyone needs them:
temp in F-ohms
8-199000
72-35600
180-3800
here
