Default Help! Ignition timing on MX5 Turbo, MS2PNP

Fist post on here, and im hopeing you can help.

Just put a TD04 on my MX5, with a Megasquirt PNP ecu. Thought i was headingh in the right direction with tuning, but have some timing issues.

When i set base timing with the strobe, all is good. I the switch to use table and rev the engine. My timing table says 25 degree advance, but my strobe goes to 35.

Fairly sure i`ve put some bad info in somewhere, but need help finding it.

Any ideas ???

Cheers, Jon
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 07:50 AM   #2
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

What year is the car?
What motor is in the car?
What version is your MS?
Miater is offline   Reply With Quote
Old 11-30-2015, 07:56 AM   #3
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

The car is a 1.6, 1993. I belive it is MS2 based, pnp by ExtraEFI
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 09:49 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

this is a really weird trend in last few weeks...

do they just build DIYPNP kits and put their sticker on the case and pretend it's their ECU?


Lol, they put the AIT sensor on the DB15. lol.
Braineack is offline   Reply With Quote
Old 11-30-2015, 09:53 AM   #5
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Sort of, yes. Although they do state it is a megasquirt 2, built as PNP
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 09:53 AM   #6
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Sounds like someone else has had this issue?
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 09:58 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by PendleMotorcycles View Post
Sounds like someone else has had this issue?
I read two other instances of it, but I think the common demoniator is Megasquirt ECUs built by a third-parties.

Otherwise I've never seen the issue in last almost 10 years of supprting MS.


Can you post a screenshot of your ignition settings parameters?
Braineack is offline   Reply With Quote
Old 11-30-2015, 10:08 AM   #8
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Sorry, noob thing.... Tell me how and i will

Cheers
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 10:10 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

open TS, open the igntion settings screen.

take a screen shot.

upload it here.
Braineack is offline   Reply With Quote
Old 11-30-2015, 10:15 AM   #10
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

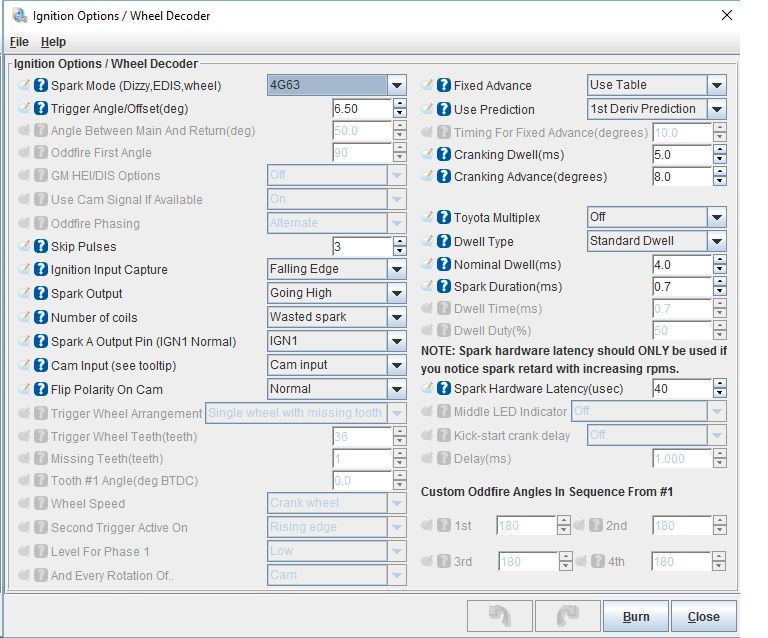

Attached Thumbnails
Help! Ignition timing on MX5 Turbo, MS2PNP-80-ign_7b2124aa4d90f0f3c6e905ea88edf8770222343d.jpg
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 10:15 AM   #11
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Sorted
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 10:58 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

im curious---

put the timing latency to 0 and try testing timing advance again. 40 is pretty high for the DIYPNP, might be what's advancing it.
Braineack is offline   Reply With Quote
Old 11-30-2015, 11:01 AM   #13
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

will do Brian. I will let you know shortley
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 11:16 AM   #14
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

ok, so no real difference. At 2500 rpm, timing light registers 35 degrees, and megasquirt says its 23 degrees.
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 11:23 AM   #15
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Just a thought, dangerous i know. When i installed meqasquirt, the instructions said about jumping 2 wires in the diagnostic port to fix timing angle, at set to 10 degrees, which i did. Should had left the jumper in place, as i removed it after doing the timing?
PendleMotorcycles is offline   Reply With Quote
Old 11-30-2015, 11:51 AM   #16
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

To set base timing basically u change the drop down from
Use table
To fixed.
Set to 10 degrees
Then use timing lite and trigger wizard to make it match up to 10 on crank.

Then turn it back to us table and timing should follow what is said in ignition table.

Jumper in diagnosis is for stock ecu. I don't remember if it perm jumped but how ever it's set does not change when you are setting up timing. The drop down box is how you tell megasquirt to go to fixed timing now.
90 Turbo is offline   Reply With Quote
Old 11-30-2015, 11:58 AM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by PendleMotorcycles View Post
When i installed meqasquirt, the instructions said about jumping 2 wires in the diagnostic port to fix timing angle, at set to 10 degrees, which i did.
That jumper (from TEN to GND) is normally used only with the stock ECU. I've never even seen it hooked up with a Megasquirt. While it's possible that the company which built your MS may have connected it and configured it to switch to a fixed ignition timing table, this would be a fairly uncommon / non-standard thing to do.

Normally, we just use the software and toggle the "fixed advance" parameter.

At any rate, even if your particular MS is configured to use this jumper to set a fixed advance table, you definitely would not want to leave the jumper installed after setting up the base timing.


Stock ignition coils and stock sensors, right?
Joe Perez is offline   Reply With Quote
Old 11-30-2015, 12:06 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by PendleMotorcycles View Post
ok, so no real difference. At 2500 rpm, timing light registers 35 degrees, and megasquirt says its 23 degrees.
and this is with the timing synced (trigger angle properly tuned)?
Braineack is offline   Reply With Quote
Old 11-30-2015, 12:09 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by PendleMotorcycles View Post
the instructions said about jumping 2 wires in the diagnostic port to fix timing angle, at set to 10 degrees, which i did.


ExtraEFI are a bunch of ******* morons.

I hope they see this.

I hope they look in a mirror and see how nasty their teeth are and wish they lived in a country where orthodontics existed.
Braineack is offline   Reply With Quote
Old 11-30-2015, 12:15 PM   #20
Newb
Thread Starter

Join Date: Nov 2015
Posts: 20
Total Cats: 0
Default

Whaaa!! Thats strong Brain, lol. Yeh, set timinig with stock ECU, then used trigger wizard to set idle time on megasquirt.
PendleMotorcycles is offline   Reply With Quote
