Default Help with tuning the upgraded Greddy T-19 Turbo

To start off with the standard greddy turbo ran great with the MS and this tune so its just got to be a tuning issue with the new T-19 upgrade on the compressor of the turbo.

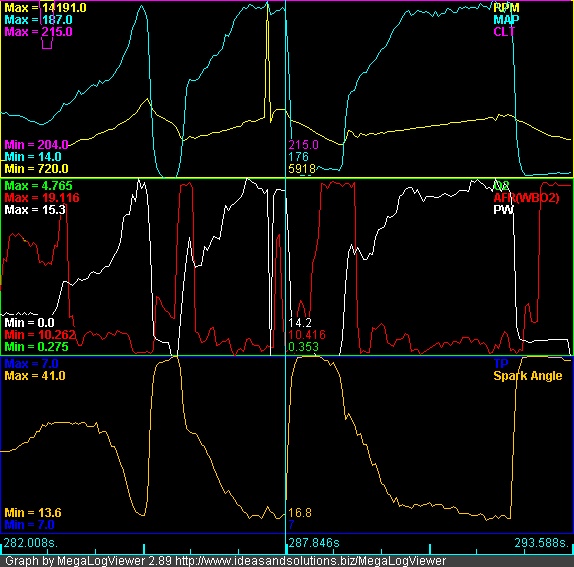

Its runs and drives fine but when it gets under boost 13+ psi it hickups. I data logged it and it will be posted below. If you look at it at 5800rpm is when the problem is. The data log shows a spike in rpm to 11000rpm than back to 5700rpm? If you watch the mapdot screen it seem to be when it is going from the 184 to the 212 kpa range and as many time as I have tried to smooth out the transition its still bad. What an I missing?
Attached Thumbnails

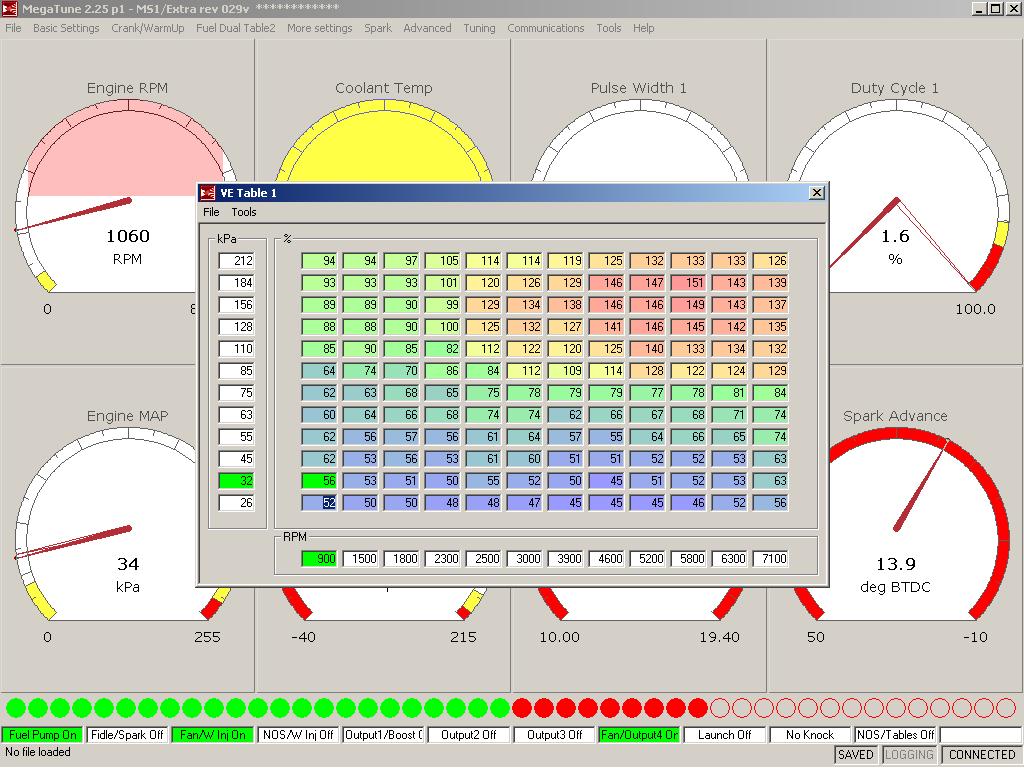

Help with tuning the upgraded Greddy T-19 Turbo-vetable-adj.jpg   Help with tuning the upgraded Greddy T-19 Turbo-graph.jpg
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 07:46 PM   #2
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

I was thinking of adjusting the 184-212 to be closer together so the change is not so drastic?
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 07:49 PM   #3
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Overboost protection kicking in possibly. What's it set for?
patsmx5 is offline   Reply With Quote
Old 01-29-2009, 07:51 PM   #4
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

16psi
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 07:54 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Try putting it to 18 and see if it does it.

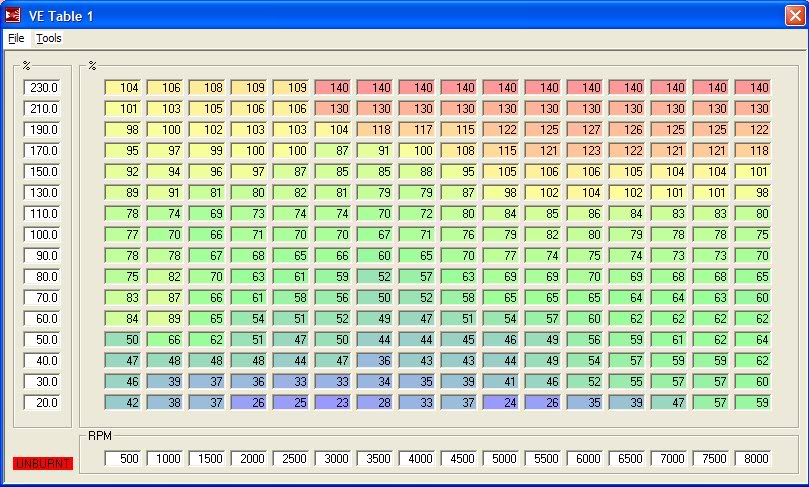

And looking at your VE table, the transistion from 184 to 212 is crazy. Like a 20 point DROP? Weirdness. This is my VE table for reference. Smoothness goes a long way.

Name:  vetable1-29-09.jpg
Views: 31
Size:  114.5 KB
patsmx5 is offline   Reply With Quote
Old 01-29-2009, 07:58 PM   #6
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Ok I'll try it.
AS far as the VE goes, I have been driving up and down this farm road for two hours and I have mapdotted (that a word?) a very easy transistioning table and it still did it. I just wanted to know if I was on the right path.

So whats with the 11K spike? Mean anything?
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 08:16 PM   #7
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I don't know about the RPM spike. I saw it had a correlating fuel spike to zero, which is what made me think overboost could be kicking in. Or maybe vtak kicked in for just a sec.
patsmx5 is offline   Reply With Quote
Old 01-29-2009, 08:31 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

post the msq and log file.
Braineack is offline   Reply With Quote
Old 01-29-2009, 08:38 PM   #9
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

k
Attached Files
File Type: xls datalog200901291747.xls (111.3 KB, 61 views)
File Type: xls datalog200901291650.xls (52.7 KB, 63 views)
File Type: msq megasquirt200901291937.msq (34.5 KB, 140 views)
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 08:50 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

change your wheel decoder settings to this:




also increase the threshold of you MAPdot try like 150kPa, it's pretty active before the reset and blip while in boost.
Braineack is offline   Reply With Quote
Old 01-29-2009, 08:55 PM   #11
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Ok the wheel settings changed.

Whats this mean?

also increase the threshold of you MAPdot try like 150kPa, it's pretty active before the reset and blip while in boost.

You lost me.

Found it, in accel decel mode screen.

Last edited by IcantDo55; 01-29-2009 at 09:05 PM.
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 09:21 PM   #12
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

are you running low impedance injectors in PWM mode?

i ran into this exact issue... it was caused by flyback voltage from the injector coils messing with the distributor signal.

thats all i got...
therieldeal is offline   Reply With Quote
Old 01-29-2009, 10:17 PM   #13
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Ok this was the last test ride of the night, least thats what the nice cop told me

Made all changes recommended:
mapdot
wheel decoder
smooothed out my VE table
Over boost set to 17


Its like a bucking bronco! This can give a guy whiplash! When it cuts it cuts! On the 2nd data log it locked up Megatune Don't know if that was a MS problem or just the laptop bouncing around the car as it bucked. Also the tach on the dash wildly drops fast when it bucks. Almost feels like an electrical problem But I have touched nothing electrical.

Here the new info...
Attached Files
File Type: msq brain change and my ve.msq (34.5 KB, 97 views)
File Type: xls datalog200901292050.xls (78.9 KB, 60 views)
File Type: xls datalog200901292052.xls (29.9 KB, 75 views)
File Type: xls datalog200901292056.xls (39.1 KB, 58 views)
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 10:20 PM   #14
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

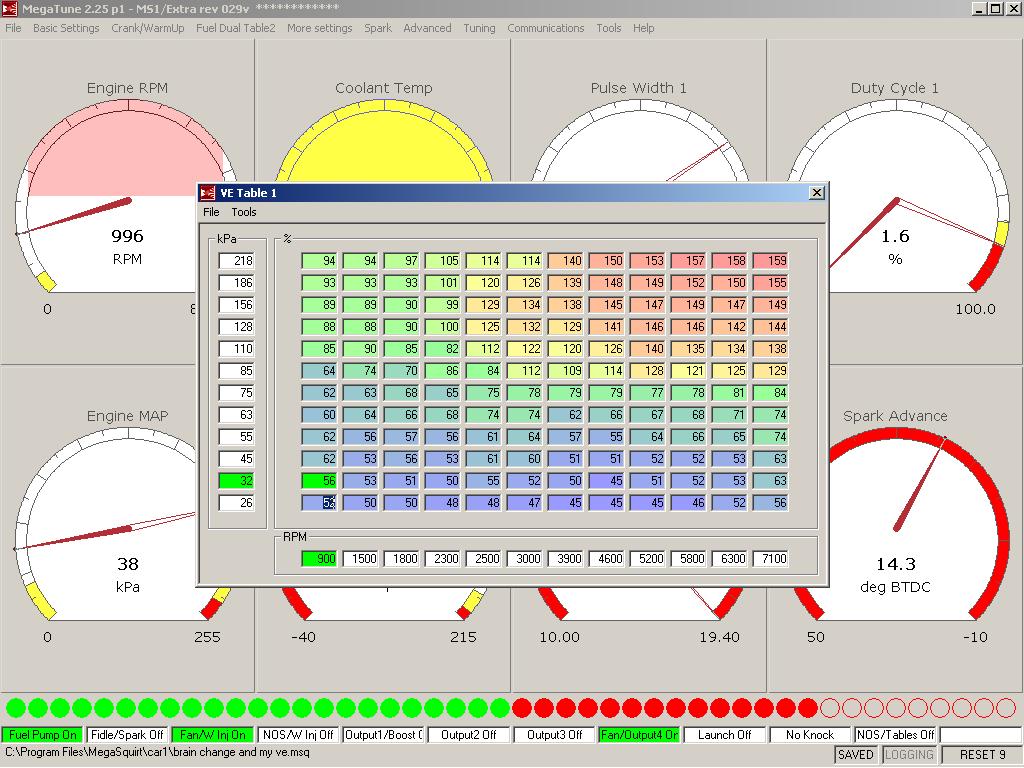

Spiffy new smoooth VE table to see if that was the issue. Any it pretty
Attached Thumbnails
Help with tuning the upgraded Greddy T-19 Turbo-new-ve.jpg
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 10:25 PM   #15
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

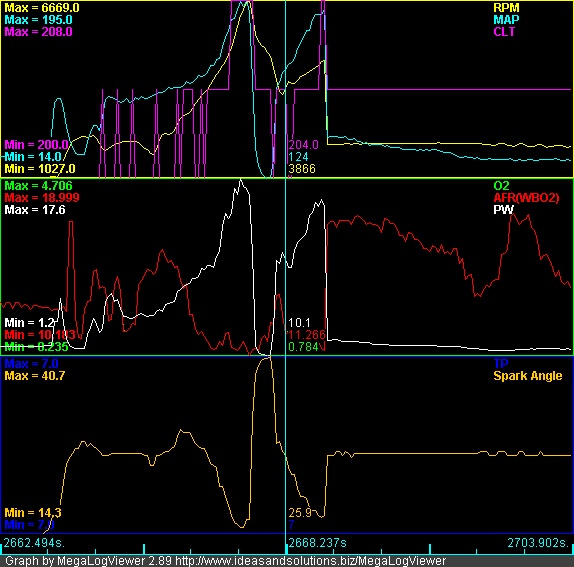

Here the screen shot of the datalog when it locked up.
Attached Thumbnails
Help with tuning the upgraded Greddy T-19 Turbo-bucking.jpg
IcantDo55 is offline   Reply With Quote
Old 01-29-2009, 10:35 PM   #16
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Does your TPS work? Will look at logs later tonight.
patsmx5 is offline   Reply With Quote
Old 01-29-2009, 10:46 PM   #17
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by patsmx5 View Post
Does your TPS work? Will look at logs later tonight.

Got me?



Don't know if this means anything but it will not miss in 1st gear, 2nd 3rd yes but not 1st?
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 12:18 AM   #18
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

You have noise. The map signal isn't stable, neither is the AFR. How is everything grounded? And your Throttle Position Sensor isn't reading right. It shows 0 all the time.
patsmx5 is offline   Reply With Quote
Old 01-30-2009, 01:16 AM   #19
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Well if you feel like switching back to the old greddy wheel, Ill buy that one (but really it sounds like overboost somehow?)
turbobluemiata is offline   Reply With Quote
Old 01-30-2009, 09:09 AM   #20
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

the issue is when the dizzy signal spikes to "15k" the ecu revlimits and cuts fuel. shut off your revlimiter entirely and the bucking will probably turn into a less violent hiccup.

obviously thats not the best way to fix this though, lol

you didnt answer my question about the injectors...?

my problem only occured at specific PW's and rpm's, its possible that with the smaller wheel you never hit a PW that causes the issue. its also possible that in 1st you dont stay at that PW for enough cycles to cause a problem. i could rev out to 7k in any gear as long as i was at part throttle/partial boost. at full boost i would hit a specific PW/current load from the injectors and it would freak out. this was like 2 yrs ago so i dont have any logs to show you, sorry.

Btw I was running 470cc 323 GTR lo-z injectors when this problem occurred. i swapped out for some 360cc GTX hi-z injectors that I had and the problem was immediately gone. Later I stepped up to 550cc RX7 hi-z injectors, still no problems.
therieldeal is offline   Reply With Quote
