Old 01-30-2009, 01:22 PM   #21
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by therieldeal View Post
the issue is when the dizzy signal spikes to "15k" the ecu revlimits and cuts fuel. shut off your revlimiter entirely and the bucking will probably turn into a less violent hiccup.

obviously thats not the best way to fix this though, lol

you didnt answer my question about the injectors...?

my problem only occured at specific PW's and rpm's, its possible that with the smaller wheel you never hit a PW that causes the issue. its also possible that in 1st you dont stay at that PW for enough cycles to cause a problem. i could rev out to 7k in any gear as long as i was at part throttle/partial boost. at full boost i would hit a specific PW/current load from the injectors and it would freak out. this was like 2 yrs ago so i dont have any logs to show you, sorry.

Btw I was running 470cc 323 GTR lo-z injectors when this problem occurred. i swapped out for some 360cc GTX hi-z injectors that I had and the problem was immediately gone. Later I stepped up to 550cc RX7 hi-z injectors, still no problems.

Sorry did not answer just did not understand how injectors could be the problem, now I see.

The injectors I have are out of a RX-7 460cc

I'm going for a drive to test the rev-limit theory.
Thanks
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 02:12 PM   #22
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Ok so that did not help. Raised the rev-limit to 25,000 and tried it again and same issue.

Logs...
Attached Files
File Type: xls datalog200901301246.xls (70.7 KB, 45 views)
File Type: xls datalog200901301247.xls (83.9 KB, 41 views)
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 02:31 PM   #23
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Are you using COPs?
Saml01 is offline   Reply With Quote
Old 01-30-2009, 02:32 PM   #24
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Just thinking and typing, the TP is not reading, so I pulled a data log from November track rental that had a pass logged.

I also thought the TPS on these cars was on and off only? Why did it only move once on this log from 7 volt to 8 volt?

Remember this log is from when it ran great!

I'm confused.
Attached Files
File Type: xls datalog200811211135.xls (170.8 KB, 93 views)
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 02:32 PM   #25
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by Saml01 View Post
Are you using COPs?
No.
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 02:42 PM   #26
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Are the injectors low or high ohm? How is everything grounded? Echo, echo, echo...
patsmx5 is offline   Reply With Quote
Old 01-30-2009, 03:27 PM   #27
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Post a picture of your timing table.
Saml01 is offline   Reply With Quote
Old 01-30-2009, 03:55 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

or email matt cramer your logs and msq.
Braineack is online now   Reply With Quote
Old 01-30-2009, 03:59 PM   #29
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Patsmx5,
Injectors are high ohm injectors from a RX-7 460cc red top.

Grounds are to the back of the fuel rail area where that ground post is. That was what was recommend when I installed Brain's MS.

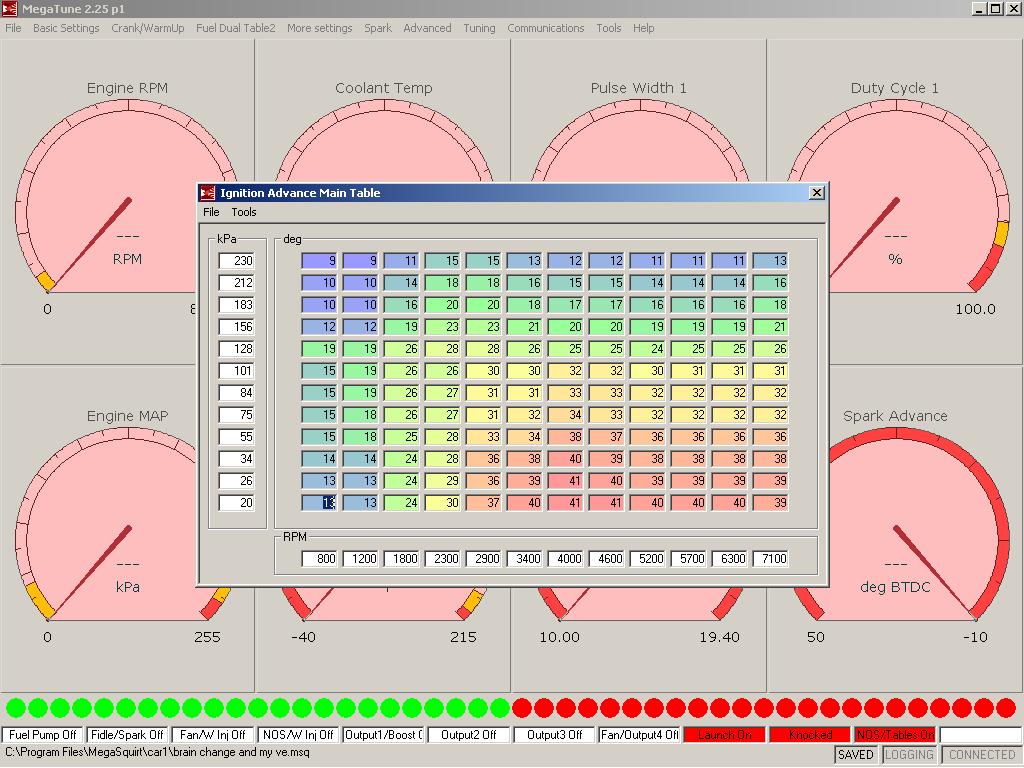

Samlo1,

Here ya go:

Don't know of it matters but the car still has 100 octane in it from track rental in November.
Attached Thumbnails
Help with tuning the upgraded Greddy T-19 Turbo-spark-table.jpg
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 04:11 PM   #30
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by Braineack View Post
or email matt cramer your logs and msq.
Sent him a PM here.
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 04:44 PM   #31
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You've got noise issues, which won't be solved by adjusting the settings. These manifest themselves differently in different logs; sometimes it's a reset, sometimes it's a RPM spike. You will need to get rid of the noise.

I'd start by inspecting the grounds. How is your Megasquirt wired up?
Matt Cramer is offline   Reply With Quote
Old 01-30-2009, 04:52 PM   #32
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by Matt Cramer View Post
You've got noise issues, which won't be solved by adjusting the settings. These manifest themselves differently in different logs; sometimes it's a reset, sometimes it's a RPM spike. You will need to get rid of the noise.

I'd start by inspecting the grounds. How is your Megasquirt wired up?
It a parallel installed MS built by Braineack, installed as per his instructions. Has work excellent for almost a year! Than I install a rebuilt turbo and touch nothing else and this? Strange.
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 04:57 PM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Grounds and noise, didn't I say that earlier? Hence why I asked about your grounding. You need to elaborate on it. Note exactly how every ground is ran. Then remove and clean every one, including the big ones, the ones on the PPF, the physical connections at the battery, etc.
patsmx5 is offline   Reply With Quote
Old 01-30-2009, 05:09 PM   #34
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by patsmx5 View Post
Grounds and noise, didn't I say that earlier? Hence why I asked about your grounding. You need to elaborate on it. Note exactly how every ground is ran. Then remove and clean every one, including the big ones, the ones on the PPF, the physical connections at the battery, etc.
Got it. I though you were just talking about the MS ground, I cleaned that.

Thanks
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 07:19 PM   #35
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Well problem has been solved. And boy do I feel stupid!

Here goes, my car has been down since Nov as some of you knew and I have been working on the Lemons motor for the other car. So in doing the coolant reroute design I wanted to see how much room there was behind the head when the motor was in the car. So I unbolted the coil pack to see the room there, well I bet your guessing the rest.....REMEMBER TO TIGHTEN THE COIL PACK BOLTS!

Brain, should I put back the wheel setting I changed?

Back to tuning......THANKS ALL!
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 07:28 PM   #36
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

So the coil pack wasn't bolted down? How's that cause a problem? I can assure you my coil pack isn't bolted down... And it works.
patsmx5 is offline   Reply With Quote
Old 01-30-2009, 08:47 PM   #37
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by patsmx5 View Post
So the coil pack wasn't bolted down? How's that cause a problem? I can assure you my coil pack isn't bolted down... And it works.
Got me...the bolts were there gust hand tight. Bolted them down and it works fine.
IcantDo55 is offline   Reply With Quote
Old 01-30-2009, 08:55 PM   #38
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by IcantDo55 View Post
Got me...the bolts were there gust hand tight. Bolted them down and it works fine.
Well, you need to figure out what it was. Though it should be bolted down, it should not affect the performance of the coils. Perhaps you have a wire or connection back there that was being pushed on by the loose coil? I dunno, but I'd find out what's going on.
patsmx5 is offline   Reply With Quote
Old 01-30-2009, 09:49 PM   #39
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

must have been a loose connection. leave the settings.
Braineack is online now   Reply With Quote
