Default Hold my hand with warm-up settings please!

My car has been sitting all winter long and I had the hood up yesterday in the garage. I was up on the house roof since the snow finally melted off of it, taking down my Christmas lights. I came down to find my smallest dog standing on top of my valve cover sniffing around. I flipped ****, cause I have a spare flathead 4 cylinder in the back of my jeep (which she has access to), and she chewed the plug wires off that motor. So I was like, "I wonder what she may have F'd up on my Miata. It started right up.
Today I decided to log it 2 seconds after it fired up. It runs just like it did last year, but I need to clean this up. I have no vacuum leaks, but I have high idle. By high, I mean, between 1200-1400 RPM's.
My AFR's are also very rich, it'll stay like this until I drive the car down the street and get to a stop sign.
CurrentTune.msq

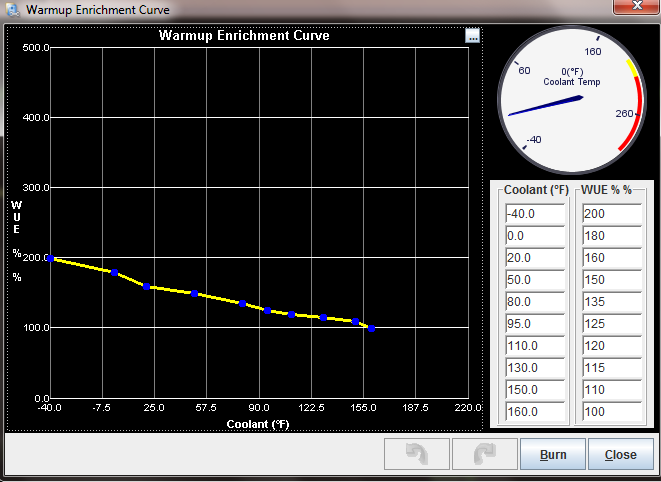

Hold my hand with warm-up settings please!-warmup.png

run2.msl
thirdgen is offline   Reply With Quote
Old 03-01-2011, 08:45 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

lol at calling ASE "warm up". Here's mine with no IAC valve, 550cc injectors, low compression, and your mother:

Scale your table.
hustler is offline   Reply With Quote
Old 03-01-2011, 09:10 PM   #3
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

It's a %. Do you need to scale it?
miatauser884 is offline   Reply With Quote
Old 03-01-2011, 09:53 PM   #4
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

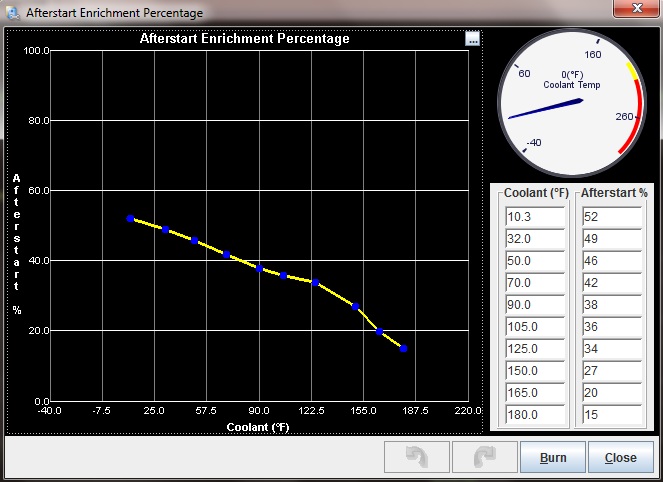

Hold my hand with warm-up settings please!-ase.jpg
Why does my ASE look so different than yours? Look at the percentage comparison.
???
thirdgen is offline   Reply With Quote
Old 03-02-2011, 10:53 AM   #5
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

ASE is after-start enrichment... its only active for a few seconds after engine start. Warmup enrichment is just based on coolant as the engine warms up...2 diff things/tables.

yours looks fine and its supposed to run rich while its warming up-thats the point of the warmup enrichment. i guess if you dont like it just make the whole table 0/100 percent
aaronc7 is offline   Reply With Quote
Old 03-02-2011, 11:59 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Just tune the ****.

so to recap: start the car, tune the ASE table (decays quickly), then tune the warmup enrichments table while you sit there and warmup, try to maintain 13:1. Once you hit 160*F there should be ZERO warmup enrichments added (100%) and your idle AFRs should be fueling solely on the VE fuel table at this point; target closer to 14-15:1 at this point.

Percentages are awesome because tables can be shared more or less across tunes, and if you change injectors you do not have to recalculate other tables.
Braineack is offline   Reply With Quote
