Default How did you mount your MS?

I have been installing the MS in a friends car (1992) and mounting it seems to be a trade off between wiring safety and foot space.

Please post pics of your MS install.
IcantDo55 is offline   Reply With Quote
Old 07-23-2010, 03:24 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,906
Total Cats: 1,793
Default

like this, just no stock ECU anymore:
Braineack is online now   Reply With Quote
Old 07-23-2010, 04:59 PM   #3
Junior Member
iTrader: (9)

Join Date: Apr 2007
Location: Hanover, MA
Posts: 237
Total Cats: 0
Default

Mounted to lexan where the radio use to go.

Pseudosport is offline   Reply With Quote
Old 07-23-2010, 06:46 PM   #4
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

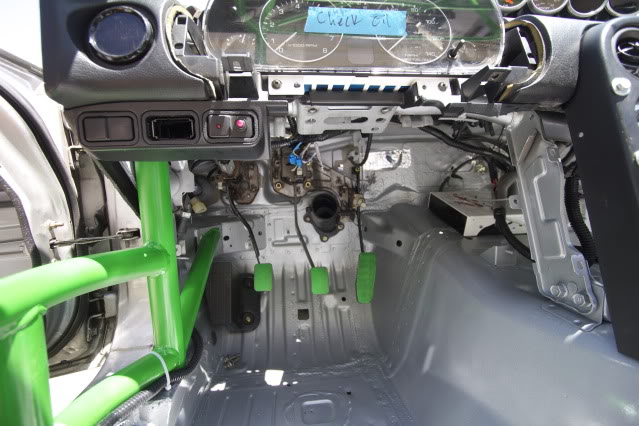

My location is probably not very ideal for most, but here ya go:

Name:  IMG_6198.jpg
Views: 5
Size:  65.2 KB
thesnowboarder is offline   Reply With Quote
Old 07-23-2010, 07:00 PM   #5
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

I put it right under the glovebox, upside down.
cardriverx is offline   Reply With Quote
Old 07-23-2010, 07:03 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,906
Total Cats: 1,793
Default

Quote:
Originally Posted by cardriverx View Post
I put it right under the glovebox, upside down.
I've done that

Braineack is online now   Reply With Quote
Old 07-23-2010, 08:42 PM   #7
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

mine is loose in the glove box.
budget racer is offline   Reply With Quote
Old 07-23-2010, 09:48 PM   #8
Junior Member
iTrader: (1)

Join Date: Mar 2009
Location: Florence, Alabama
Posts: 184
Total Cats: 0
Default

Mine is under the carpet in the stock position.
GregTSi is offline   Reply With Quote
Old 07-23-2010, 10:09 PM   #9
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Mine is zip tied upside down to the steering column above the gas pedal. It's out of the way of my foot, so it works well there. Then again I have a 99 so my stock ecu is in a different location than an NA.
thirdgen is offline   Reply With Quote
Old 07-23-2010, 11:01 PM   #10
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by Pseudosport View Post
Mounted to lexan where the radio use to go.

thats pretty slick. nice work
DrewLGT is offline   Reply With Quote
Old 07-23-2010, 11:55 PM   #11
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Like this but not as messy anymore. Damn my cars changed since it took this pic.

turotufas is offline   Reply With Quote
Old 07-24-2010, 12:02 AM   #12
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Mine is behind the seat, secured with double sticky tape.
chicksdigmiatas is offline   Reply With Quote
Old 07-24-2010, 09:11 AM   #13
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

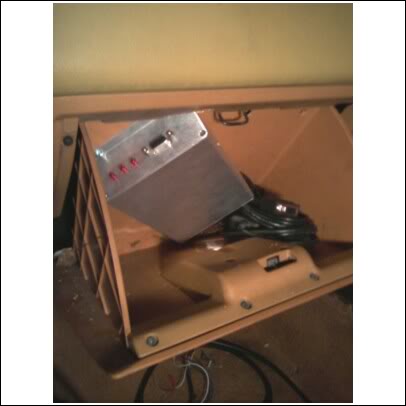

Secured in glovebox, cables at the ready...

Name:  MSglovebox.jpg
Views: 5
Size:  17.3 KB
gospeed81 is offline   Reply With Quote
Old 07-24-2010, 11:02 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Velcro'd to the passenger transmission tunnel. I got some crazy Velcro from radio shack for a couple bucks, that's not just the standard hoop and hook design. Would probably work on the carpet too. Keeps the LEDs visible as an added bonus.
curly is offline   Reply With Quote
Old 07-24-2010, 02:33 PM   #15
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Once I got over the fact that the megasquirt has LEDs on the front I just burried it under the floor pan like brain. I've done the transmission tunnel like curly, under the glove box and in the glove box and also just floating around on the passenger floorboard (bad). I like it hidden where I dont have to worry about it.
wayne_curr is offline   Reply With Quote
Old 07-24-2010, 02:37 PM   #16
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

Quote:
Originally Posted by curly View Post
Velcro'd to the passenger transmission tunnel. I got some crazy Velcro from radio shack for a couple bucks, that's not just the standard hoop and hook design. Would probably work on the carpet too. Keeps the LEDs visible as an added bonus.
This just made my day. I really didn't want to keep it under the kick panel. Any chance you could put up a picture?
