Old 01-23-2012, 08:28 PM   #1
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default I get bored easily.

Attached Thumbnails

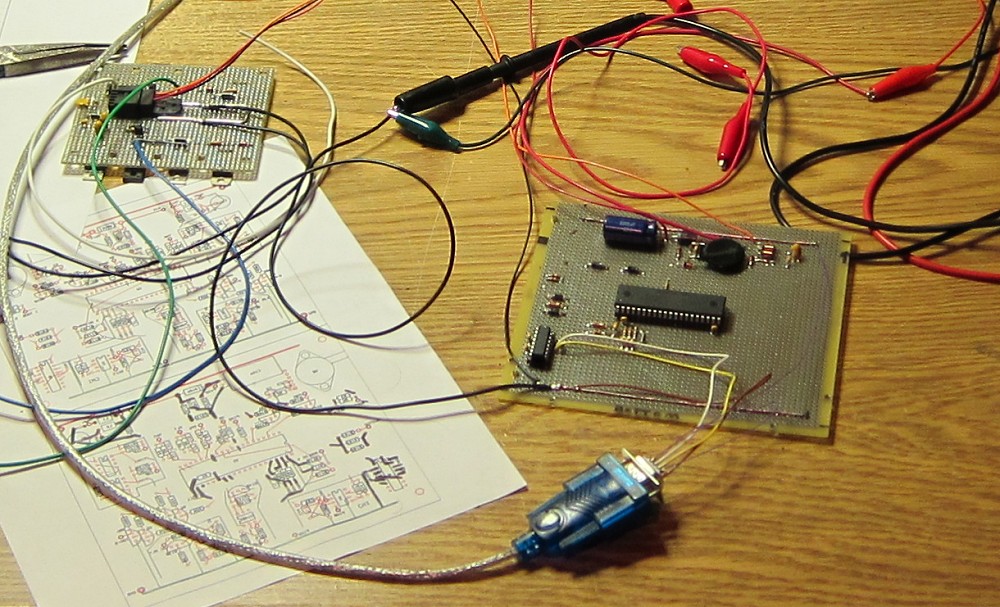

I get bored easily.-2mtbh.jpg
Joe Perez is offline   Reply With Quote
Old 01-23-2012, 08:30 PM   #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Try talking to people instead of computer chips.
rleete is offline   Reply With Quote
Old 01-23-2012, 08:48 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by rleete View Post
Try talking to people instead of computer chips.
He does this ---- for all of us, STFU.

KEEP DOING WHAT YOU'RE DOING, IT IS THE WAY!!!11oneone.
hustler is offline   Reply With Quote
Old 01-23-2012, 09:05 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Joe are you building a bootleg ms?
shuiend is offline   Reply With Quote
Old 01-23-2012, 09:17 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

whatever it is, I want one
18psi is offline   Reply With Quote
Old 01-23-2012, 09:34 PM   #6
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

inb4groupbuy
FRT_Fun is offline   Reply With Quote
Old 01-23-2012, 09:39 PM   #7
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Is it an electronically controlled black hole? Or VVT goodness?--- I truly have no idea
TorqueZombie is offline   Reply With Quote
Old 01-23-2012, 09:45 PM   #8
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

That looks like a pretty bare minimum MS judging by the chips. Looks like a max232 and a motorola 68xxx on the main board, a handfull of FETs on the secondary board. You are an ambitious, very bored man.

Edit: The papers underneath the wiring sort of give it away judging by that clearly indicated map sensor outline :P.
Jeff_Ciesielski is offline   Reply With Quote
Old 01-23-2012, 09:49 PM   #9
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Is that 2 sides strip-board? If so, where did you get it.

As for what it is. Idk, I see a big chip, and a shift register, and a board with some mosfets on it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-23-2012, 09:55 PM   #10
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Do want, to know what it is. Wheres the GB list...
Miater is offline   Reply With Quote
Old 01-24-2012, 03:40 AM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

if this is a bootleg MS1, then according to SOPA and PIPA, this forum should be raided right about...now.
Reverant is offline   Reply With Quote
Old 01-24-2012, 09:01 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
if this is a bootleg MS1, then according to SOPA and PIPA, this forum should be raided right about...now.
This just in:
Miataturbo IP bans itself.
hustler is offline   Reply With Quote
Old 01-24-2012, 09:40 AM   #13
IHI
Junior Member

Join Date: Oct 2009
Location: The Netherlands
Posts: 200
Total Cats: 1
Default

It is only a MS1... If you made a proper board for the MS3 with all the hardware on it that the software supports... Well... That would be news..
IHI is offline   Reply With Quote
Old 01-24-2012, 09:42 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that's pretty much what he did with the board on the right...
Braineack is offline   Reply With Quote
Old 01-24-2012, 09:48 AM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
that's pretty much what he did with the board on the right...
Not really, it's just power and comms, there's no replication of the MS3x which is what IHI is intimating.
richyvrlimited is offline   Reply With Quote
Old 01-24-2012, 09:54 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

so replace the msI cpu with the MS3 cpu? all you need on the mainboard is the power and a few of the inputs like the ait and clt. I realize it wouldn't be on the same board so to speak, but whatever...
Braineack is offline   Reply With Quote
Old 01-24-2012, 10:47 AM   #17
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Is this in response to the Honda ECU thread where it would be "nice" to have a simple fuel/air only computer for cheap so we don't get people trying to put Honda stuff in our cars?
Stein is offline   Reply With Quote
Old 01-24-2012, 11:54 AM   #18
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
so replace the msI cpu with the MS3 cpu? all you need on the mainboard is the power and a few of the inputs like the ait and clt. I realize it wouldn't be on the same board so to speak, but whatever...
Exactly the point IHI was making, doesn't replicate all the MS3x circuits!
richyvrlimited is offline   Reply With Quote
Old 01-24-2012, 12:15 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yeah yeah, I get it.

we need an integrated v3.0+ms3+ms3x board called the v3.33x module


but that would be too easy, and apparently people are still too cheap to just buy the CPU and upgrade from MSI or MSII
Braineack is offline   Reply With Quote
Old 01-24-2012, 12:34 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

My guess . . .

Joe was bored.

Joe takes picture of whatever happens to be on the workbench in his bomb factory.

Joe posts picture on MT.

Joe sits back with beer and laughs.
hornetball is offline   Reply With Quote
