Old 02-15-2012, 04:27 PM   #101
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

What's the penalty for creating and using a OBD-II spoofer with some simple inputs (TS, Revs, just to make the OBD-II values look live). The fine must be noticeable since there is no searchable info on it (or Chinese products), to my knowledge. They have started to check codes here too, sadly.

Call it "OBD-II for older vehicles", to enable the use of OBD-II for logging interfaces etc.

Bored with the ability it could be a nice reverse engineering project
NiklasFalk is offline   Reply With Quote
Old 02-15-2012, 04:49 PM   #102
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by NiklasFalk View Post
They have started to check codes here too, sadly.
In Sweden??? Wow.
Reverant is offline   Reply With Quote
Old 02-15-2012, 07:39 PM   #103
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by NiklasFalk View Post
What's the penalty for creating and using a OBD-II spoofer with some simple inputs (TS, Revs, just to make the OBD-II values look live).
Roman-style crucifixion.
Joe Perez is offline   Reply With Quote
Old 02-15-2012, 09:08 PM   #104
Junior Member

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

O.M.G this CA emissions thing sounds like the bloody Gestapo are in charge.

Wonder if the MS can be tuned to be even better at passing the tests then the OEM ECU?
Freaky Roadster is offline   Reply With Quote
Old 02-15-2012, 09:36 PM   #105
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

http://honda-tech.com/showthread.php?t=2013131&page=3
Not the exact thread I had in mind, but has a few different examples.
bikersam717 is offline   Reply With Quote
Old 02-16-2012, 11:30 AM   #106
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Ah, what a difference a day makes!

Jason, you'll be happy to hear that the FETs aren't oscillating and destroying themselves. It's working quite nicely, in fact. I've been driving this car on the stock ECU and hating the ever-loving hell out of it every morning for almost two years now. It's so refreshing to be able to start the car in the morning and just drive it, without all of the bucking and hesitation while trying to make it up that first little hill outside the driveway.

I have utterly no idea what makes the stock 1.6 ECUs so awful, but every one I have ever driven does that. I can now affirmatively judge that it's nothing to do with the stock sensors, fuel or ignition systems- there's just something wrong with those damn ECUs.
Joe Perez is offline   Reply With Quote
Old 02-16-2012, 01:21 PM   #107
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by Joe Perez View Post
Ah, what a difference a day makes!

Jason, you'll be happy to hear that the FETs aren't oscillating and destroying themselves. It's working quite nicely, in fact. I've been driving this car on the stock ECU and hating the ever-loving hell out of it every morning for almost two years now. It's so refreshing to be able to start the car in the morning and just drive it, without all of the bucking and hesitation while trying to make it up that first little hill outside the driveway.

I have utterly no idea what makes the stock 1.6 ECUs so awful, but every one I have ever driven does that. I can now affirmatively judge that it's nothing to do with the stock sensors, fuel or ignition systems- there's just something wrong with those damn ECUs.
Oh god, I hate my stock ECU. It can't keep a regular idle to save its life. If I don't have idle droop, then I have idle increase. and now it randomly likes to run realllly rich when cruising. I am wondering if that rich running is due to my narrowband simulation signal from the MTX-L.
Seefo is offline   Reply With Quote
Old 02-16-2012, 01:22 PM   #108
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

Quote:
Originally Posted by Freaky Roadster View Post
O.M.G this CA emissions thing sounds like the bloody Gestapo are in charge.

Wonder if the MS can be tuned to be even better at passing the tests then the OEM ECU?

I mean you cant eat food or play football in CA, you think you can mod a car?
Braineack is online now   Reply With Quote
Old 02-16-2012, 01:28 PM   #109
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Good stuff. I didn't know the 1.6 ECU was that bad. I had a Euro 1.6 (96-ish) with sequential injection and it wasn't bad like that.

BTW Joe, here's discussion why a 2nd-order filter works so well for TPS and MAP:
http://www.msextra.com/forums/viewto...2233&start=100
See my posts pages 6 and 7.

The extraction of rate of change information amplifies noise. If the filtering is only 1st order, the noise goes back to about the size in the original signal. If it's 2nd order, the noise will go back to that of the size with first order filtering.
JasonC SBB is offline   Reply With Quote
Old 02-16-2012, 01:42 PM   #110
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

I wish I could get my MS to act better than a stock ECU, nice job!
skidude is offline   Reply With Quote
Old 02-17-2012, 01:47 AM   #111
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Braineack View Post
I mean you cant eat food or play football in CA, you think you can mod a car?
Not sure why you can't eat food (we have the best Baja-style Mexican down here) but while the smog stuff can be a pain, the roads more than make up for it.


Quote:
Originally Posted by JasonC SBB View Post
BTW Joe, here's discussion why a 2nd-order filter works so well for TPS and MAP:
http://www.msextra.com/forums/viewto...2233&start=100
Stipulated.

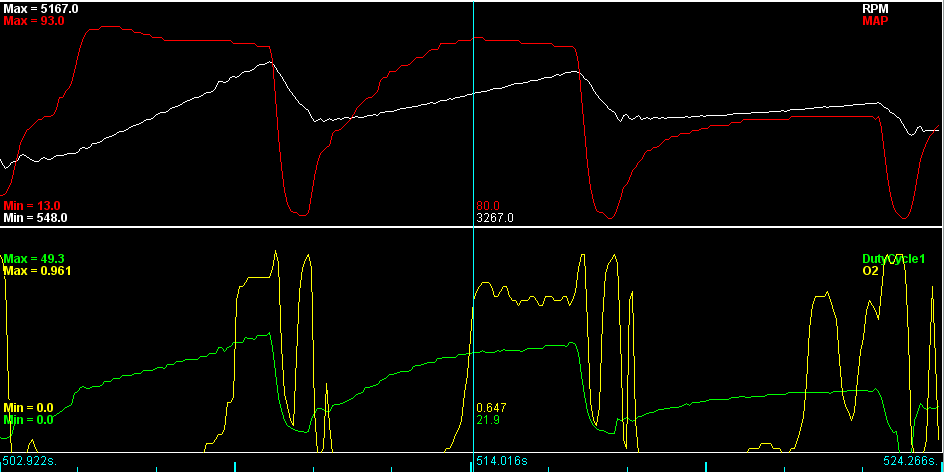

And here's a datalog screenshot which visually illustrates why first-order filters are entirely adequate for this particular application:



MAP looks smooth enough to me.


Quote:
Originally Posted by skidude View Post
I wish I could get my MS to act better than a stock ECU, nice job!
It's not difficult when the stock ECU in question is a piece of garbage to begin with.

I'd honestly like to heard from other owners of US-spec '90-'93 cars here. I've driven three of them, and all three exhibited the same annoying habit. When the engine is "cold" (anything less than full operating temperature) they have a massive flat spot from about 2000-4000 RPM at anything more than about 10% throttle, which means that if you need to climb any sort of incline at all, you have to do it in first gear and sound like a jerk who doesn't know how to drive.

With the red car, I proved that the VAF sensor was not at fault by removing it and substituting a synthetic airflow signal generated by an EMU. Now, with the blue car, I have demonstrated that changing only the ECU, and leaving all other stock sensors and hardware in-place and operational, cures the problem entirely.

I should have installed the wideband before I pulled the stock ECU just to see what the mixture was doing when this happened. I may put the stock ECU back in and do a test some morning.
Attached Thumbnails
I get bored easily.-ttaxu.gif
Joe Perez is offline   Reply With Quote
Old 02-17-2012, 03:52 AM   #112
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

There's been a lot of talk in the past about the difficulty of dealing with aircon, specifically in dealing with stalling at idle. I doodled a couple of circuits to deal with A/C in a very rudimentary way a few years ago, but never had a chance to test any of it. Since this is my first Miata with working aircon, I figured I might take this opportunity to try a fresh approach.

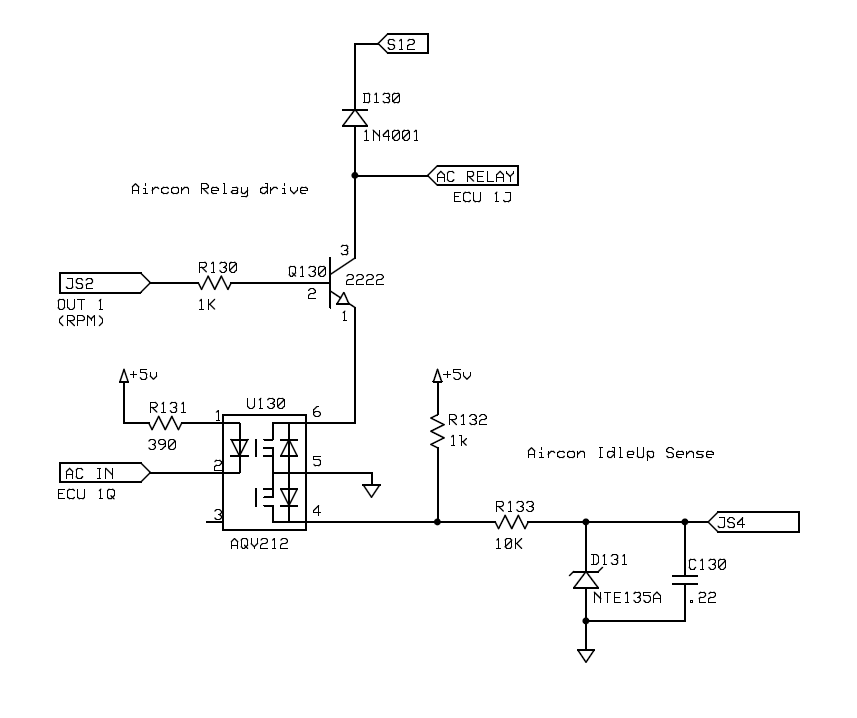

Here's what I have built:



Looks a bit more complex than the usual AC driver? Well, there's a good reason for this. I will explain by describing what the various flags connect to.

Starting at the top, "AC RELAY" is the pin in the factory harness which the ECU pulls low in order to engage the AC compressor and fans. This is an output from the ECU. In order for this pin to go low, two separate conditions have to be met, as follows:
  • JS2 is one of the four general-purpose outputs of the CPU, specifically "Out 1". I have configured this output to be active when RPM is greater than 800, and turn off below that. 100 RPM of hysteresis is implemented in software. This pin, along with Q130, acts as the "first switch" for the AC relay. When RPM falls below 800, the transistor will turn off, disengaging the AC and (hopefully) preventing a stall.

  • "AC IN" (bottom left) is the button on the dashboard marked "A/C". When the driver pushes this button, U130 (a dual opto-relay) does two different things:
    1. It closes the "second switch" and completes the path to ground enabling the AC Relay to turn on, and
    2. It provides a closure to ground on pin JS4, which is a general-purpose input to the CPU.

Now, the JS4 connection may not immediately make sense, especially since the only documented purpose of JS4 is to read an EGT sensor. Well, a few years ago, JustinHoMi did a special build of code (HR10gm) which looks at this pin and, when it goes low, forces the idle speed setpoint to the FastIdle value.

I haven't gotten far enough to actually test this feature yet (still running HR10g for the moment), however I'm hopeful that the combination of these two things should make the engine more or less stall-proof. I should probably revise my whole "Great AC FAQ" thread with this new design. I suspect that there may still be an issue with idle droop due to the recovery time of the idle circuit (being reactive in nature) so I have an idea for a further modification to the code to implement a dashpot event when JS4 goes low. I have never actually modified the MS code, however, so I'm gonna have to do some learnin' up on how to properly hijack a spare bit somewhere to use as a first-entry flag.
Attached Thumbnails
I get bored easily.-kvtaq.gif
Joe Perez is offline   Reply With Quote
Old 02-17-2012, 09:36 AM   #113
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

Quote:
Originally Posted by Joe Perez View Post
Not sure why you can't eat food (we have the best Baja-style Mexican down here) but while the smog stuff can be a pain, the roads more than make up for it.

It is in reference to the pre-pchooler who, this week, had her bag lunch siezed from her that was packed with a turkey and cheese sandwhich, apple juice, banana, and potato chips. The CA health official personal proceeded the deem it unacceptable and replaced it with three chicken nuggets.

/offtopic.

Quote:
I should probably revise my whole "Great AC FAQ" thread with this new design.
while you are at it, add a line or two about buying a MS2 CPU and running the a/c idle up code without any fancy circuitry other than an input and output relay

Code so nice, that a supercharged, intercooled, blow-through TB miata runs without any issues.

any chance you could built something that could add a 400-500ms delay betwen when JS4 is grounded and when the relay is?
Braineack is online now   Reply With Quote
Old 02-17-2012, 11:37 AM   #114
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
It is in reference to the pre-pchooler who, this week, had her bag lunch siezed from her that was packed with a turkey and cheese sandwhich, apple juice, banana, and potato chips. The CA health official personal proceeded the deem it unacceptable and replaced it with three chicken nuggets.

/offtopic.

CArolina. You on the wrong coast, boss.
y8s is offline   Reply With Quote
Old 02-17-2012, 12:15 PM   #115
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Braineack View Post
while you are at it, add a line or two about buying a MS2 CPU and running the a/c idle up code without any fancy circuitry other than an input and output relay
MS2? Bah. Who needs 32 bits? Retro is in, dude.



I do want to start doing MS3s, but I just can't bring myself to touch one so long as the schematics are being hoarded.


Quote:
any chance you could built something that could add a 400-500ms delay betwen when JS4 is grounded and when the relay is?
Probably, though it would raise the parts count because you need to isolate that delay from the part of the circuit that tells the MS that you're pressed the button.

Once Justin's code is in, it might be possible to simply raise the setpoint of the S2 output to a value slightly lower than the nominal fast idle, and increase the hysteresis to maybe 50% of the difference between slow and fast. I'd have to play with it. Still, this may be a problem that doesn't exist, as I haven't tried the idle-up code yet. Just verified that the hardware works.
Attached Thumbnails
I get bored easily.-k1hcd.jpg
Joe Perez is offline   Reply With Quote
Old 02-17-2012, 01:11 PM   #116
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Joe,

What's the time constant of your MAP filter, and did you try testing the fastest rise time it sees?

Also, are you using the 1.6 TPS switch and not using an auto TPS?
JasonC SBB is offline   Reply With Quote
Old 02-17-2012, 01:29 PM   #117
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by JasonC SBB View Post
What's the time constant of your MAP filter,
Post #70 of this thread lists all of my time constants. I went with 25ms on MAP and O2, and 10ms on TPS.

Quote:
and did you try testing the fastest rise time it sees?
Nope.

Funny that you mention this, actually. My MAP signal is tapped off of the brake booster line on the driver's side (it's a very easy place to penetrate the firewall), and run to the ECU with relatively large-bore hose.

On the first drive, I had a serious problem with what I assume to be individual-cylinder pulsations making their way into the ECU while at steady-state high load conditions (eg: climbing a hill at low RPM), which subsequently caused the MAP accel to be triggering constantly, and setting the car into some pretty violent oscillation.

I solved this by constructing a tiny orifice out of a JB-weld-filled hose mender drilled out with the smallest drill I could find, and placed in series with the MAP hose about 3 feet upstream of the ECU. That damped things out nicely.



Quote:
Also, are you using the 1.6 TPS switch and not using an auto TPS?
At the moment, I still have the 1.6 MT TPS, which is disconnected. I have an analog TPS from a BMW 735i automatic sitting on the bench which I plan to install this weekend.
Joe Perez is offline   Reply With Quote
Old 02-17-2012, 03:55 PM   #118
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

2 pole MAP filter circuit to get rid of IM pulsations:

https://www.miataturbo.net/showthrea...filter+circuit

How do TPS and TPSdot look?
JasonC SBB is offline   Reply With Quote
Old 02-17-2012, 05:00 PM   #119
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by JasonC SBB View Post
2 pole MAP filter circuit to get rid of IM pulsations:

https://www.miataturbo.net/showthrea...filter+circuit
Yeah, I debated whether to filter the signal electrically or pneumatically. The mechanical solution won because I had all the necessary parts already lying around and it only took a few minutes to implement without needing to unbolt anything from the car. Just cut the hose and slipped the restrictor inline a few feet from the MAP sensor, using the volume of the hose itself as the "C" in the RC circuit.


Quote:
How do TPS and TPSdot look?
At the moment, the TPS signal looks like a flat line at 0v, mostly because the analog TPS is sitting on my workbench and the TPS signal line at the ECU is grounded externally.
Joe Perez is offline   Reply With Quote
Old 02-18-2012, 02:54 AM   #120
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
MAP looks smooth enough to me.
How does MAPdot look?
JasonC SBB is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
elesjuan's mediocre 95 Miata adventure (google fiber edition) elesjuan Build Threads 8 02-16-2016 09:36 PM
Mazdaspeed 2.0L C-Spec ITB motor w/ accessories graexodus Miata parts for sale/trade 9 10-25-2015 04:34 PM
New supertech pistons /wiesco xx rings HHammerly Miata parts for sale/trade 5 10-17-2015 07:53 AM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 10:39 AM
What happened to my Dynalite? midpack Suspension, Brakes, Drivetrain 18 09-22-2015 08:52 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 09:23 AM.
