Default The "I passed emissions with MS" thread

I figured I'd start this one. If anyone else out there has passed emisisons while running a MS, post up your settings,MSQ, and any helpful tips. Other helpful things to include would be your displacement, whether or not you run a cat, injector size, etc.

My setup:

Standalone MS1 HR10g
Stock 1.6 block/head
No Cat
DSM 450cc injectors with inline resistors
92 octane
MSPNP9093 default timing map at cruise | 17* at idle

No visual inspection, idle and 25mph sniff test.

My idle and cruise AFRs were basically dead on 14.7:1. I turned off IAT corrections and just let autotune do the damn thing. Also, I kept my idle and speed at the bare minimum.
Attached Files
File Type: msq yellowmiata2.msq (31.0 KB, 130 views)

Last edited by Jeff_Ciesielski; 02-02-2010 at 12:02 PM.
Jeff_Ciesielski is offline   Reply With Quote
Old 01-23-2010, 09:02 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

what did your timing map look like, and what octane gas? I gotta do mine in Feb.
Braineack is offline   Reply With Quote
Old 01-23-2010, 09:04 PM   #3
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
what did your timing map look like, and what octane gas? I gotta do mine in Feb.
updated original post.
Jeff_Ciesielski is offline   Reply With Quote
Old 01-23-2010, 09:11 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I'm also mad you passed without a cat, I knew it could be done, but I went ahead and called up Jason @ Enthuzacar and had him whip me up this:

Braineack is offline   Reply With Quote
Old 01-23-2010, 09:12 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I was using premium which around here is 91 octane.

I selected the entire map under 100 kpa and below 3000rpm and set it to 14.7afr. Then used TS to auto tune for that air fuel ratio.

For timing, the first two columns were set to 10*, 2nd two were set to 11*, and the 5th and 6th were set to 12*.

My main problem was that for every 5-10 degrees of engine temp, I was gaining 100-200rpm in idle, putting me in a different part of my fuel/timing map. Timing was easy enough to set, but the fueling kept changing. I finally just tuned for low 15's, so if it went low at all it'd still be above 14.7.

This was just an idle test. The other 3 times I did the test and failed (crap settings), they had me do a 2500rpm test, but I think that's just to see if your cat is working. The higher EGT's at 2500rpm should produce lower emissions, if they don't then something is wrong.

Finally passed with flying colors at 950rpm, 187*, 15.3ish afr.
curly is offline   Reply With Quote
Old 01-23-2010, 10:16 PM   #6
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
I'm also mad you passed without a cat, I knew it could be done, but I went ahead and called up Jason @ Enthuzacar and had him whip me up this:


Thats a nice piece though, I bet its not much more restrictive than a test pipe. If you really feel angry, you could vent some of that rage by mailing me that vband adapter
Jeff_Ciesielski is offline   Reply With Quote
Old 01-23-2010, 10:36 PM   #7
Junior Member
iTrader: (3)

Join Date: Jun 2008
Location: NJ
Posts: 429
Total Cats: 0
Default

I passed NJ emissions in 2009 with a not-so-well tuned MS. It took several tries over two days, but it was a slow time (went on a weekday middle of the day) so i was able to get a couple of 'runs' in each day

I actually posted in a different thread (either here or on m.net) and got help from a bunch of knowledgeable guys.

If your car is tuned to around 14.7 as you mentioned, i don't see why it would be a problem.

If it helps, I ran megatune and did a log (hid my netbook behind pass. seat) while they did the test.. It seemed to be around 2500-3000 rpm at 50-75kpa, which helped me identify the cells i needed to tune.

FWIW i also got **** for having an aftermarket horn so i had to put back the stocker to pass.

-Tomaj
ctxspy is offline   Reply With Quote
Old 01-24-2010, 03:54 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Emmisions passed with flying colors, 1000rpm idle and 2000rpm standing. The gases tested were HC, NOx and O2. 14.7 afr everywhere, flat VE at 1000rpm and not-so-flat at 2000rpm. EGO correction enabled everywhere with 15% authority and 1% steps. Timing 10* at 1000rpm, 18* at 2000rpm.

Jim
Reverant is offline   Reply With Quote
Old 02-02-2010, 10:19 AM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I like this thread.

I passed the loaded low speed and high speed on the dyno. I didn't mess with timing to get it to pass. The guy was cool enough that he let me hook up the laptop and tune it while it he was actually running the test. Last time I failed for high NOx. Make sure you don't go too lean. Dialed the AFR down to 14.7 from 15, and passed with flying colors.

With Cat.
HR10g
RX-7 440cc injectors
Bryce is offline   Reply With Quote
Old 02-02-2010, 11:36 AM   #10
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Paul created a good Map for the MS to help us get thru inspection here in Jersey. Basically he turned the timing down. Nothing too advanced. I'll see if he can post the msq's later on today. He's out doing some jobs in NYC today i think.
ArtieParty is offline   Reply With Quote
Old 02-02-2010, 11:40 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I'm going to try on my current map when I test, no going to do anything special; just waiting for a weekend with clear weather.
Braineack is offline   Reply With Quote
Old 02-13-2010, 03:52 AM   #12
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

I passed by removing the MS, replacing stock sensors/ecu and leaving the wastegate open.....stupid obd2 test
mikeflys1 is offline   Reply With Quote
Old 02-23-2010, 03:35 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

No issues passing. Passed well below limits. I'll have a scan soon. I did nothing special with my msq in order to pass.
Braineack is offline   Reply With Quote
Old 02-23-2010, 11:27 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 02-24-2010, 12:03 AM   #15
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Ah, looking at your scan, I realize why I'm lucky. No visual for a cat/PCV/Evap .
Jeff_Ciesielski is offline   Reply With Quote
Old 02-27-2010, 02:26 AM   #16
Junior Member
iTrader: (1)

Join Date: Jan 2007
Location: Canton, GA
Posts: 116
Total Cats: 0
Default

The car passed the test today and it was the first shot I've had with the '01 engine in place and the VVT active.

It has passed on the first try with the MS installed the last 3 years...2 with a '99 motor and leaky #4 rings and the first with the original 1.6, granted, the tunes were different for each. This round, I ran open loop without the O2 sensor connected and a significantly smaller cat. I'm currently running the MS1 processor with the V3.0 board and obviously N/A.

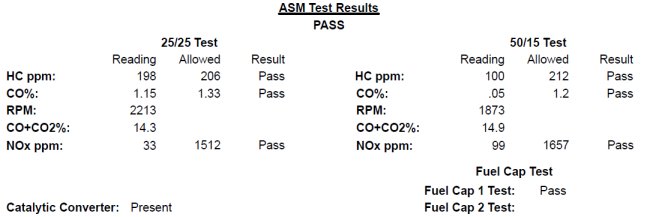

Got a touch close on the hydrocarbons on the first test...
Attached Thumbnails
The "I passed emissions with MS" thread-emissions2010.jpg
kcbhiw is offline   Reply With Quote
Old 02-27-2010, 03:51 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yeah, very close, probably a touch too rich.
Braineack is offline   Reply With Quote
Old 02-27-2010, 06:03 PM   #18
Junior Member

Join Date: Jun 2008
Posts: 71
Total Cats: 0
Default

Wait, don't they plug into the diagnostic connector to check your base timing (which won't work with MegaSquirt right?). Also are you guys faking the check-engine light (turning it on initially with a timer or something)? (I'm in CA)
holy driver is offline   Reply With Quote
Old 02-27-2010, 06:10 PM   #19
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I'm in Seattle, so we only have a sniffer, no visual, even for CELs. Also, I think most of us are pre OBD2. If you are in CA you might be SOL :/.
Jeff_Ciesielski is offline   Reply With Quote
Old 02-27-2010, 11:06 PM   #20
Junior Member
iTrader: (1)

Join Date: Jan 2007
Location: Canton, GA
Posts: 116
Total Cats: 0
Default

Quote:
Originally Posted by holy driver View Post
Wait, don't they plug into the diagnostic connector to check your base timing (which won't work with MegaSquirt right?). Also are you guys faking the check-engine light (turning it on initially with a timer or something)? (I'm in CA)
The only visual in GA is to check for the pretense of the cat. The operators only plug into cars that are 96 and newer. Anything older, a sniffer is inserted into the exhaust pipe and the car is run for a period at 25 mph and again at 15 mph.
kcbhiw is offline   Reply With Quote
