Old 12-09-2012, 12:17 AM   #21
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

one more question. For the IAC mod, i can run the diode from the middle prong of the transistor to S12, correct? as opposed to running that up near the IAC itself? Wasnt sure since i was going to send 12v power from another source than the MS2 so i wasnt sure if that would still work.
Whizbang is offline   Reply With Quote
Old 12-09-2012, 07:25 PM   #22
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

so the final question then. The diode for the IAC mod, i can run that from the middle prong of the transistor to the S12 to meet the requirement for fly back?
Whizbang is offline   Reply With Quote
Old 12-09-2012, 09:53 PM   #23
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

is the "spark output" the same as "sparkoutinv=" in Tunerstudio for the MS2? I want to make sure i have the settings for the improve spark circuit correct, and i didnt see the "sparkoutinv" option but i did see spark output and a drop down choioce of going low (normal ) and going high (inverted)
Whizbang is offline   Reply With Quote
Old 12-09-2012, 10:22 PM   #24
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
Originally Posted by Whizbang View Post
one more question. For the IAC mod, i can run the diode from the middle prong of the transistor to S12, correct? as opposed to running that up near the IAC itself? Wasnt sure since i was going to send 12v power from another source than the MS2 so i wasnt sure if that would still work.
yes
Quote:
Originally Posted by Whizbang View Post
so the final question then. The diode for the IAC mod, i can run that from the middle prong of the transistor to the S12 to meet the requirement for fly back?
yes
Quote:
Originally Posted by Whizbang View Post
is the "spark output" the same as "sparkoutinv=" in Tunerstudio for the MS2? I want to make sure i have the settings for the improve spark circuit correct, and i didnt see the "sparkoutinv" option but i did see spark output and a drop down choioce of going low (normal ) and going high (inverted)
correct, change "spark output" to going high(inverted) for the 2n222a spark mod.
MD323 is offline   Reply With Quote
Old 12-10-2012, 10:22 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

If you dont have ignitors, then yeah, you'll need to use those guys.

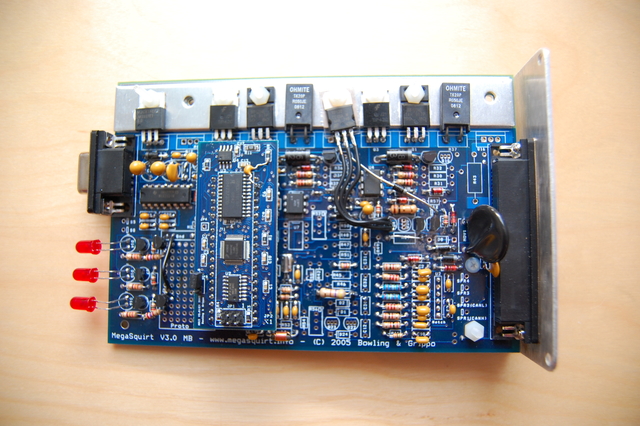

and yeah, flyback for idle mod to s12 (not s12c):

Attached Thumbnails
IAC mod on MS2 V3.0-dsc_0001.jpg
Braineack is offline   Reply With Quote
Old 12-10-2012, 11:13 AM   #26
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

awesome! i apprecaite all the help. i checked the thing out with a stim last night and its all working. I just need to add in the diode and she should be good to go. Then ill hot glue some bits to help survive the rally car's vibrations.

i called a miata parts salavage place and the ignitor is cheap enough so i wired it for the "improved spark circuit".
Whizbang is offline   Reply With Quote
Old 12-10-2012, 11:14 AM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

what car is this motor going in? the ignitor might be more of a pita to wire in than just doing the BIPs...
Braineack is offline   Reply With Quote
Old 12-10-2012, 11:41 AM   #28
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
what car is this motor going in? the ignitor might be more of a pita to wire in than just doing the BIPs...
im gonna assume his rx7 with the B6 in it.
MD323 is offline   Reply With Quote
Old 12-10-2012, 11:53 AM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default



lots of wires on that thing...
Braineack is offline   Reply With Quote
Old 12-10-2012, 12:52 PM   #30
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

yea its for the rx7. alternatively, couldnt i use two MSD-6a as my ignitors?
Whizbang is offline   Reply With Quote
Old 12-10-2012, 01:10 PM   #31
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

some form of ignitor would still be required
MD323 is offline   Reply With Quote
Old 12-20-2012, 03:23 PM   #32
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

so looking at the ignitor above, on a standalone megasqurit, where would some of those wires be going? such as #2, 5, and 7
Whizbang is offline   Reply With Quote
Old 12-20-2012, 03:30 PM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

7 and 2 would go back to the MS. those would be the spark outputs form typically the LED circuits.

5 is a 12v pull up for the tach signal.


so it would go:

1 - to coilpack 2 & 3
2 - MS spark output
3 - to coilpack 1 & 4
4 - tach output to gauge cluster
5 - 12v pull up from ECU for tach output
6 - ground
7 - MS spark output
8 - Power
Braineack is offline   Reply With Quote
Old 12-23-2012, 03:55 AM   #34
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

so i could be fine with running a jumper from S12 over to a spare out then wire that over?
Whizbang is offline   Reply With Quote
Old 12-23-2012, 08:53 AM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

I wouldn't power the ignitor/coils through the same fuse that's powering the ECU. Only two wires from the ignitor should be going back directly to the MS, and that's the spark outputs from the MS.
Braineack is offline   Reply With Quote
Old 12-23-2012, 12:34 PM   #36
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

last question then i guess is which output from the MS is for what coil. ie does spark a go to 2 or 7? Or is that a setting i can do via software?
Whizbang is offline   Reply With Quote
