Default IAT stuck at 46*

I have a MS built by Braineck and the AIT is showing 46*F when that is blatantly wrong. I wired it up right to the stock afm harness, but just shows 46*. The sensor is mounted right before the throttle body and the car has only idled for a little.

Is this a firmware issue? I searched for this but all I found where people who's sensors were reading too high and they were fine before.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 05:30 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

is it stuck at 46*F? is it is just off? Does it change when you unplug it?
Braineack is offline   Reply With Quote
Old 08-11-2009, 05:31 PM   #3
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

You didn't solder those wires did you?
gospeed81 is offline   Reply With Quote
Old 08-11-2009, 05:35 PM   #4
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by gospeed81 View Post
You didn't solder those wires did you?
Soldering is for pussies who can't crimp hard enough. No. I need to though.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 05:37 PM   #5
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Braineack View Post
is it stuck at 46*F? is it is just off? Does it change when you unplug it?
The car is away being tuned and I think he figured it out. I will know shortly. It started and just stayed at 46*. I don't know if it changes when he unplugs it. I will have him check that.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 05:40 PM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by rharris19 View Post
Soldering is for pussies who can't crimp hard enough. No. I need to though.
I feel the same way...and you're actually not supposed to solder anything that goes to a thermocouple...was making sure that wasn't the problem.
gospeed81 is offline   Reply With Quote
Old 08-11-2009, 05:40 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

the reason i ask is because the fail-safe temp is usually 60*F, but you can look at your matfactor.ini file to see what it states. I think this is a connection issue.
Braineack is offline   Reply With Quote
Old 08-11-2009, 05:44 PM   #8
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Great. Thanks for some direction on where to look. I appreciate the quick response.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 06:05 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

mine kept unplugging from the hardness and read the same.
hustler is offline   Reply With Quote
Old 08-11-2009, 08:18 PM   #10
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I had the wires mixed up so it was stuck at 73* for a while. Then i figured out one of the wires was wrong and swapped it and works perfectly.
SKMetalworks is offline   Reply With Quote
Old 08-11-2009, 08:20 PM   #11
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by sbkcocker499 View Post
I had the wires mixed up so it was stuck at 73* for a while. Then i figured out one of the wires was wrong and swapped it and works perfectly.
The polarity on these don't matter right? So you connected it up to the wrong wire completely? I will check to make sure it is on the 1 and 6.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 08:21 PM   #12
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by hustler View Post
mine kept unplugging from the hardness and read the same.
There is continuity at the sensor from the plug, so i am thinking this is the problem. Either the plug isn't getting a good connection at the IAT or the IAT is bad.
rharris19 is offline   Reply With Quote
Old 08-11-2009, 08:27 PM   #13
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I had the wrong wire completely. I had the plug held the wrong direction when finding my wires. 1 sec ill go check what colors they are.
SKMetalworks is offline   Reply With Quote
Old 08-11-2009, 08:34 PM   #14
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

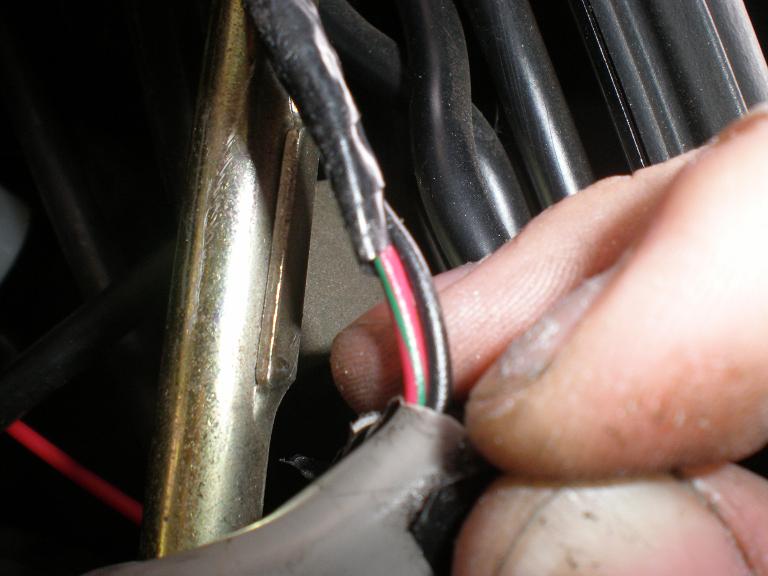

Solid black wire

Red wire with green stripe

Cheers!
Attached Thumbnails
IAT stuck at 46*-p1010125.jpg
SKMetalworks is offline   Reply With Quote
Old 08-11-2009, 08:44 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by rharris19 View Post
There is continuity at the sensor from the plug, so i am thinking this is the problem. Either the plug isn't getting a good connection at the IAT or the IAT is bad.
check the orange wire on the harness, make sure the solder joint didn't somehow break off.
Braineack is offline   Reply With Quote
Old 08-12-2009, 08:17 PM   #16
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Problem solved. I'm an idiot and hooked the wire up to the 2 and 7, not 1 and 6 at the AFM. I didn't even pay attention to the wire colors because I was cocky and thought "I think I know how to count". I can, just counted them with the harness upside down.
rharris19 is offline   Reply With Quote
Old 08-12-2009, 08:20 PM   #17
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Exactly what i did
SKMetalworks is offline   Reply With Quote
Old 08-12-2009, 10:25 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

glad you figured it out!
