Old 01-05-2008, 03:14 AM   #21
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Good looking out, man.
IcantDo55 is offline   Reply With Quote
Old 01-05-2008, 03:51 AM   #22
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

okay so does it go where the green line is on my attachment????
Attached Thumbnails
If You Bought a MS From Me And Your EBC Is Not Working-mica.jpg
turbobluemiata is offline   Reply With Quote
Old 01-05-2008, 02:25 PM   #23
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The last one on the heatsink closest to the DB37. It's the one with a resistor on it.
cjernigan is offline   Reply With Quote
Old 01-05-2008, 02:33 PM   #24
Junior Member

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

sorry about the joke, I didn't think it would be taken seriously, but i suppose it is hard to tell when youre on the interet. as far as subscribing goes, I was actually going to and I wrote rick an email about it before the ban. i'm sure your products are of excellent quality, and the knowledge you have is overwhelming. i have read a lot of your posts, and learned a lot from them.

thanks for letting me continue to contribute and learn.
compy is offline   Reply With Quote
Old 01-05-2008, 06:40 PM   #25
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I went looking for it the mica insulator today at the radio shack. Only 1 radio shack in brooklyn had it in stock and even then only 3 pieces according to the first one i went too. When I got there it wasn't in the parts cabinet, the women went in the back and spent 15 minutes looking, found 3 packages. The boxes look like something radio shack sold 15 years ago. The package had 2 mica insulators, which is nice.

Just something to keep in mind, radioshack may be problematic, at least in brooklyn.

edit: Oh yea, it made my EBC work. Now just to..... have an ebc...... to plug into it.
Saml01 is offline   Reply With Quote
Old 01-06-2008, 12:12 AM   #26
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The radioshack i went to said they had 5 in stock. 4 of them had been stolen or lost. I got the last one.
cjernigan is offline   Reply With Quote
Old 01-06-2008, 07:34 AM   #27
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by compy View Post
sorry about the joke, I didn't think it would be taken seriously, but i suppose it is hard to tell when youre on the interet. as far as subscribing goes, I was actually going to and I wrote rick an email about it before the ban. i'm sure your products are of excellent quality, and the knowledge you have is overwhelming. i have read a lot of your posts, and learned a lot from them.

thanks for letting me continue to contribute and learn.
The amazing power of the internet to offend and amaze people.
magnamx-5 is offline   Reply With Quote
Old 01-06-2008, 10:12 AM   #28
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

still a poor *** joke.
Braineack is online now   Reply With Quote
Old 01-06-2008, 12:43 PM   #29
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
still a poor *** joke.
You know those moments when your mom nudges you to say the right thing even though you really dont want too, well right now is one of those moments.

Kiss and make up.
Saml01 is offline   Reply With Quote
Old 01-14-2008, 08:35 AM   #30
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

I'm wondering if this could be my problem as well. I used the diyautotune mod except I put a heatsink on. I think it might be grounding to the top of the case (I had to squeeze it in there). I hear the solenoid clicking correctly it seems, but maybe I'm wrong.

I have the turbo connected to the input, my WG to the output, it passes through to the WG when the power is disconnected (I blew through the hose to check) and if I put the DC up to 100, it doesn't make the clicking sound (since it's always closed I assume) and I still only get 6psi which is what my WG is set at.

With the insulation problem, is it intermittent issues, or does it not work at all?
TrickerZ is offline   Reply With Quote
Old 01-14-2008, 09:17 AM   #31
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

intermitent for sure.
magnamx-5 is offline   Reply With Quote
Old 01-14-2008, 09:39 AM   #32
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

Quote:
Originally Posted by TrickerZ View Post
With the insulation problem, is it intermittent issues, or does it not work at all?

the problem has been it simply doesnt work at all, sounds like yours may be hitting the case and it's grounding out. if you hear it click its activating.

when i built my first one i did the same with a heatsink:



it didnt fit good so I bend over the legs:

Braineack is online now   Reply With Quote
Old 01-14-2008, 09:59 AM   #33
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Brain, I wanna make babies with you!

This is such sweet news. I can't wait to get the motor finished up and give this thing a spin. I'm still gonna run only 8psi, but the EBC should make it spool a lot better. I've got a Radio Shack around the corner... hopefully they've received a shipment of insulators this century.
samnavy is offline   Reply With Quote
Old 01-14-2008, 10:08 AM   #34
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

i just feel bad cause i didnt know this was the case, however i suspected it when people kept saying it never worked.
Braineack is online now   Reply With Quote
Old 01-17-2008, 09:02 PM   #35
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

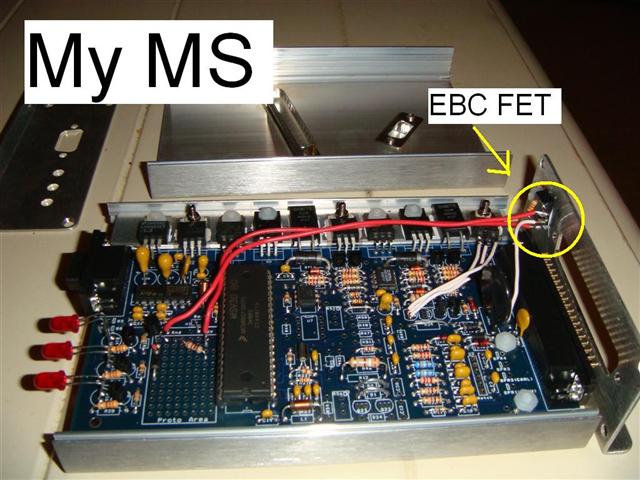

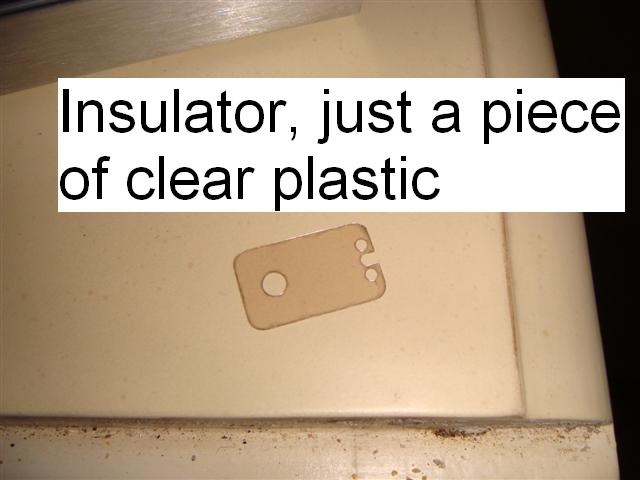

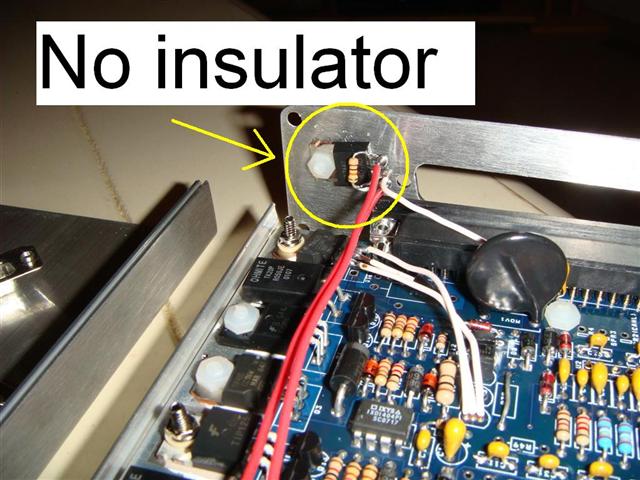

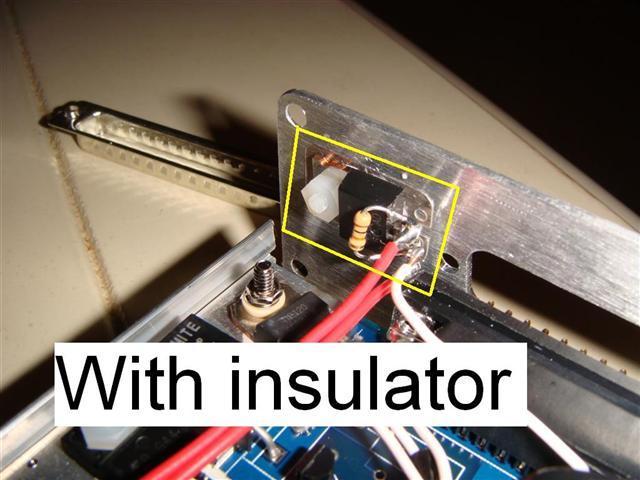

I performed my fix. My EBC FET was actually attached to the case-end... making slipping the insulator under it very easy. Here are some pics. No sweat. It's pouring rain out here now, so testing it will have to wait until tomorrow. Cheers.
Attached Thumbnails
If You Bought a MS From Me And Your EBC Is Not Working-dsc00770-large-small-.jpg   If You Bought a MS From Me And Your EBC Is Not Working-dsc00774-small-.jpg   If You Bought a MS From Me And Your EBC Is Not Working-dsc00773-large-small-.jpg   If You Bought a MS From Me And Your EBC Is Not Working-dsc00776-large-small-.jpg
samnavy is offline   Reply With Quote
Old 01-18-2008, 12:48 AM   #36
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

thanks for the pics sam!
Braineack is online now   Reply With Quote
Old 01-30-2008, 06:52 PM   #37
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

I'm now able to bench test these suckers before I send them out!

Braineack is online now   Reply With Quote
Old 02-07-2008, 07:21 PM   #38
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

If any of you put the insulator in and it still doesn't work. i have the fix.

it seems some of these kits came with a 100k ohm resistor instead of a 100ohm resistor. it will never work with a 100k resistor.

so the fix is: install insulator, replace 100k resistor off js2 with 100ohm resistor.


you can tell if you have the incorrect 100k resistor if the color bands are brown black yellow.
Braineack is online now   Reply With Quote
Old 02-07-2008, 11:13 PM   #39
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

Can you check on mine too when you receive mine in the mail?
JDMAflac is offline   Reply With Quote
Old 02-08-2008, 12:17 AM   #40
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

yep, had planned to. will run it on my car be i send it back as well.
Braineack is online now   Reply With Quote
